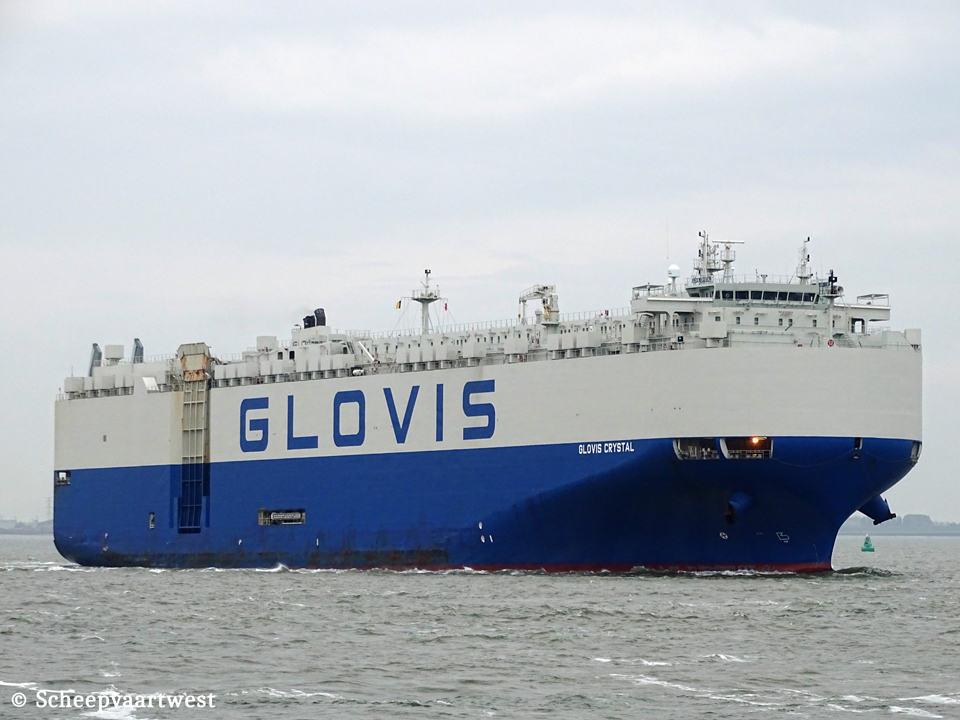

Glovis Crystal IMO 9707003 01
Westerschelde 24 April 2017

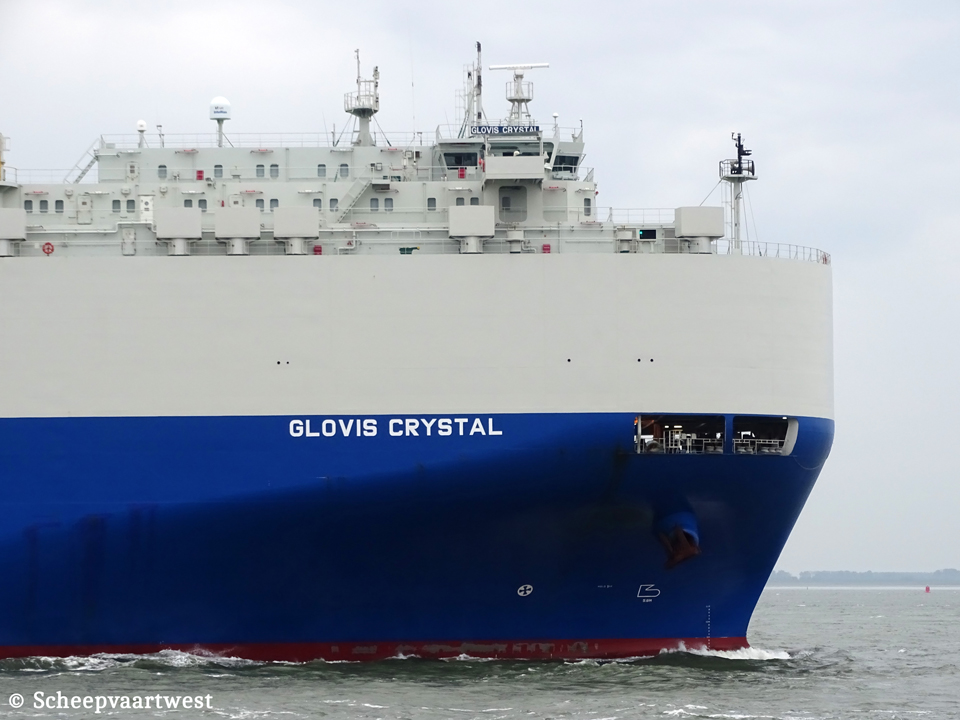

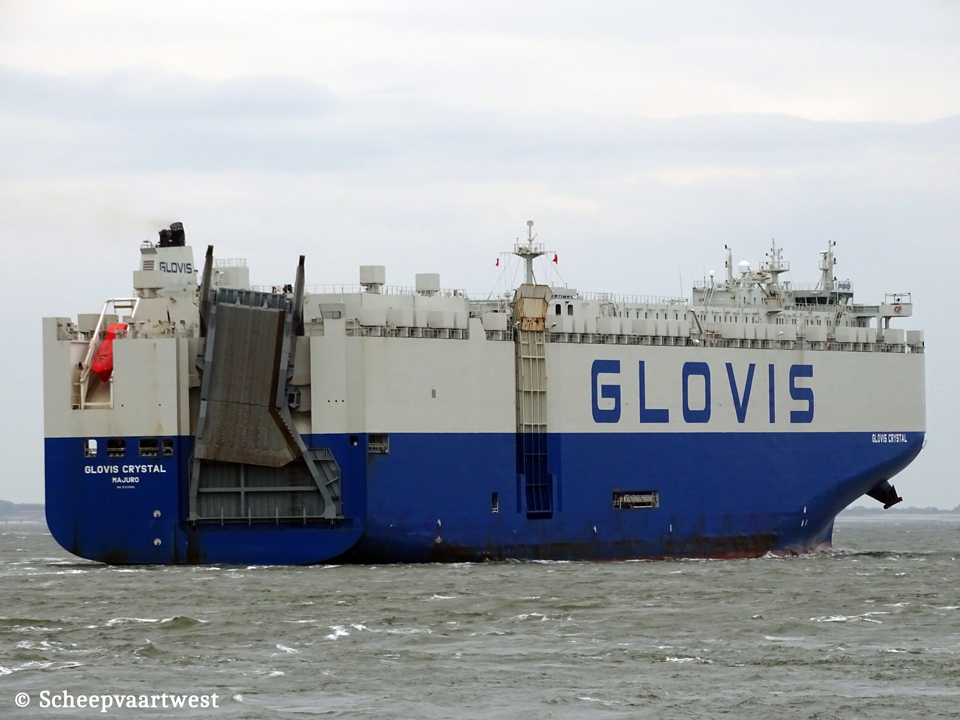

Glovis Crystal IMO 9707003 04   Glovis Crystal IMO 9707003 02
Westerschelde 24/04/17   Westerschelde 24/04/17


Name

GLOVIS CRYSTAL

Type

Roll-On/Roll-Off carrier - Vehicle carrier

PCTC - Pure Car and Truck Carrier

IMO-number

9707003

Call sign

V7JT4

Flag

Marshall islands

Port of registry

Majuro

GT

59.954 t

DWT

20.019 t

NT

20.619 t

Length

199,98 m overall

Breadth

32,26 m

Draught

Summer: 10,01 m

Reg. dimensions L x Bx D

193,02 x 32,26 x 20,38 m

Rule dimensions L x Bx D

188,60 x 32,26 x 14,30 m

Freeboard

Summer: 3.040 mm

Depth

20,38 m

Speed

Max: 19,9 knots

Service: 13,4 knots

Built

2015

Keel laid

30/04/2014

Launch date

18/10/2014

Date of completion

17/02/2015

Builder

Hyundai Samho Heavy Industries Co., Ltd.

Yeongam

South Korea

Yard number

S-676

Hull material

Steel

Main engine

1x MAN-B&W 6S60ME-C8 - 2 stroke single acting 6 cylinder 600 x 2.400 mm combustion engine 12.560 kW / 17.078 hp at 101,5 rpm

Build: 12/06/2014

Manufacturer: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Kotrea

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary Boiler WTB - 8,8 kg/cm²

Heating surface: 30,2 m³

2x Economizer EGE - 12,7 kg/cm²

Heating surface: 164 m³

Build: 15/05/2014

Manufacturer: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea

Generators

1x Main diesel generatorset 1.125 kVA - 450 Volt

2x Main diesel generatorsets each 1.688 kVA - 450 Volt

Bow thruster

1x 1.343 kW

Number of ramps

2

Number of cars

6.612

Tank capacities

Fuel oil: 3.654,5 m³

Fresh water: 325,9 m³

Water ballast: 9.503,1 m³

Commercial manager

Hyundai Glovis Co., Ltd.

512, Yeongdong-daero, Gangnam-gu

Seoul, 06172

South Korea

ISM Manager

G-Marine Service Co., Ltd.

331, Jungang-daero, Dong-gu

Busan, 48792

South Korea

Registered owner

GL NV28 Shipping Inc.

Care of Hyundai Glovis Co Ltd.

512, Yeongdong-daero, Gangnam-gu

Seoul, 06172

South Korea

Latest data adjustment

05 March 2023
