| Westerschelde 19 December 2014 |
 |
|
| Westerschelde 19/12/14 | |
|
Name |

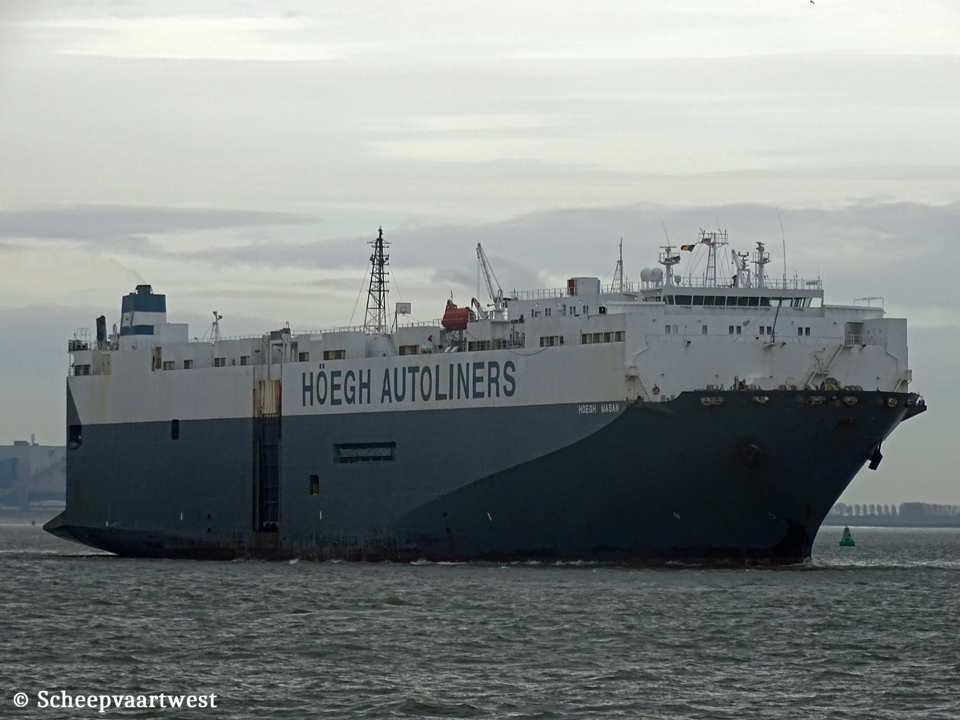

HÖEGH MASAN |
|
Previous names |
1997 - 2008 Maersk Teal 2008 - 2011 CSAV Rio Salado |
|
Type |
Roll-On/Roll-Off Vehicles carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9166704 |
|
Call sign |
S6HK |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
44.219 t |
|
DWT |
Summer: 12.490 t |
|
NT |
13.265 t |
|
Length |
179,47 m overall 170,00 m between perpendiculars |
|
Breadth |
32,23 m extreme |
|
Draught |
Summer: 8,75 m |
|
Freeboard |
6.800 mm |
|
Depth |
29,60 m |
|
Speed |
19,8 knots |
|
Built |
1998 |
|
Keel laid |
09/05/1998 |
|
Launch date |
18/08/1998 |
|
Date of completion |
07/12/1998 |
|
Builder |
Hashihama Shipbuilding Co., Ltd. - Tadotsu Yard Imabari Japan |
|
Yard number |
1140 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsui/Man-B&W 7S60MC - 2 stroke 7 cylinder 600 x 2.292 mm combustion engine 18.900 bhp / 13.900 kW at 105,0 rpm Builder: Mitsui Zosen K.K., Tamano - Japan |
|
Propellers |
1x Fixed pitch mono-block propeller |
|
Boilers |
1x Auxiliary boiler, oil fired - 7,8 bar 1x Auxiliary boiler, exhaust gas heated (Economizer) - 11,3 bar |
|
Generators |
3x MAN 6L28/32H main diesel generatorsets each 1.170 kW |
|
Emergency generator |
1x MAN Truck D2866 E diesel generatorset |
|
Bow thruster |
1x Kawasaki KT-130B1, aft 1x Kawasaki KT-130B1, forward |
|
Number of decks |
10 |
|
Hoist able decks |
3 |
|
Deck area |
39.380 m² |
|
Car capacity (RT43) |
4.400 1 RT43 unit = 7,38975 m² |
|
Capacity car / truck |
1.540 / 470 |
|
Max. Ro-Ro dimensions |
Height: 5,10 m Width: 7,00 m Ramp weight capacity: 80 t |
|
Tank capacities |
Ballast: 6.165,9 m³ Bunker capacity: 2.794 t |
|
Anchor equipment |
Length: 330,00 m Diameter: 70 mm |
|
Manager |
Höegh Autoliners Management AS Oslo Norway |
|
Operator |
Höegh Autolines |
|
Registered owner |
Höegh Autoliners Shipping Pte. Ltd. Singapore republic of Singapore |
|
Previous names & owners |
|
|
Renamed |
11/2022 Soo Shin Republic of panama City - Call sign: 3E3409 Owner: Soo Shin Maritime SA Manager: Doriko Ltd. |
|
Latest data adjustment |
19 November 2023 |
