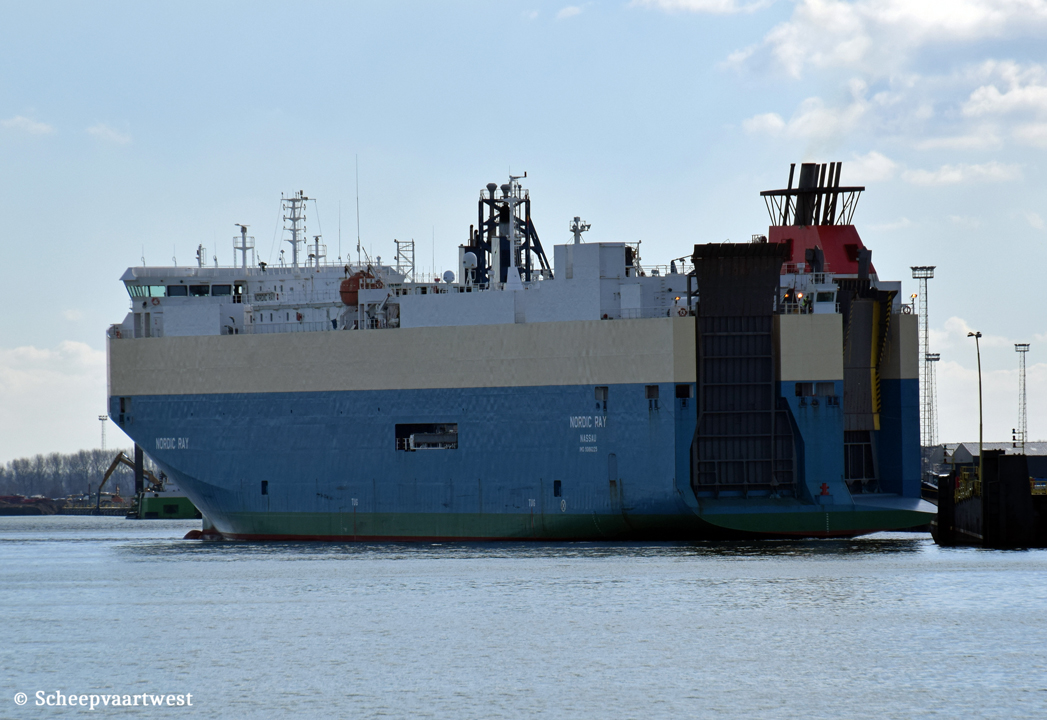

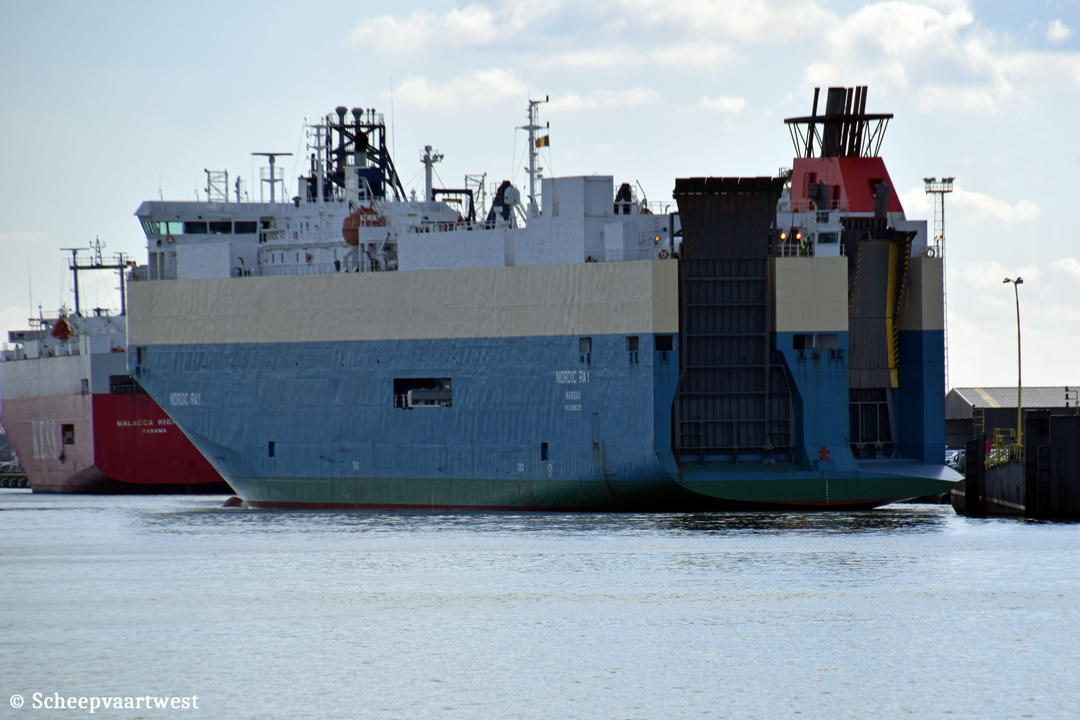

| Zeebrugge 04 March 2024 |
 |
|
| Zeebrugge 04/03/24 | |
|
Name |
NORDIC RAY |
|
Previous names |
2007 - 2018 Nordic Ace |
|
Type |
Roll-On/Roll-Off carrier - Vehicle carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9386225 |
|
Call sign |
C6WE6 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
23.498 t |
|
DWT |
7.378 t |
|
NT |
7.050 t |
|
Length |
148,00 m overall 134,63 m between perpendiculars |
|
Breadth |
25,02 m extreme |
|
Draught |
Summer: 7,90 m |
|
Air draft |
39,00 m |
|
Depth |
19,00 m |
|
Speed |
18,9 knots |
|
Built |
2007 |
|
Keel laid |
27/04/2007 |
|
Launch date |
03/10/2007 |
|
Date of completion |
09/11/2007 |
|
Builder |
Stocznia Gdynia S.A. Gdynia Poland |
|
Yard number |
8245/6 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Cegielski/MAN-B&W 7S46MC-C - 2 stroke 7 cylinder 460 x 1.932 mm combustion engine 9.170 kW / 12.467 hp at 129,0 rpm |
|
Propellers |
1x Mono-block fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated Aalborg Type AV-7 1x Auxiliary boiler, oil/gas fired AR-3C |
|
Generators |
3x Daihatsu 8DK(M)-20 diesel generatorsets Builder: Daihatsu Diesel Mfg. Co. Ltd Moriyama Divisio |
|
Emergency generator |
1x 645 DSBA(E)G diesel generatorset Builder: AGCO Power Oy |
|
Thruster |
1x 1.000 KW, forward 1x 600 kW, aft |
|
Number of ramps |
2 |
|
Number of cars |
2.132 |
|
Deck area |
17.664 m² |
|
Tank capacities |
Ballast: 3.821,65 m³ |
|
Lifting equipment |
Length: 577,50 m Diameter: 60 mm |
|
Crew |
24 |
|
Manager |
Stamco Ship Management Co. Ltd. Akti Miaouli 21 Piraeus 185 35 Greece |
|
Registered owner |
Nordic Highway Limited C/o Ray Car carriers 4th Floor - 1, Circular Road Douglas - Isle of Man United Kingdom |
|
Latest data adjustment |
09 March 2024 |
