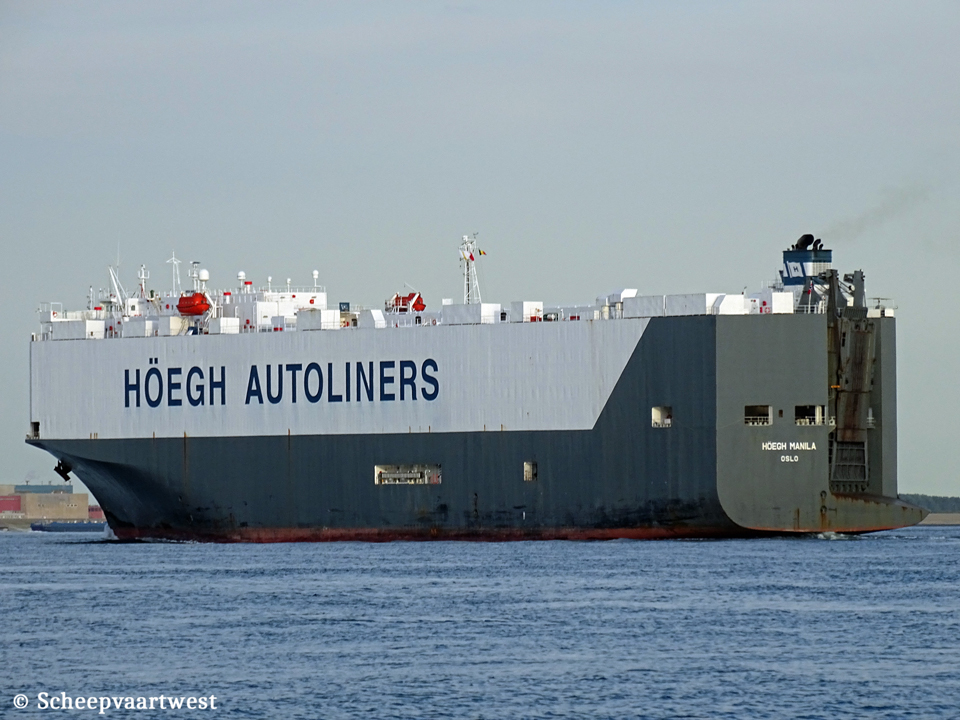

Höegh Manila IMO 9368912 01
Westerschelde 10 September 2016


Name

HÖEGH MANILA

Type

Roll-On/Roll-Off carrier - Vehicle carrier

PCTC - Pure Car and Truck Carrier

IMO-number

9368912

Call sign

LAEC7

Flag

Norway

Port of registry

Oslo

GT

51.964 t

DWT

17.252 t

NT

15.590 t

Light displacement

14.775 t

Length

179,90 m overall

170,00 m between perpendiculars

Breadth

32,20 m

Draught

Summer: 9,62 m

Keel to mast end

47,22 m

Depth

21,62 m

Speed

Max: 19,3 knots

Built

2007

Keel laid

29/07/2006

Launch date

31/07/2007

Date of completion

13/12/2007

Builder

Tsuneishi Heavy Industries (Cebu) Inc.

Balamban, Cebu

PHilippines

Yard number

SC-091

Hull material

Steel

Main engine

1x MAN-B&W 7S60MC-C - 2 stroke 7 cylinder 600 x 2.400 mm combustion engine 15.820 kW / 21.509 hp at 105,0 rpm

Propellers

1x Mono-block propeller

Boilers

Auxiliary boiler, exhaust gas heated

Auxiliary boiler, oil/gas fired

Generators

3x Daihatsu 8DK-20 main diesel generatorsets

Bow thruster

1x Tunnel thruster1.300 kW

Number of ramps

2

Side port ramp: 25,00 x 6,50 - SWL 22,0 t

Aft ramp: 38,00 x 7,00 m - SWL 150,0 t

Number of cars

5.400

Number of decks

12

Total area: 46.240 m²

Tank capacities

7.499,7 m³

Anchor equipment

Length: 660,00 m

Diameter: 78 mm

Commercial manager

Höegh Technical Management Inc.

ISM manager

Höegh Autoliners Management AS

Drammensveien 134

0277 Oslo

Norway

Registered owner

Höegh Autoliners Shipping AS

Drammensveien 134

0277 Oslo

Norway

Latest data adjustment

30 March 2024
