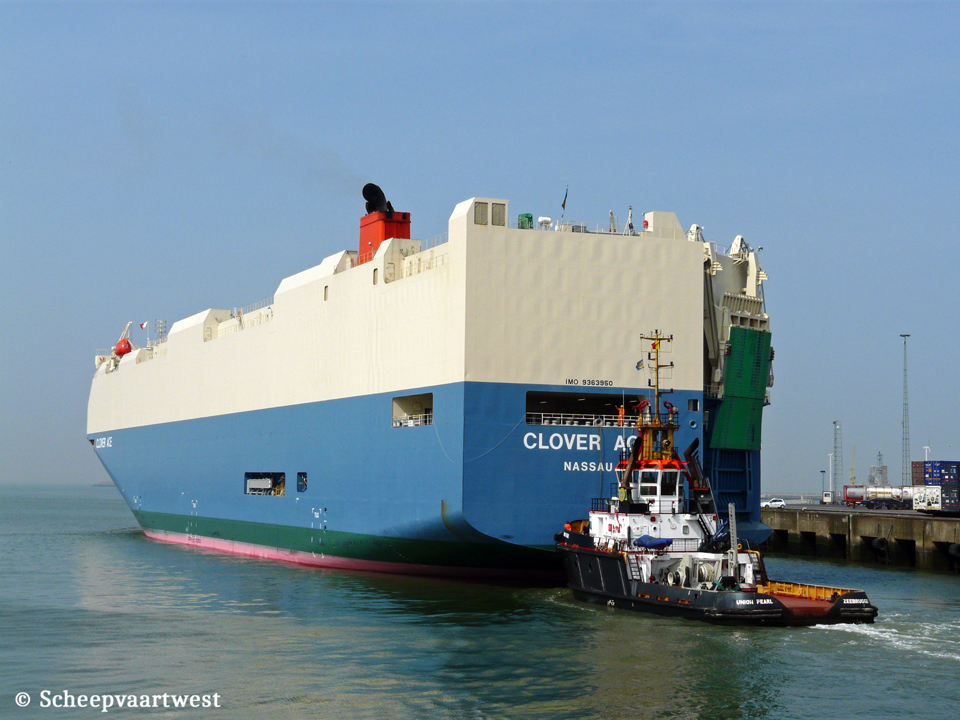

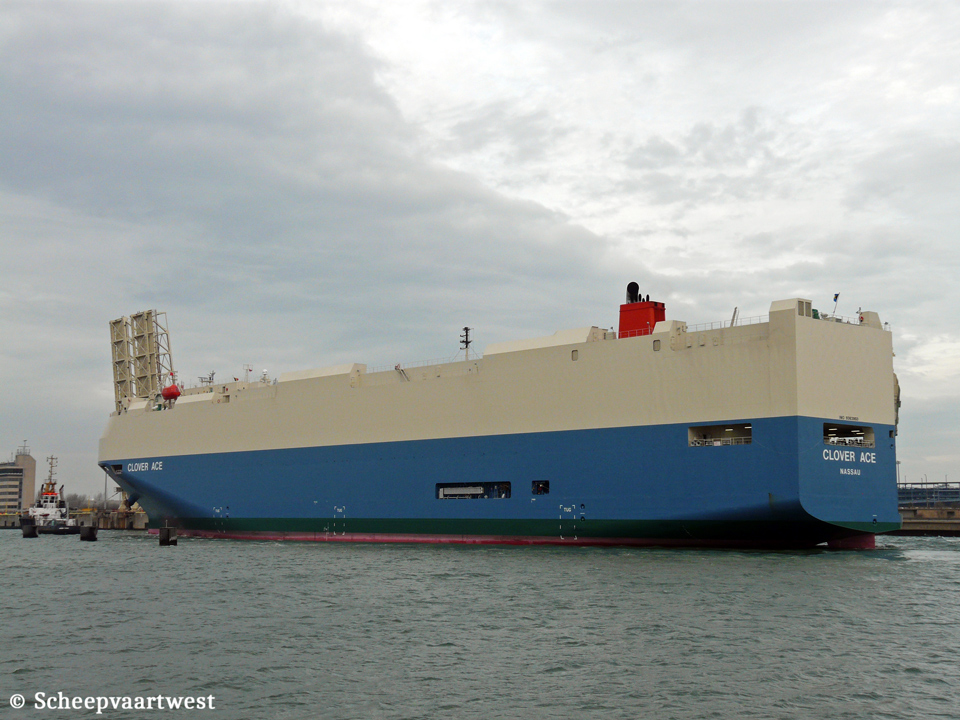

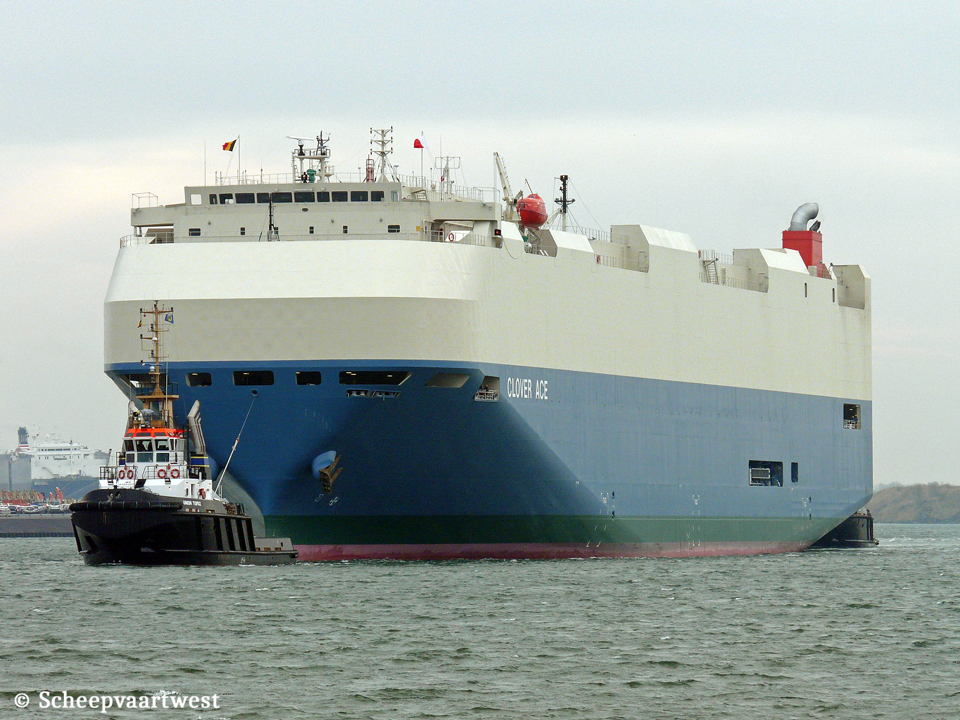

| Zeebrugge 12 January 2009 |
 |
 |
|
| Zeebrugge 12/01/09 | Zeebrugge 15/04/09 | |
|
Name |
CLOVER ACE |
|
Type |
Roll-On/Rollo-Off carrier - Vehicles carrier |
|
IMO-number |
9363950 |
|
Call sign |
D5JC8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
11/2008 - 10/2015 Bahamas, Nassau - Call sign: C6XI9 |
|
GT |
60.065 |
|
DWT |
17.280 t |
|
NT |
18.543 |
|
Length |
199,99 m overall |
|
Breadth |
32,26 m overall |
|
Moulded L x B x D |
192,00 x 32,26 x 14,65 m |
|
Registered L x B x D |
193,94 x 32,26 x 21,17 m |
|
Draught |
9,725 m |
|
Freeboard |
Summer: 4.965 mm |
|
Speed |
Service: 18,4 knots Max.: 20,8 knots |
|
Built |
2008 |
|
Keel laid |
12/05/2008 |
|
Launch date |
03/09/2008 |
|
Date of completion |
17/11/2008 |
|
Builder |
Toyohashi Shipbuilding Co. Ltd. Toyohashi Japan |
|
Yard number |
3613 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x 2 stroke single acting 8 cylinder 600 x 2.300 mm combustion engine 19.090 kW at 98,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 665 mm |
|
Propeller |
1x Fixed keyless propeller |
|
Boiler |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 3,82 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generatorsets total 4.275 kVA |
|
Car capacity |
6.287 |
|
Tank capacities |
Fuel oil: 2.991 m³ Fresh water: 404 m³ Water ballast: 7.372 m³ |
|
Lifting equipment |
2x Cranes - SWL 4,0 t |
|
Crew |
25 |
|
ISM & commercial manager |
Osaka Fleet Co., Ltd. 25-13, Edobori 1-chome, Nishi-ku, Osaka-shi, Osaka-fu, 550-0002 Japan |
|
Previous manager |
MOL Ship Management (Singapore) Pte. Ltd. |
|
Owner |
Aurora Car Maritime Transport Panama Republic of Panama |
|
Registered owner |
Golden Helm Shipping Co., S.A. C/o Osaka Fleet Co Ltd 25-13, Edobori 1-chome, Nishi-ku, Osaka-shi, Osaka-fu, 550-0002 Japan |
|
Previous owner |
Aurora Car Maritime Transport S.A. |
|
Latest data adjustment |
23 March 2025 |
