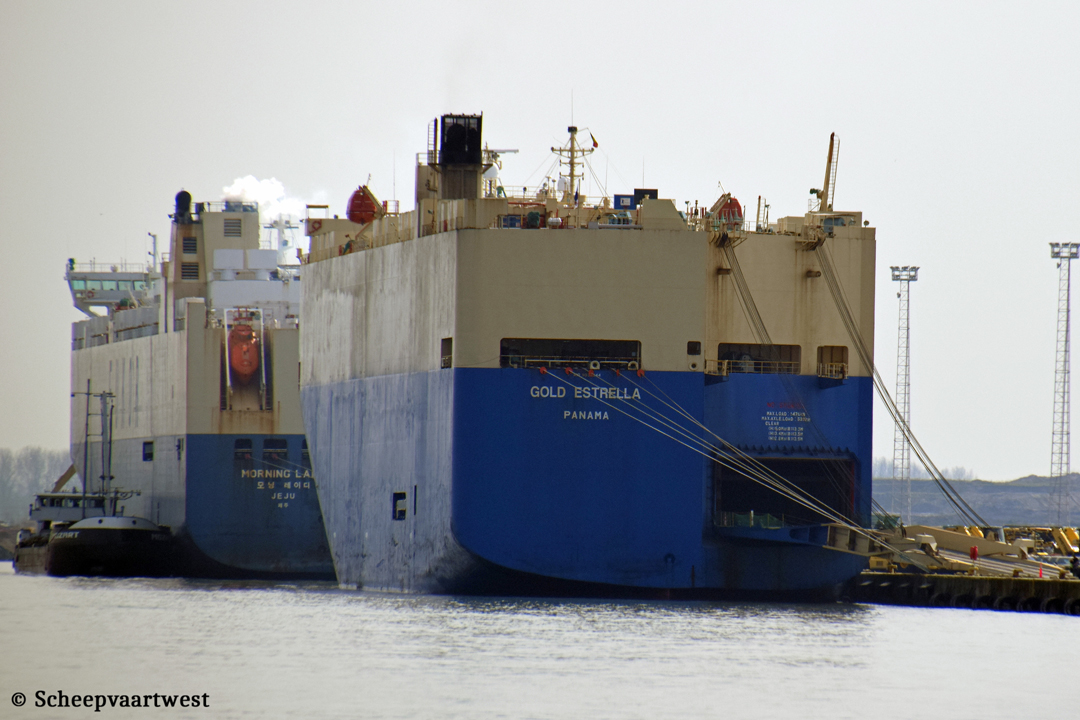

Gold Estrella IMO 9339844 01
Zeebrugge 20 March 2024


Name

GOLD ESTRELLA

Previous names

Grand Pearl

Type

Roll-On/Roll-Off carrier

PCC - Pure Car Carrier

IMO-number

9339844

Call sign

3EPV3

Flag

Republic of Panama

Port of registry

Panama City

GT

59.217 t

DWT

18.090 t

NT

17.766 t

Length

199,90 m over all

Breadth

32,26 m

Draught

Summer: 9,62 m

Register dimensions L x B x D

194,70 x 32,26 x 25,33 m

Rule Dimensions L x B x D

192,00 x 32,26 x 35,80 m

Freeboard

Summer: 4.664 mm

Depth

35,80 m

Speed

20,6 knots

Built

2008

Keel laid

15/12/2004

Launch date

10/01/2008

Date of completion

03/04/2008

Builder

Shin Kurushima Toyohashi Shipbuilding Co., Ltd.

Toyohashi

Japan

Yard number

3606

Hull material

Steel

Hull type

Single hull

Watertight bulkheads

5

Main engine

1x MAN-B&W 7S60MC - 2 Stroke single acting 7 cylinder 600 x 2.292 mm combustion engine 14.280 kW at 105,0 rpm

Built: 2007

Builder: Mitsui Engineering & Shipbuilding Co.,Ltd. Tamano Works, Tamano - Japan

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary steam type boiler - 6,9 bar

Heating Surface: 44,8 m²

1x Auxiliary steam type boiler - 10,9 bar

Heating Surface: 171,2 m²

Built: 2008

Builder: Tortoise Engineering Co., Ltd., Ehime - Japan

Generators

4x Main diesel generatorsets 1.200 kVA - 450 Volt

Number of decks

9

Number of ramps

3

Tank capacities

Fuel oil: 3.132,70 m³

Fresh water: 466,00 m³

Water ballast: 10.155,20 m³

Crew

22

Commercial manager

Cido Shipping (H.K.) Co., Ltd.

20th Floor, World Wide House, 19, Des Voeux Road Central

Hong Kong

China

ISM manager

Cido Shipping(Korea) Co., Ltd. (Pusan Site)

3rd & 4th Floors, 798, Jungang-daero, Busanjin-gu

Busan, 614-706

South Korea

Registered owner

Dynamic Climber Shipping S.A.

Care of Cido Shipping (HK) Co Ltd.

20th Floor, World Wide House, 19, Des Voeux Road Central

Hong Kong

China

Latest data adjustment

16 April 2024
