| Westerschelde 09 August 2017 |
|
Name |

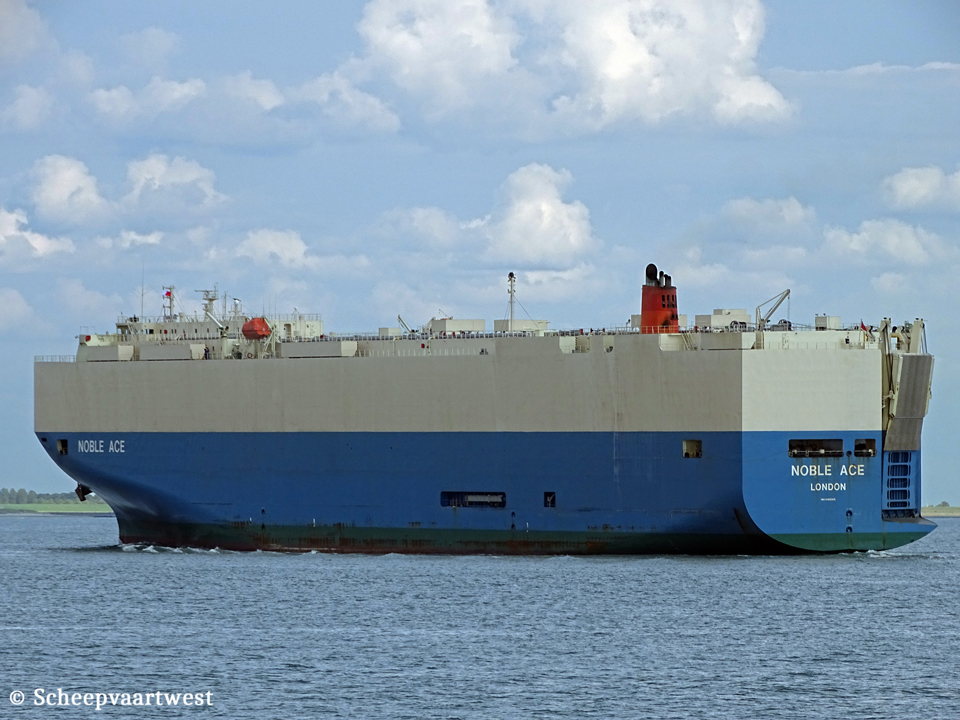

NOBLE ACE |
|
Type |
Roll-On/Roll-Off carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9493365 |
|
Call sign |
2ELO7 |
|
Flag |
United Kingdom |
|
Port of registry |
London |
|
GT |
59.515 t Suez: 64.622,87 t |
|
DWT |
18.946 t |
|
NT |
19.125 t Suez: 60.608,65 t Panama: 59.440 t |
|
Displacement |
34.730 t |
|
Length |
199,97 m overall 192,00 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 10,02 m |
|
Freeboard |
5.714 mm |
|
Depth |
34,48 m moulded |
|
Speed |
Max: 21,8 knots |
|
Build |
2011 |
|
Keel laid |
05/10/2010 |
|
Delivery date |
03/06/2011 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Marugame Headquarters 30 Showa-Cho, Marugame City, 763-0061 Japan |
|
Yard number |
1532 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi 8UEC60LS - 2 stroke 8 cylinder 600 x 2.300 mm combustion engine 13.260 kW / 18.028 hp at 100 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propellers |
1 Fixed pitch propeller Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Auxiliary boiler - 6,0 MPa 1x Exhaust gas economizer - 6,0 MPa Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 1.100 kW Manufacturer: Taiyo Electric Co., Ltd. |
|
Bow thruster |
1x 1.250 kW |
|
Number of ramps |
2 |
|
Tank capacities |
Diesel oil: 125,56 m³ Ballast: 9.329,67 m³ Fresh water: 670,75 m³ Lub oil: 2,79 m³ Fuel oil: 2.728,88 m³ |
|
Crew size |
25 |
|
ISM & commercial manager |
Zodiac Maritime 5th Floor, Portman House 2, Portman Street London, W1H 6DU United Kingdom |
|
Registered owner |
Ben Nevis Shipping Inc. Care of Zodiac Maritime Ltd. 5th Floor, Portman House, 2, Portman Street London, W1H 6DU United Kingdom |
|
Latest data adjustment |
01 October 2024 |
