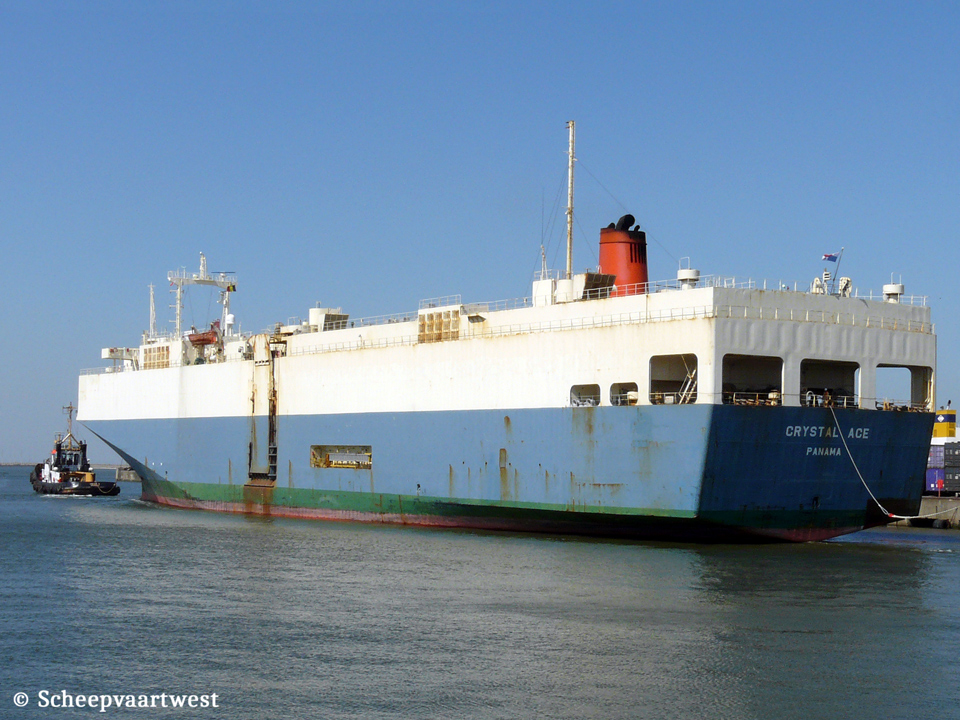

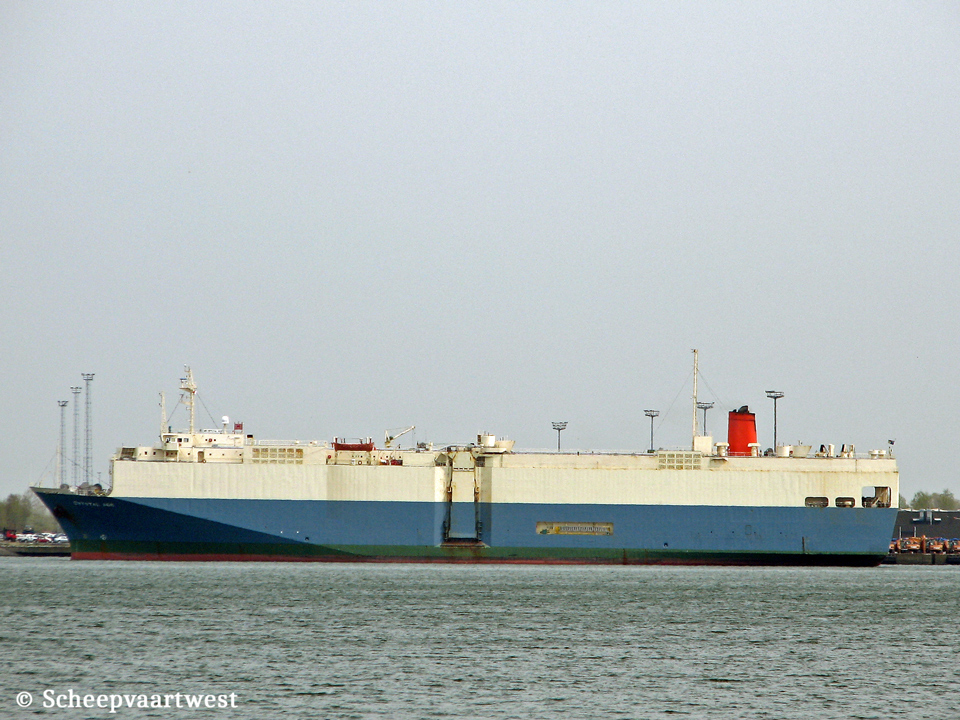

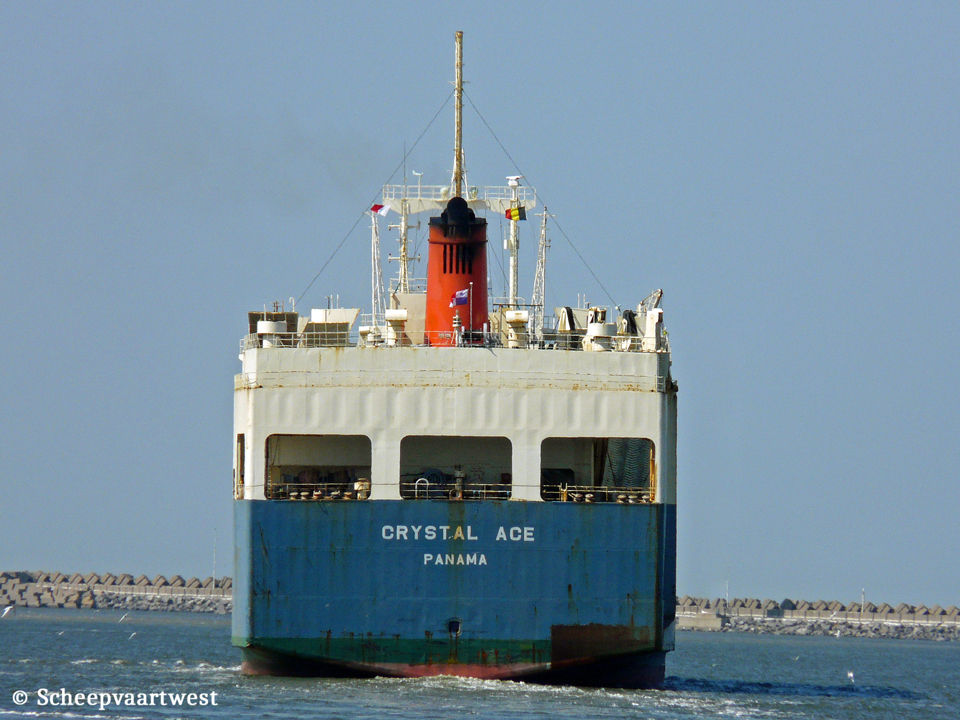

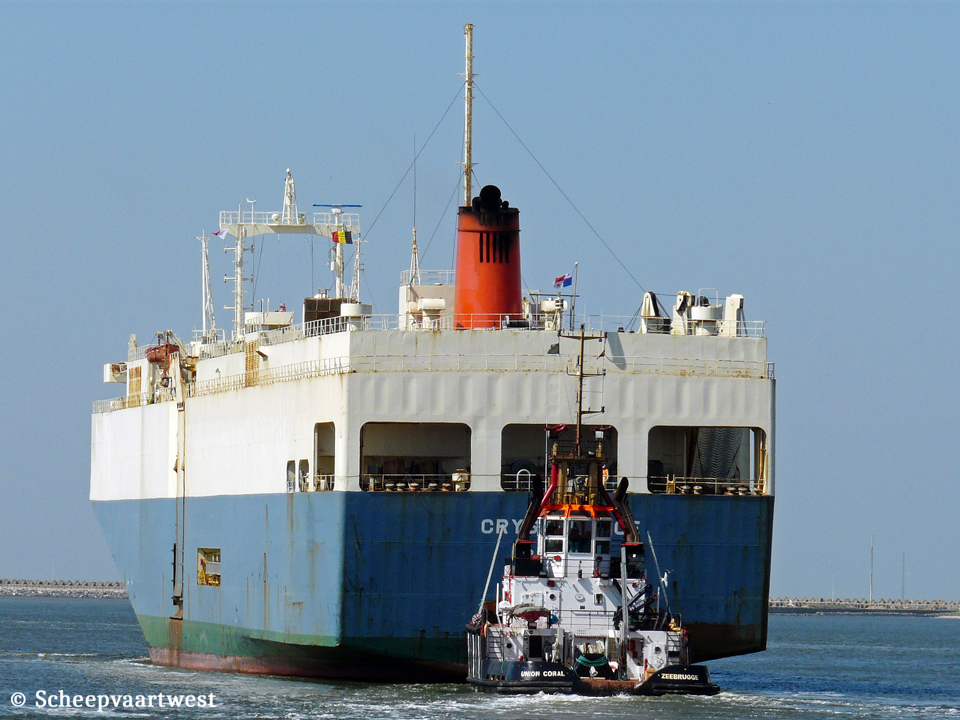

| Zeebrugge 08 May 2008 |
 |
 |
 |
||
| Zeebrugge 08/05/08 | Zeebrugge 08/05/08 | Zeebrugge 04/05/06 | ||
|
Name |
CRYSTAL ACE |
|
Type |
Roll-On/Roll-Off carrier - Vehicles Carrier |
|
IMO-number |
8211538 |
|
Call sign |
3EJY2 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
27.566 |
|
DWT |
10.538 t |
|
NT |
8.270 |
|
Light displacement |
8.112 t |
|
Length |
161,37 m overall |
|
Breadth |
26,83 m overall |
|
Draught |
Summer: 8,61 m |
|
Freeboard summer |
Summer: 1.956 mm |
|
Depth |
19,03 m |
|
Speed |
Service: 17,5 knots |
|
Built |
1983 |
|
Keel laid |
06/07/1982 |
|
Launch date |
15/12/1982 |
|
Date of completion |
21/02/1983 |
|
Builder |
Watanabe Zosen K.K. Shipbuilding |
|
Yard number |
219 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi 7UEC60HA - 2 stroke single acting 7 cylinder 600 x 1.500 mm combustion engine 9.267 kW / 12.600 bhp at 128 rpm |
|
Number of screws |
1 |
|
Boiler |
1x Auxiliary vertical boiler - 7,9 bar |
|
Generators |
2x Generatorsets total 2.000 kVA |
|
Capacity car / trucks |
2.865/ 784 |
|
Lifting equipment |
1x Crane - SWL 5,0 t |
|
Tank capacities |
Fuel oil: 1.951 m³ |
|
Manager |
Mitsui Kinkai Kisen Co. Ltd. |
|
Shipping company |
Mitsui O. S. K. Line (MOL) |
|
Owner |
Sunny Ace Shipping SA |
|
Scrapped |
08/05/2009 at Alang - India |
|
Latest data adjustment |
24 March 2025 |
