| Zeebrugge 08 April 2010 |
 |
 |
 |
||
| Zeebrugge 08/04/10 | Zeebrugge 07/04/10 | Zeebrugge 08/04/10 | ||
|
Name |

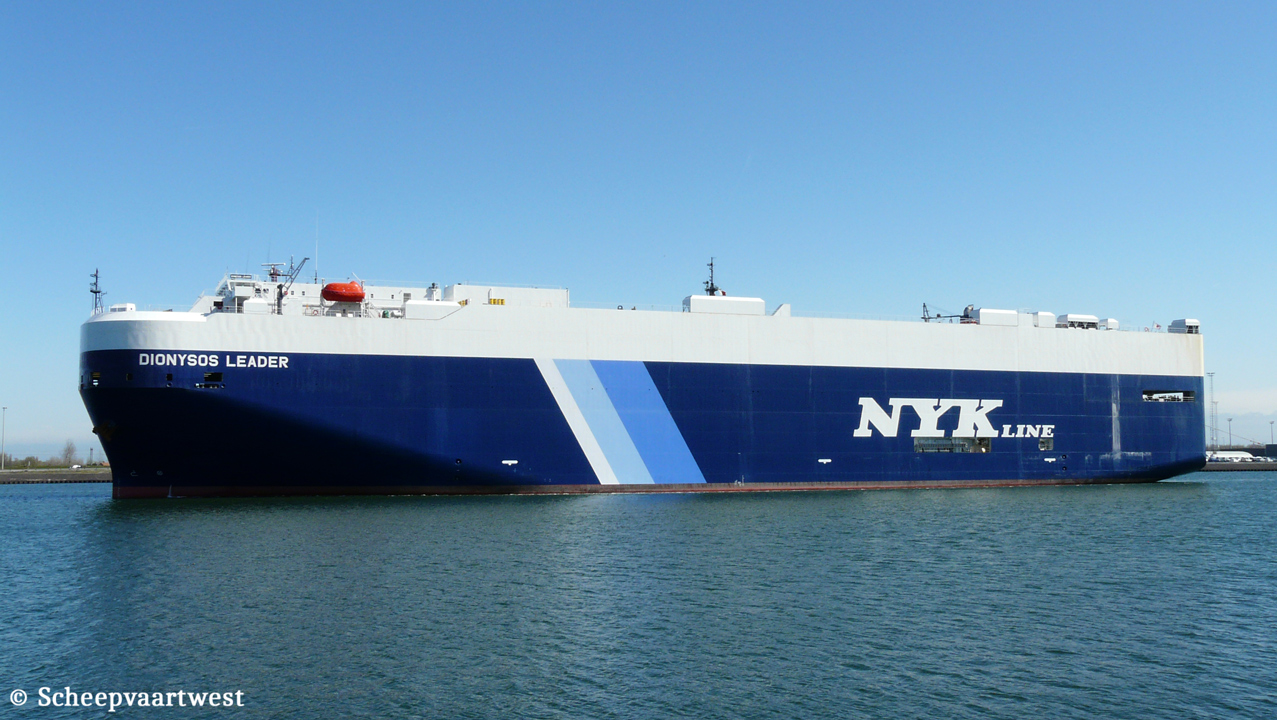

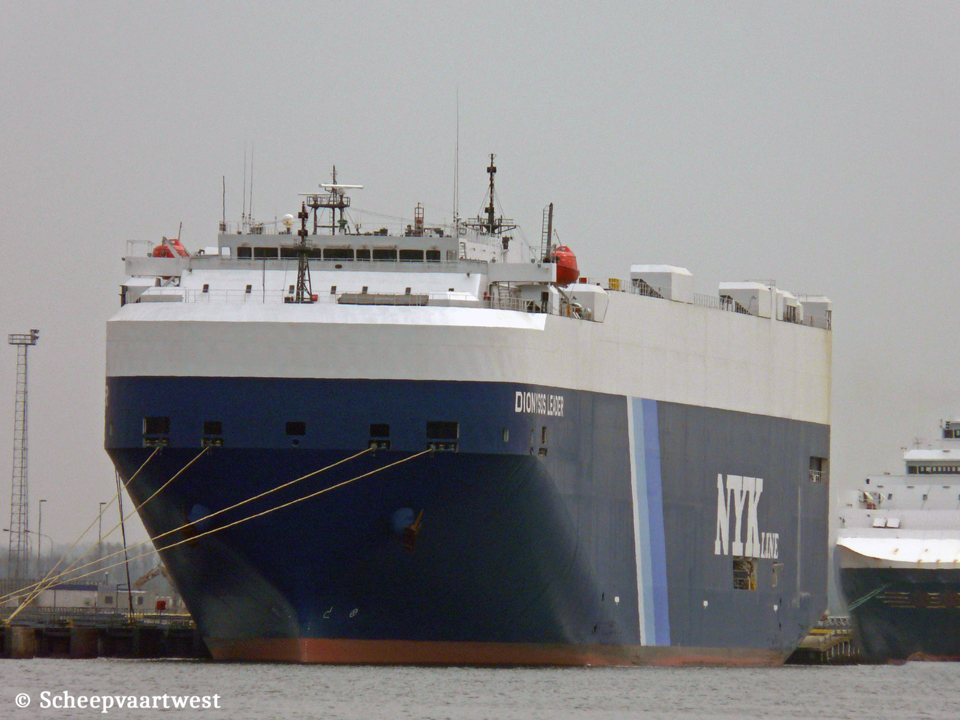

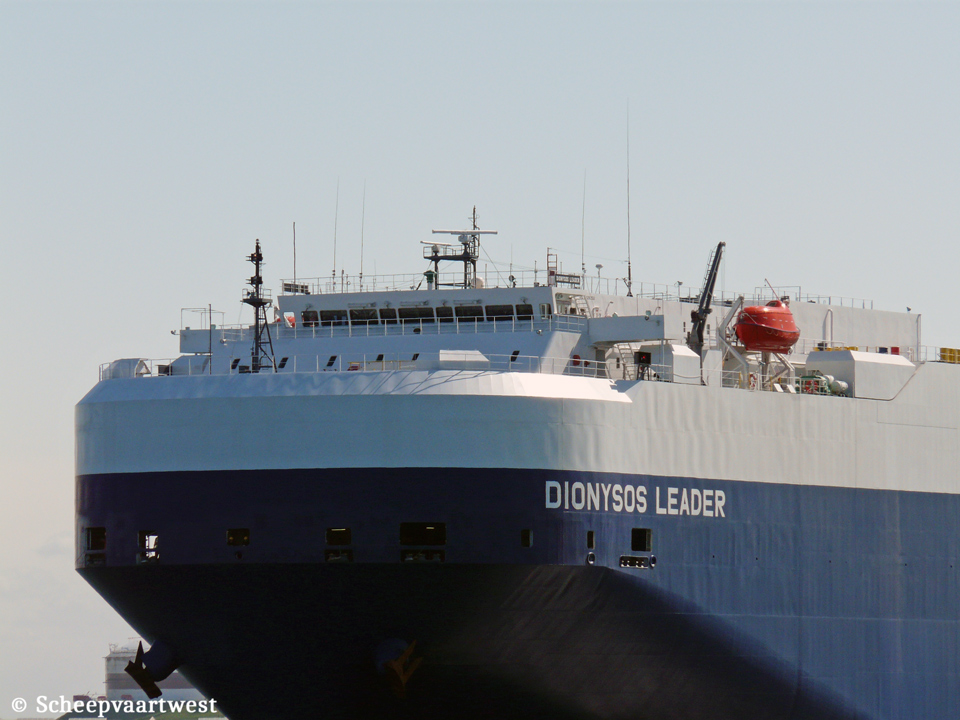

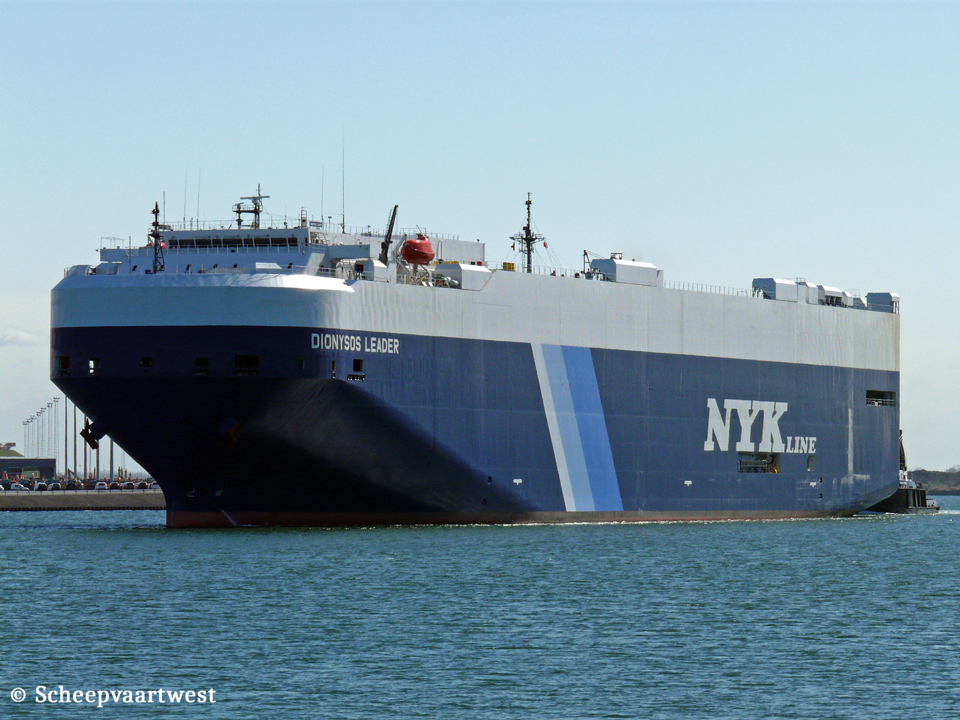

DIONYSOS LEADER |
|
Type |
Roll-On/Roll-Off carrier - Vehicles vessel |
|
IMO-number |
9426350 |
|
Call sign |
7JFW |
|
Flag |
Japan |
|
Port of registry |
Tokyo |
|
GT |
62.993 |
|
DWT |
21.438 t |
|
NT |
18.897 |
|
Length |
199,94 m overall |
|
Breadth |
32,26 m |
|
Moulded L x B x D |
190,00 x 32,26 x 15,00 m |
|
Registered L x B x D |
194,98 x 32,26 x 24,12 m |
|
Draught |
10,325 m |
|
Freeboard |
Summer: 4.714 mm |
|
Speed |
20,0 knots |
|
Built |
2009 |
|
Keel laid |
11/11/2008 |
|
Launch date |
10/06/2009 |
|
Date of completion |
28/08/2009 |
|
Builder |
Shin Kurushima Toyohashi Shipbuilding Co., Ltd. Toyohashi Japan |
|
Yard number |
3623 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi/Kobe 8UEC60LSII - 2 stroke single acting 8 cylinder 600 x 2.300 mm combustion engine 15.540 kW at 104,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Boiler |
1x Auxiliary vertical boiler - 7,9 bar Evaporation: 3,77 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generatorsets total 4.325 kVA |
|
Car capacity |
6.332 |
|
Tank capacities |
Fuel oil: 3.144 m³ Fresh water: 531 m³ Water ballast: 8.831 m³ |
|
Lifting equipment |
3x Cranes - SWL 4,0 t each 1x Elevator - SWL 350 kg |
|
Crew |
21 |
|
Commercial manager |
NYK Line Yusen Building, 3-2, Marunouchi 2-chome, Chiyoda-ku, Tokyo, 100-0005 Japan |
|
ISM manager |
Hachiuma Steamship Co., Ltd. 7th Floor, Da Vinci Sannomiya Building, 74, Kyo-machi, Chuo-ku Kobe-shi, Hyogo-ken, 650-0034 Japan |
|
Operator |
NYK - Nippon Yusen Kaisha Ltd. |
|
Registered owner |
NYK Line Yusen Building, 3-2, Marunouchi 2-chome, Chiyoda-ku, Tokyo, 100-0005 Japan |
|
Previous owners |
Calypso Maritima Ltd./Dionysos Maritime Inc. |
|
Latest data adjustment |
28 March 2025 |
