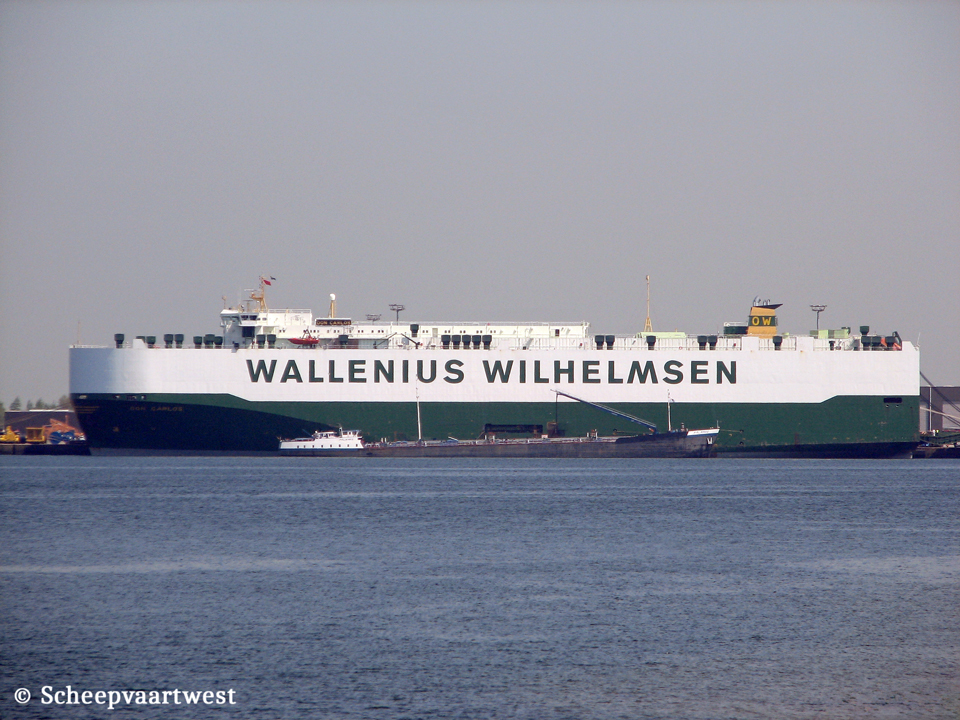

| Zeebrugge 11 May 2006 |
|
Name |
DON CARLOS |
|
Type |
Roll-On/Roll-Off vehicles carrier |
|
IMO-number |
9122655 |
|
Call sign |
SICN |
|
Flag |
Sweden |
|
Port of registry |
Stockholm |
|
GT |
56.893 |
|
DWT |
22.590 t |
|
NT |
23.693 |
|
Length |
199,10 m overall |
|
Breadth |
32,26 m moulded |
|
Air draft |
47,92 m |
|
Height to upperdeck |
33,48 m |
|
Draught |
Summer: 11,00 m |
|
Freeboard |
3.030 mm |
|
Depth |
14,05 m |
|
Speed |
20,5 knots |
|
Built |
1997 |
|
Date of order |
01/03/1996 |
|
Date of completion |
07/1997 |
|
Builder |
Daewoo Heavy Industry Ltd. |
|
Yard number |
4415 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W 8S60MC - 8 cylinder combustion engine 14.700 kW / 20.000 bhp at 101,3 rpm |
|
Number of screws |
1 |
|
Shaft generator |
1x 950 kW |
|
Electrical power |
2x Wärtsilä 4R32 diesel engines each connected with generators each 1.400 kW / 3x 440 Volt 60 Hz |
|
Emergency power |
1x Diesel generatorset 165 kW |
|
Bow thruster |
1x 1.500 kW |
|
Stern ramp |
Width: 7,00 m |
|
Number of car decks |
13 (of which 3 are hoist able) |
|
Capacity deck area |
52.357 m² |
|
Capacity of car units RT43 |
5.873 |
|
Capacity of cars / trucks |
2.949 / 488 |
|
Basic complement |
15 |
|
Manager |
Wallenius Marine AB |
|
Operator |
Wallenius Wilhelmsen |
|
Owner |
Wallenius Lines AB |
|
Remarks |
Elongated: 2006 by 28,80 m |
|
Latest data adjustment |
31 March 2025 |
