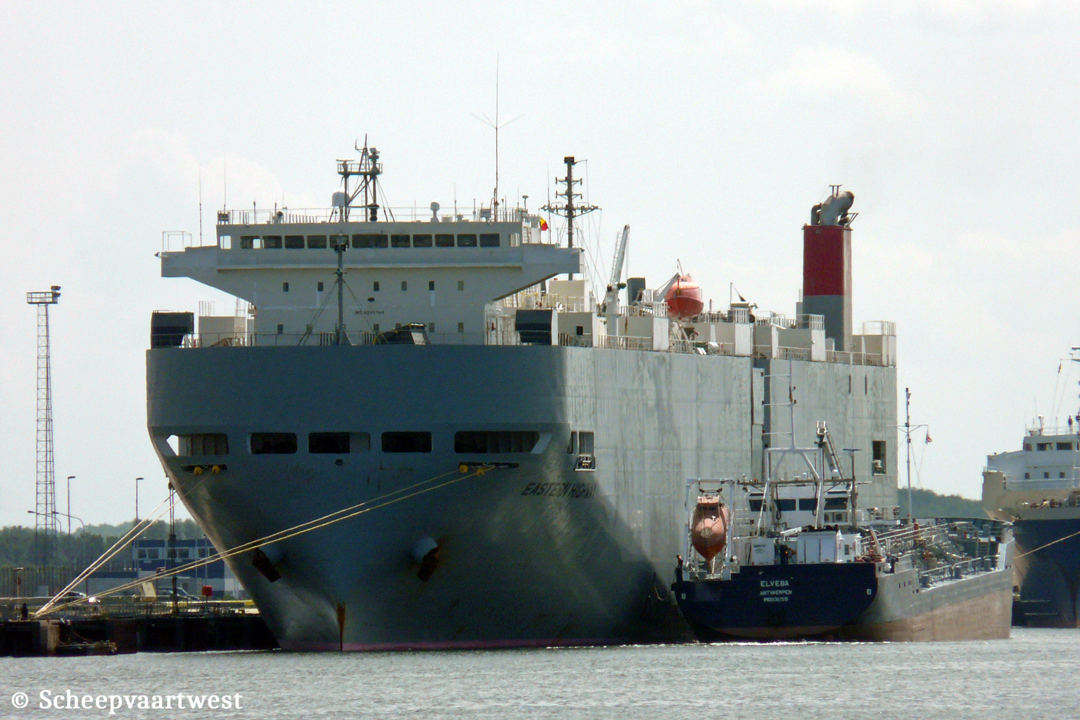

| Zeebrugge 19 July 2011 |
|
Name |
EASTERN HIGHWAY |
|
Type |
Vehicle carrier |
|
IMO-number |
9325764 |
|
Call sign |
3EHP4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
39.422 t registered |
|
DWT |
12.991 t |
|
NT |
11.827 t registered |
|
Length |
188,03 m |
|
Breadth |
28,20 m |
|
Draught |
Summer: 8,53 m |
|
Moulded L x B x D |
183,70 x 28,20 x 13,62 m |
|
Registered L x B x D |
183,70 x 28,20 x 19,81 m |
|
Freeboard |
Summer: 5.129 mm |
|
Depth |
13,62 m moulded |
|
Speed |
20,0 knots |
|
Built |
2006 |
|
Keel laid |
25.11.2004 |
|
Launch date |
05.09.2006 |
|
Date of completion |
12.12.2006 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. |
|
Yard number |
5345 |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi 8UEC50LSII - 2 stroke single acting 8 cylinder 500 x 1.950 mm engine - 11.000 kW at 124,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller |
1 |
|
Propeller Shaft |
1x Oil lubrication shaft with monitoring device |
|
Boiler |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 2,89 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Diesel main generatorsets - 3.525 kVA |
|
Car capacity |
3.893 |
|
Tank capacities |
Fuel oil: 2.793 m³ Fresh water: 414 m³ Water ballast: 6.387 m³ |
|
Lifting equipment |
2x Cranes - SWL 4,0 t |
|
Crew |
23 |
|
Manager |
Taiyo Nippon Kisen Co., Ltd. |
|
Operator |
Kawasaki |
|
Registered owner |
Bulkstar Enterprise Co., Ltd. |
