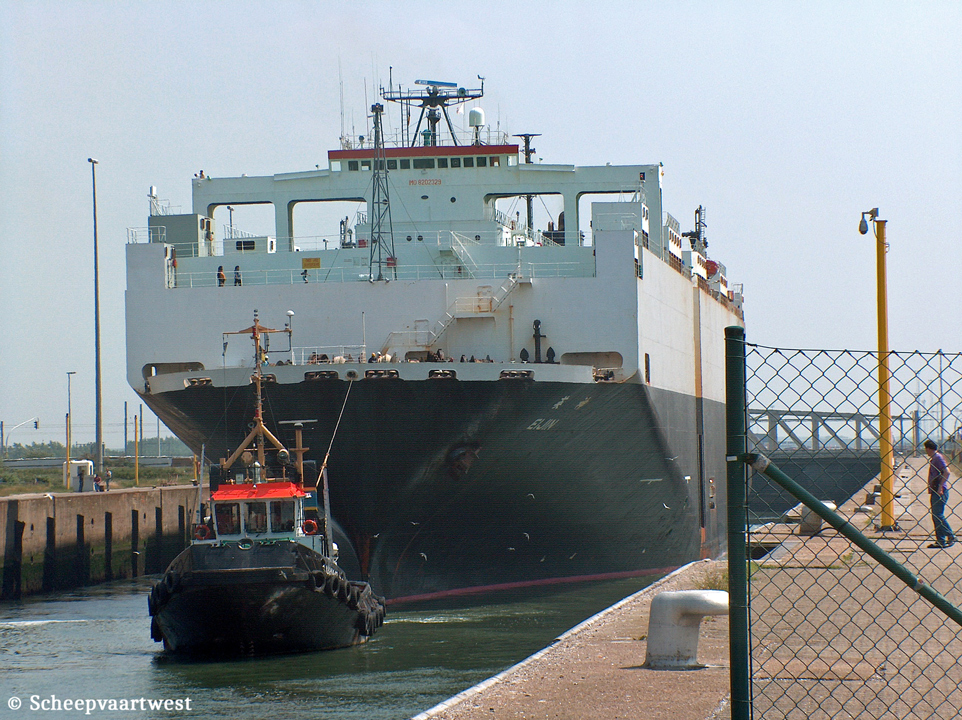

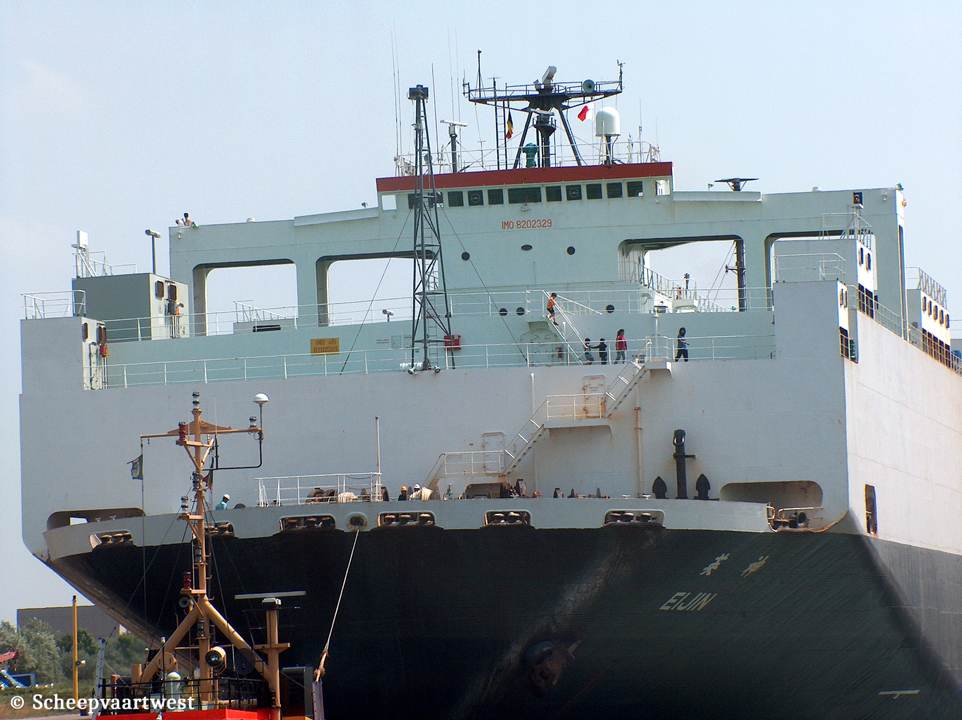

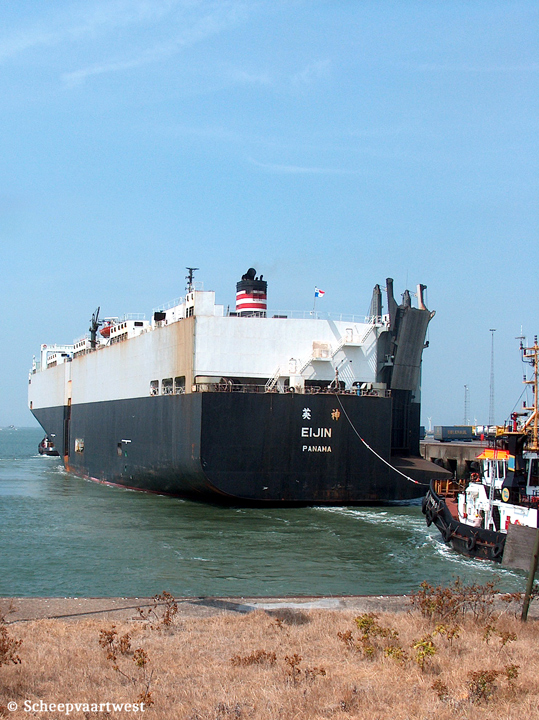

| Zeebrugge 09 June 2004 |
 |
 |
|
| Zeebrugge 09/06/04 | Zee 09/06/04 | |
|
Name |
EIJIN |
|
Previous name |
1982 - 1985 Eijin Maru |
|
Type |
Roll-On/Roll-Off car carrier |
|
IMO-number |
8202329 |
|
Call sign |
3FDQ5 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flags |
1985 - Japan 1995 - Liberia |
|
GT |
41.195 |
|
DWT |
14.361 t |
|
NT |
12.359 |
|
Number of 20ft containers |
130 |
|
Length |
180,02 m overall 171,00 m between perpendiculars 173,73 m registered |
|
Breadth |
32,26 m overall |
|
Draught |
Summer: 9,02 m |
|
Freeboard |
12.120 mm |
|
Summer |
Summer: 3.040 mm |
|
Depth |
21,14 m |
|
Speed |
Service: 18,75 knots |
|
Built |
1982 |
|
Keel laid |
17/03/1982 |
|
Launch Date |
19/07/1982 |
|
Date of completion |
21/10/1982 |
|
Builder |
Shin Kurushima Dockyard Co. Ltd. Onishi Japan |
|
Yard number |
2223 |
|
Hull material |
steel |
|
Hull type |
Single hull |
|
Main engine |
1x 4 stroke single acting 14 cylinder 520 x 550 mm combustion engine 10.863 kW at 450 rpm Manufacturer: Kawasaki Heavy Industries, Ltd. |
|
Number of screws |
1 |
|
Boiler |
1x Auxiliary vertical boiler Pressure: 7,9 bar Evaporation: 2,85 t/h Manufacturer: Tortoise Engineering Co., Ltd |
|
Generator |
3x Generatorsets total 3.600 kVA |
|
Car Capacity |
4.211 |
|
High car capacity height 2,00 m |
2.827 |
|
Ramp loadable |
36,6 t |
|
Cranes |
2x Cranes - SWL 5,0 t |
|
Tank capacities |
Fuel oil: 2.579 m³ Fresh water: 255 m³ Water ballast: 6.502 m³ |
|
Manager |
Wilhelmsen Lines Lysaker Norway |
|
Owner |
Victory Shipholding Navigation SA Panama Republic of Panama |
|
Scrapped |
04/2009 India |
|
Latest data adjustment |
05 April 2025 |
