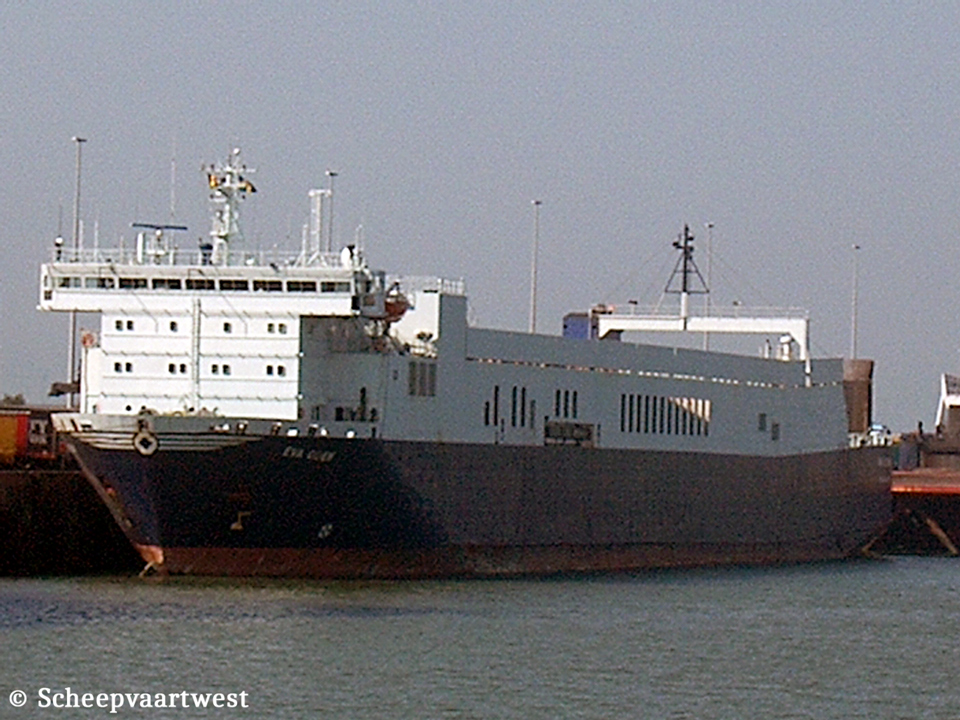

| Zeebrugge 09 June 2004 |
|
Name |
EVA ODEN |
|
Previous names |
1979 - 1988 Eva Oden - Oden Lines 1988 - 1998 Tor Belgia - Tor Line |
|
Type |
Roll-On/Roll-Off car carrier |
|
IMO-number |
7800760 |
|
Call sign |
SHCX |
|
Flag |
Sweden |
|
GT |
16.948 |
|
DWT |
8.400 t |
|
NT |
5.084 |
|
Length |
Before rebuild 143,26 m 170,26 m overall 160,50 m between perpendiculars |
|
Breadth |
21,04 m overall 21,01 m moulded |
|
Draught |
Summer: 5,39 m |
|
Lane metres |
2.196 |
|
Freeboard |
7.420 mm |
|
Depth |
12,80 m |
|
Speed |
16,0 knots |
|
Built |
1979 1988 rebuild |
|
Launch date |
18/05/1979 |
|
Date of completion |
14/09/1979 |
|
Builder |
Öresundsvarvet AB Varvsudden 261 27 Landskrona Sweden |
|
Yard number |
270 |
|
Hull material |
Steel |
|
Hull type |
Double hul |
|
Main engines |
2x Wärtsilä Vasa 12V32D - 12 cylinder combustion engine total 9.000 kW at 720 rpm |
|
Propeller |
2x JW Berg variable pitch propellers |
|
Auxiliary boiler |
1x Exhaust gas water tube 1x Vertical shell type |
|
Shaft generators |
1x Shaft generator NEBB 875 kVA 1x Shaft generator A.v. KAICK 875 kVA |
|
Generators |
4x Volvo TAMD 120AK main diesel generatorsets each 195 kW at 1.800 rpm |
|
Bow thrusters |
1x Bow thruster JW Berg - 635 kW 1x Bow thruster JW Berg - 590 kW |
|
Cargo handling |
Stern ramp: 15,00 x 15,00 m Lift MD/TT: 12,00 x 2,90 m Fixed ramp to UD and WD: 4,20 m wide Hoistable car decks on main deck and tank top |
|
Number of cars |
180 |
|
Number of passengers |
12 |
|
Number of beds |
12 |
|
Tank capacities |
Bunker: 1.750 t |
|
Previous operator |
|
|
Operator |
Cobelfret Ferries |
|
Owner |
Waterways SA 55-57 Rue de Merl 2146 Luxemburg City Grand Duchy of Luxembourg |
|
Renamed |
2006 Equine Belgium, Antwerpen - Call sign: ONFG Owner: Waterways SA, 2146 Luxemburg City - Grand Duchy of Luxembourg Manager: EuroShip Services Limited, Purfleet RM19 1PD - United Kingdom 2010 2010 Winner 6 Saint Kitts & Nevis, Bassetere |
|
Scrapped |
02/2010 at Alang - India |
|
Remarks |
13/01/2010 deleted from the Belgian register |
|
Latest data adjustment |
12 April 2025 |
