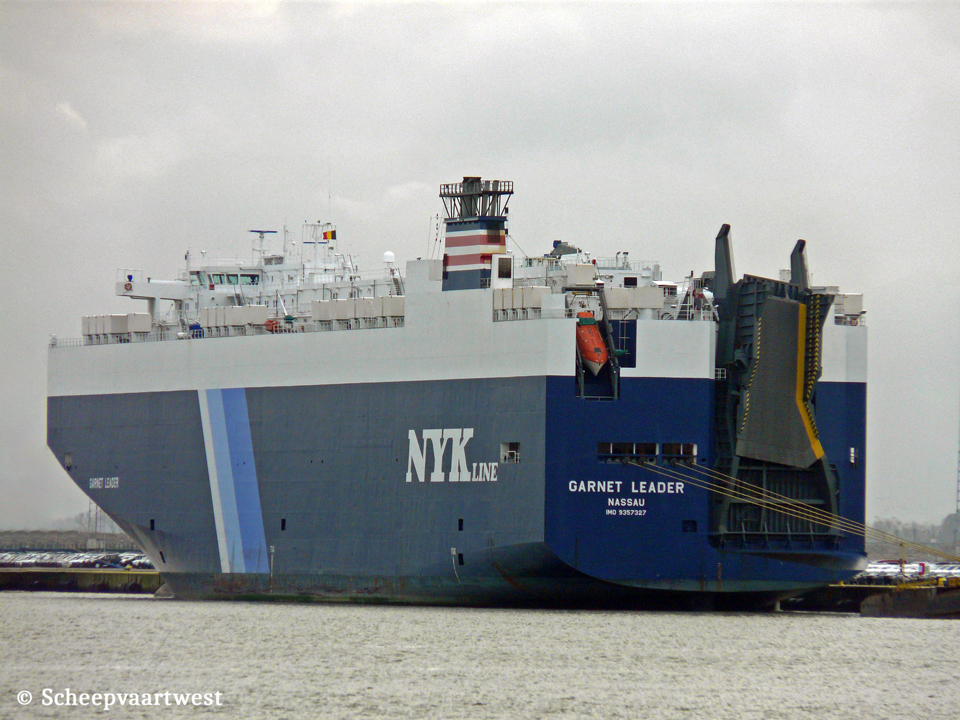

| Westerschelde 17 June 2014 |
 |
 |
 |
 |
|||
| Westerschelde 17/06/14 | Westerschelde 17/06/14 | Zeebrugge 11/12/10 | Westerschelde 04/06/17 | |||
|
Name |
GARNET LEADER |
|
Type |
Roll-On/Roll-Off vehicle carrier |
|
IMO-number |
9357327 |
|
Call sign |
C6WE4 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
57.692 t |
|
DWT |
21.020 t |
|
NT |
21.037 t |
|
Displacement |
21.300 t |
|
Length |
199,91 m overall 188,31 m between perpendiculars |
|
Breadth |
32,28 m |
|
Draught |
Summer: 10,00 m |
|
Freeboard |
3.652 mm |
|
Depth |
19,98 m |
|
Speed |
20,2 knots |
|
Built |
2008 |
|
Keel laid |
23/08/2007 |
|
Launch date |
08/03/2008 |
|
Date of completion |
15/04/2008 |
|
Builder |
Stocznia Gdynia SA ul. Czechoslowacka 3 81-963 Gdynia Poland |
|
Yard number |
2168/20 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Transportable bulkheads |
3 |
|
Main engine |
1x MAN-B&W 7S60ME-C combustion engine 21.490 bhp Builder: MAN Diesel A/S |
|
Propeller |
1 |
|
Auxiliary boiler |
1x Exhaust gas water tube AV-7 1x Vertical shell type Mission OS Builder: Aalborg Industries A/S |
|
Generators |
3x MAN 7L28/32H main diesel generatorsets each 1.470 kW Builder: MAN B&W Diesel AG |
|
Emergency generator |
1x MAN D2866 LXE20 diesel generatorset 200 kW Builder: MAN Nutzfahrzeuge AG - GE Motoren, Nürnberg - Germany |
|
Car capacity |
6.600 |
|
Number of decks |
8 |
|
Ballast capacity |
7.757 m³ |
|
Anchor chain |
Length: 660,00 m Diameter: 78 mm |
|
Crew |
22 |
|
Manager |
Stamco Ship Management Company Ltd. 21 Akti Miaouli Street 185 35 Piraeus Greece |
|
Operator |
NYK - Nippon Yusen Kaisha Line |
|
Registered owner |
Garnet Maritime Limited St James's Chambers Athol Stret IM1 1JE Douglas Isle of Man |
|
Latest data adjustment |
31 October 2024 |
