| Westerschelde 30 August 2019 |
 |
 |
 |
 |
 |
 |
|||||
| Zeebrugge 01/03/10 | Westerschelde 22/01/14 | Westerschelde 22/01/14 | Westerschelde 22/01/14 | Zeebrugge 04/07/17 | Zeebrugge 22/11/11 | |||||
|
Name |

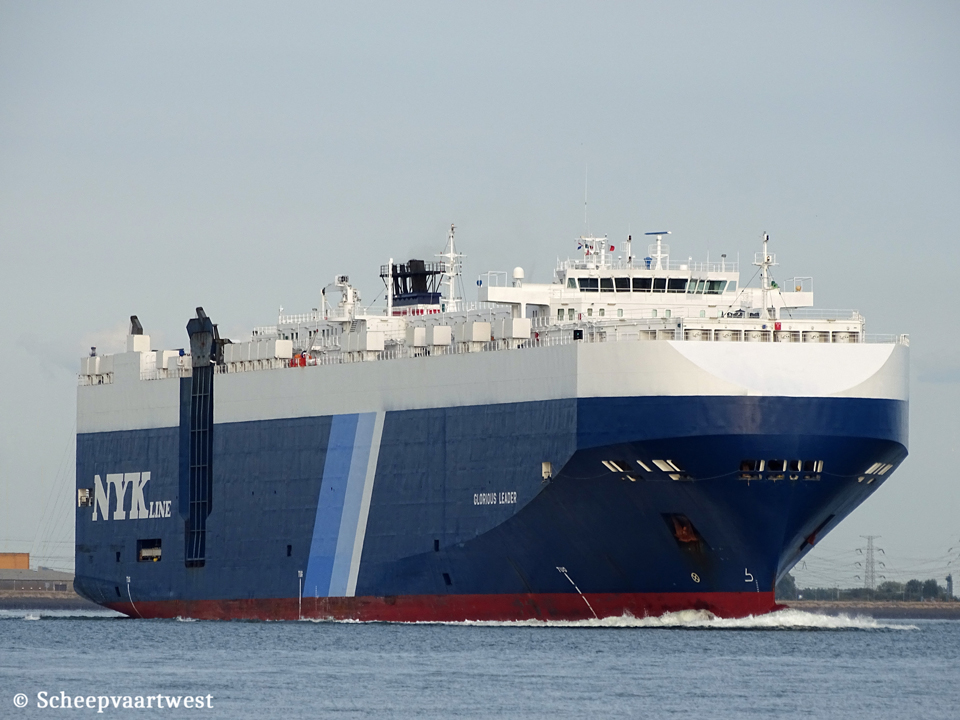

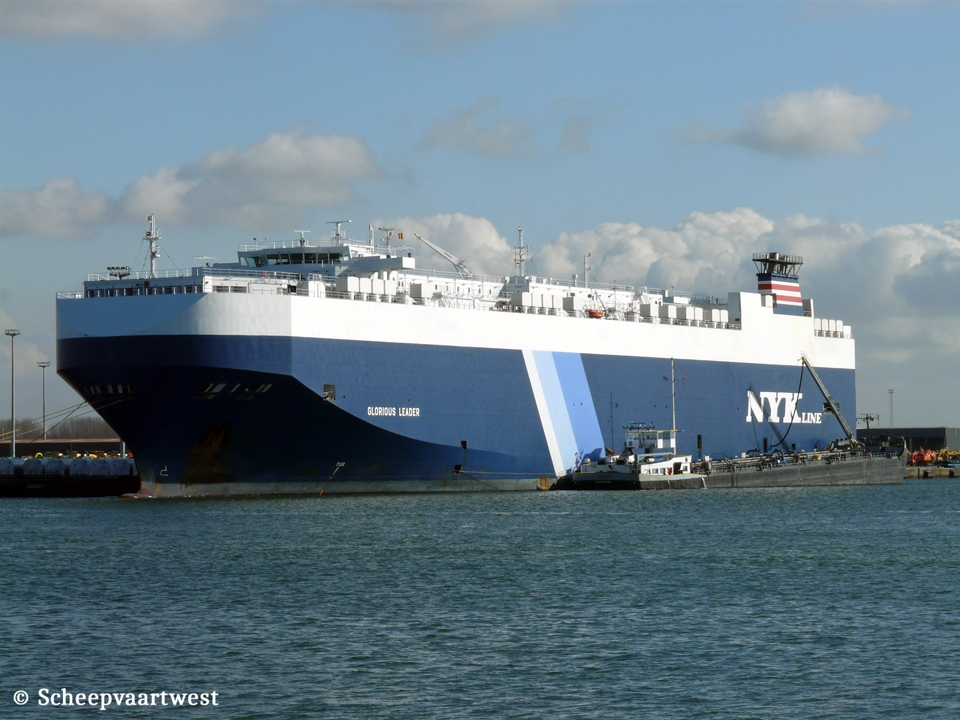

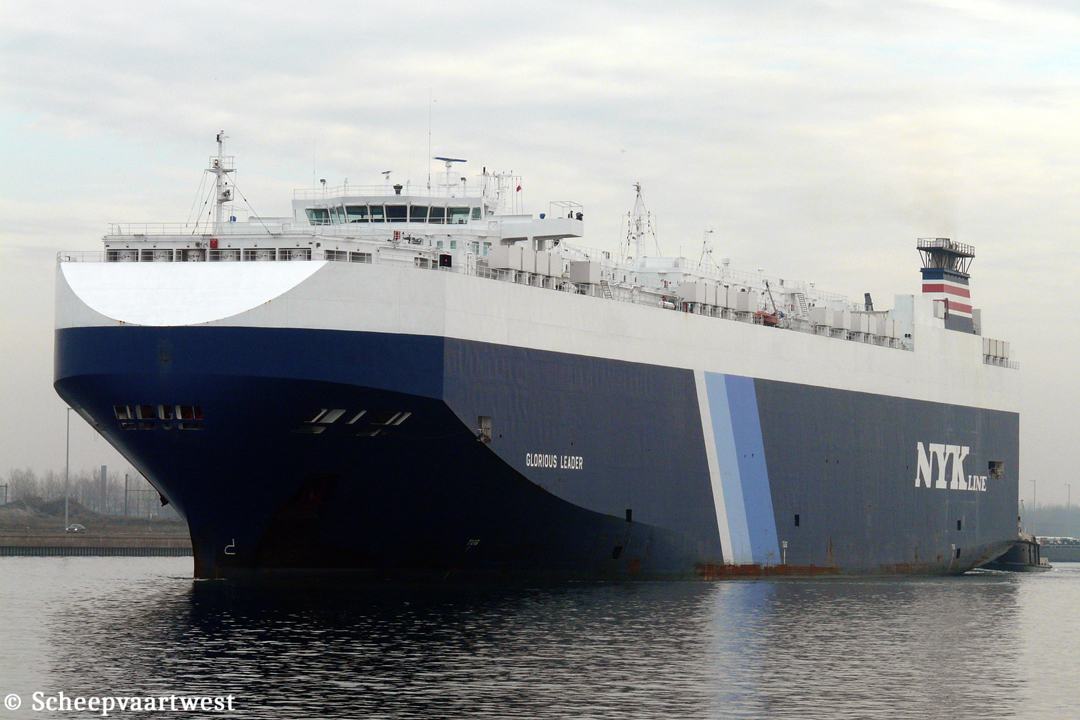

GLORIOUS LEADER |
|
Type |
Roll-On/Roll-Off carrier - Vehicle carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9357298 |
|
Call sign |
C6VT9 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
57.692 t |
|
DWT |
20.999 t |
|
NT |
21.037 t |
|
Length |
199,98 m overall 188,32 m between perpendiculars |
|
Breadth |
32,28 m extreme 32,25 m moulded |
|
Draught |
Summer: 10,01 m |
|
Freeboard |
3.653 mm |
|
Depth |
19,98 m |
|
Speed |
Service: 18,0 knots Max.: 21,5 knots |
|
Built |
2007 |
|
Keel laid |
28/09/2006 |
|
Launch date |
14/10/2007 |
|
Date of completion |
29/05/2007 |
|
Builder |
Stocznia Gdynia Group S.A. ul. Czechoslowacka 3 81-963 Gdynia Poland |
|
Yard number |
8168/17 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
Transverse: 3 |
|
Main engine |
1x MAN-B&W 7S60MC-C - 2 stroke 7 cylinder 600 x 2.400 mm combustion 15.539 kW / 21.127 hp at 105,0 rpm engine Builder: MAN B&W Diesel A/S |
|
Number of screws |
1x Fixed pitch mono-block propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas water tube AV-7 1x Auxiliary boiler, vertical shell type Mission OS Builder: Aalborg Industries A/S |
|
Generators |
3x MAN-B&W 7L28/32H main diesel generatorsets Builder: MAN B&W Diesel AG |
|
Emergency generator |
1x MAN D2866LXE30 diesel generatorset Builder: MAN Nutzfahrzeuge AG |
|
Bow thruster |
1x 1.300 kW |
|
Car capacity |
6.658 |
|
Number of decks |
8 |
|
Car deck aera |
Total: 54.900 m² Hostable: 17.000 m³ |
|
Ro-Ro ramps |
1x Starboard: 25,00 x 7,00 x 22 t 1x Starboard aft: 38,00 x 7,00 x 150 t |
|
Tank capacities |
Fuel oil: 3.350 m³ Diesel oil: 130 m³ Lub oil: 150 m³ Potable water: 260 m³ Ballast: 7.774 m³ |
|
Anchor chain |
Length: 660 m Diameter: 78 mm |
|
Lifing equipment |
1x Crane - SWL 5,0 t |
|
Crew |
24 |
|
ISM & commercial manager |
Stamco Ship Management Company Ltd. 21 Akti Miaouli Street 185 35 Piraeus Greece |
|
Operator |
NYK-Line - Nippon Yusen Kaisha Line |
|
Registered owner |
Glorious Maritime Limited St James's Chambers Athol Street Isle of Man 1M1 1JE Douglas United Kingdom |
|
Latest data adjustment |
04 June 2022 |
