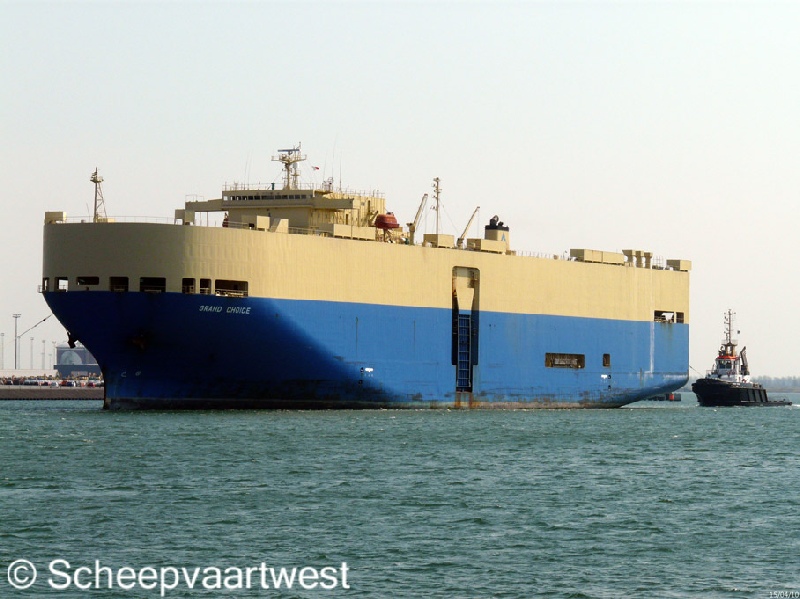

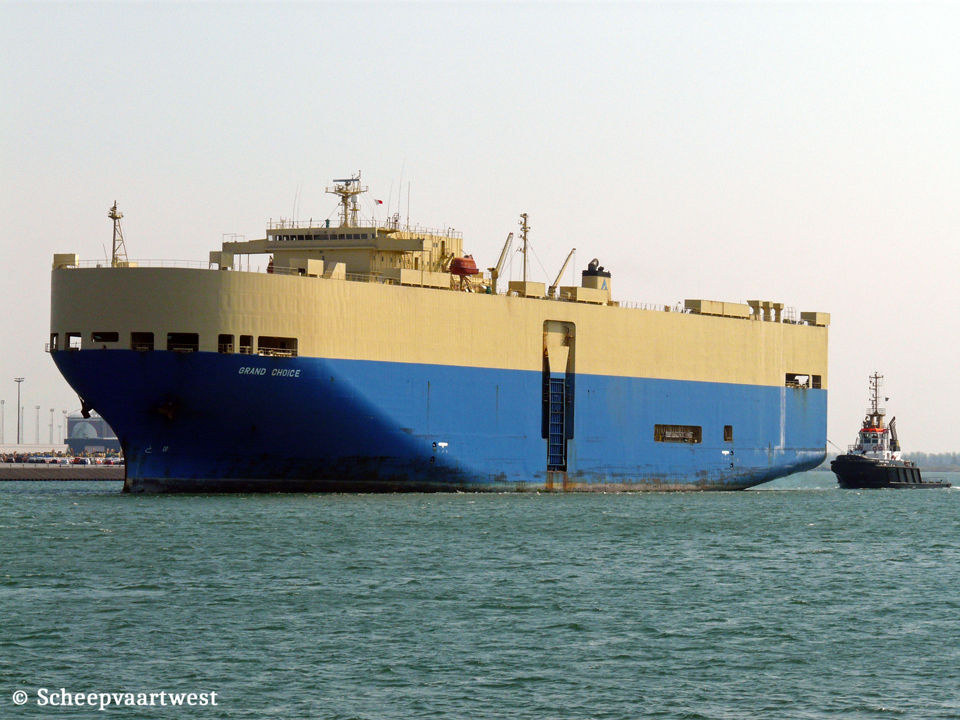

Grand Choice 09
Zeebrugge 15 April 2010

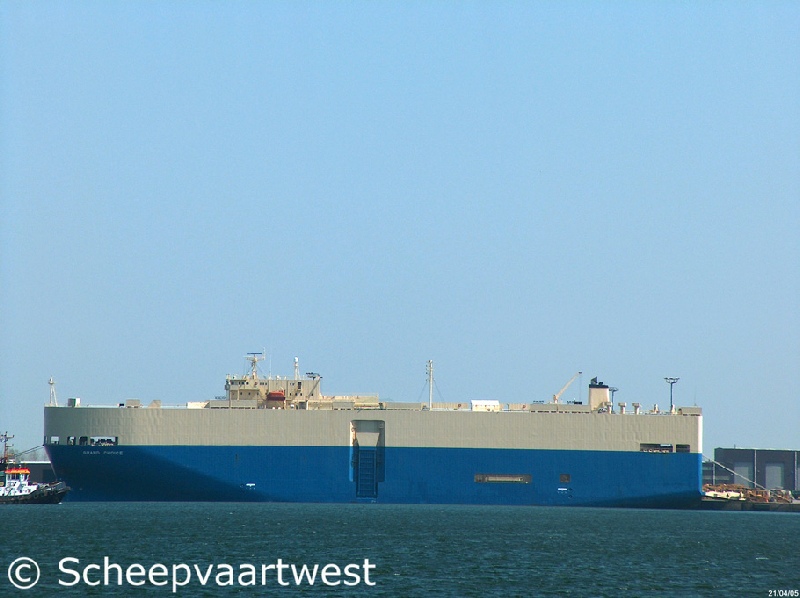

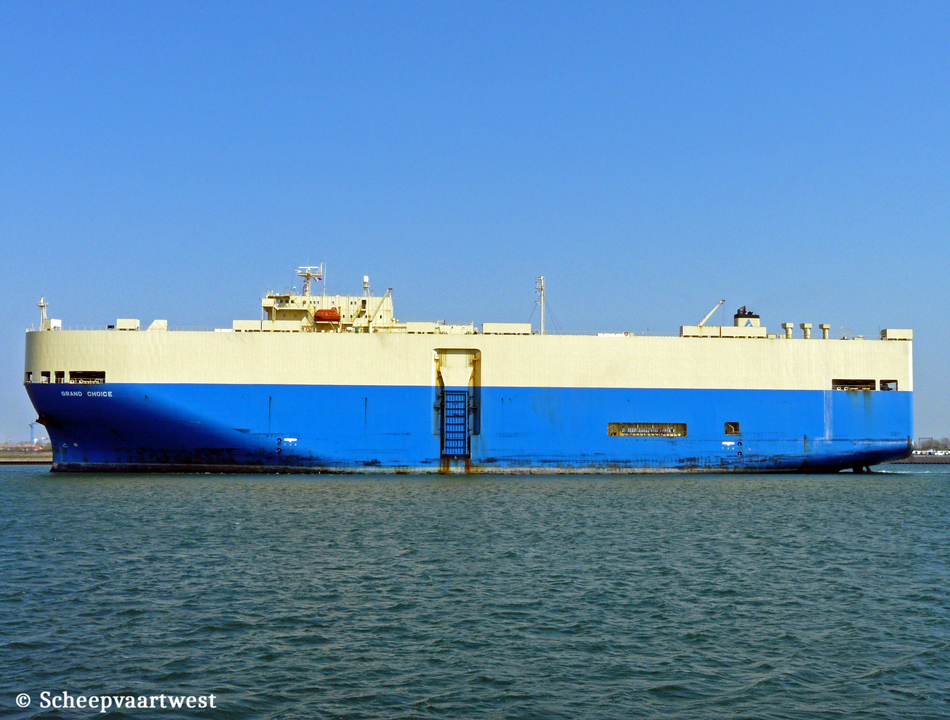

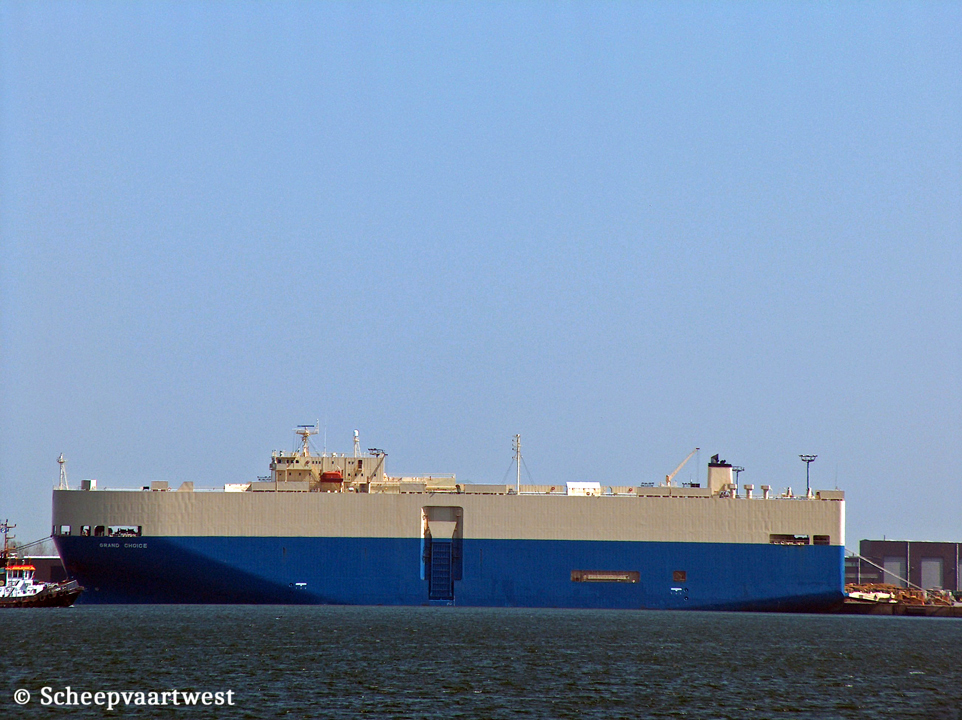

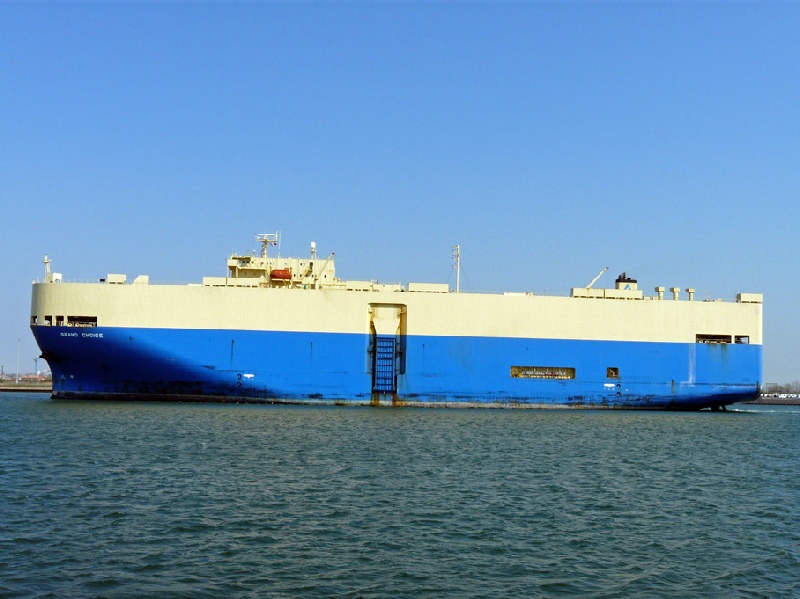

Grand Choice 15   Grand Choice 01
Zeebrugge 15/04/10 Zeebrugge 21/04/05



Name

GRAND CHOICE

Type

Vehicles Carrier

IMO-number

9169316

Call sign

3FDW9

Flag

Republic of Panama

Port of registry

Panama City

GT

50.309 t

DWT summer

16.702 t

NT

15.093 t

Length

179,16 m overall
170,00 m between perpendiculars

173,36 m registered

Breadth

32,26 m overall

Draught

9,123 m

Freeboard

Summer: 5.494 mm

Depth

14,58 m

Speed

20,1 knots

Built

1999

Keel laid

01.06.1998

Launch date

02.12.1998

Date of completed

26.02.1999

Builder

K.K. Kanasashi Heavy Industries Shipbldg.
Shimizu City
Toyohashi

Japan

Yard number

3472

Hull type

Single hull

Bulkheads

6 - Watertight

Main engine

1x Mitsubishi - 2 stroke single acting 7 cylinder 600 x 2.200 mm engine - output 12.356 kW at 100 rpm

Built: 1998

Number of screws

1

Boilers

1x Auxiliary steam tube boiler - 7,0 bar

Heating surface: 29,3 m²

Built: 1998

2x Auxiliary exhaust gas boiler - 10,5 bar

Heating surface: 204,2 m²

Built: 1998

Capacity cars

4.810

Tank capacities

Ballast: 7.332 m³

Fresh water: 333,20 m³

Fuel oil: 2.523 m³

Crew

20

Manager

Cido Maritime Shipping Co. Ltd.
Hong Kong

Technical manager

Cido Shipping(Korea) CO., Ltd. (Pusan Site)

Operator

Cido

Owner

Pioneer Shipping Navigation Inc.
Panama
Republic of Panama
