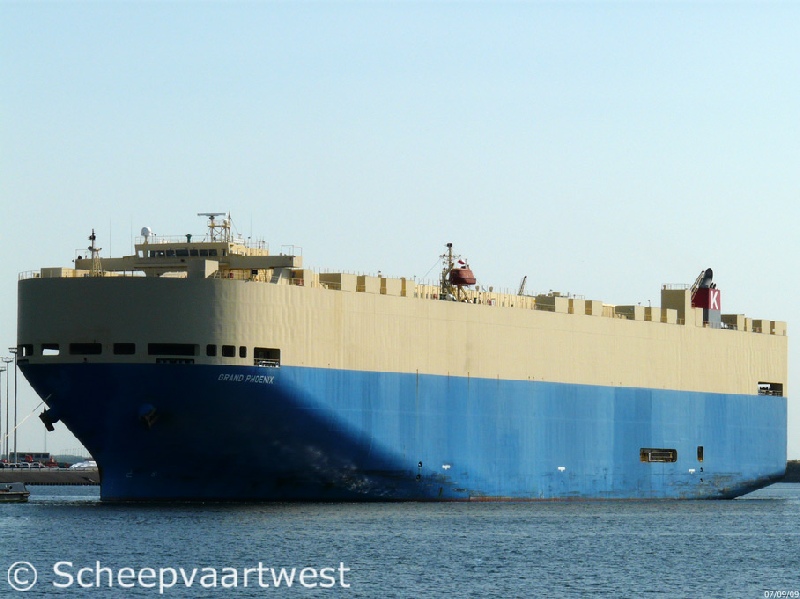

Grand Phoenix 07
Zeebrugge 07 September 2009

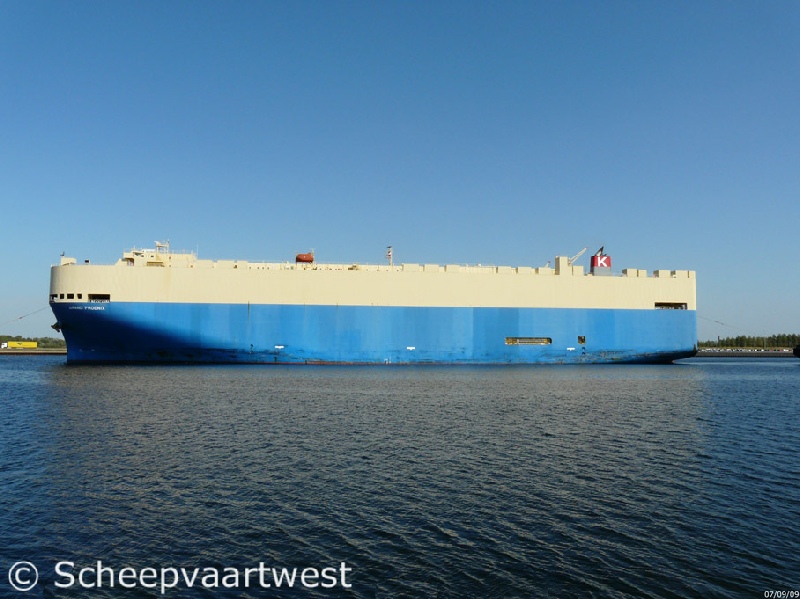

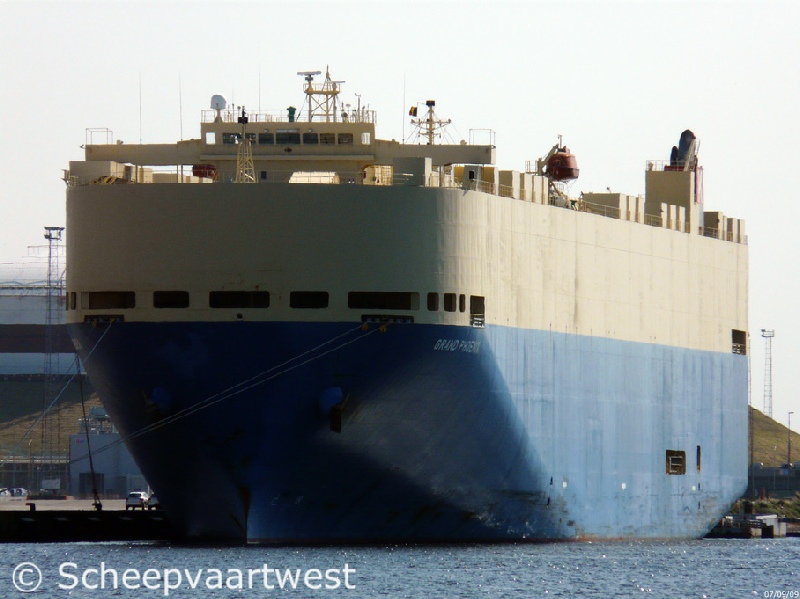

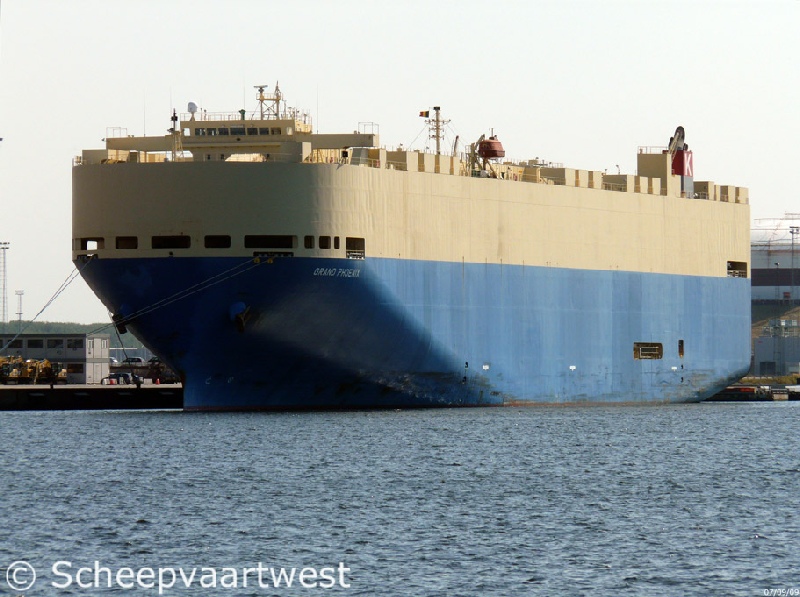

Grand Phoenix 14   Grand Phoenix 02   Grand Phoenix 04
Zeebrugge 07/09/09 Zeebrugge 07/09/09 Zeebrugge 07/09/09



Name

GRAND PHOENIX

Type

Vehicles carrier

PCC - Pure car carrier

IMO-number

9284764

Call sign

HOWE

Flag

Republic of Panama

Port of registry

Panama City

GT

59.217 t

DWT

18.383 t

NT

17.766 t

Length

199,90 m overall

192,00 m between perpendiculars

Breadth

32,26 m

Reg. Dimensions L x B x D

194,70 x 32,26 x 25,33 m

Rule Dimensions L x B x D

192,00 x 32,26 x 35,80 m

Draught

Summer: 9,61 m

Freeboard

Sumner: 4.664 mm

Speed

21,23 knots

Built

2005

Keel laid

18.06.2004

Launch date

11.11.2004

Date of completion

26.01.2005

Builder

Shin Kurushima Toyohashi Shipbuilding Co., Ltd.
Toyohashi

Japan

Yard number

3572

Hull type

Single hull

Transverse bulkheads

5x Watertight

Main engine

1x Mitsui - 2 stroke single acting 7 cylinder 600 x 2.292 mm engine - 14.280 kW at 105,0 rpm

Manufacture: Mitsui Engineering & Shipbuilding Co.,Ltd. Tamano Works
Tamano
Japan

Propellers

1

Boilers

1x Auxiliary STB - 7,0 bar

Heating surface: 44,8 m²

2x Auxiliary STB - 10,0 bar

Heating surface: 171,2 m²

Generators

4x Main diesel generatorsets each 1.200 kVA 450 Volt

Car capacity

6.400

Number of decks

9

Tank capacities

Fuel oil: 3136,60 m³

Fresh water: 466,20 m³

Water ballast: 9535,60 m³

Crew

20

Manager

Cido Shipping(Korea) Co., Ltd. (Pusan SITE)

Technical manager

Cido Shipping(Korea) Co., Ltd. (Pusan SITE)

Operator

K-Line - Kawasaki Kisen Kaisha Line

Owner

Dynamic Aurora Shipping S.A.
