| Zeebrugge 30 August 2008 |
|
Name |

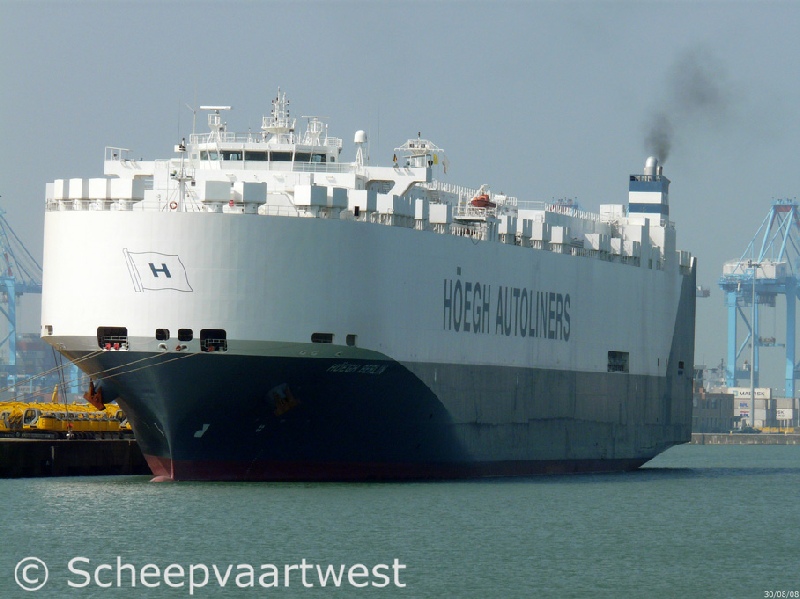

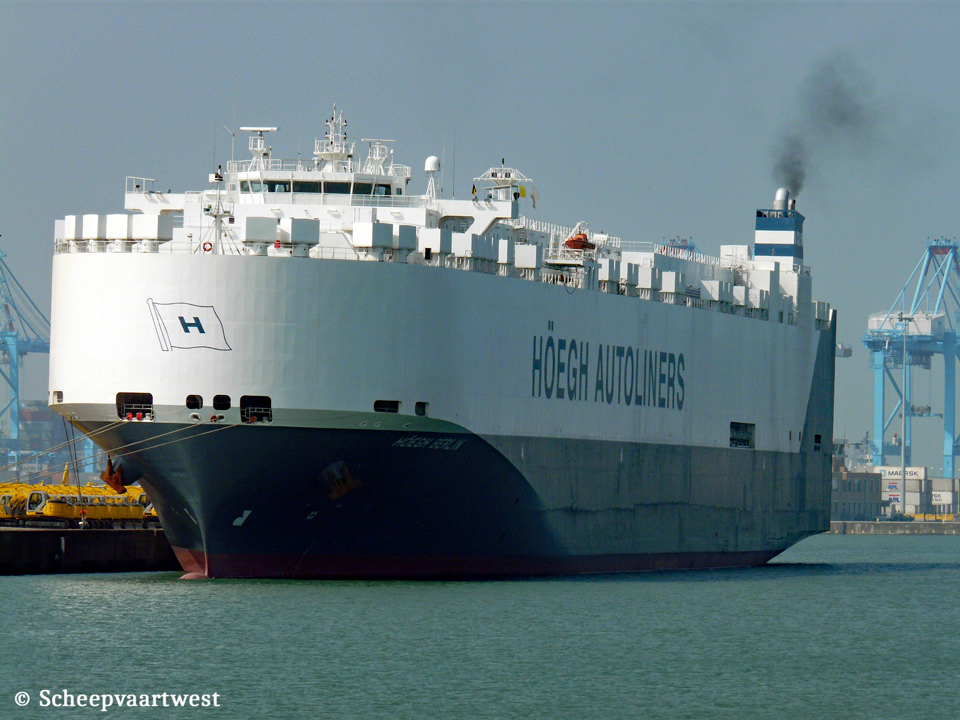

HÖEGH BERLIN |
|
Type |
Roll-On/Roll-Off vehicles carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9295842 |
|
Call sign |
LASY8 |
|
Flag |
Norway |
|
Port of registry |
Oslo |
|
Previous flags |
2005 - 03/2009 Norway, Oslo - Call sign: LALF6 02/209 - 03/2023 Bahamas, Nassau - Call sign: C6XQ4 |
|
GT |
68.871 |
|
DWT |
27.178 t |
|
NT |
25.912 |
|
Length |
228,74 m overall 223,91 m between perpendiculars |
|
Breadth |
32,29 m extreme 32,26 m moulded |
|
Draught |
Summer: 10,00 m |
|
Freeboard |
4.700 mm |
|
Depth |
13,70 m |
|
Speed |
20,5 knots |
|
Built |
2005 2009 Lengthened by Hyndai Vinashin Shipyard, Ninh Hoa - Vietnam |
|
Keel laid |
31/01/2005 |
|
Launch date |
14/05/2005 |
|
Date of completion |
15/07/2005 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co., Ltd. 1, Ajoo-Dong Geoje-Si 656-714 Republic of Korea |
|
Yard number |
4436 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 2 |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W 7S60MC - 2 stroke 7 cylinder 600 x 2.292 mm combustion engine 15.820 kW / 17.510 bhp Builder: Hanjung, Changwon - South Korea |
|
Number of screws |
1x Mono-block propeller |
|
Auxiliary boilers |
1x Auxiliary boiler, exhaust gas heated (Exhaust) - AV-7 1x Auxiliary boiler, oil/gas fired (Oil Fired) - Mission OS Builder: Aalborg Industries A/S |
|
Generators |
3x MAN-B&W 7L28/32H main diesel generatorsets each 1.470 kW |
|
Emergency generator |
1x Cummins L10 diesel generatorset |
|
Cargo capacity |
7.850 |
|
Number of decks |
12 |
|
Ramps |
1x Side port ramp: 25,00 x 6,50m - SWL 22 t 1x Ramp aft: 38,00 m x 7,00 m - SWL 150 t |
|
Tank capacities |
Ballast: 9.638,16 m³ HFO: 3.269 t Diesel oil: 125 t |
|
Anchor Chain |
Length: 715 m Diameter: 84 mm |
|
Crew |
25 |
|
Commercial manager |
Höegh Autoliners Shipping AS Drammensveien 134 0277 Oslo Norway |
|
ISM manager |
Höegh Technical Management Inc. Drammensveien 134 0277 Oslo Norway |
|
Shipping company |
Höegh Autoliners |
|
Registered owner |
Höegh Autoliners Shipping AS Drammensveien 134 0277 Oslo Norway |
|
Latest data adjustment |
15 May 2025 |
