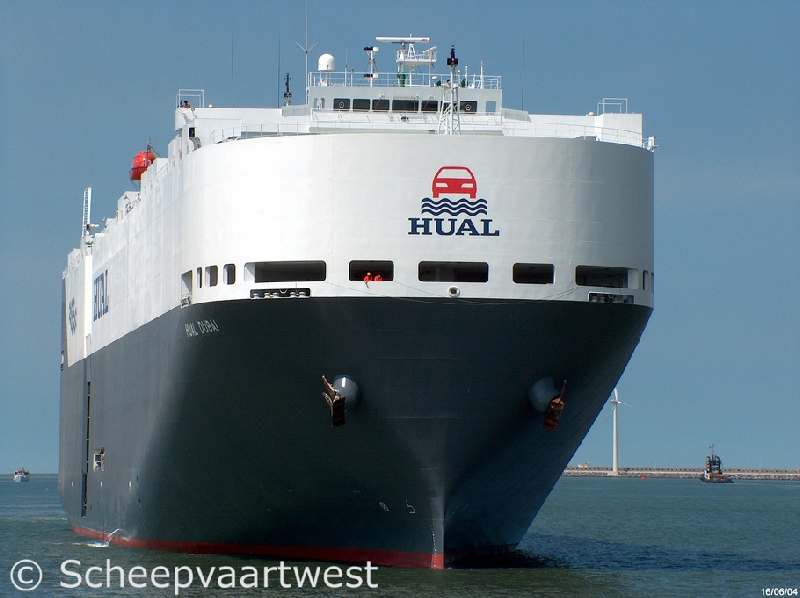

Hual Dubai - IMO 9279329

Name

HUAL DUBAI

Type

Roll-On/Roll-Off vehicles Carrier
PCC - Pure Car Carrier

IMO-number

9279329

Call sign

H3WF

Flag

Republic of Panama

Port of registry

Panama

GT

59.217 t

DWT

18.369 t

NT

17.766 t

Length

199,90 m overall
192,00 m between perpendiculars
194,70 m registered

Breadth

32,26 m overall

Reg. Dimensions L x B x D

194,70 x 32,26 x 25,33 m

Rule dimensions L x B x D

192,00 x 32,26 x 35,80 m

Draught

Summer: 9,61 m

Freeboard

Summer: 4.664 mm

Depth

25,33 m

Speed

20,6 knots

Built

2004

Keel laid

26.06.2002

Launch date

10.02.2004

Date of completion

28.04.2004

Builder

Toyohashi Shipbuilding Co
Toyohashi
Japan

Yard number

H-3566

Hull material

Steel

Hull type

Single hull

Bulkheads

5x Watertight

Main engine

1x Mitsui-MAN B&W 7S60MC (Mark 6) - 2 stroke single acting 7 cylinder 600 x 2.292 mm engine - 14.280 kW at 105,0 rpm
Built: 2003
Builder:Mitsui Engineering & Shipbuilding Co.,Ltd. Tamano Works, Tamano - Japan

Number of screws

1x Single screw

Boilers

1x Auxiliary Steam tube boiler - 7,0 bar
Heating surface: 44,8 m²
2x Auxiliary Steam tube boiler - 10,0 bar
Heating surface: 171,2 m²

Generators

4x Main diesel generatorsets each 1.200kVA - 450 V

Cargo capacity

6.402

Number of decks

9

Tank capacities

Ballast: 9.536 m³
Fresh water: 466,20 m³
Fuel oil: 3.137 m³

Complement

25

Manager

Cido Shipping
Tokyo
Japan

Technical manager

Cido Shipping(Korea) Co., Ltd. (Pusan site)

Operator

Höegh Ugland Auto Liners

Owner as completed

Dynamic Rainbow Marine S.A.
Panama

Owner

Dynamic Rainbow Marine S.A.
Tokyo
Japan

Renamed

2006 Höegh Dubai
