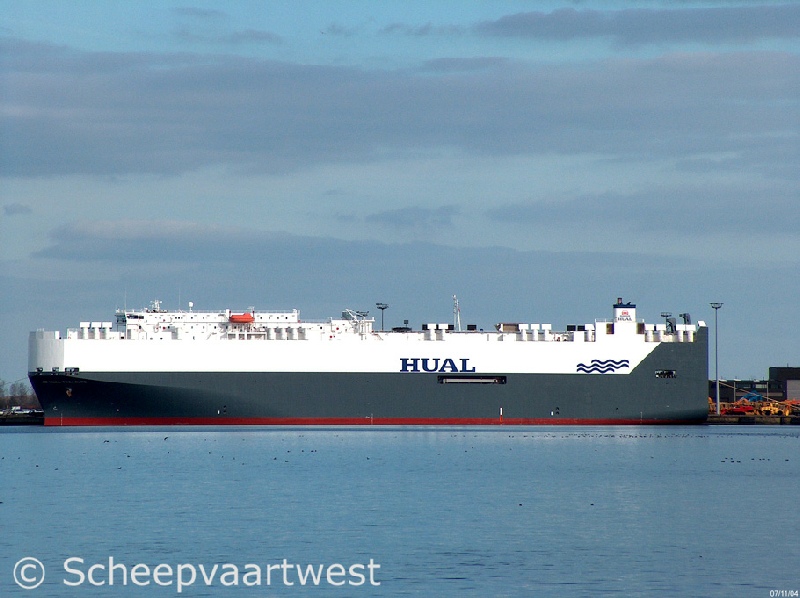

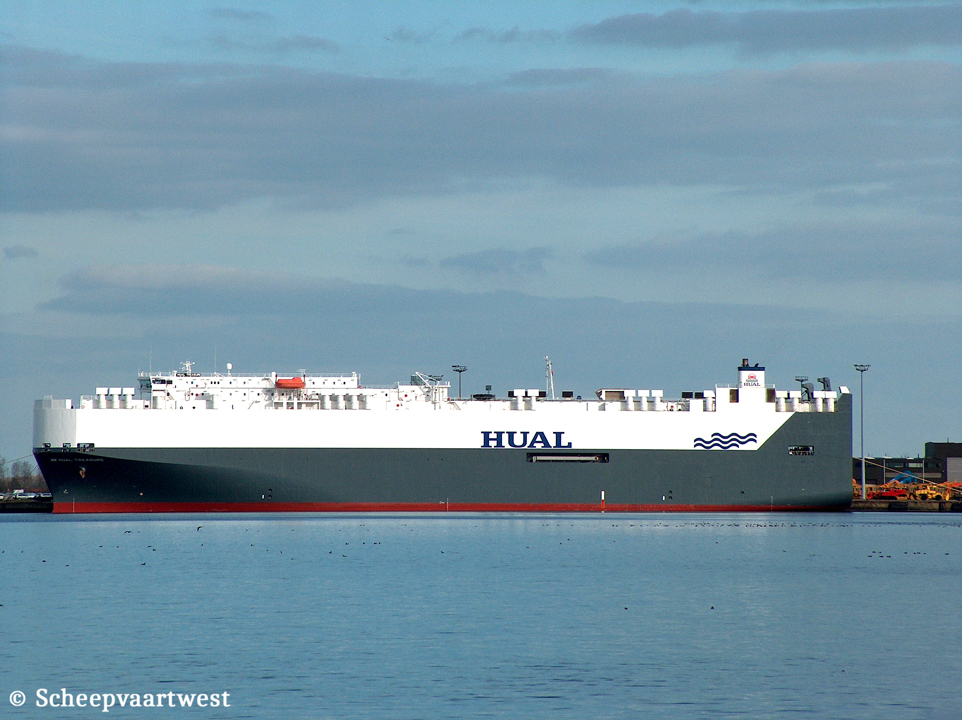

| Zeebrugge 07 November 2004 |
|
Name |
HUAL TREASURE |
|
Previous name |
1999 - 2000 Hual Carolita |
|
Type |
Roll-On/Roll-Off vehicles carrier |
|
IMO-number |
9184859 |
|
Call sign |
C6QM7 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
58.684 |
|
DWT |
22.133 t |
|
NT |
17.606 |
|
Length |
199,90 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 10,02 m |
|
Moulded L x B x D |
190,00 X 32,26 X 14,00 m |
|
Registered L x B x D |
190,00 X 32,26 X 32,73 m |
|
Freeboard |
4.016 mm |
|
Depth |
14,00 m |
|
Speed |
20,10 knots |
|
Built |
1999 |
|
Keel laid |
30/09/1998 |
|
Launch date |
20/01/1999 |
|
Date of completion |
11/05/1999 |
|
Builder |
Hashihama Shipbuilding Co., Ltd. 11 Higashiminatomachi Tadotsu-cho Nakatado-gun 764-0018 Japan |
|
Yard number |
1156 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsui/MAN-B&W 7S60MC - 2 stroke single acting 7 cylinder 600 x 2.292 mm combustion engine 13.997 kW / 19.017 hp at 105,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 970 mm |
|
Number of screws |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 0,78 MPa Evaporation: 5,14 t/h Manufacturer: Aalborg Industries A.S. |
|
Generators |
3x KRG-6 Ulstein main diesel generatorsets each 1.000 kW |
|
Emergency generator |
1x MAN D2866TE diesel generatorset 150 kW |
|
Deck area |
54.150 m² |
|
Number of decks |
12 |
|
Car capacity units |
5.714 |
|
Pick-up capacity units |
2.870 |
|
Max. capacity trucks + cars |
680 + 1.800 |
|
Number of ramps |
1x Starboard ramp 20,00 x 6,50 m - 22,0 t 1x Stern ramp 30,00 x 7,00 m - 150 t 150 t |
|
Tank capacities |
Fuel oil: 3.319 m³ Fresh water: 262,6 m³ Ballast 8.287 m³ |
|
Manager |
Teekay Marine Services AS Service Boks 520 Bark Silas vei 5 4898 Grimstad Norway |
|
Operator |
Hual - Höegh Ugland Auto Liners |
|
Owner |
Carolita Shipping Ltd 4898 Grimstad Norway |
|
Renamed |
01/2006 Höegh Treasure Norway, Oslo - Call sign: LAKC6
11/2014 Treasure Liberia, Monrovia - Call sign: D5HO2
|
|
Latest data adjustment |
23 May 2025 |
