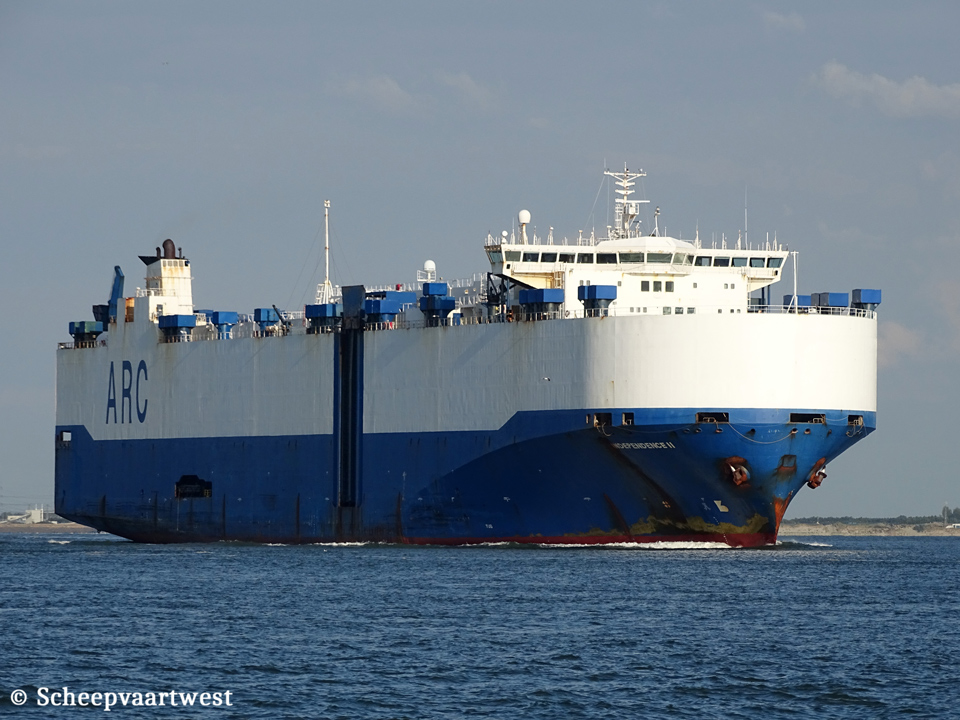

Independence II IMO 9070448 16

Westerschelde 31 August 2018

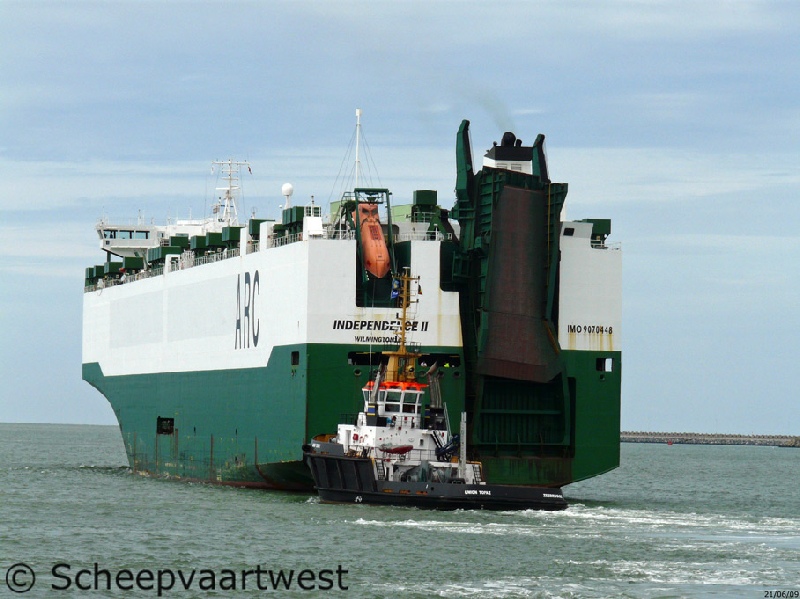

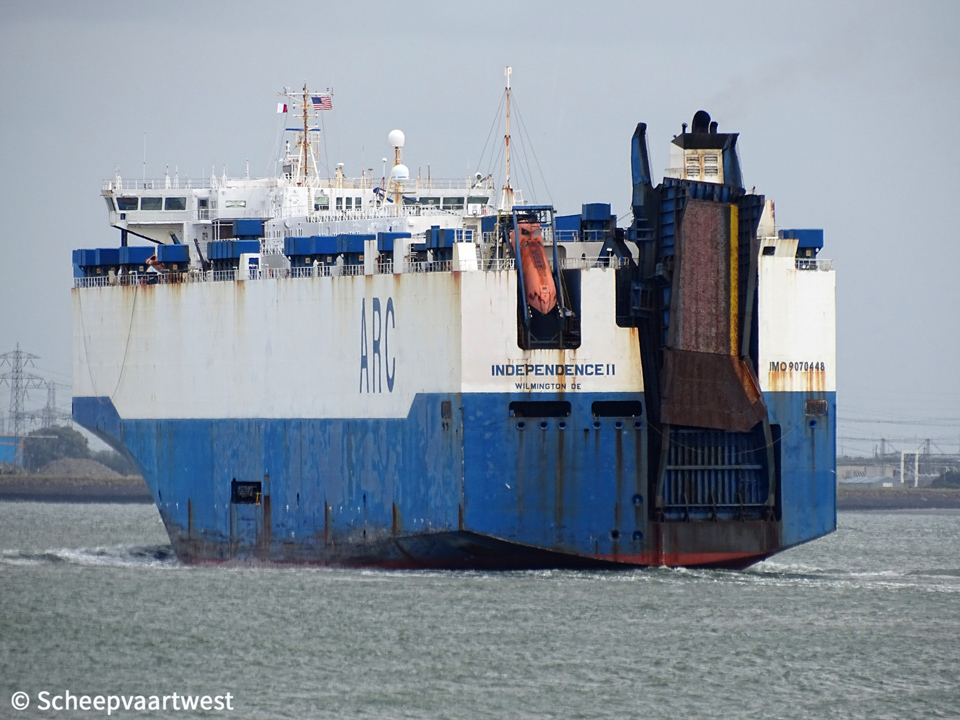

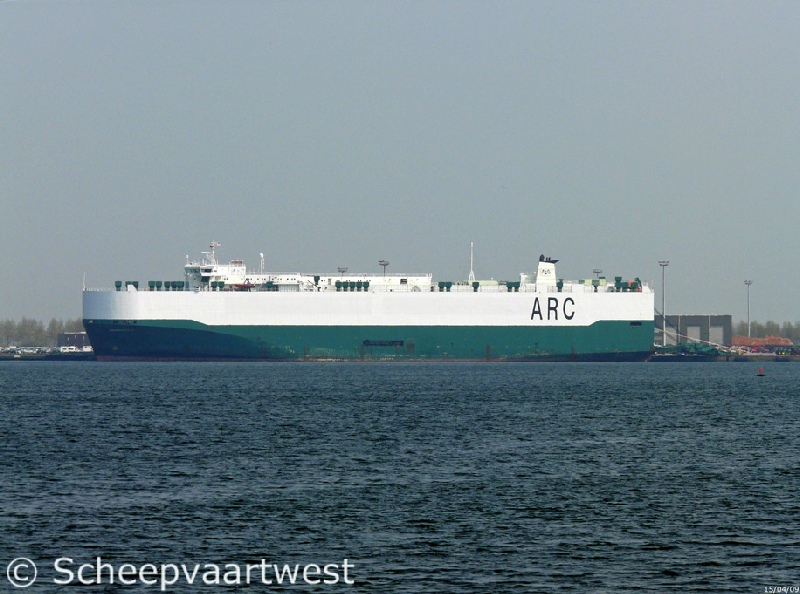

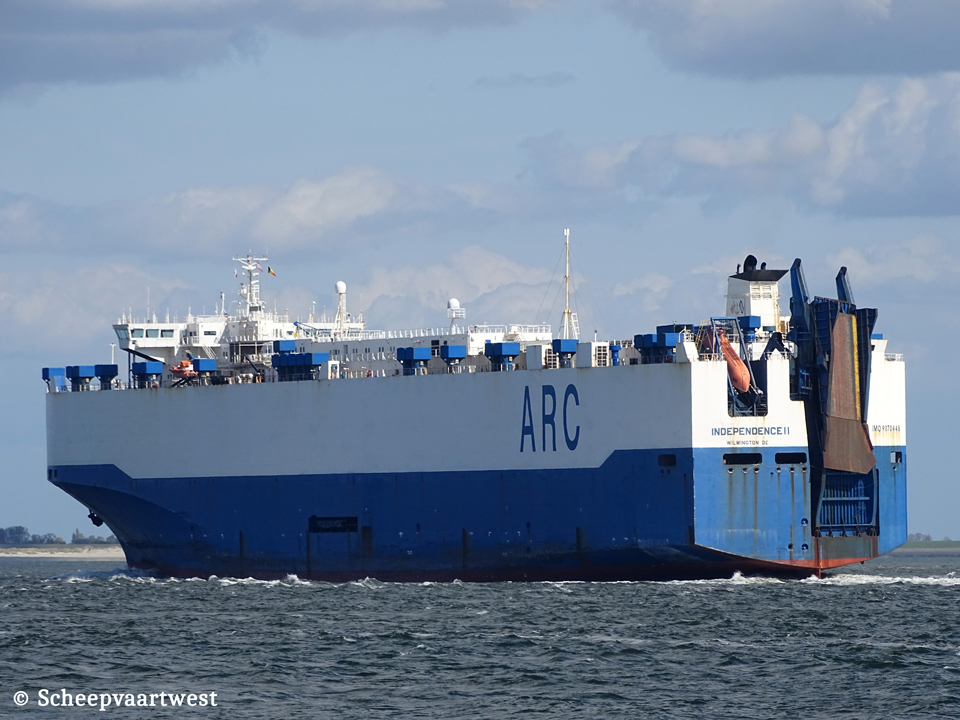

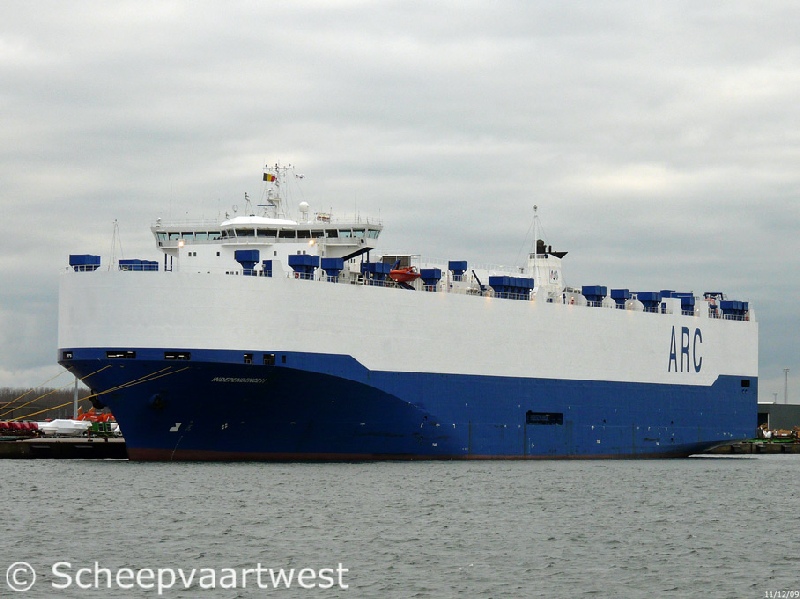

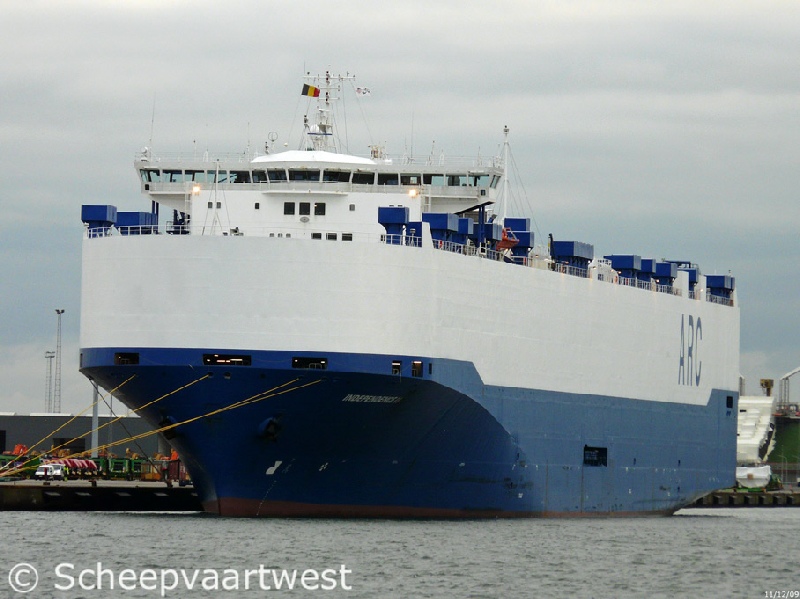

Independence II 14   Independence II 13   Independence II 15  Independence II IMO 9070448 17   Independence II 10   Independence II 01
Zeebrugge 17/12/09 Zeebrugge 17/12/09 Westerschelde 05/09/19 Westerschelde 23/04/17   Zeebrugge 21/06/09   Zeebrugge 15/04/08

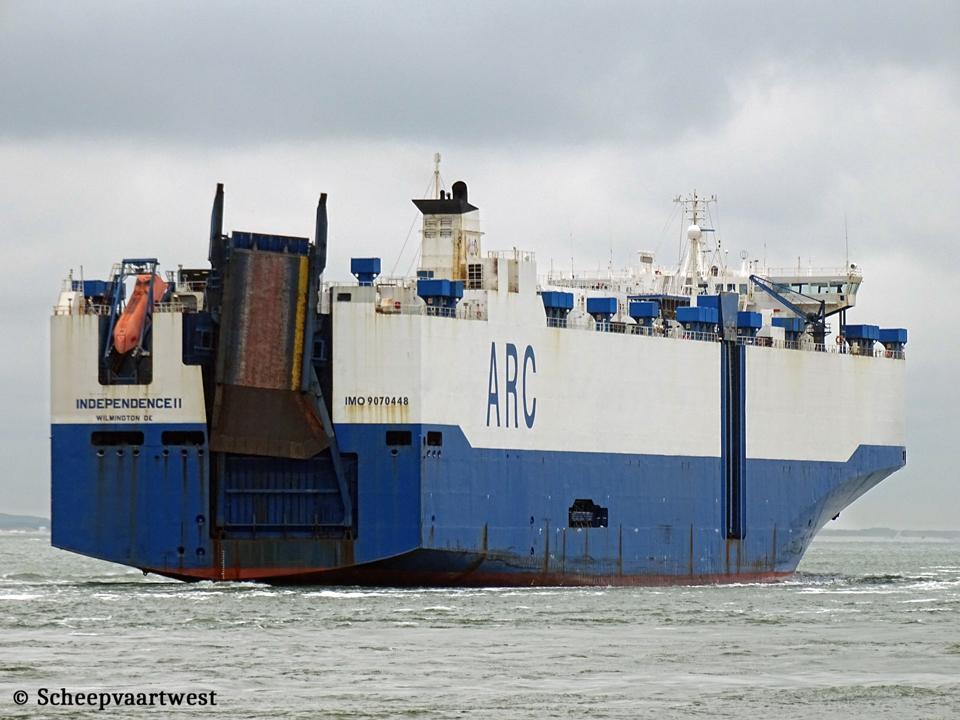

Independence II IMO 9070448 18   Independence II IMO 9070448 19
Westerschelde 23/05/16   Westerschelde 12/03/17


Name

INDEPENDENCE II

Previous name

1994 - 14/03/2008 Titus

Type

Vehicles Carrier

PCTC - Pure Car and Truck Carrier

IMO-number

9070448

Call sign

WGAX

Flag

United States of America

Port of registry

Wilmington, DE

Previous flags

1994 - 03/2008 Sweden

GT

55.598 t

DWT

Summer: 15.199 t

NT

20.033 t

Length

199,11 m overall

190,50 m between perpendiculars

Breadth

32,26 m moulded

Lanemetres

5.700

Draught

Summer: 11,02 m

Air draft

47,40 m

Height to upper deck

32,98 m

Freeboard

3.030 mm

Depth

14,05 m

Speed

20,2 knots

Built

1994

Keel laid

02/12/1993

Delivery date

01/11/1994

Builder

DSME - Deawoo Shipbuilding & Marine Engineering

Okpo

Republic of South Korea

Yard number

4411

Hull type

Single hull

Main engine

1x KHIC/MAN-B&W 8S60MC - 8 cylinder marine diesel with constant pressure supercharging and a maximum output of 16.358 kW / 20.239 bhp at 101,3 rpm

Manufacturer: Korea Heavy Industries Ship’s service

Propeller

1x Fixed propeller with remote control from the bridge or engine control room

Shaft generator

1x 950 kW

Generators

2x Wärtsilä diesel engines type 4R32 each attached to an 3x 440 Volt, 60 Hz, 1.400 kW AC-generator installed in a separate room

Emergency power

1x 150 kW diesel generatorset

Bow thruster

1.500 kW about 23,5 tons thrust

Stern ramp

Height: 5,00 m

Width: 7,00 m

Capacity: 105 t

Number of car decks

13 (of which 3 are hoist able)

Capacity deck area

52.433 m²

Capacity of car units RT43

5.846

One RT43 unit = 7,38975 m²

Capacity of cars / trucks

2.959 / 485

Basic complement

15

Crew

23

Operator & Manager

ARC - American Roll On Roll Off Carrier

300 Interpace Parkway

Building C, 4th Floor, Parsippany

NJ 07054

USA

Registered owner

Fidelio LP Partnership, Inc.

Scrapped

10/2020 at Chittagong, Bangladesh

Latest data adjustment

28 January 2021
