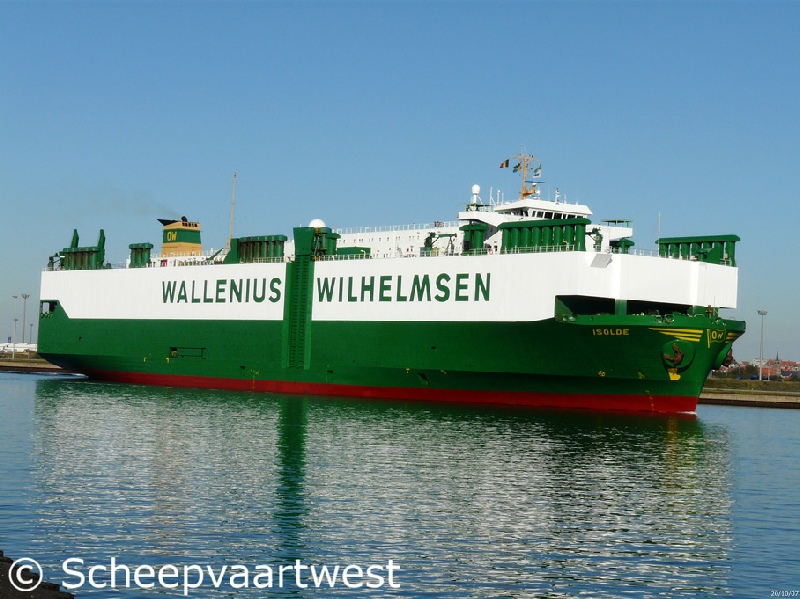

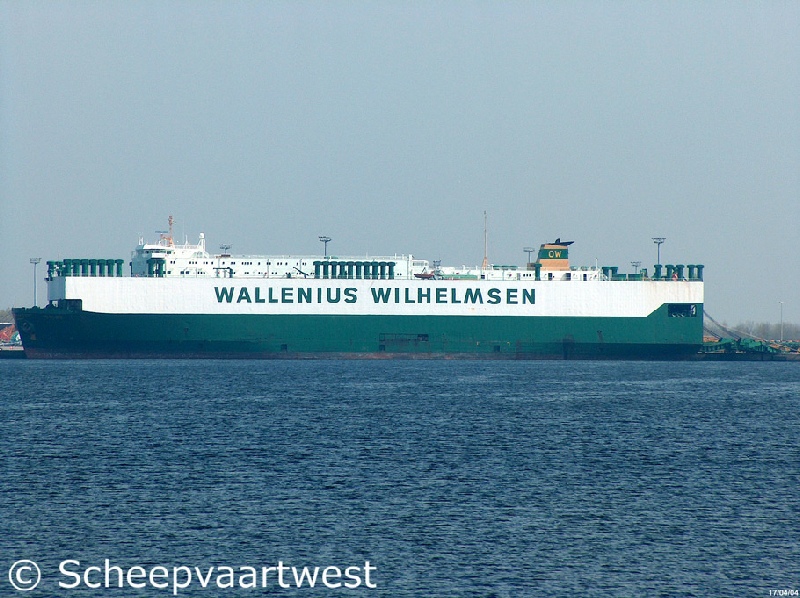

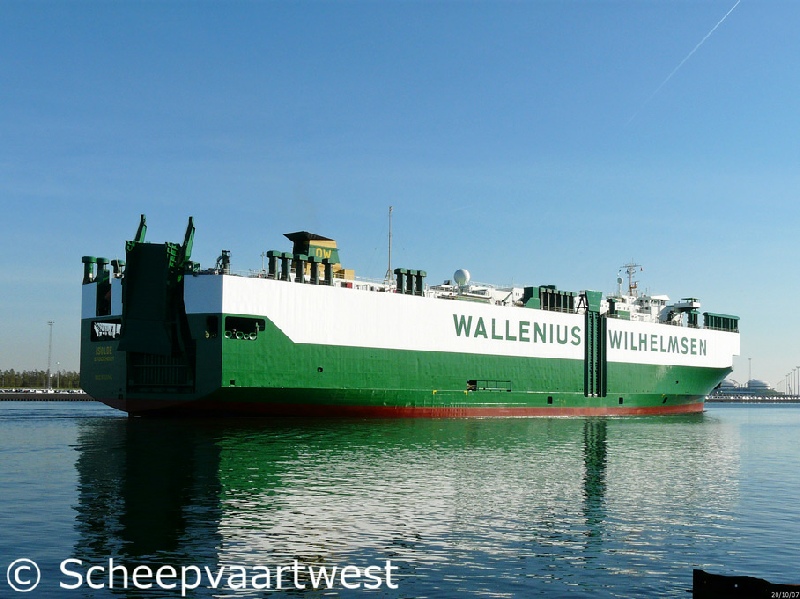

Isolde - IMO 8321345

Name

ISOLDE

Type

Vehicles Carrier
PCTC - Pure Car and Truck Carrier

IMO-number

8321345

Call sign

SLKB

Flag

Sweden

Previous flags

1997 Sweden
2003 Republic of Singapore

Port of registry

Stockholm

GT

51.071 t

DWT

28.396 t

NT

20.650 t

Length

199,00 m overall
190,71 m between perpendiculars

Breadth

32,25 m moulded

Draught

Summer: 11,62 m

Air draft

45,50 m

Freeboard

19.900 mm

Height to upperdeck

31,50 m

Speed

20,0 knots

Built

1985

Launch date

04.1985

Date of completion

06.1985

Builder

Kockums AB
Malmö
Sweden

Yard number

599

Hull type

Single hull

Main engine

1x Sulzer 7RTA 68 - 13,5 MW

Number of screws

1

Shaft generator

950 kW

Generators

2x Wärtsilä type 4R32 diesel engines each attached to an 3x 440 Volt, 60 Hz, 1.400 kW AC-Generators

Emergency

1x Diesel generatorset 150 kW

Bow thruster

1.500 KW bow thruster by about 23,5 tons thrust

Capacity car (RT43)

5.300
1 RT43 unit = 7,38975 m²

Capacity car/trucks

2.420/500

Stern ramp width

Width: 7,00 m
Height: 6,20 m
Capacity: 200 t

Number of car decks

12 (of which 4 are hoistable)

Capacity deck area

47.309 m²

Basic complement

15

Manager

Wallenius Lines
Stockholm
Sweden

Operator

Wallenius Wilhelmsen Logistics

Owner

Parsifal Shipping
Singapore
Republic of Singapore
