| Zeebrugge 11 December 2009 |
|
Name |

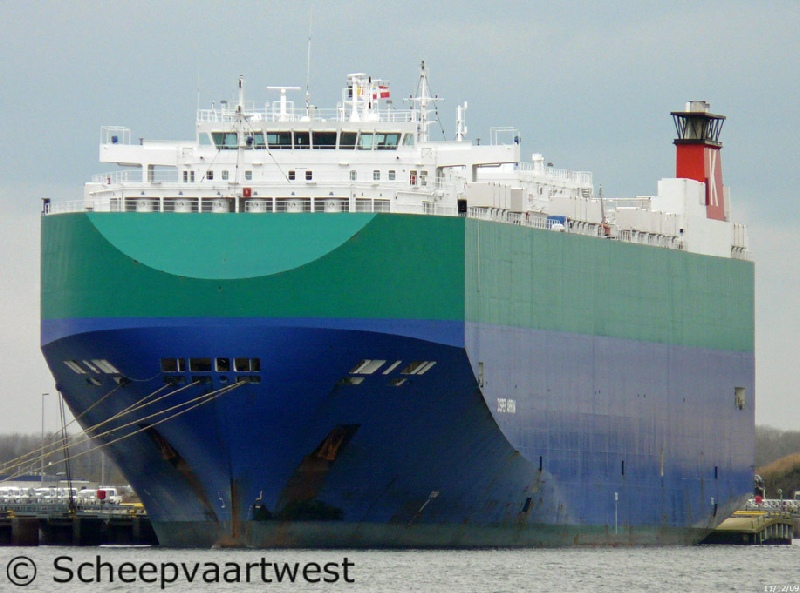

JASPER ARROW |
|
Type |
Vehicles carrier PCTC - Pure Car and truck Carrier |
|
IMO-number |
9267912 |
|
Official number |
8000964 |
|
Call sign |
C6UH9 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
57.692 t |
|
DWT |
21.040 t |
|
NT |
21.037 t |
|
Length |
199,94 m overall 188,36 m between perpendiculars |
|
Breadth |
32,26 m |
|
Draught |
Summer: 10,00 m |
|
Freeboard |
3.656 mm |
|
Depth |
19,98 m |
|
Speed |
20,0 knots |
|
Built |
2005 |
|
Keel laid |
21.02.2005 |
|
Launch date |
18.08.2005 |
|
Date of completion |
11.10.2005 |
|
Builder |
Stocznia Gdynia Group |
|
Yard number |
8168/12 |
|
Hull type |
Single hull |
|
Main engine |
1x MAN B&W 7S60MC-C diesel engine |
|
Number of screws |
1 |
|
Boilers |
1x Auxiliary boiler, exhaust gas water tube AV-7 1x Auxiliary boiler, vertical shell type Mission OS Builder: Aalborg Industries A/S |
|
Generators |
3x MAN B&W 7L28/32H main diesel generatorsets |
|
Emergency generator |
1x MAN D2866LXE30 diesel generatorset |
|
Number of decks |
8 |
|
Car capacity |
9.678 |
|
Ramp load capacity |
150 t |
|
Anchor chain |
Length: 660 m Diameter: 78 mm |
|
Crew |
22 |
|
Manager |
Stamco Ship Management Company Ltd. |
|
Operator |
K-Line - Kawasaki Kisen Kaisha Line |
|
Owner |
Jasper Maritime Limited United Kingdom |
