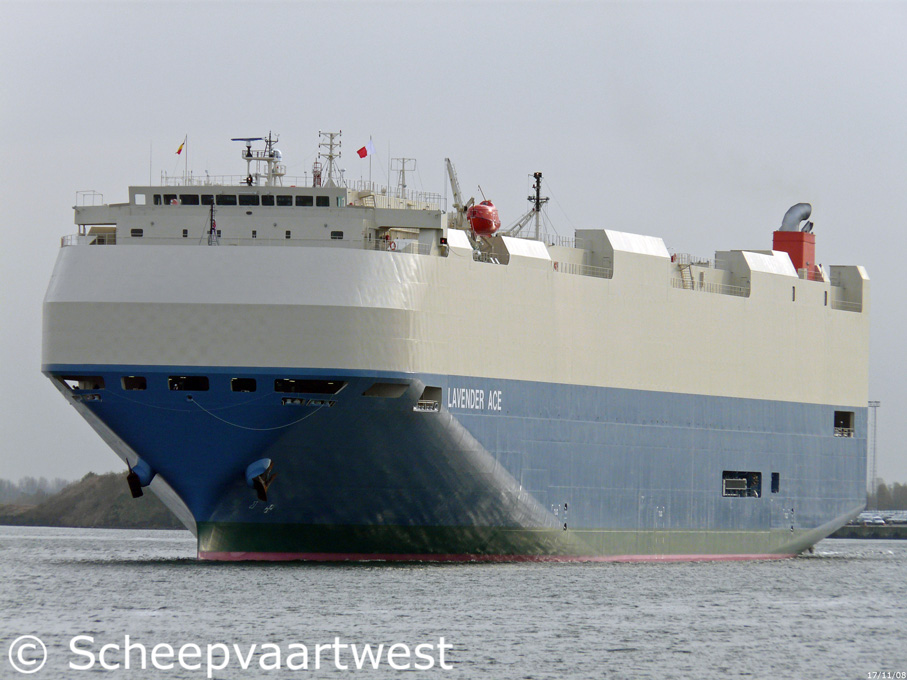

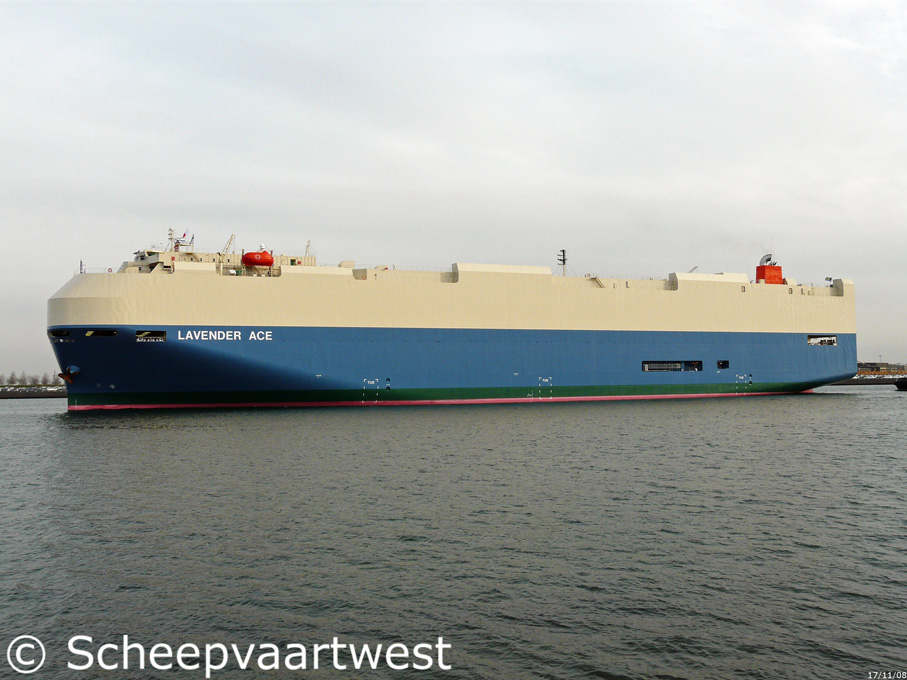

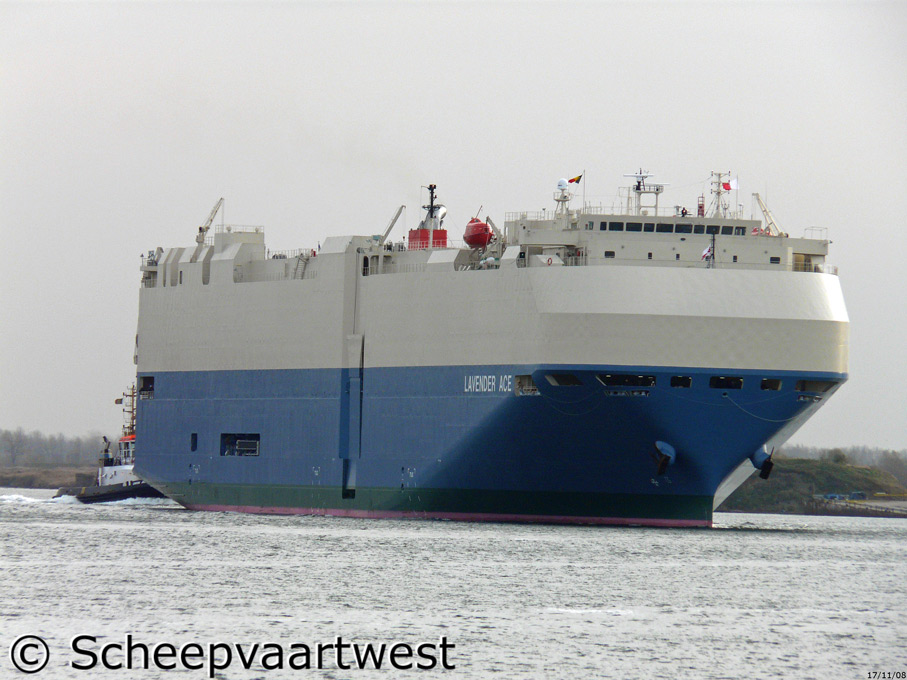

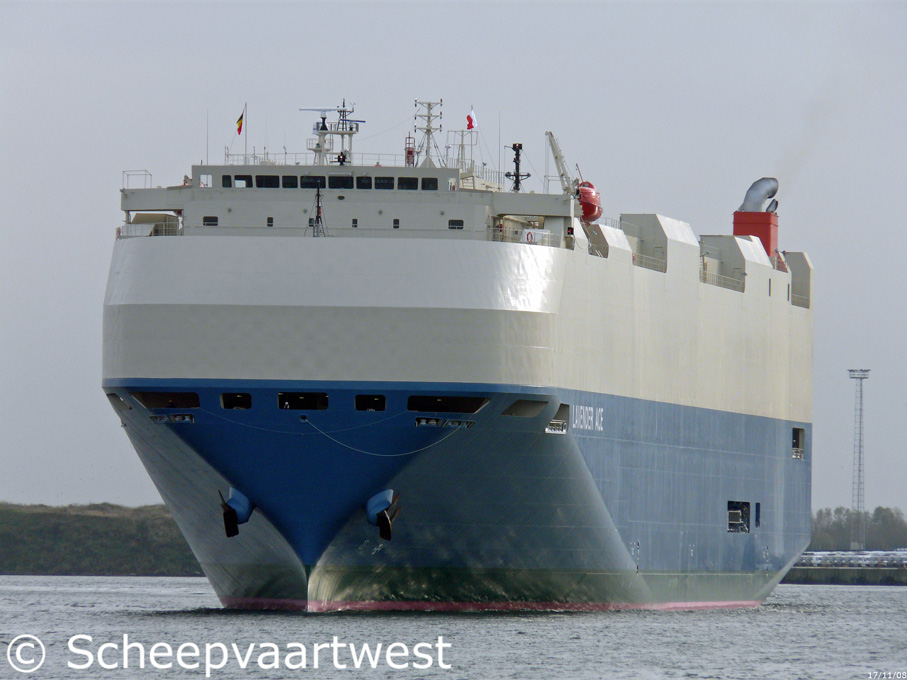

| Zeebrugge 17 November 2008 |
 |
 |
 |
 |
 |
 |
|||||

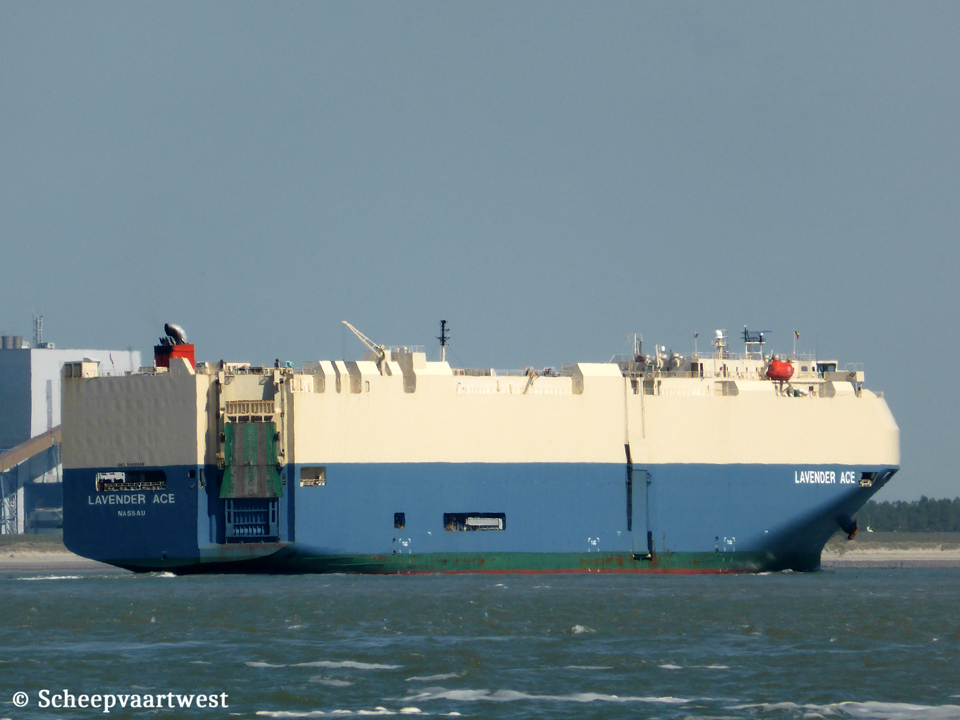

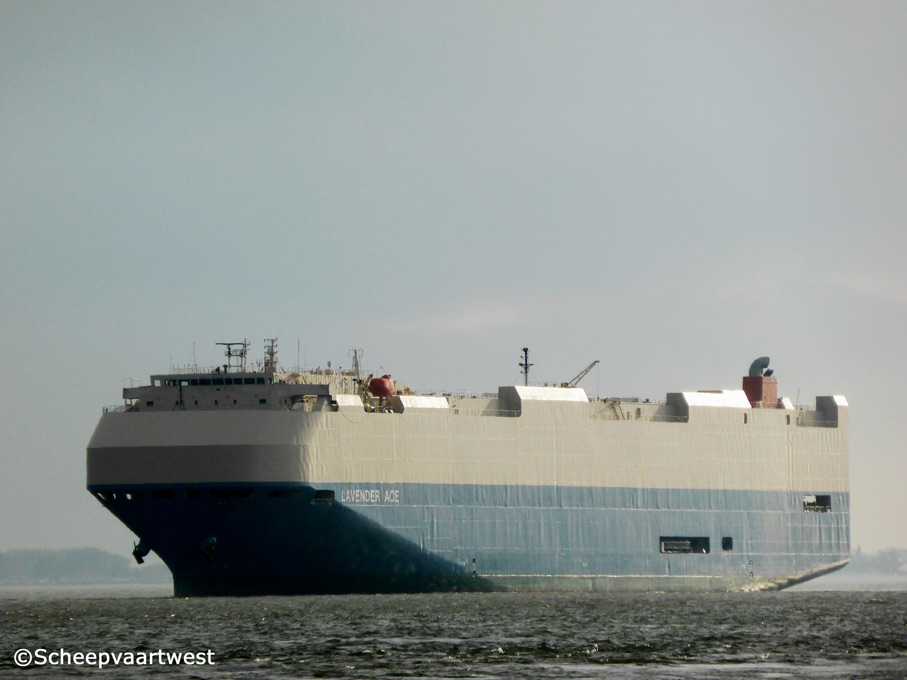

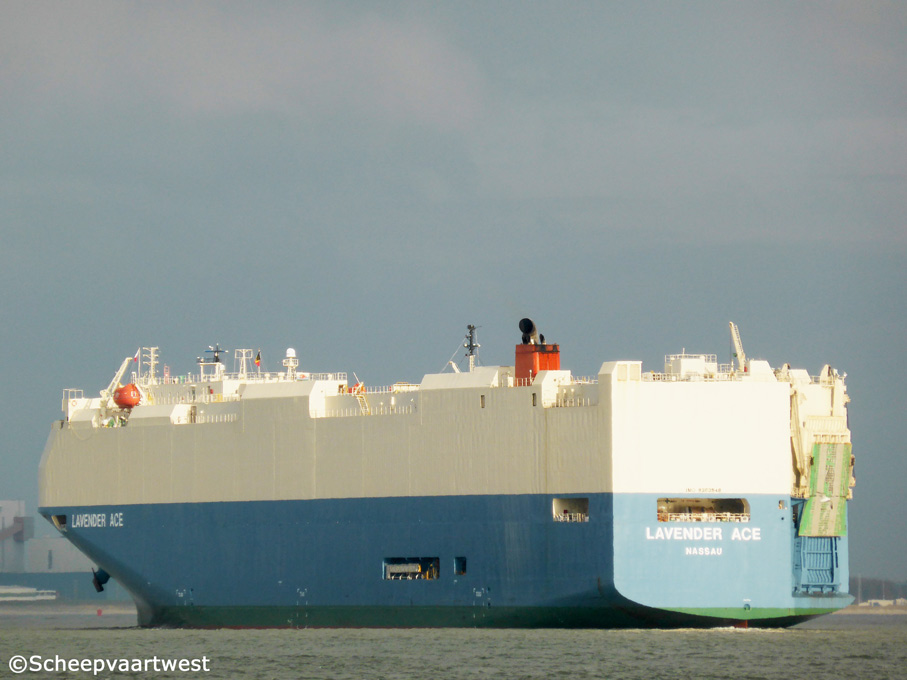

| Zeebrugge 17/11/08 | Zeebrugge 17/11/08 | Zeebrugge 17/11/08 | Westerschelde 06/04/14 | Westerschelde 06/04/14 | Westerschelde 13/05/15 | |||||
|
Name |
LAVENDER ACE |
|
Type |
Roll-On/Roll-Off carier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9363948 |
|
Call sign |
3FFS3 |
|
Flag |
Repulic of Panama |
|
Port of registry |
Panama City |
|
Preious flags |
10/2008 - 06/2015 Bahamas, Nassau - Call sign: C6XI4 |
|
GT |
60.065 t registered |
|
DWT |
17.262 t |
|
NT |
18.543 t registered |
|
Length |
199,99 m |
|
Breadth |
32,26 m overall |
|
Moulded L x B x D |
192,00 x 32,26 x 14,65 m |
|
Registered L x B x D |
193,94 x 32,26 x 21,17 m |
|
Draught |
9,725 m |
|
Freeboard |
Summer: 4.965 mm |
|
Depth |
35,80 m |
|
Speed |
Service: 19,4 knots Trail: 21,8 knots |
|
Built |
2008 |
|
Keel laid |
08/04/2008 |
|
Launch date |
22/06/2008 |
|
Date of completion |
10/10/2008 |
|
Builder |
Toyohashi Shipbuilding Co., Ltd. Toyohashi Japan |
|
Yard number |
3612 |
|
Hull type |
Single hull |
|
Main engine |
1x 2 stroke single acting 8 cylinder 600 x 2.300 mm combustion engine 15.090 kW at 98,0 rpm Manufacture: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 665 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 3,82 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generatorsets total 4.275 kVA |
|
Car capacity |
6.287 |
|
Tank capacities |
Fuel oil: 2.991 m³ Fresh water: 404 m³ Ballast water: 7.372 m³ |
|
Lifting equipment |
2x Cranes - SWL 4,0 t each |
|
Crew |
22 |
|
Manager |
Shunzan Kaiun Co., Ltd. 2-2-1, Kitahorai-Cho Imabari-City, Ehime-Pref, 794-0028 Japan |
|
Registered owner |
Primavera Montana S.A. |
|
Latest data adjustment |
01 August 2024 |
