| Zeebrugge 27 September 2015 |
 |
 |
 |
 |
 |
 |
|||||

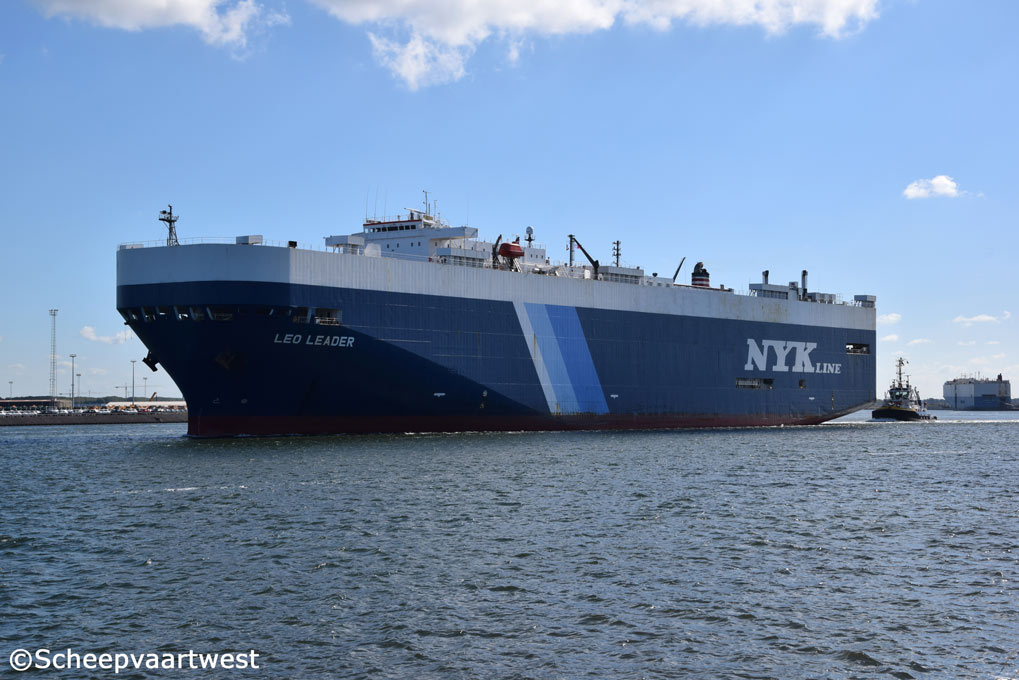

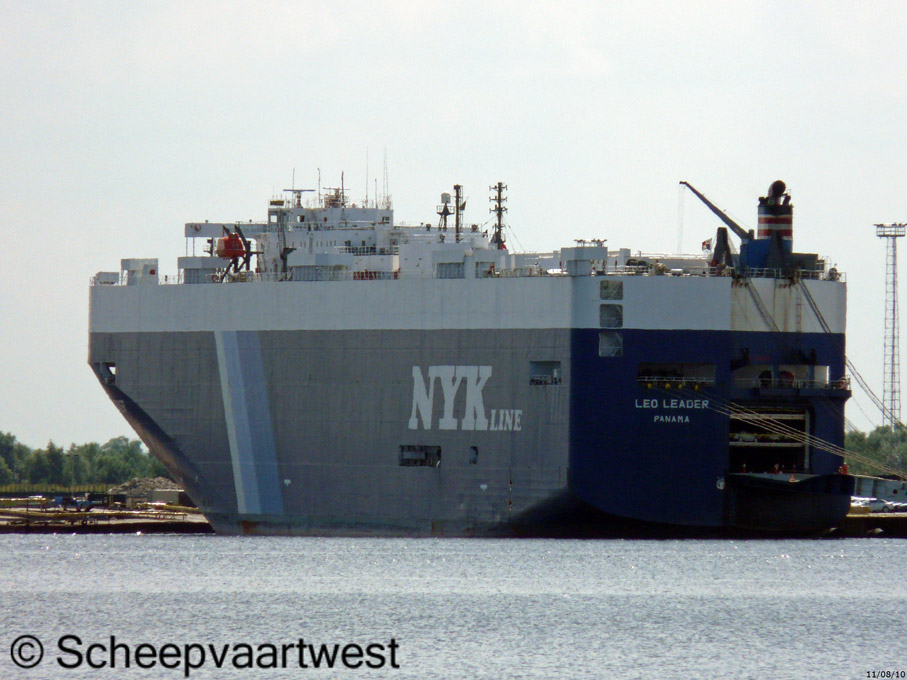

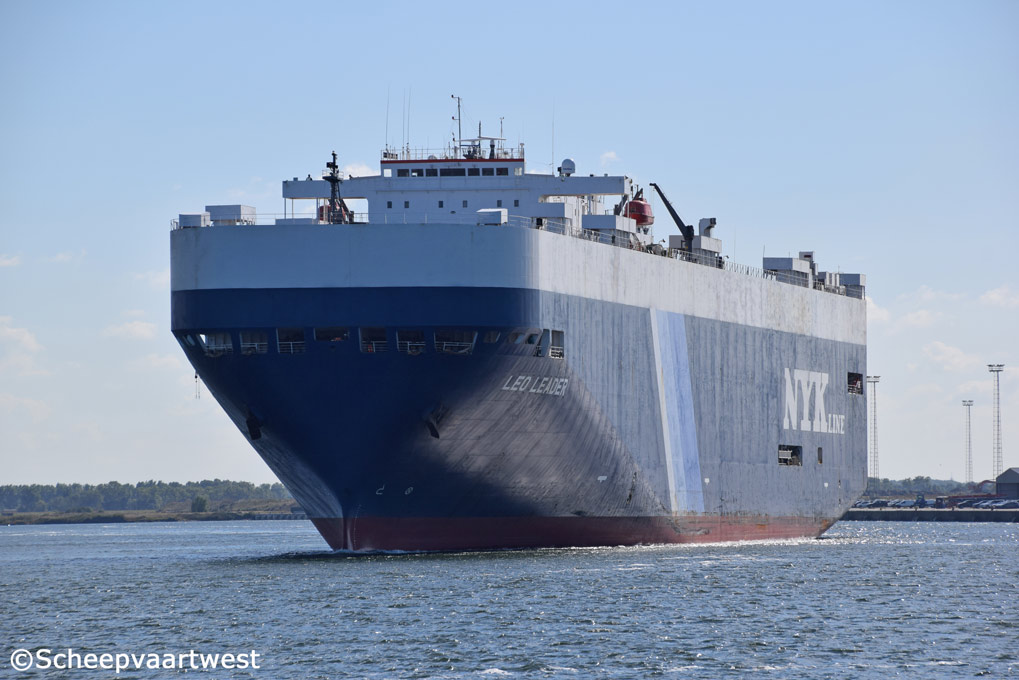

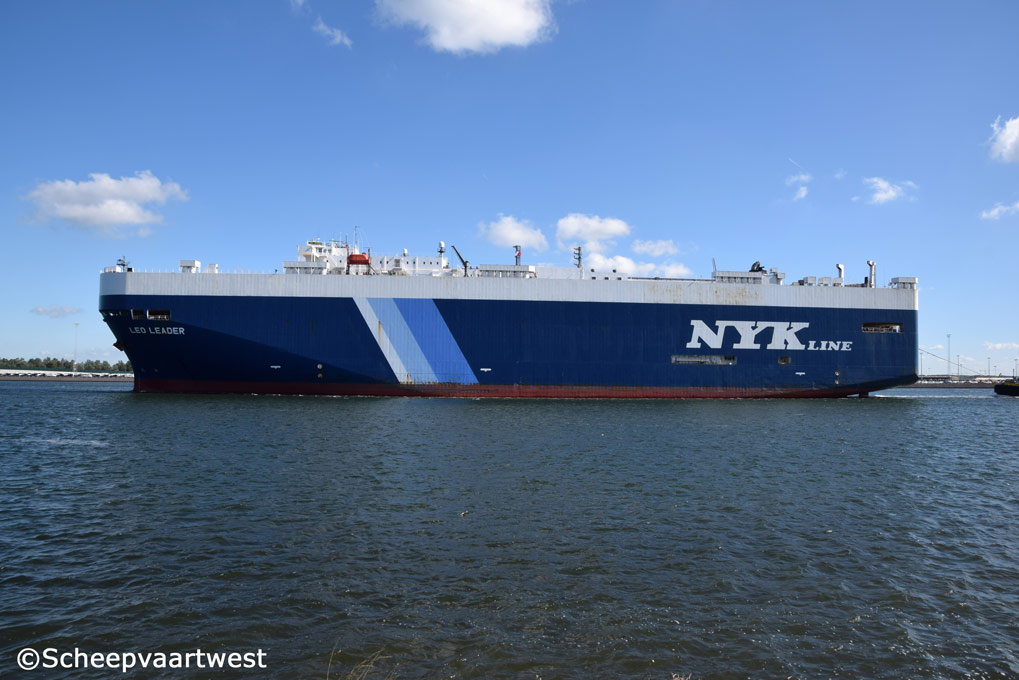

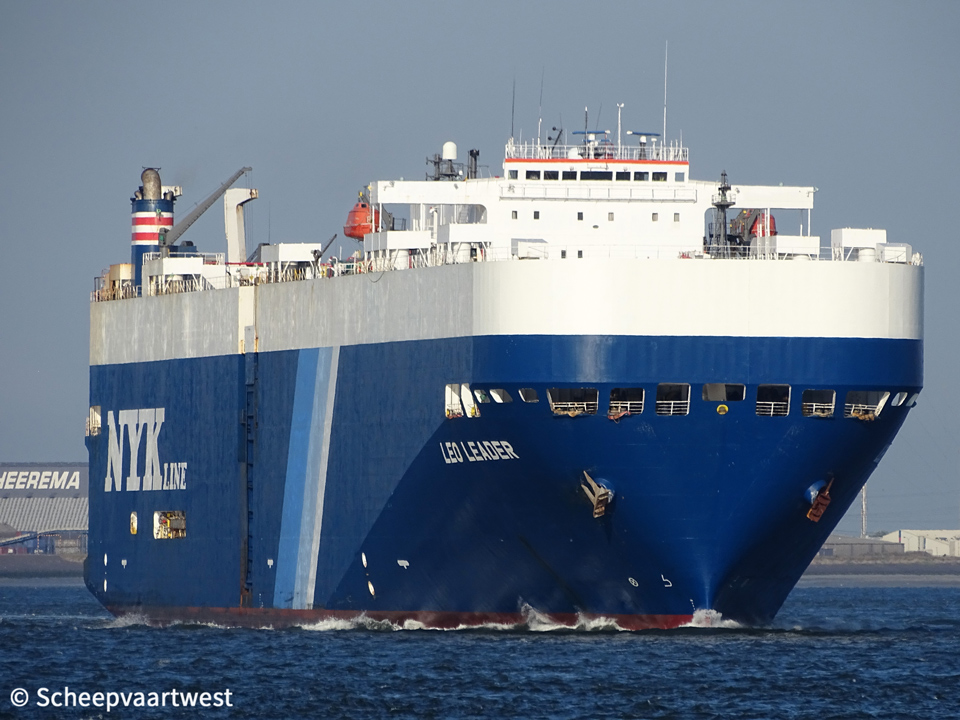

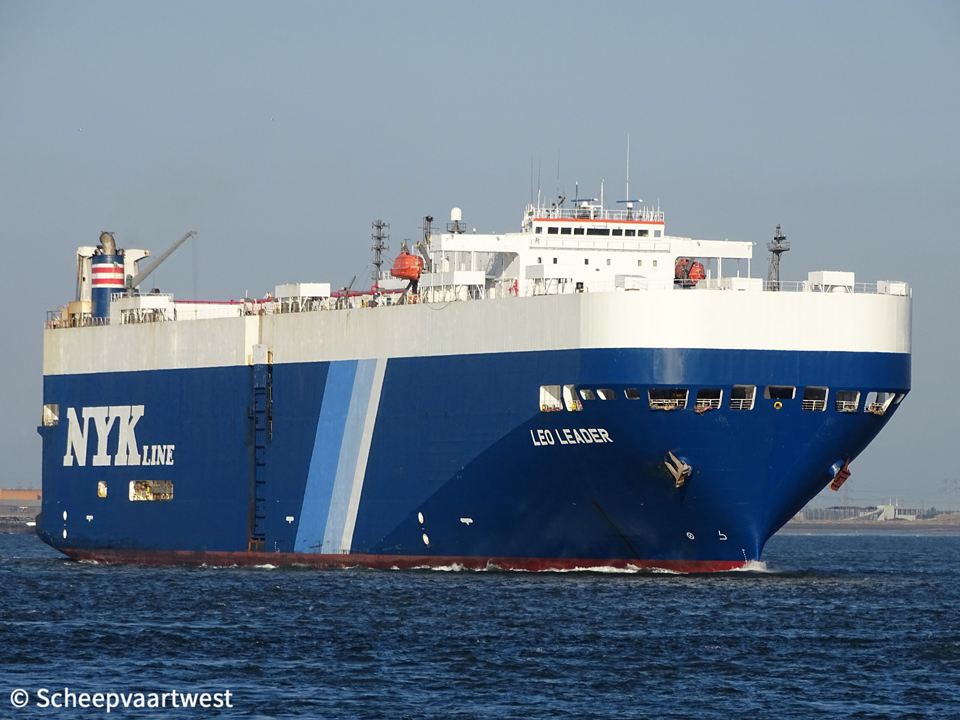

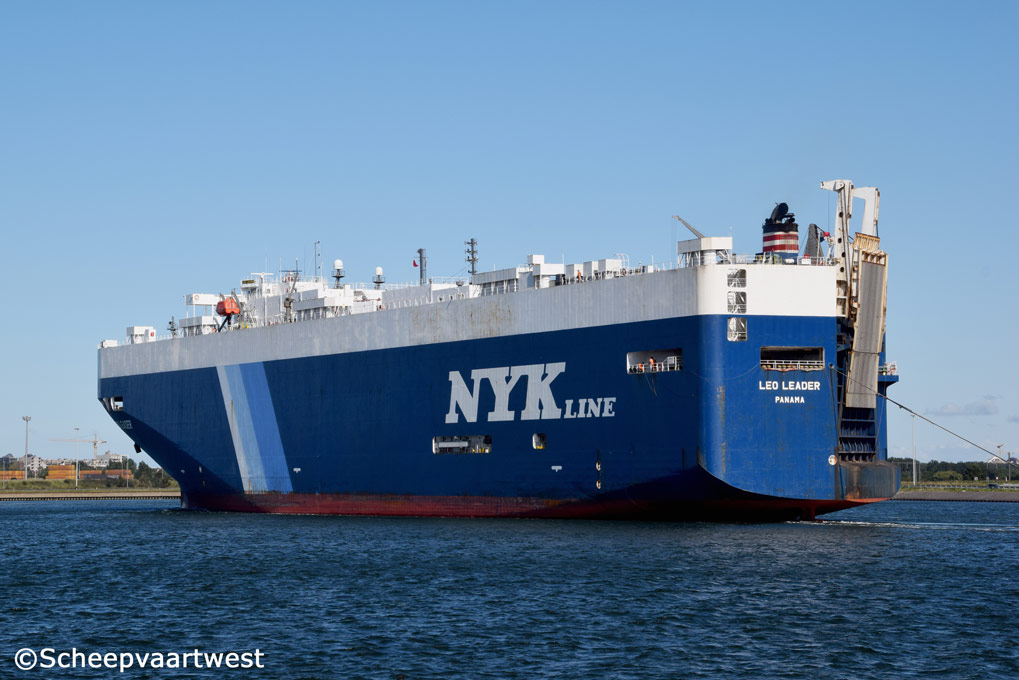

| Zeebrugge 27/09/15 | Zeebrugge 27/09/15 | Zeebrugge 27/09/15 | Zeebrugge 11/08/10 | Westerschelde 12/07/18 | Westerschelde 12/07/18 |
|
Name |
LEO LEADER |
|
Type |
Roll-On/Roll-Off vehicle carrier |
|
IMO-number |
9181558 |
|
Call sign |
3FQK9 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
57.566 t |
|
DWT |
22.733 t |
|
NT |
17.270 t |
|
Length |
199,90 m overall |
|
Breadth |
32,26 m |
|
Max. (summer) draught |
10,019 m |
|
Moulded L x B x D |
190,00 x 32,26 x 15,27 m |
|
Registered L x B x D |
192,88 x 32,26 x 23,68 m |
|
Freeboard |
Summer: 5.285 mm |
|
Depth |
15,27 m moulded |
|
Speed |
Trial: 20,85 knots Service: 19,25 knots |
|
Built |
1999 |
|
Keel laid |
10.06.1998 |
|
Launch date |
30.04.1999 |
|
Date of completion |
24.08.1999 |
|
Builder |
Shin Kurushima Dockyard Co. Ltd. Tokyo Japan |
|
Yard number |
5012 |
|
Hull type |
Single hull |
|
Main engine |
1x Kobe Diesel - 2 stroke single acting 8 cylinder 600 x 2.200 mm diesel engine - 14.121 kW at 100,0 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 610 mm |
|
Propeller |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 3,27 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Main diesel generatorsets each 4.275 kVA |
|
Car capacity |
5.055 |
|
Tank capacities |
Fuel oil: 3.484 m³ Fresh water: 456 m³ Water ballast: 9.302 m³ |
|
Lifting equipment |
3x Cranes - SWL 4,0 t each |
|
Crew |
23 |
|
Manager |
Wilhelmsen Ship Management SDN BHD |
|
Operator |
NYK-Line / Nippon Yusen Kaisha Line |
|
Registered owner |
Scorpio Carriers Ltd. Liberia |
|
Sister ship |
Pegasus Leader |
|
Latest data adjustment |
19 October 2015 |
