| Zeebrugge 03 September 2011 |
|
Name |

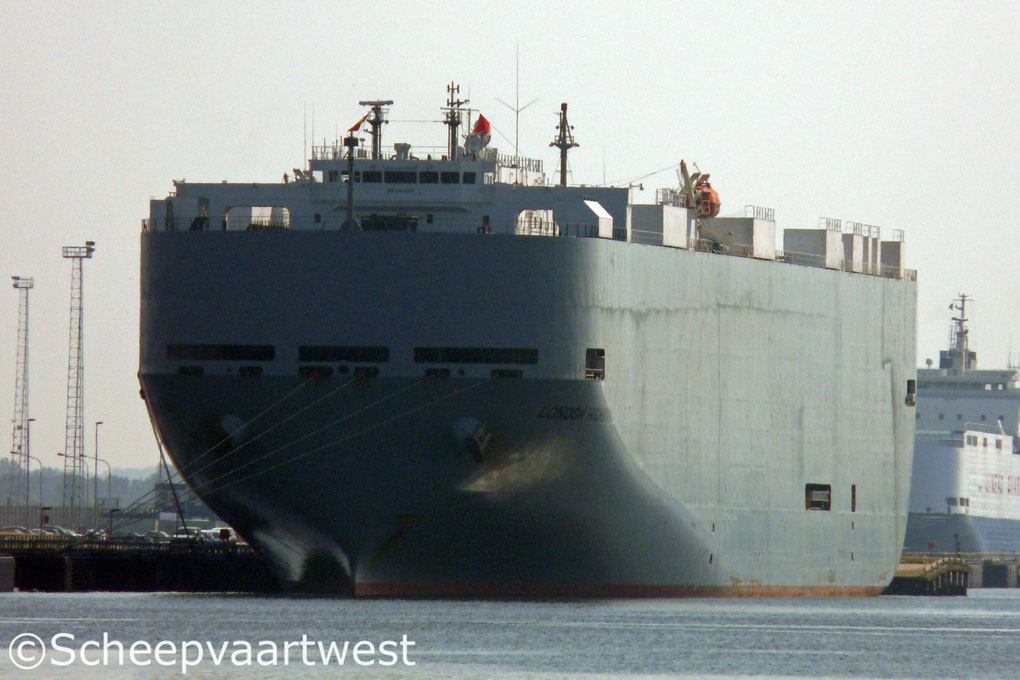

LONDON HIGHWAY |
|
Type |
Vehicles carrier |
|
IMO-number |
9362267 |
|
Call sign |
3EIF9 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
55.600 t registered |
|
DWT |
17.765 t |
|
NT |
16.680 t registered |
|
Length |
199,94 m |
|
Breadth |
32,00 m |
|
Draught |
Summer: 9,716 m |
|
Moulded L x B x D |
190,00 x 32,20 x 15,30 m |
|
Registered L x B x D |
194,27 x 32,20 x 23,71 m |
|
Freeboard |
Summer: 5.625 mm |
|
Depth |
15,30 m moulded |
|
Speed |
20,0 knots |
|
Built |
2006 |
|
Keel laid |
03.04.2006 |
|
Launch date |
20.09.2006 |
|
Date of completion |
22.11.2006 |
|
Builder |
Imabari Shipbuilding Co., Ltd. |
|
Yard number |
1488 |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi 8UEC60LS II - 2 stroke single acting 8 cylinder 600 x 2.300 mm diesel engine - 13.940 kW at 99,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Number of screws |
1 |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device |
|
Boiler |
1x Auxiliary vertical boiler - 7,8 bar Evaporation: 4,44 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Main diesel generatorsets each 4.650 kVA |
|
Cargo capacity |
Cars: 6.057 Trucks: 111 Trailers: 42 |
|
Tank capacities |
Fuel oil: 3.521 m³ Fresh water: 376 m³ Water ballast: 8?447 m³ |
|
Lifting equipment |
2x Cranes - SWL 0,5 t each 1x Crane - SWL 1,0 t 2x Cranes - SWL 4,0 t each |
|
Crew |
23 |
|
Manager |
Taiyo Nippon Kisen Co., Ltd. Kobe |
|
Operator |
K-Line / Kawasaki Kisen Kaisha Line |
|
Registered owner |
ISC1400 Shipping S.A. |
