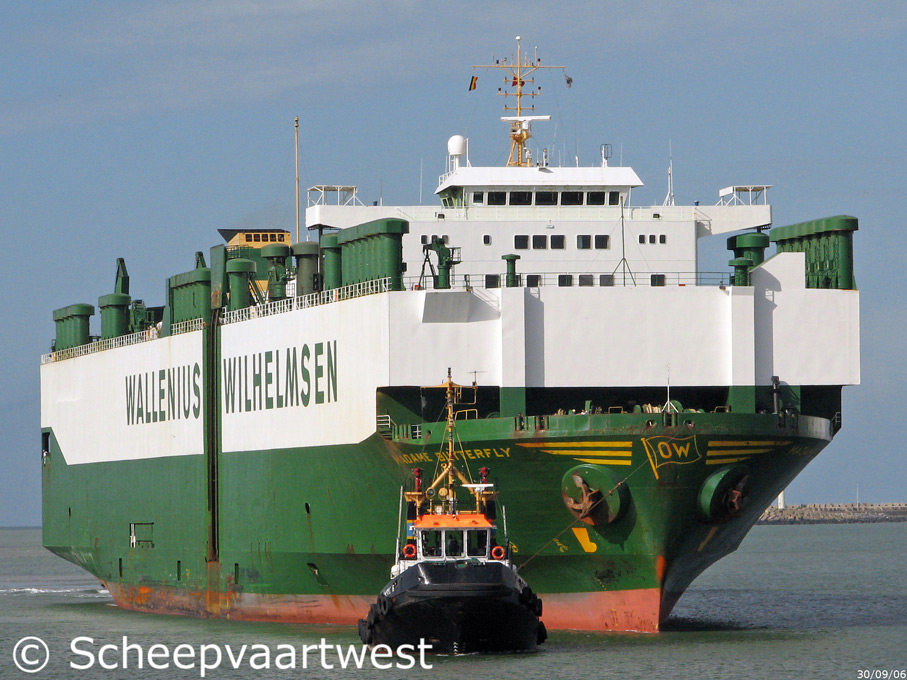

| Zeebrugge 30 September 2006 |
 |
 |
 |
||

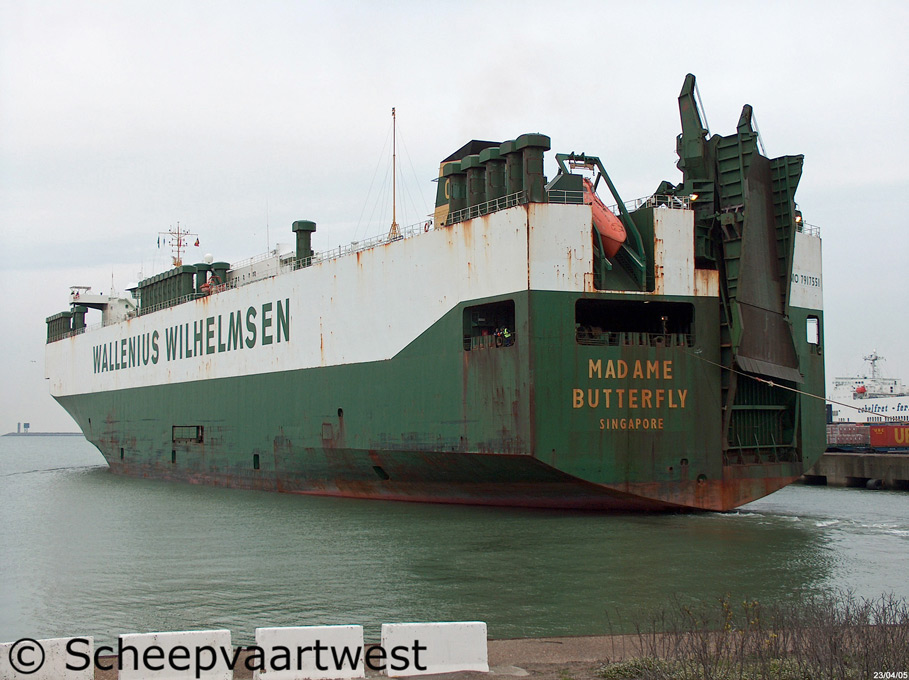

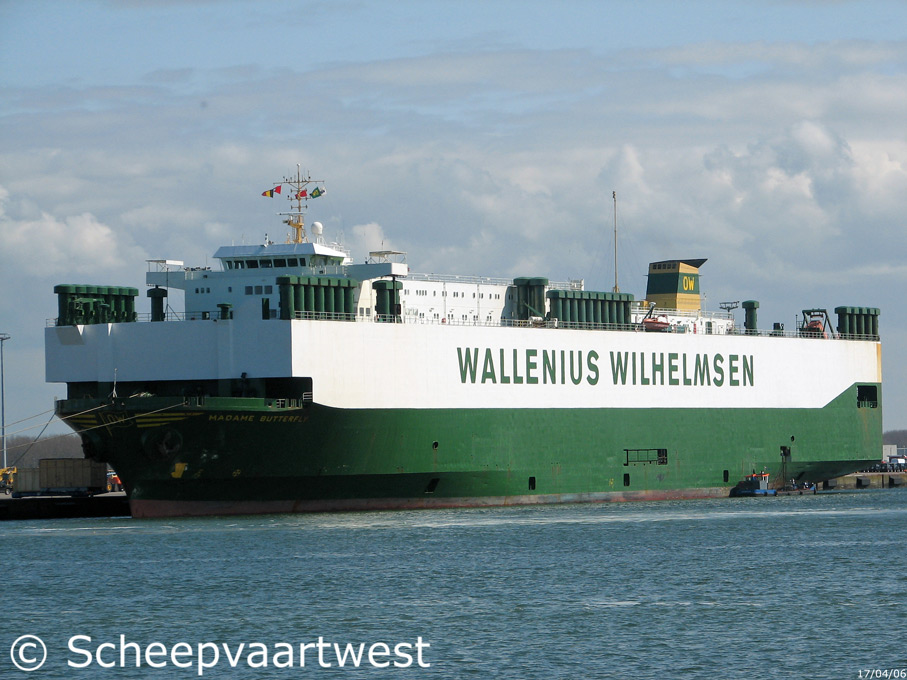

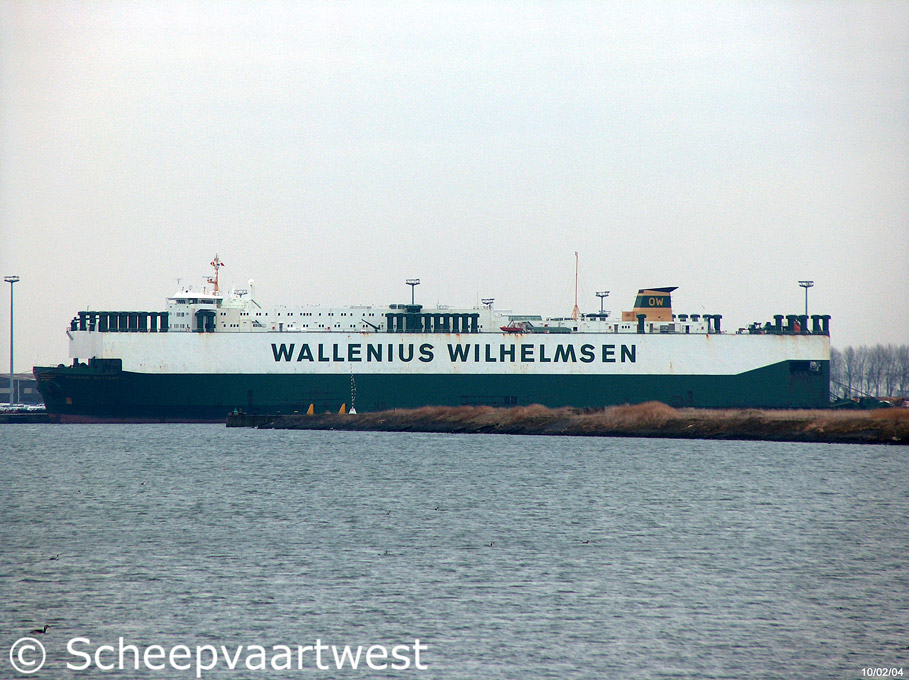

| Zeebrugge 17/04/06 | Zeebrugge 23/04/05 | Zeebrugge 10/02/04 |
|
Name |
MADAME BUTTERFLY |
|
Type |
Roll-On/ Roll-Off Vehicles carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
7917551 |
|
Call sign |
9VHF |
|
Flag |
Republic of Singapore |
|
Previous flag |
1996 - Sweden 1996 - Republic of Panama |
|
Port of registry |
Singapore |
|
GT |
50.681 t |
|
DWT |
28.689 t |
|
NT |
20.678 t |
|
Length |
198,10 m overall |
|
Breadth |
32,26 m overall |
|
Draught |
Summer: 11,62 m |
|
Freeboard |
2.090 mm |
|
Depth |
13,70 m |
|
Speed |
19,5 knots |
|
Built |
1981 |
|
Launch Date |
09.05.1981 |
|
Date of completion |
07.1981 |
|
Builder |
Kockums AM |
|
Yard number |
581 |
|
Hull type |
Single hull |
|
Main engine |
1x B&W Götaverken 7L 80 GFCA diesel - 13.554 kW / 18.417 hp |
|
Number of screws |
1 |
|
Capacity Car (RT43) |
5.234 1 RT43 unit = 7,38975 m² |
|
Capacity cars / trucks |
2.380 / 500 |
|
Hoistable decks |
4 |
|
Max. Ro-Ro capacity |
Height: 6,20 m |
|
Management |
Wallenium Ship Management Pte Ltd |
|
Operator |
Wallenius Wilhemsen Lines AB |
|
Reg. owner |
Parsifal Shipping Pte. Ltd. |
|
Owner |
Wallenius Lines AB (Sweden) |
