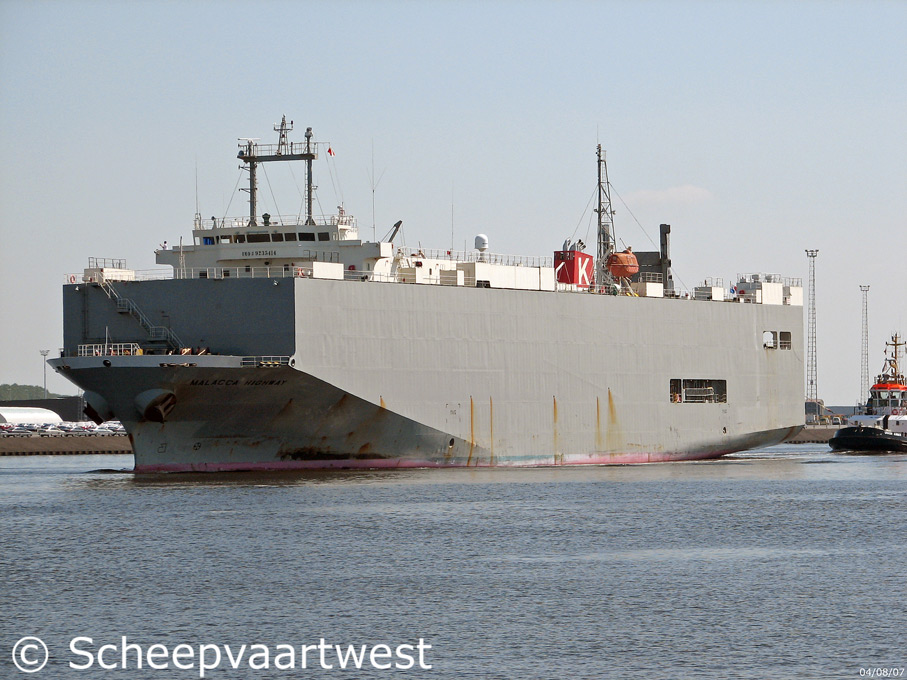

Malacca Highway 03
Zeebrugge 04 August 2007

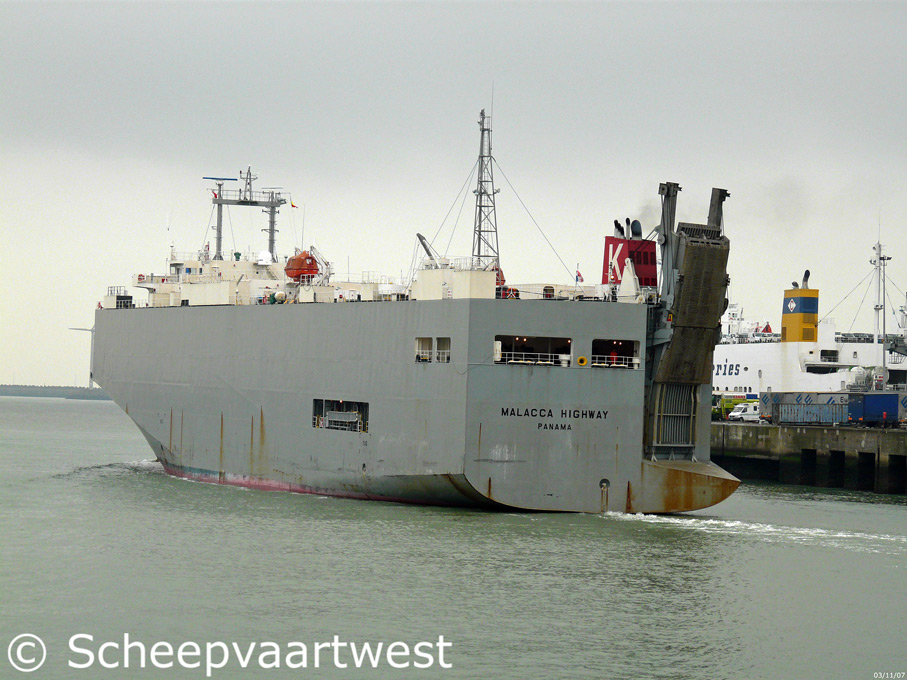

Malacca Highway 07   Malacca Highway 14
Zeebrugge 04/08/07 Zeebrugge 03/11/07



Name

MALACCA HIGHWAY

Type

Vehicles Carrier
PCC - Pure Car Carrier

IMO-number

9235414

Call sign

H9AT

Flag

Republic of Panama

Port of registry

Panama

GT

17.735 t

DWT

Summer: 6.864 t

NT

5.475 t

Length

139,00 m overall
130,00 m between perpendiculars

132,98 m registered

Breadth

23,20 m overall

Moulded L x B x D

130,00 x 23,20 x 9,00 m

Registered L x B x D

132,98 x 23,20 x 15,05 m

Draught

Summer: 7,01 m

Freeboard

Summer: 2.006

Depth

9,00 m

Speed

Service:18,5 knots

Trail: 20,1 knots

Built

2001

Keel laid

04.09.2000

Launch date

14.12.2000

Date of completion

25.03.2001

Builder

Usuki Shipyard Zosensho
Usuki
Japan

Yard number

1669

Hull type

Single hull

Main engine

1x 2 stroke single acting 7 cylinder 420 x 1.764 mm diesel engine - 7.560 kW at 136 rpm

Manufacturer: The Hanshin Diesel Works, Ltd.

Number of screws

1

Boilers

1x Auxiliary vertical boilers - 8,0 Bar

Evaporation: 2,47 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Main diesel generatorsets each 2.200 kVA

Car capacity

1.811

Lifting equipment

1x Crane SWL - 1,6 t

1x Crane SWL - 4,0 t

Tank capacities

Fuel oil: 1.271 m³

Fresh water: 180 m³

Water ballast: 2.727 m³

Manager

Taiyo Nippon Kisen Co. Ltd.
Kobe
Japan

Owner

Manatee Navigation
Panama
Republic of Panama

Registered Owner

Manatee Navigation S.A
