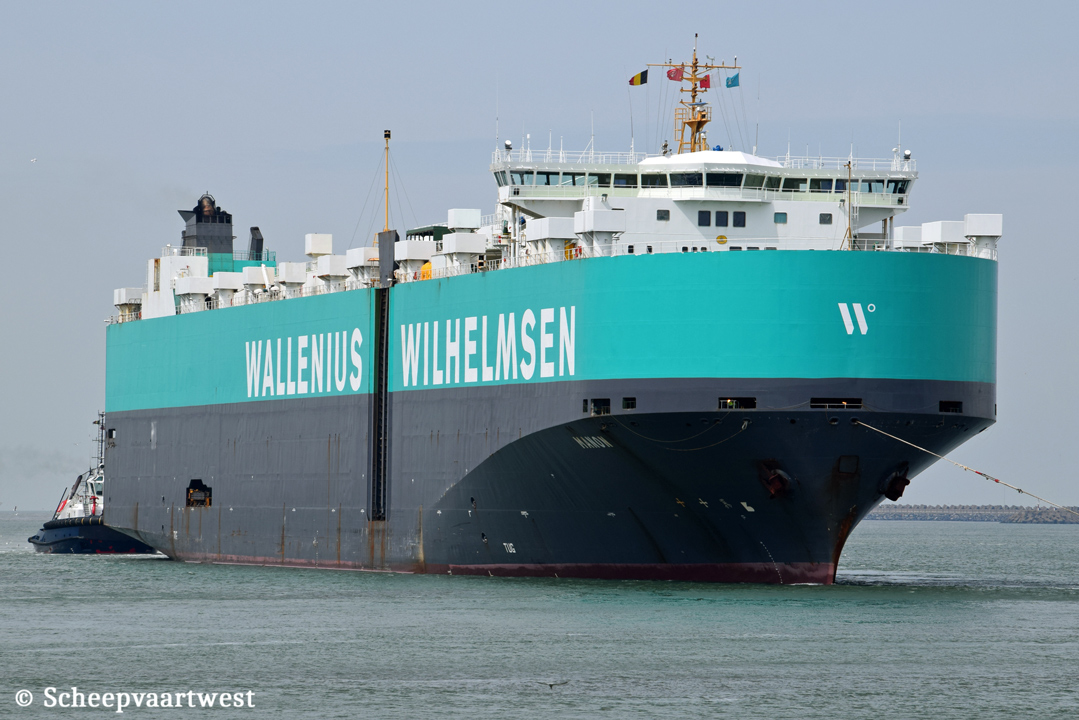

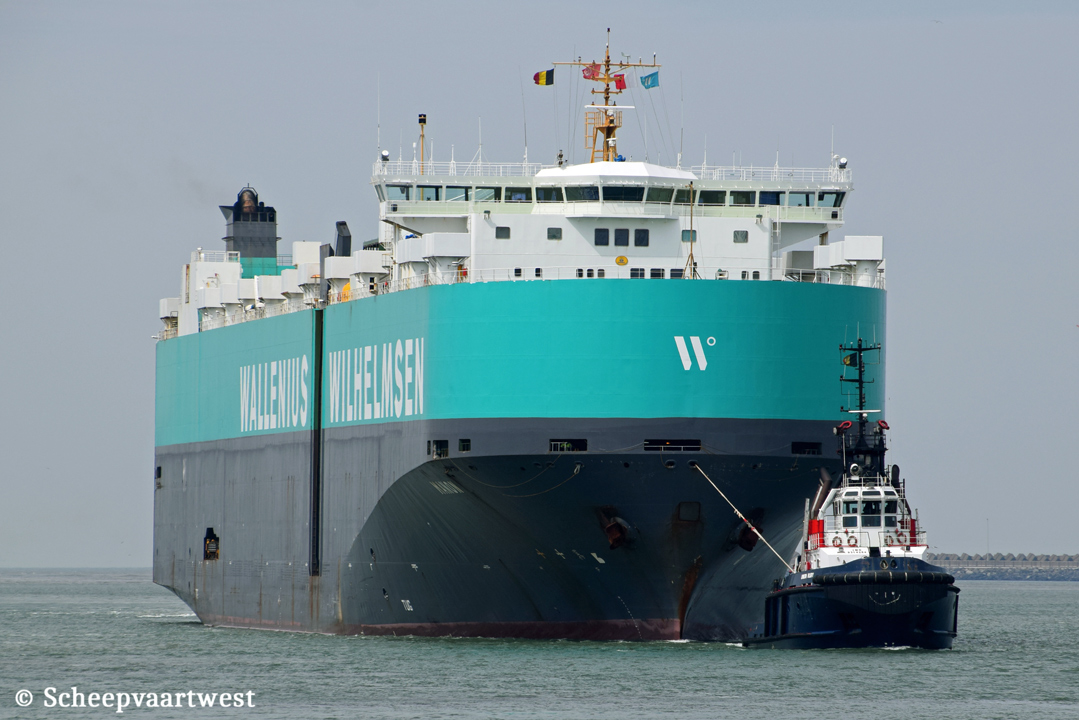

Zeebrugge 28 May 2021 |
 |
 |
|
| Zeebrugge 28/05/21 | Zeebrugge 28/05/21 |
 |
 |
 |
 |
_18.jpg) |
 |
|||||

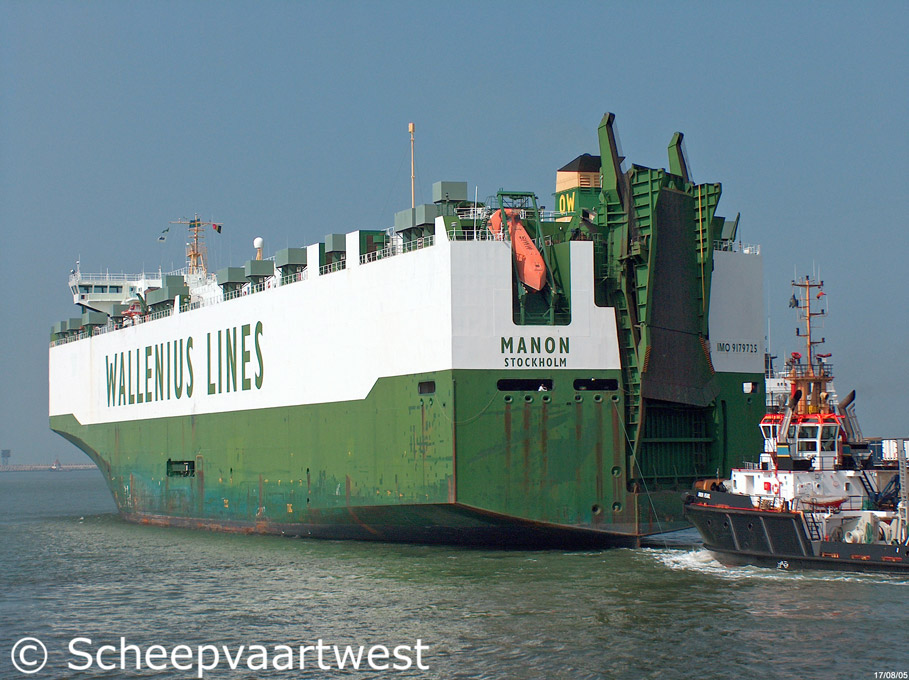

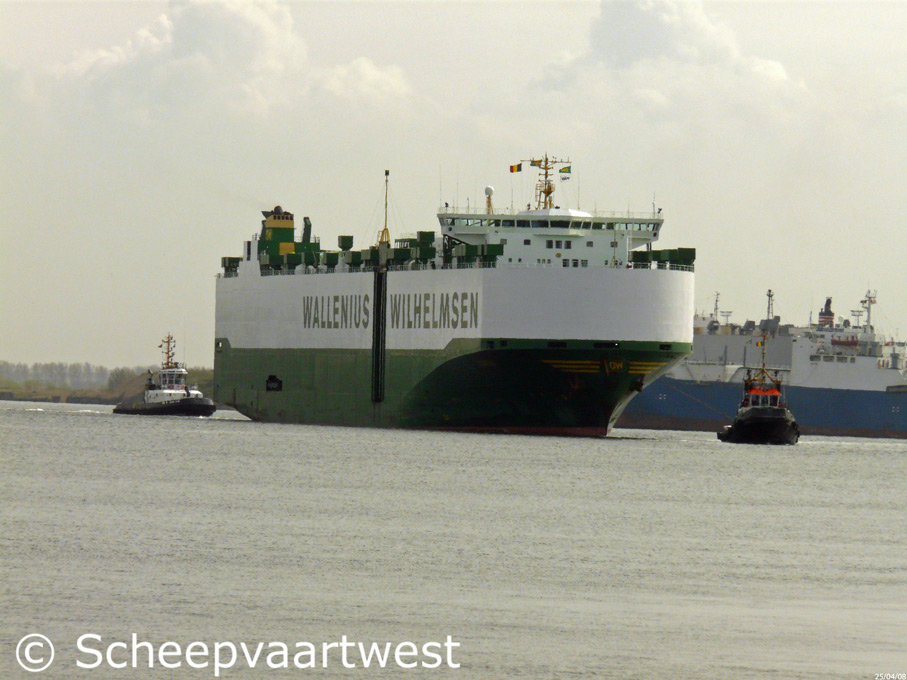

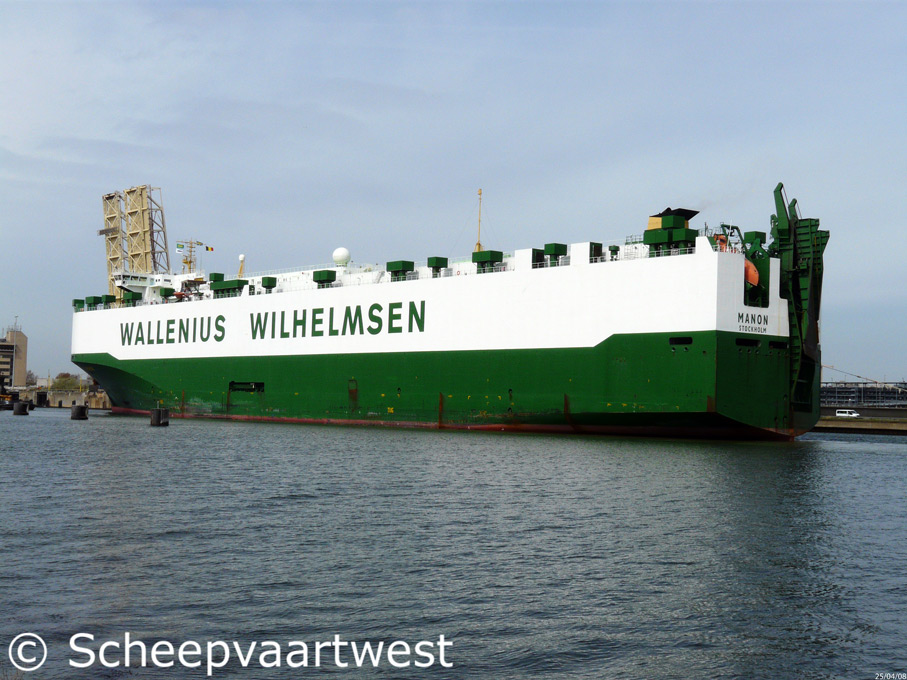

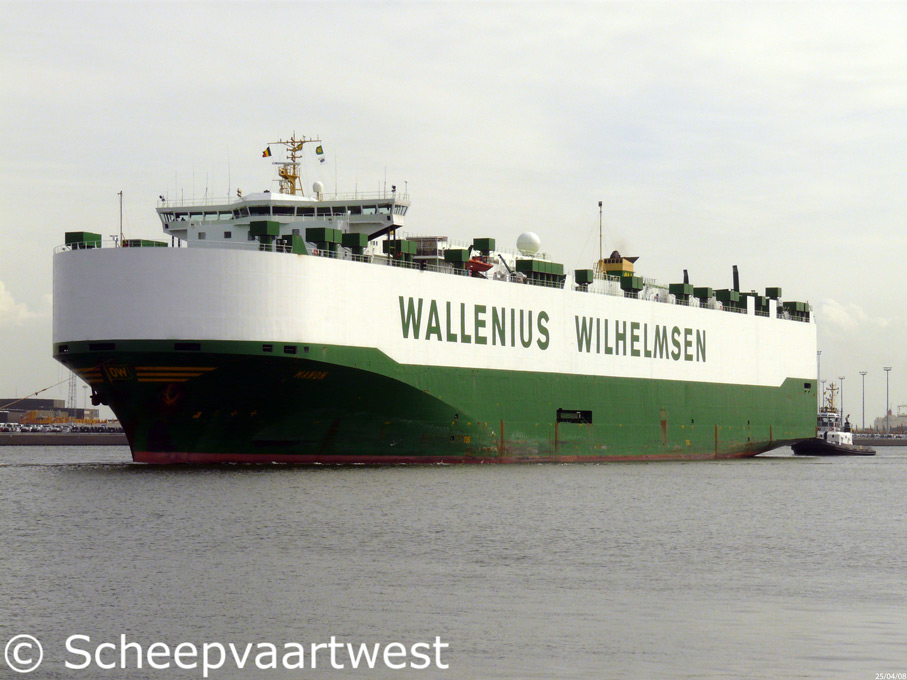

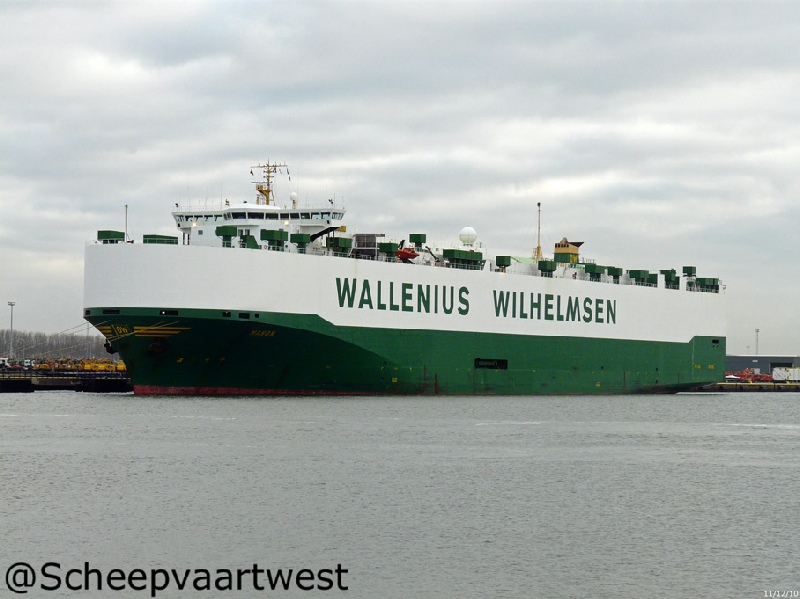

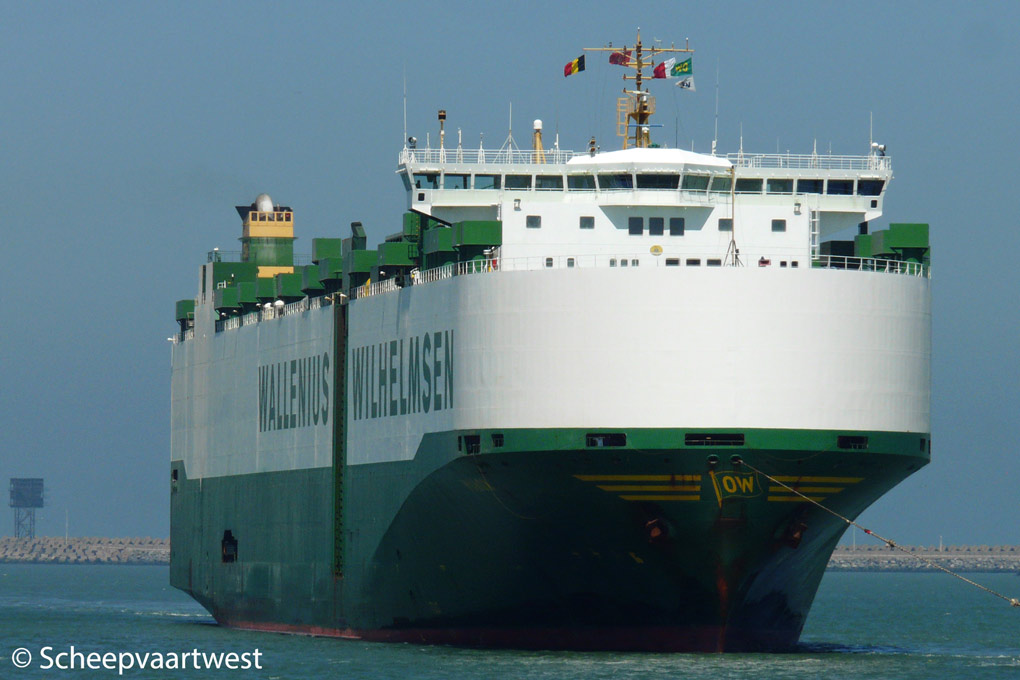

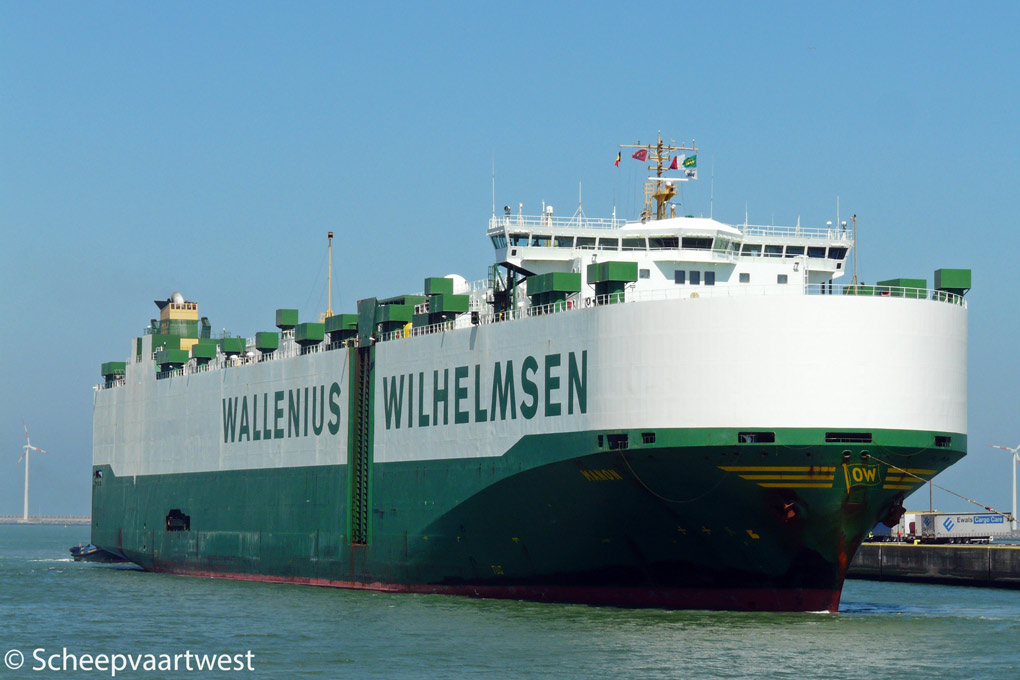

| Zeebrugge 25/04/08 | Zeebrugge 25/04/08 | Zeebrugge 25/04/08 | Zeebrugge 17/08/05 | Zeebrugge 11/12/10 | Zeebrugge 19/07/13 |
 |
| Zeebrugge 19/07/13 |
|
Name |
MANON |
|
Type |
Vehicle Carrier - Handysize PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9179725 |
|
Call sign |
9V9244 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
Previous flags |
1999 - 2011 Sweden, Stockholm - Call sign: SIWN |
|
GT |
67.264 t |
|
DWT |
28.126 t |
|
NT |
28.473 t |
|
Length |
227,95 m overall |
|
Beam |
32,26 m moulded |
|
Draught |
Summer: 11,02 m |
|
Air draft |
42,92 m |
|
Height to upperdeck |
33,48 m |
|
Depth |
14,05 m |
|
Speed |
20,5 knots |
|
Built |
1999 |
|
Launch date |
29/05/1999 |
|
Date of completion |
09/1999 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Goeje South Korea |
|
Yard number |
4421 |
|
Main engine |
1x KHIC/MAN-B&W 8S60MC - 2 stroke 8 cylinder combustion engine 14.700 kW at 101,3 rpm |
|
Number of screws |
1x Fixed propeller |
|
Shaft generator |
1x 950 kW |
|
Generators |
2x Wärtsilä type 4R32 diesel engines each connected with generators each 1.400 kW - 3x 440 Volt, 60 Hz |
|
Emergency |
1x Diesel generatorset 165 kW |
|
Bow thruster |
1.500 kW by about 23,5 tons thrust, forward 750 kW, aft |
|
Capacity car (RT43) |
7.200 (one RT43 unit = 7,38975 m²) |
|
Capacity car / trucks |
3.700 / 600 |
|
Stern ramp width |
Width: 7,00 m Height: 5,00 m Capacity: 125 t |
|
Number of car decks |
13 (of which 3 are hoistable) |
|
Capacity deck area |
63.124 m² |
|
Crew |
20 |
|
Manager |
Wallenius Marine Singapore Pte Ltd. |
|
ISM manager |
Wallenius Marine AB Stockholm Sweden |
|
Operator |
Wallenius Wilhelmsen |
|
Owner |
WWL Shipowning Singapore Pte. |
|
Previous owner |
Wallenius Lines AB, Stockholm - Sweden |
|
Latest data adjustment |
05 June 2012 |
