| Ciutadella - Menorca 10 June 2013 |
 |
 |
 |
 |
|||

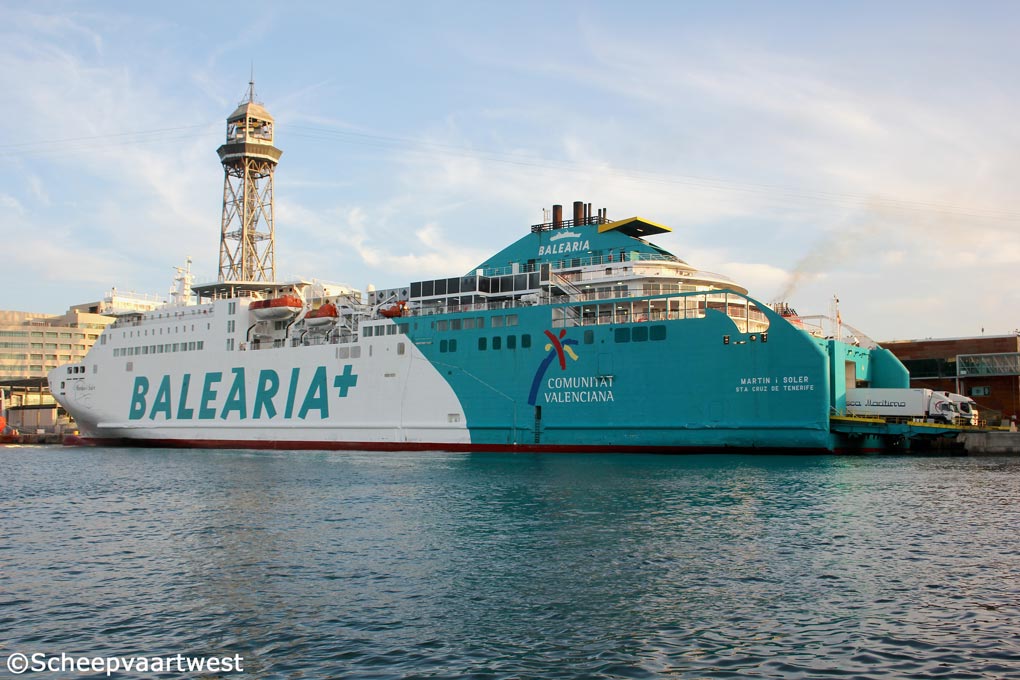

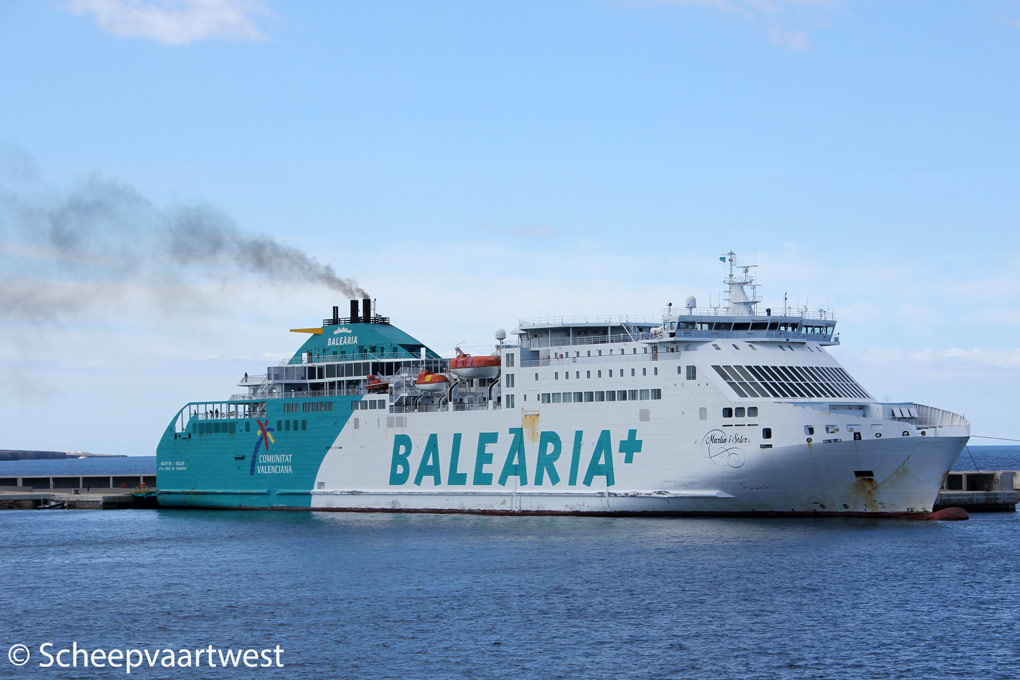

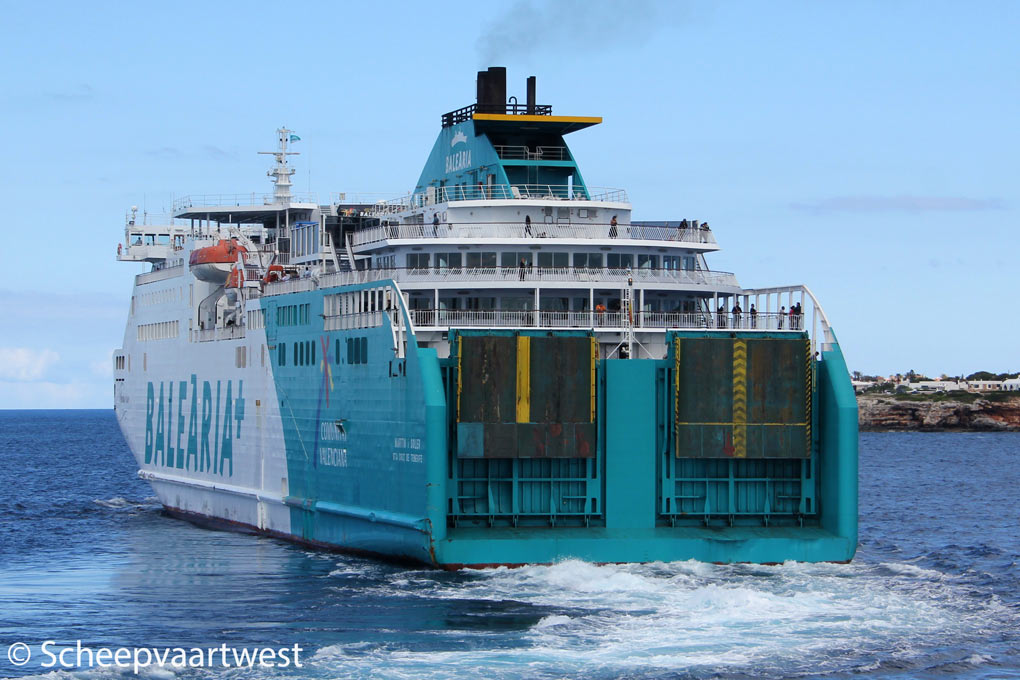

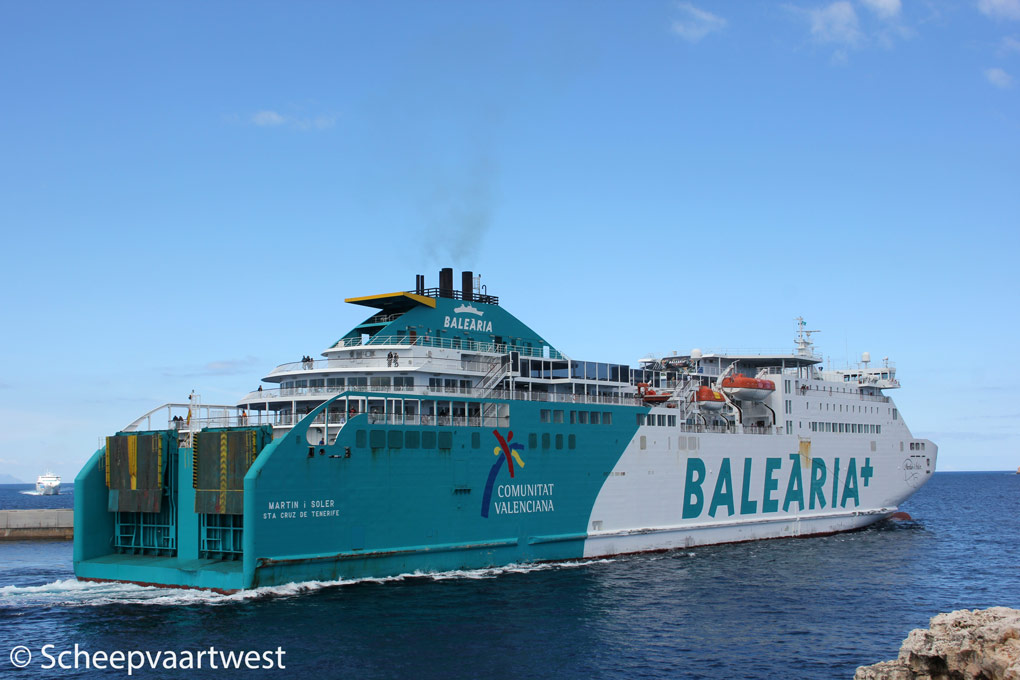

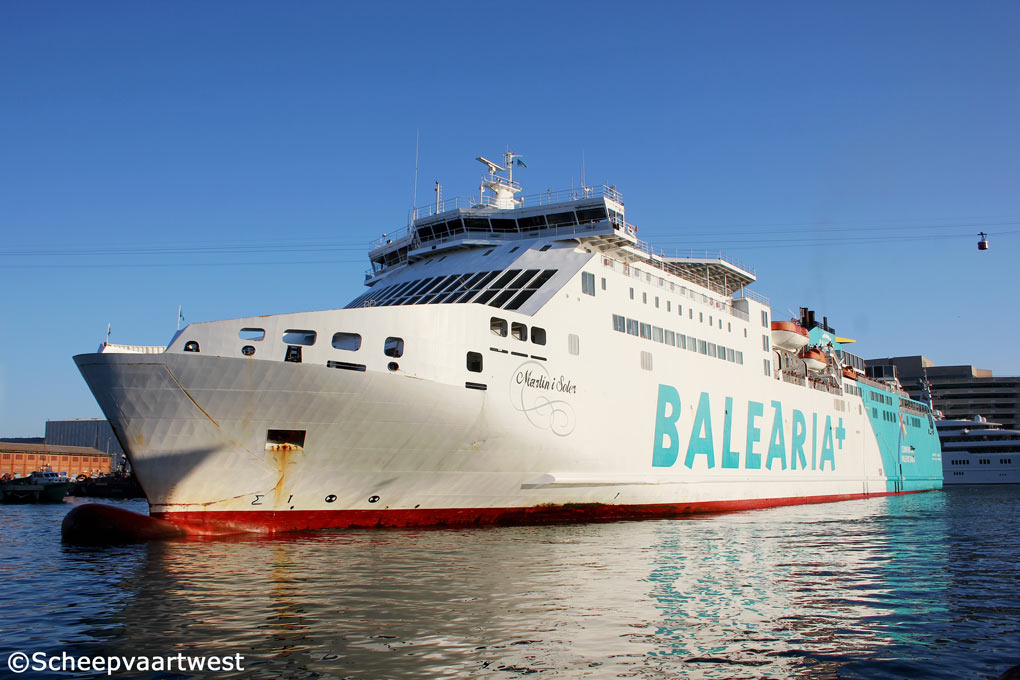

| Ciutadella 10/06/13 | Ciutadella 10/06/13 | Barcelona 29/08/15 | Barcelona 01/09/15 |
|
Name |
MARTIN I SOLER |
|
Type |
Roll-On/Roll-Off vessel - Ferry |
|
IMO-number |
9390367 |
|
Call sign |
EBZT |
|
Flag |
Spain |
|
Port of registry |
Santa Cruz De Tenerife |
|
GT |
24.760 t |
|
DWT |
9.737 t |
|
NT |
7.618 t |
|
Lane metres |
1.720 |
|
Length |
165,30 m overall 152,50 m between perpendiculars |
|
Breadth |
25,60 m |
|
Draught |
5,70 m |
|
Freeboard |
1.511 mm |
|
Depth |
13,80 m |
|
Speed |
21,4 knots |
|
Built |
2009 |
|
Date of completion |
15.01.2009 |
|
Builder |
Hijos De J. Barreras S.A Spain |
|
Yard number |
1655 |
|
Hull material |
Steel |
|
Watertight compartments |
17 |
|
Continuous decks |
4 |
|
Main engine |
2x MaK 9M43C - 4 stroke 9 cylinder 430 x 610 mm diesel engines - 18.000 kW / 24.456 hp at 500 rpm Built: 25.10.2007 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
2x Screw propeller controllable pitch - aft at 177 rpm |
|
Boilers |
1x CHO Vulcano 30,18 m² - 7,0 bar |
|
Shaft generator |
2x 1.625 kVA - 1.300 kW each |
|
Generators |
3x Main diesel generatorsets each 1.367 kVA - 1.094 kW - 1.495 HP |
|
Number of passengers |
1.200 |
|
Number of beds |
312 |
|
Number of cars |
108 |
|
Fuel capacity |
862,7 m³ |
|
Manager |
Balearia Eurolineas Maritimas |
|
Operator |
Balearia |
|
Registered owner |
Balearia - Eurolineas Maritimas S.A. |
|
Last update |
29 June 2013 |
