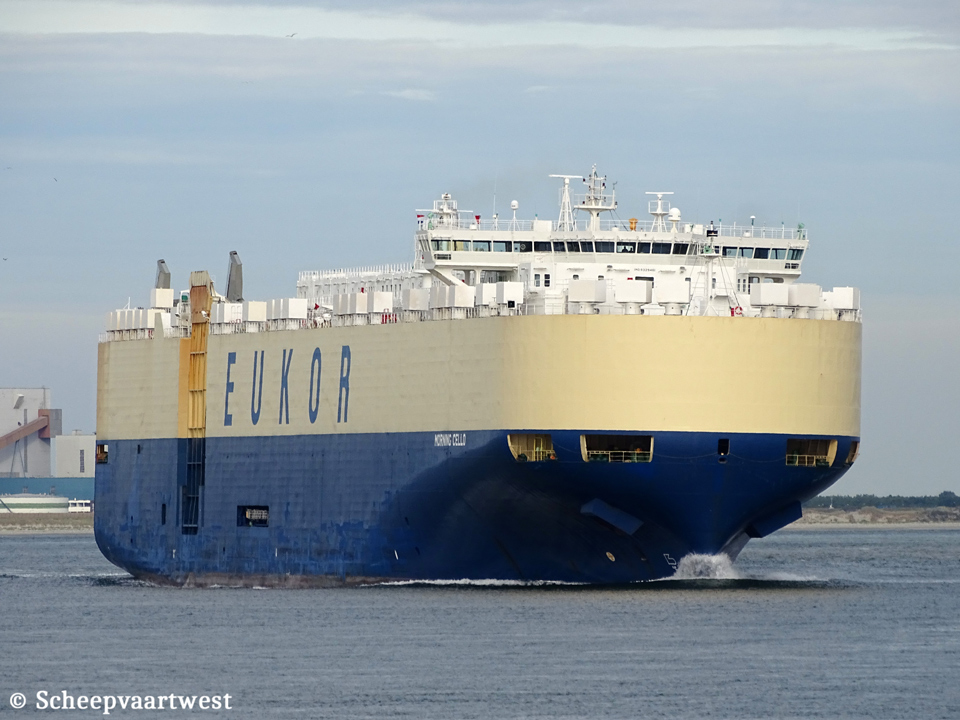

Westerschelde 09 July 2020 |
 |
 |
 |
 |
 |
 |
|||||

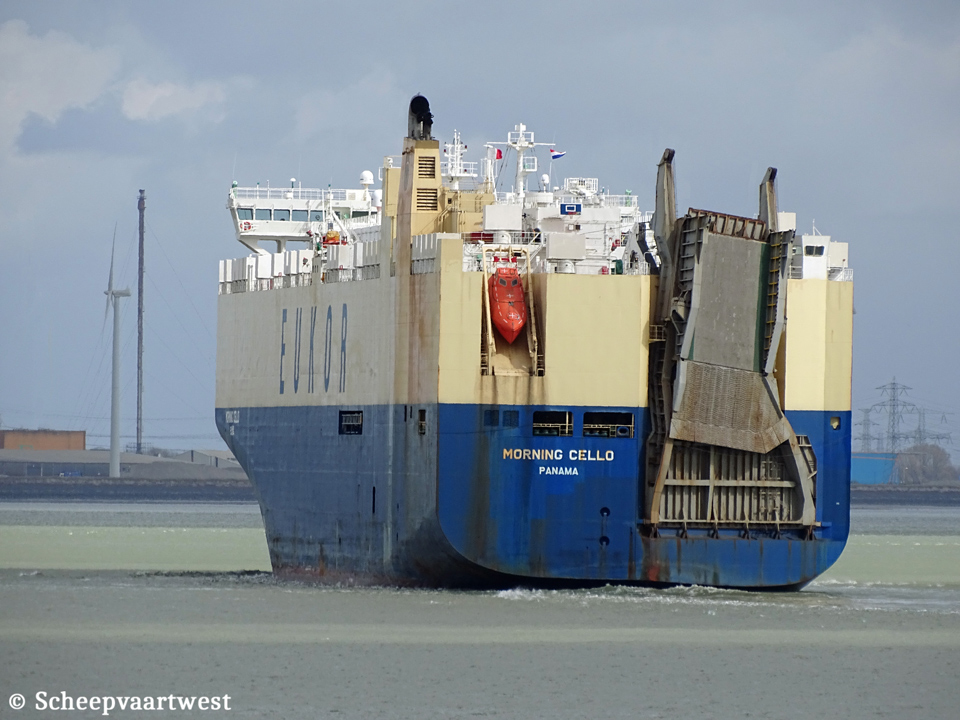

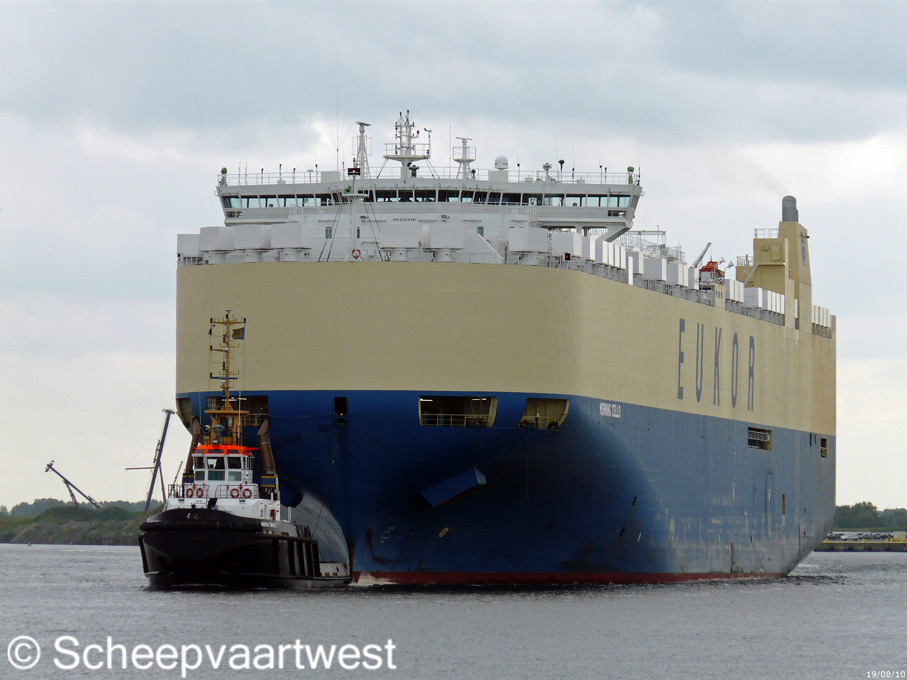

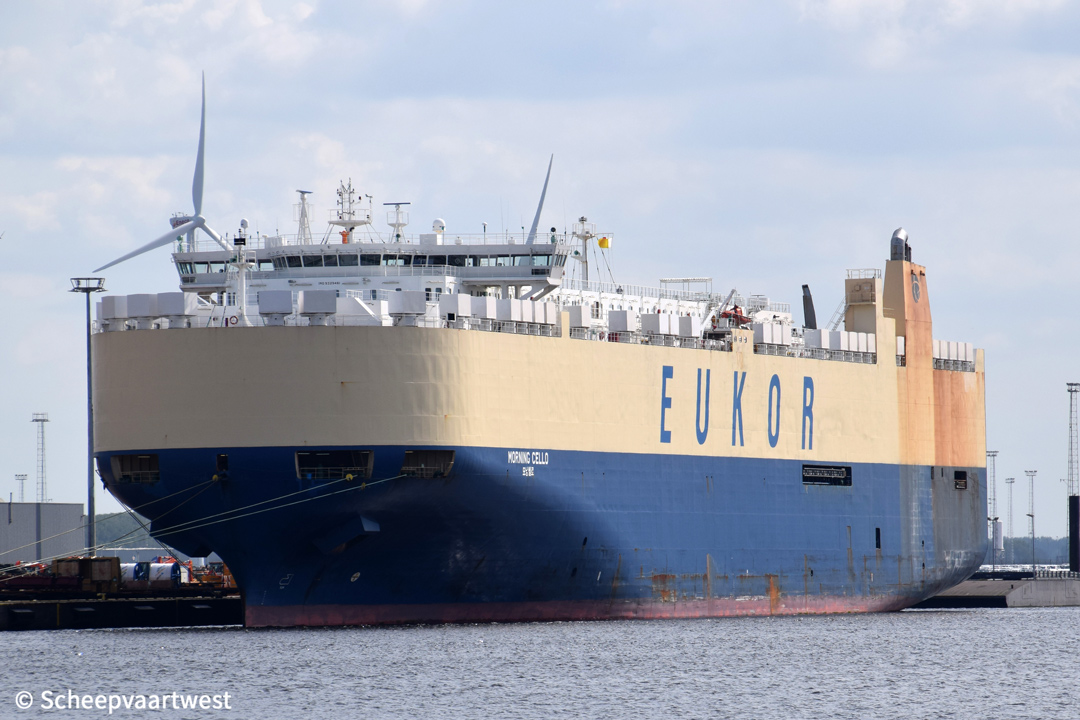

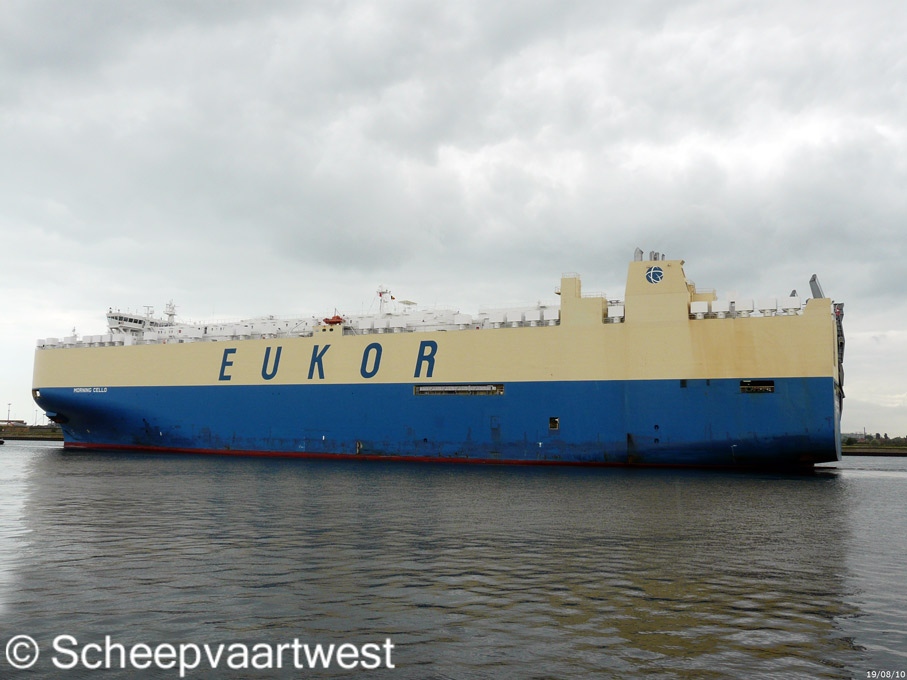

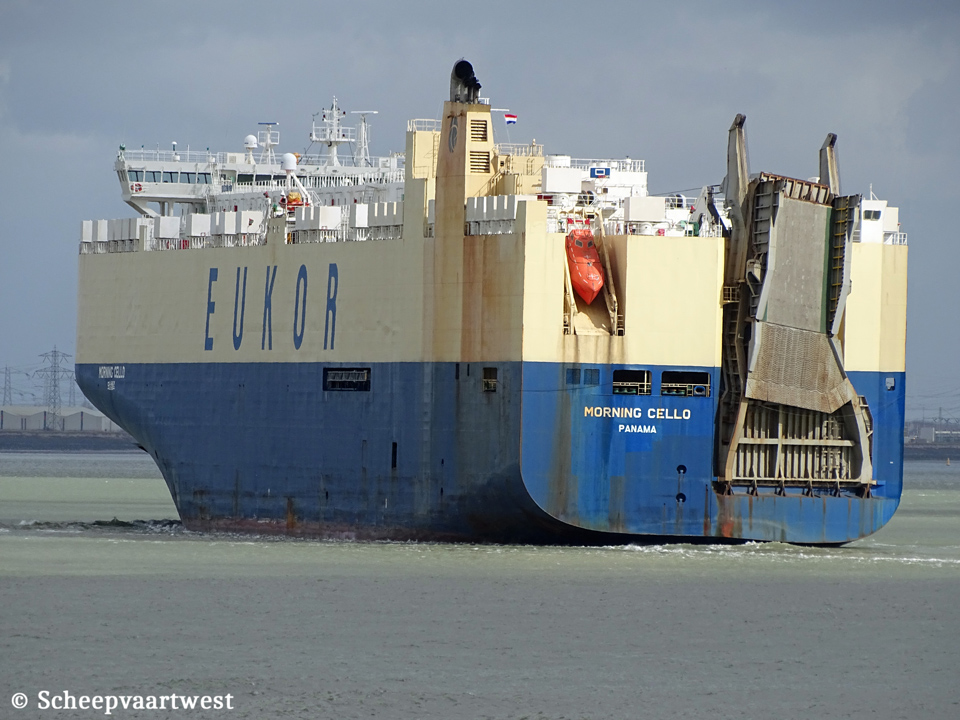

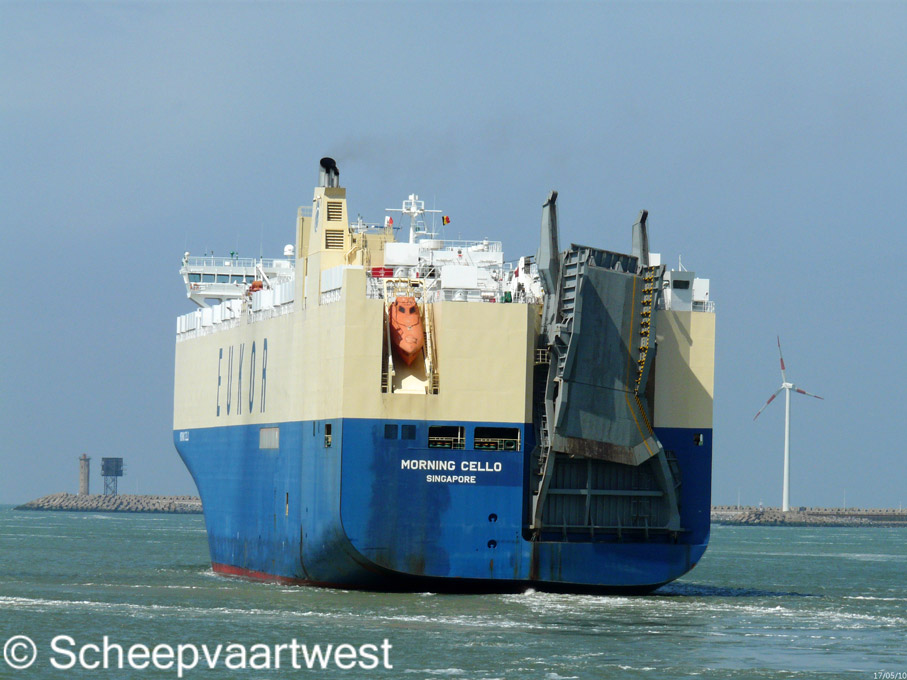

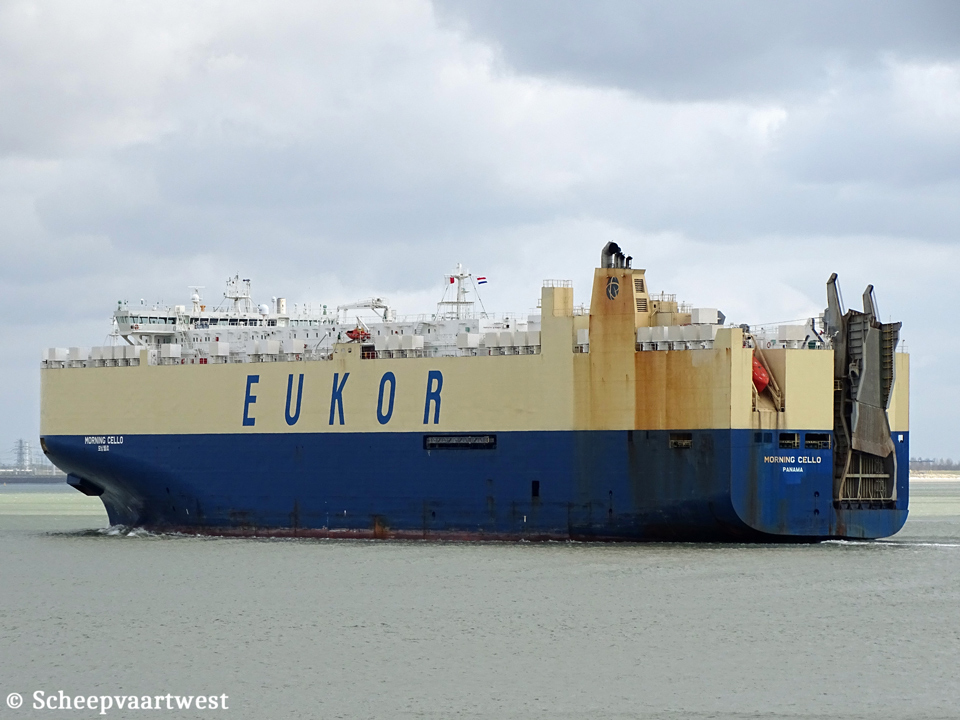

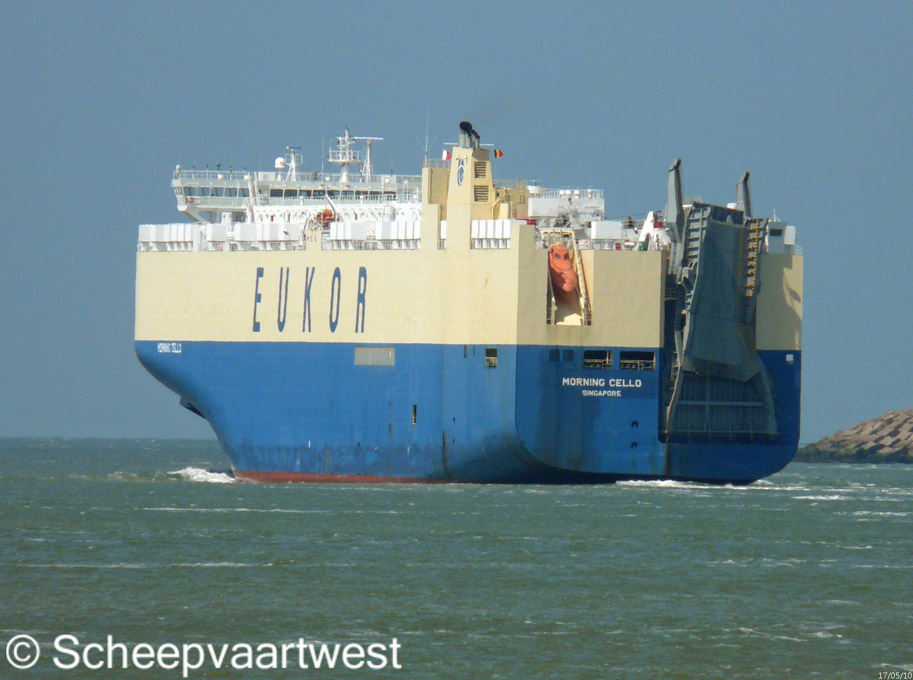

| Zeebrugge 18/08/10 | Zeebrugge 18/08/10 | Zeebrugge 17/05/10 | Zeebrugge 17/05/10 | Zeebrugge 07/09/20 | Westerschelde 30/03/20 |
 |
 |
|
| Westerschelde 30/03/20 | Westerschelde 30/03/20 |
|
Name |
MORNING CELLO |
|
Type |
Roll-On/Roll-Off carrier - Vehicle carrier PCTC - Pure car and truck carrier |
|
IMO-number |
9329461 |
|
Call sign |
3FBI3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flag |
2007 - 2017 Republic of Singapore, Singapore City - Call sign: S6EB7 2107 - 2019 Liberia, Monrovia - Call sign: D5OU5 2019 - 2020 Korea - Call sign: D7NI |
|
GT |
57.542 t |
|
DWT |
Summer: 21.059 t Winter: 19.973 t |
|
NT |
20.901 t |
|
Displacement |
37.921 t |
|
Light ship |
16.861 t |
|
Length |
199,97 m overall 190,00 m between perpendiculars |
|
Breadth |
32,30 m extreme 32,26 m registered |
|
Draught |
Summer: 10,02 m Winter: 9,81 m |
|
Reg. dimensions L x B x D |
199,97 x 32,26 x 20,11 m |
|
Rule dimensions L x B x D |
189,20 x 32,26 x 20,11 m |
|
Freeboard |
3.534 mm |
|
Depth |
20,11 m |
|
Speed |
21,5 knots |
|
Built |
2007 |
|
Keel laid |
28/12/2006 |
|
Launch date |
16/06/2007 |
|
Date of completion |
26/09/2007 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. 1700, Yongdang-Ri, Samho-Eup 526-701 Youngam-Gun Republic of Korea |
|
Yard number |
S288 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x HHI/MAN-B&W 7S60MC Mk. VI- 2 Stroke single acting 7 cylinder 600 x 2.292 mm combustion engine 14.280 kW at 105,0 rpm Build: 01/2007 Builder: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Korea |
|
Boilers |
2x Auxiliary boiler, exhaust gas water tube (Economizer) - 11,8 kg/cm² Heating surface: 226,5 m³ 1x Auxiliary boiler, vertical shell (Water tube) - 8,8 kg/cm² Heating surface: 24,0 m³ Build: 01,2007 Builder: Kangrim Indistries Co., Ltd., Changwon - South Korea |
|
Generators |
3x MAN 6L28/32H Main diesel generatorsets 1.475 kVA - 450 Volt Builder: MAN Diesel & Turbo SE |
|
Emergency generator |
1x Sisu 634 diesel generatorset Builder: Agco Sisu Power Inc. |
|
Bow thruster |
1x 1.343 kW |
|
Car capacity |
6.645 |
|
Number of trucks |
412 |
|
Tank capacities |
Fuel oil: 4.130,6 m³ Fresh water: 323,8 m³ Water ballast: 8.877,1 m³ |
|
Anchor chain |
Length: 687,50 m Diameter: 81 mm |
|
Crew |
22 |
|
Manager |
Eukor Car Carriers Inc. 13th Floor, Hansol Building 736-1 Yeoksam 1-dong Gangnam-gu Deoul South Korea |
|
Technical manager |
Wilhelmsen Ship Management (Korea) Ltd. 10th Floor Marine Center Bldg. 79-1, 4-ga, Jungang-Dong, Jung-Gu Pusan Republic of Korea |
|
Registered owner |
Glorious Marine Shipping SA Care of Mitsui OSK Lines (MOL) 1-1 Toranomon 2-chome Minato, Tokyo Japan |
|
Latest data adjustment |
29 September 2020 |
