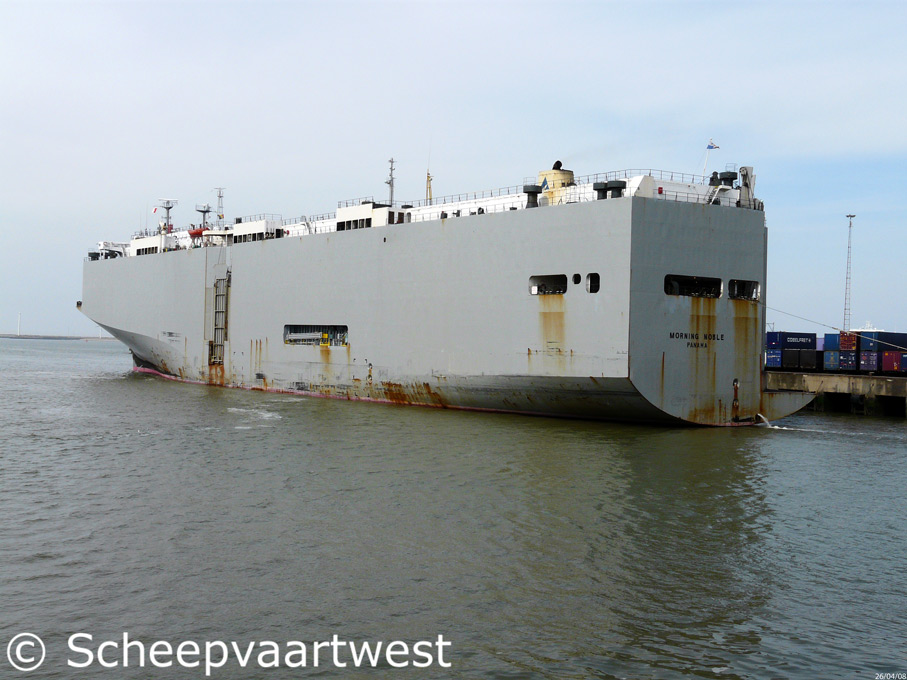

Morning Noble 07
Zeebrugge 26 April 2008



Name

MORNING NOBLE

Previous names

1984 - 2005 Tokyo Highway
2005 Morning Noble

Type

Vehicles Carrier
PCTC - Pure Car and Truck Carrier

IMO-number

8401391

Call sign

3EDF9

Flag

Republic of Panama

Previous flag

1991 - Japan

Port of registry

Panama

GT

45.699 t

DWT

13.687 t

NT

13.709 t

Length

180,02 m overall
170,00 m between perpendiculars

173,27 m registered

Breadth

32,24 m over all

Moulded L x B x D

170,00 x 32,20 x 15,47 m

Registered L x B x D

173,27 x 32,20 x 21,89 m

Draught

Summer: 9,018 m

Freeboard

Summer: 6.485 mm

Depth

21,98 m

Speed

Service: 18,0 knots

Trail: 20,2 knots

Built

1984

Keel laid

03.07.1984

Launch date

07.10.1984

Date of completion

14.12.1984

Builder

Oshima Shipbuilding
1605-1, Oshima-cho
Saikai City
Nagasaki Prefecture 857-2494
Japan

Yard number

10086

Hull type

Single hull

Main engine

1x 2 stroke single acting 7 cylinder 580 x 1.700 mm diesel engine - 9.885 kW at 123,0 rpm

Manufacturer: Sumijyu Machinery Co., Ltd.

Number of screws

1

Boilers

1x Auxiliary vertical boiler - 7,9 bar

Evaporation: 3,01 t/h

Manufacturer: Nishida Marine Boiler Co., Ltd.

Generators

3x Main diesel generatorsets each 2.625 kVA

Cargo capacity

TEU: 102

Cars: 4.901

Tank capacities

Fuel oil: 2.527 m³

Fresh water: 379 m³

Water ballast: 7.556 m³

Ramp capacity

Capacity: 51,30 t

Door height: 5,10 m

Lifting capacity

2x Cranes - SWL 5,0 t each

Manager

Fukunaga Kaiun Co., Ltd.
Saiki
Japan

Owner

Fukunaga Line S.A.
Panama
Republic of Panama

Registered owner

Fukunaga Line (Panama) S.A.
