| Westerschelde 08 July 2014 |
 |
 |
 |
||
| Westerschelde 08/07/14 | Westerschelde 08/06/12 | Westerschelde 08/06/12 |
|
Name |

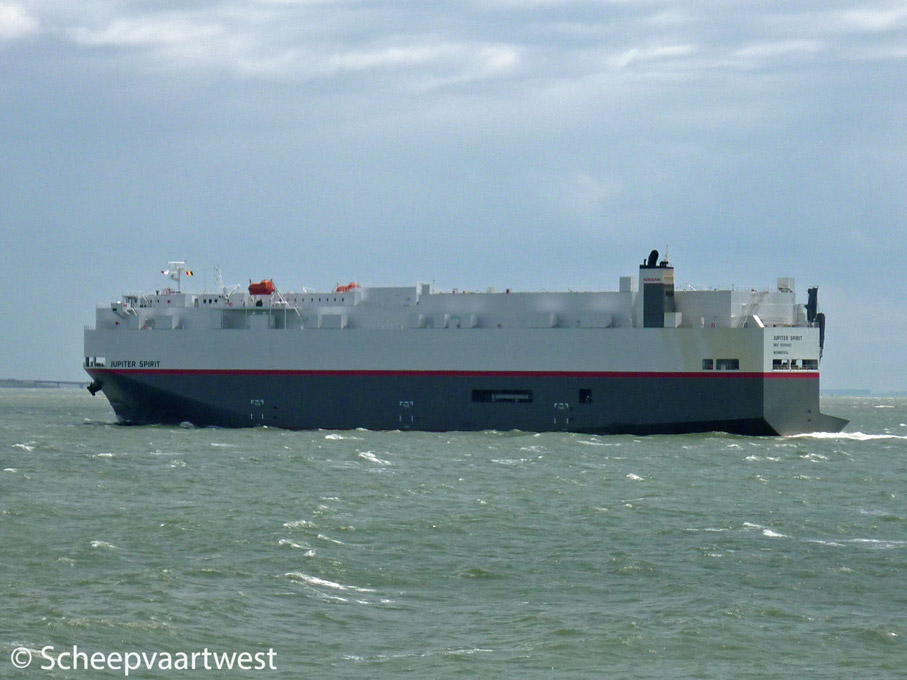

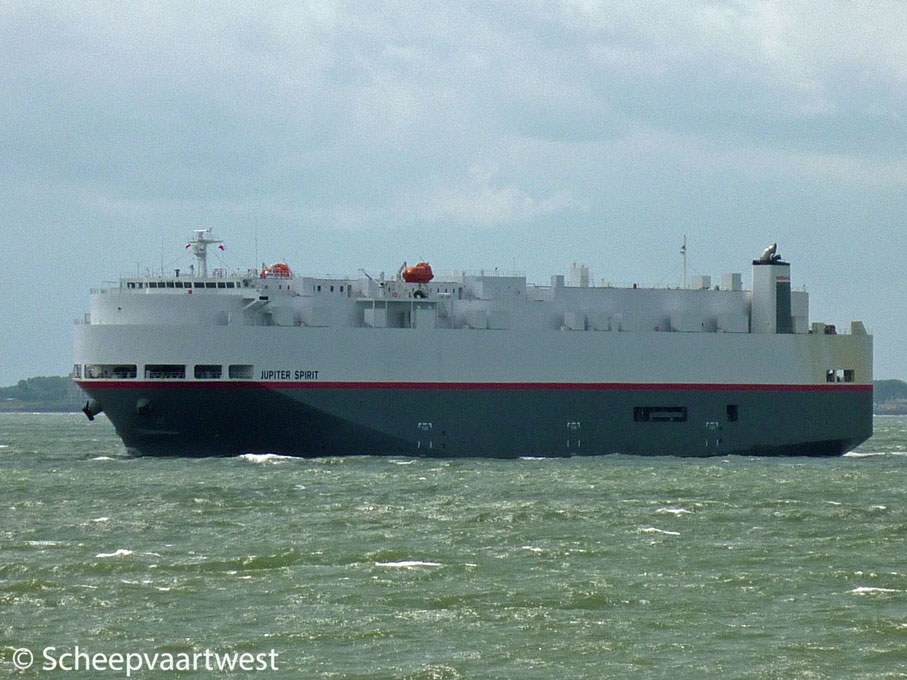

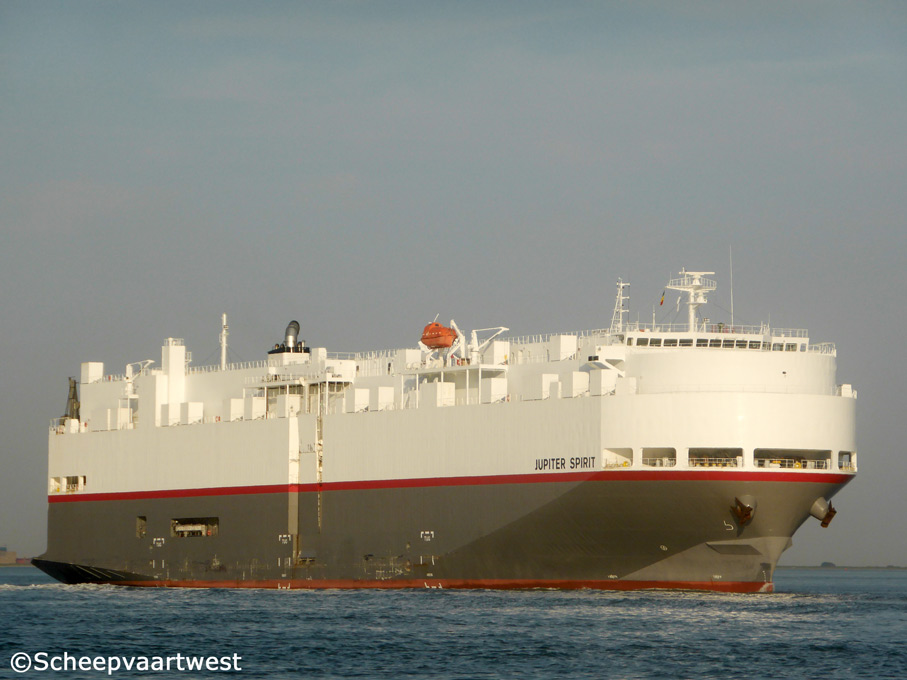

JUPITER SPIRIT |
|
Type |
PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9509401 |
|
Call sign |
A8ZC2 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
45.961 t registered |
|
DWT |
Summer: 13.954 t |
|
NT |
13.789 t registered |
|
Length |
183,00 m overall |
|
Breadth |
32,00 m |
|
Draught |
8,97 m |
|
Moulded L x B x D |
170,00 x 30,20 x 11,50 m |
|
Registered L x B x D |
174,31 x 30,20 x 20,94 m |
|
Freeboard |
2.559 mm |
|
Depth |
11,50 m moulded |
|
Speed |
22,0 knots |
|
Built |
2011 |
|
Keel laid |
04.08.2010 |
|
Launch date |
20.02.2011 |
|
Date of completion |
30.06.2011 |
|
Builder |
Naikai Zosen Corporation Setoda Shipyard |
|
Yard number |
737 |
|
Hull material |
Steel |
|
Main engine |
1x 2 stroke single acting 6 cylinder 600 x 2.400 diesel engine -12.210 kW at 105,0 rpm Manufacturer :Hitachi Zosen Corporation Ariake Works |
|
Propellers |
1 |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device |
|
Boilers |
1x Auxiliary vertical boiler - 7,9 bar Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
4x Diesel generatorsets - 3.185 kVA |
|
Number of cars |
5.007 |
|
Tank capacities |
Fuel oil: 2.408 m³ Fresh water: 346 m³ Water ballast: 9.668 m³ |
|
Manager |
World Marine Co., Ltd. |
|
Operator |
Nissan Motor Car Carrier Co. Ltd. |
|
Owner |
Nissan Motor Car Carrier |
|
Registered owner |
Secure Shipping Co., Ltd. |
|
Last update |
15 November 2013 |
