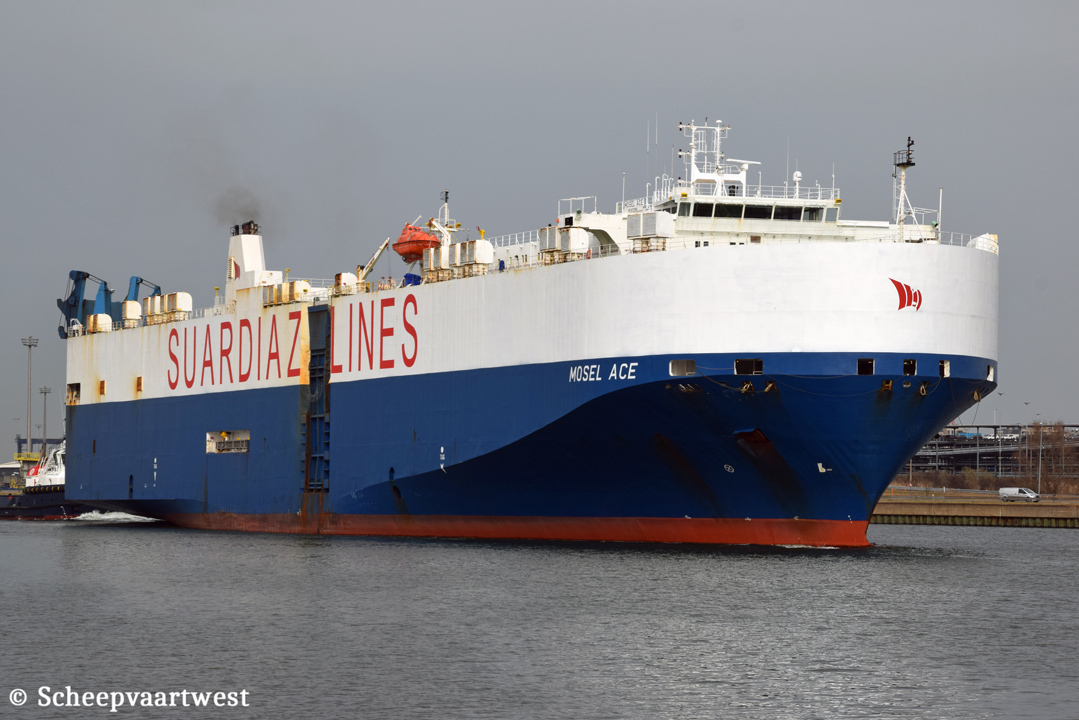

Mosel Ace IMO 9177052 09
Zeebrugge 22 February 2021

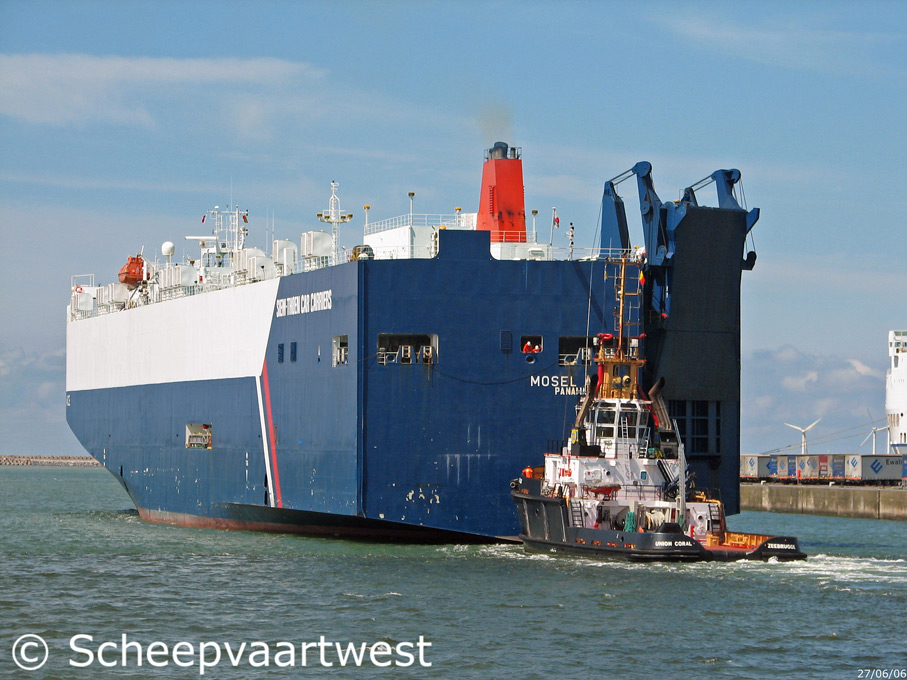

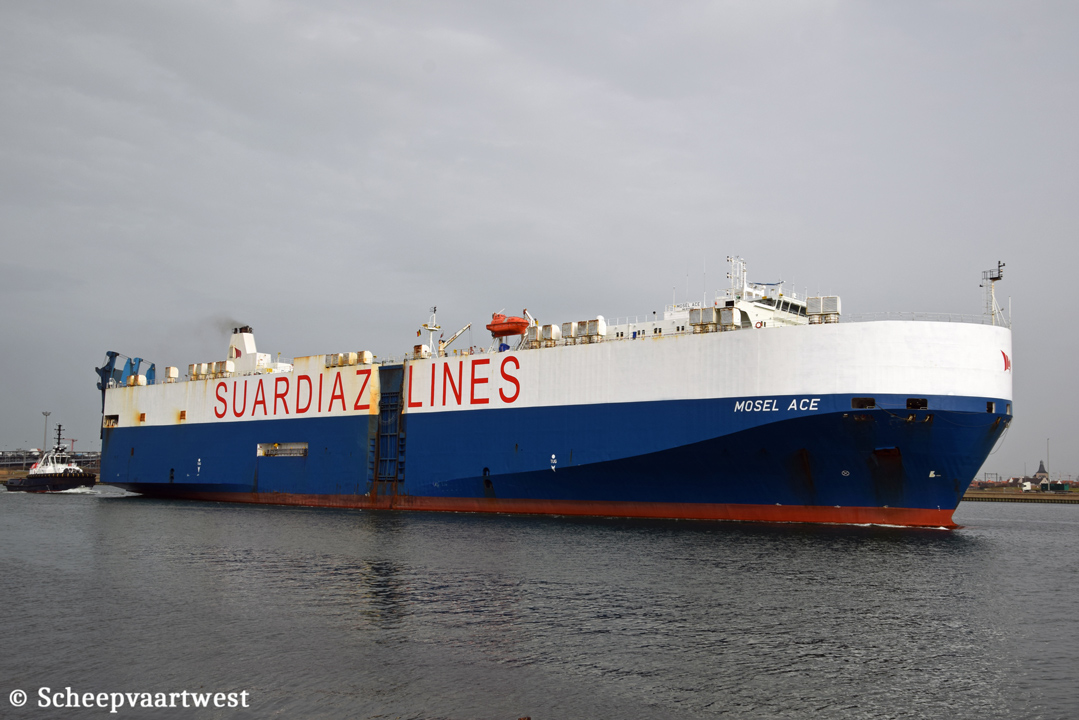

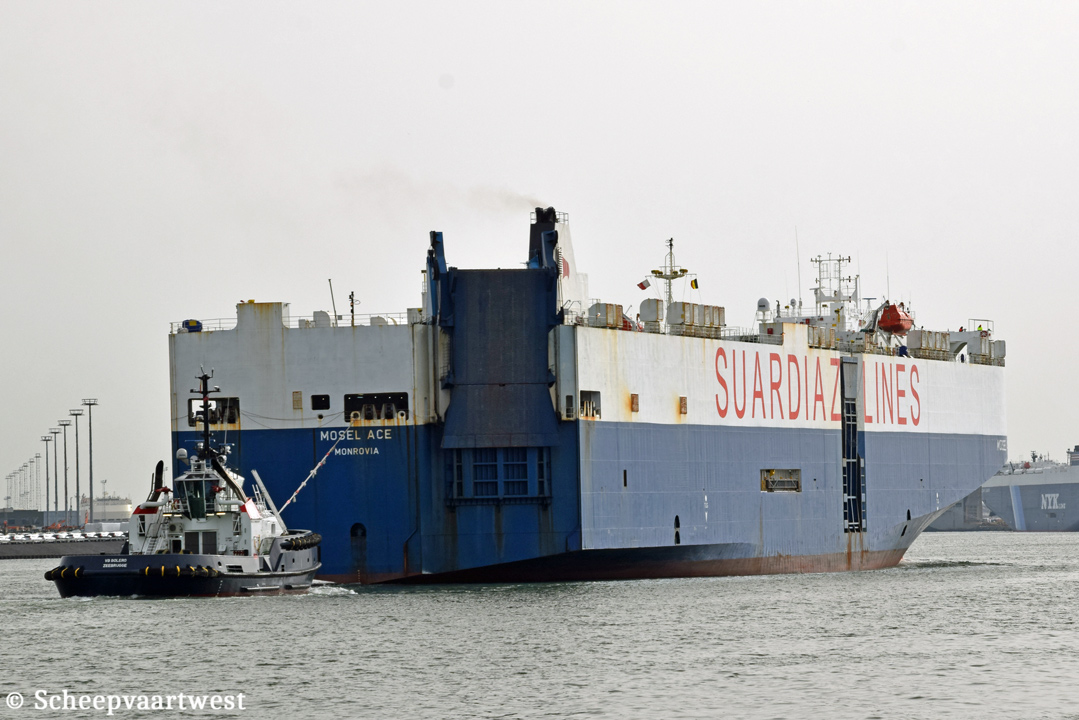

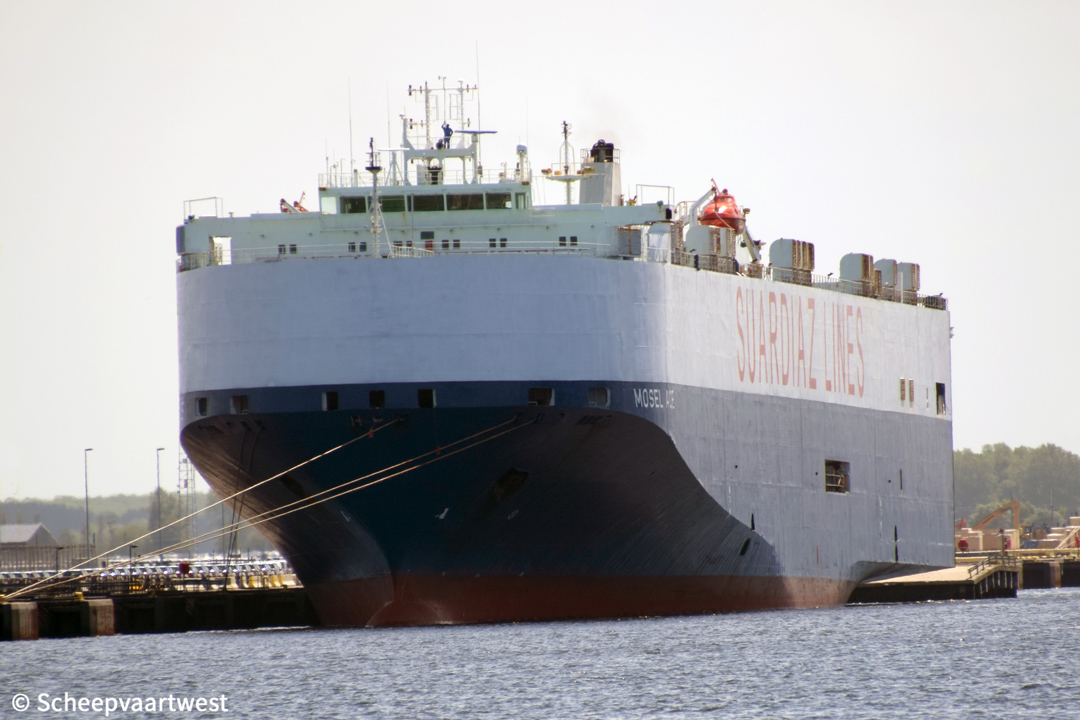

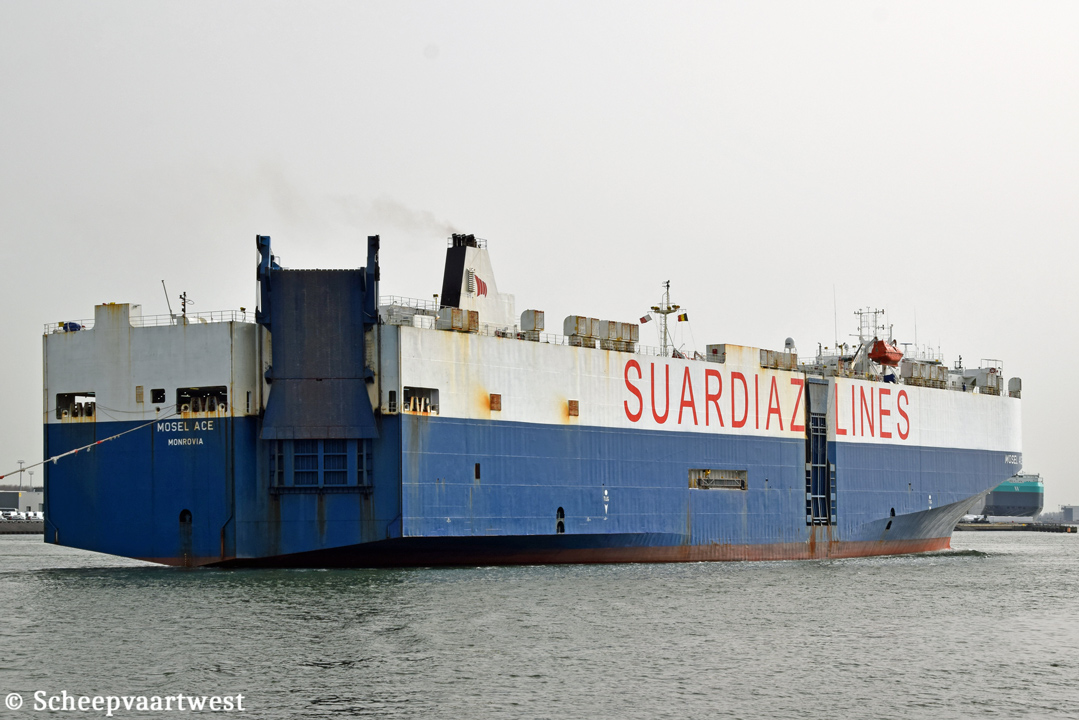

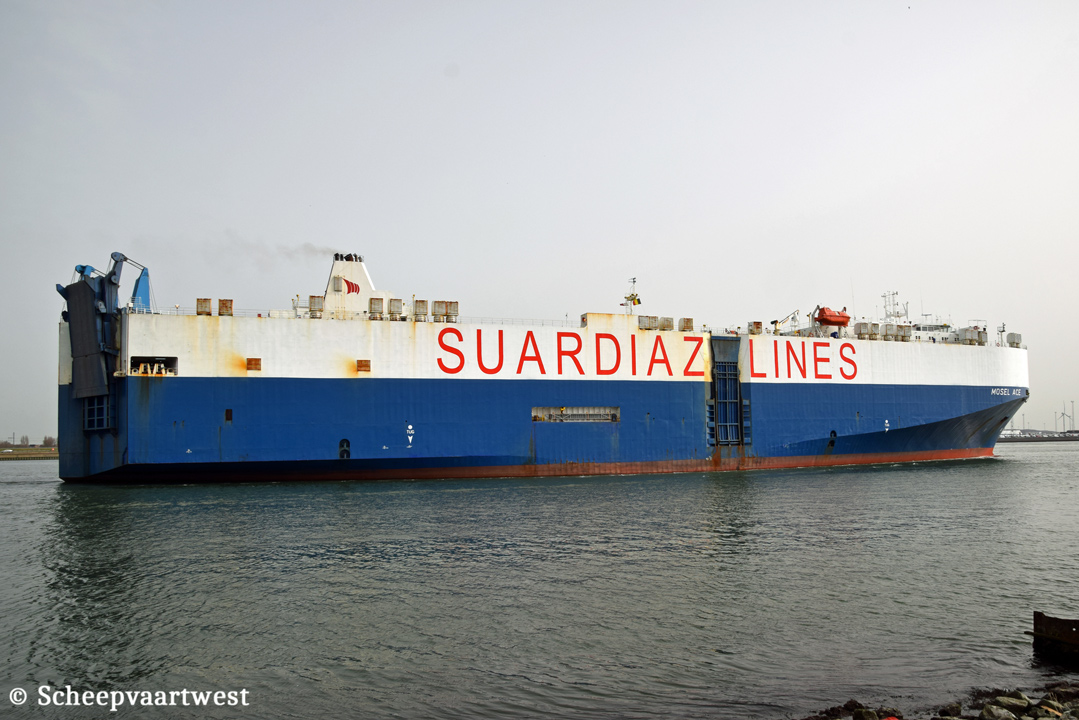

Mosel Ace IMO 9177052 11   Mosel Ace IMO 9177052 12   Mosel Ace IMO 9177052 13   Mosel Ace IMO 9177052 14   Mosel Ace 07   Mosel Ace 03
Zeebrugge 22/02/21 Zeebrugge 22/02/21 Zeebrugge 22/02/21 Zeebrugge 22/02/21   Zeebrugge 22/06/20   Zeebrugge 27/06/06

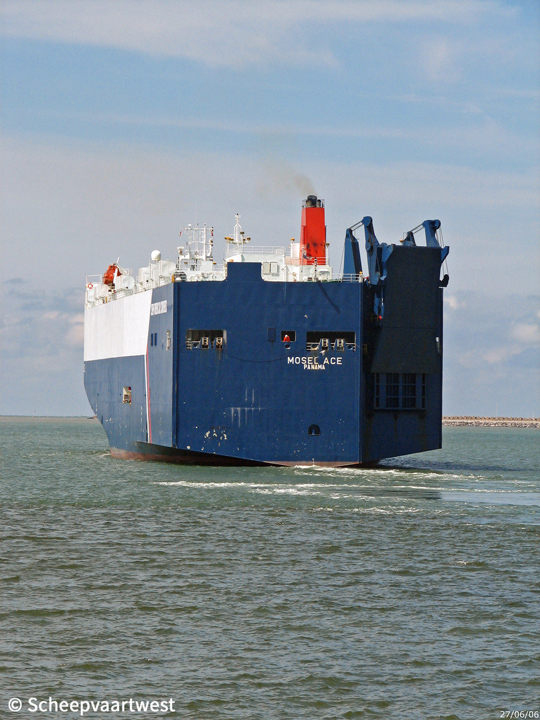

Mosel Ace 06
Zee 27/06/06









Name

MOSEL ACE

Previous name

Verona

Type

Roll-On/Roll-Off carrier - Vehicles Carrier
PCTC - Pure Car & Truck Carrier

IMO-number

9177052

Call sign

D5VN7

Flag

Liberia

Port of registry

Monrovia

Previous flag

2000 - 2002 Liberia
2000 - 2000 Norway
2000 - 2019 Republic of Panama, Panama City - Call sign: HOLN

GT

37.237 t registered
Suez: 40.574,77 t

DWT

Summer: 12.761 t

NT

11.172 t registered
Suez: 37.671,64 t
Panama: 36.311 t

Length

176,70 m overall
165,00 m between perpendiculars

Breadth

31,10 m moulded

Draught

Summer: 8,77 m

Moulded L x B x D

165,00 x 31,10 x 20,61 m

Registered L x B x D

174,34 x 31,00 x 28,00 m

Keel to mast end

41,25 m

Freeboard

5.726 mm

Depth

28,00 m to upper deck
20,61 m to No 8 deck

Speed

Max: 19,5 knots

Built

2000

Keel laid

24/12/1999

Launch date

15/07/2000

Date of completion

09/11/2000

Builder

Brodogradiliste Uljanik Industries
Flaciusova 1
HR-52100 Pula
Croatia

Yard number

422

Hull material

Steel

Hull type

Single hull

Watertight bulkheads

6

Main engine

1x MAN-B&W/Uljanik 7S50MC-C - 2 stroke single acting 7 cylinder 500 x 2.000 mm combustion engine 11.060 kW at 127,0 rpm

Propeller shaft

1x Oil lubriction shafr without monitoring device
Diameter: 547 mm

Number of screws

1x Fixed propeller

Boilers

1x Auxiliary vertical boiler - 8,0 bar
Evaporation: 4,00 t/h
Manufacturer: Saacke Vkk Marine Boilers GmbH

Main generator

3x MAN-B&W 6L23/30 H - 4 stroke 6 cylinder 225 x 300 diesel engines each 960 kW conteced with generators

Emergency generator

1x MAN D 2866 TE diesel generatorsets

Bow thrusters

1x 1.000 kW / 1.300 bhp, forward

1x 800 kW / 1.040 bhp, aft

Number of car decks

10 (No. 5, 7 & 9 Liftable)

Car capacity

4.310 (L: 4,125 m x B: 1,55 m x H: 1,42 m)

Truck capacity

391

Ro-ro ramps

1x Starboard dim.: 16,60 x 4,20 m - 20 t
1x Starboard aft dim.: 32,20 x 7,50 m - 100 t

Tank capacities

Fuel oil: 2.401 m³
Diesel oil: 227,3 m³
Fresh water: 178,5 m³
Ballast: 4.361,58 m³

Crew

20

Manager

Siem Ship Management Sp. z o.o.
T. Wendy Str. 15
81-341 Gdynia
Poland

Previous manager

2000 - 2002 Neu Seeschiff
Wilhelmsen Ship Management Sdn Bhd

Operator

Suardiaz Group

Previous owners

2000 - 2000 Neu Seeschiff - Germany
2000 - 2002 Proidence Shipping Inc. - Liberia
Natureza Maritima SA
Siem Thoen Car Carriers Inc. - Cayman Islands

Registered owner

Siem Shipowning I Norway AS
Nodeviga 14
NO-4610 Kristiansand S
Norway

Latest data adjustment

10 September 2020
