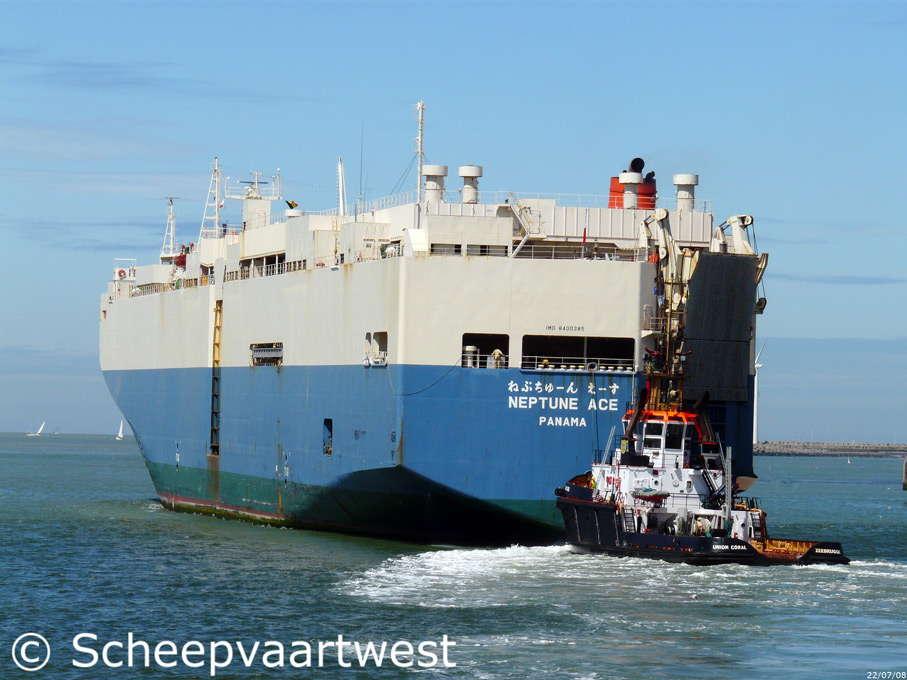

Neptune Ace 03
Zeebrugge 22 July 2008

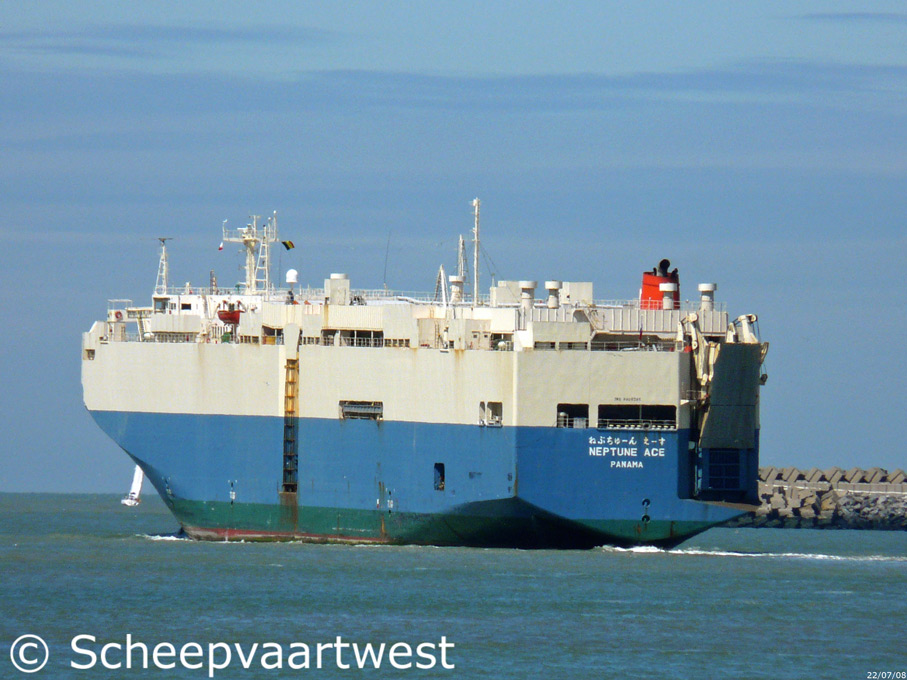

Neptune Ace 07
Zeebrugge 22/07/08



Name

NEPTUNE ACE

Type

Vehicles Carrier
PCC - Pure Car Carrier

IMO-number

8400385

Call sign

HPOG

Flag

Republic of Panama

Previous flag

2003 - Japan

Port of registry

Panama City

GT

44.979 t

DWT

16.560 t

NT

13.493 t

Length

199,30 m overall

166,60 m between perpendiculars

193,91 m registered

Breadth

29,24 m overall

Moulded L x B x D

189,80 x 29,20 x 13,21 m

Registered L x B x D

192,51 x 29,20 x 20,40 m

Draught

Summer: 8,718 m

Freeboard

Summer: 4.516 mm

Depth

13,21 m moulded

Speed

Service: 17,5 knots

Trial: 19,3 knots

Built

1985

Keel laid

10.08.1984

Launch date

22.03.1985

Date of completion

20.06.1985

Builder

Sanoyas Hishino Meisho Corporation
Mizushima
Japan

Yard number

1071

Hull type

Single hull

Main engine

1x Sulzer - 2 stroke single acting 6 cylinder 580 x 1.700 mm diesel engine - 8.973 kW at 123,0 rpm

Manufacturer: Sumijyu Machinery Co., Ltd.

Number of screws

1

Boiler

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 2,50 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

3x Main diesel generatorsets each 2.700 kVA

Cargo capacity

Cars: 4.873

Trucks: 118

TEU: 244

Tank capacities

Fuel oil: 2.266 m³

Fresh water: 368 m³

Water ballast: 7.126 m³

Lifting capacity

1x Crane - SWL 2,5 t

1x Crane - SWL 4,0 t

2x Cranes - SWL 5,0 t each

Manager

New Asian Shipping Company Ltd.
Hong Kong
China

Operator

Mitsui O.S.K. Lines
Head office:

1-1 Toranomon 2 - Chome
Minato-Ku
Tokyo

Japan

Owner

Aurora Car Maritime Transport S.A
Republic of Panama

Registered owner

Aurora Car Maritime Transport S.A.

Remarks

Lengthened 1987
