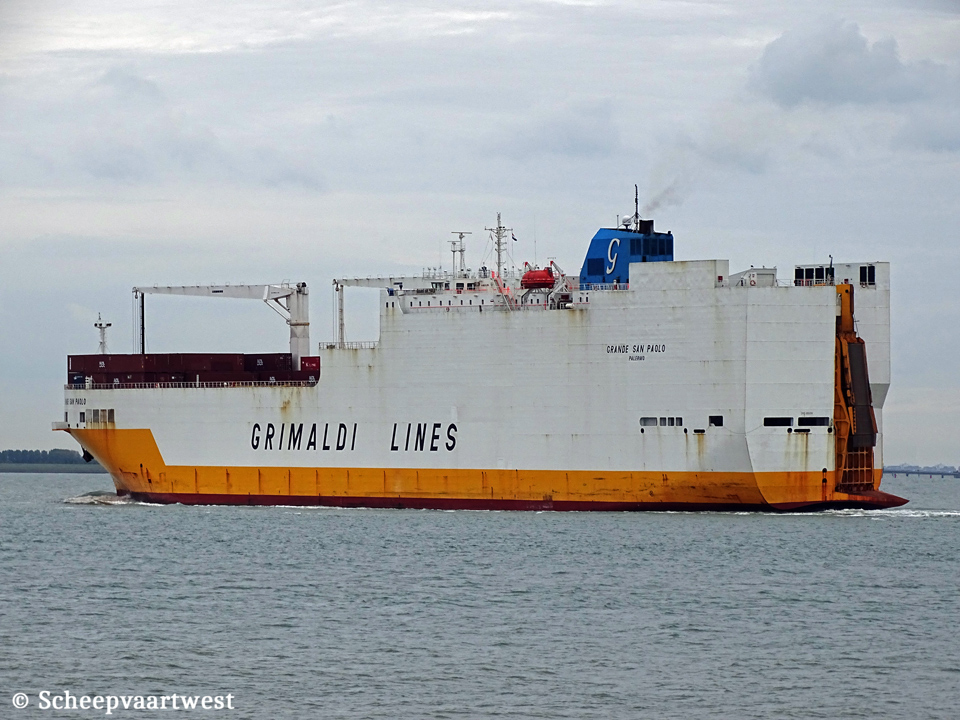

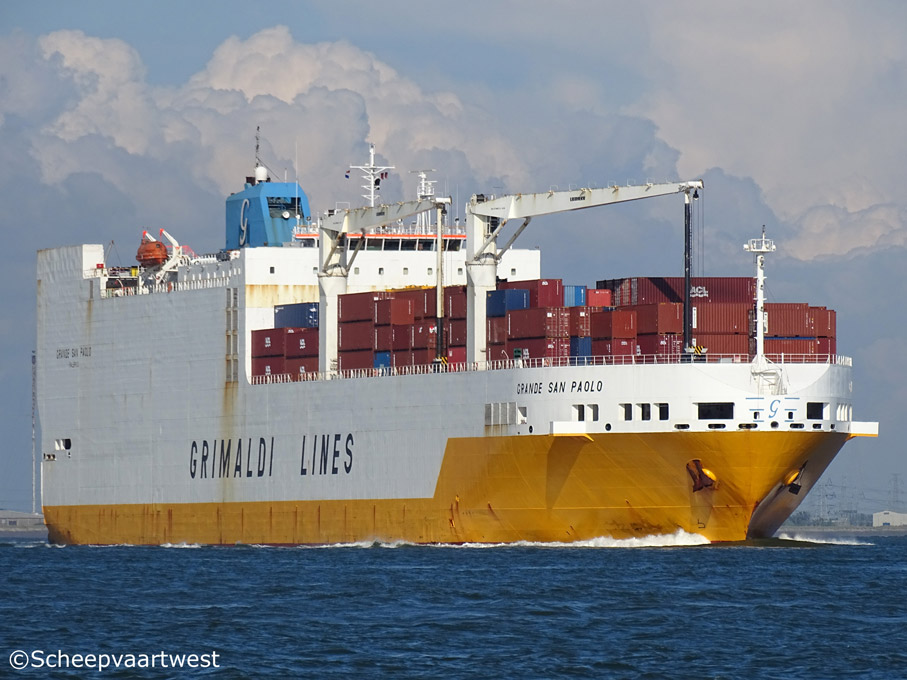

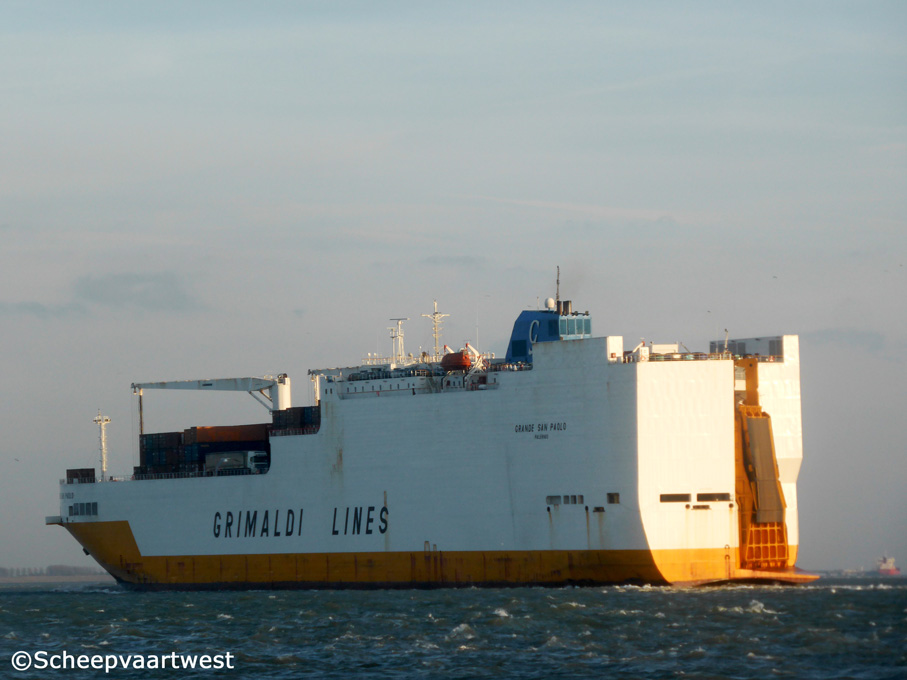

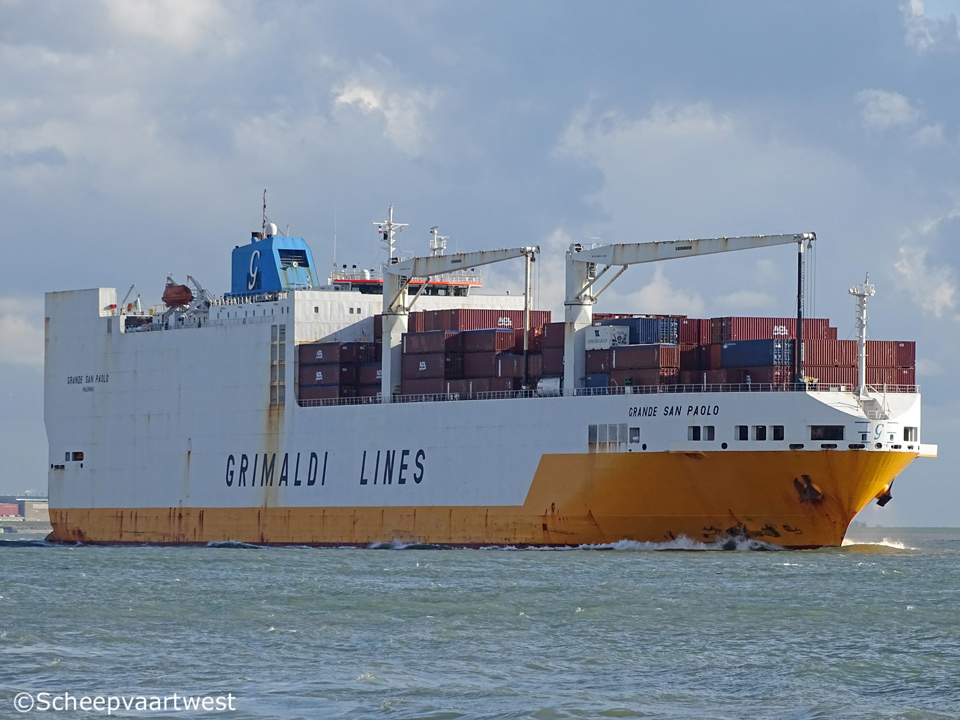

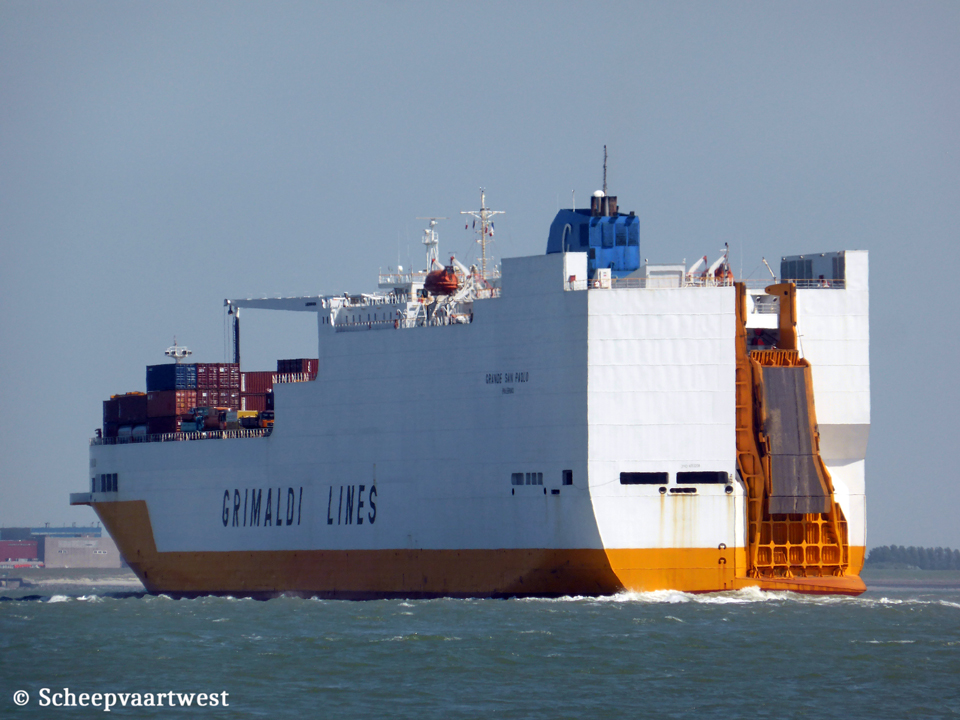

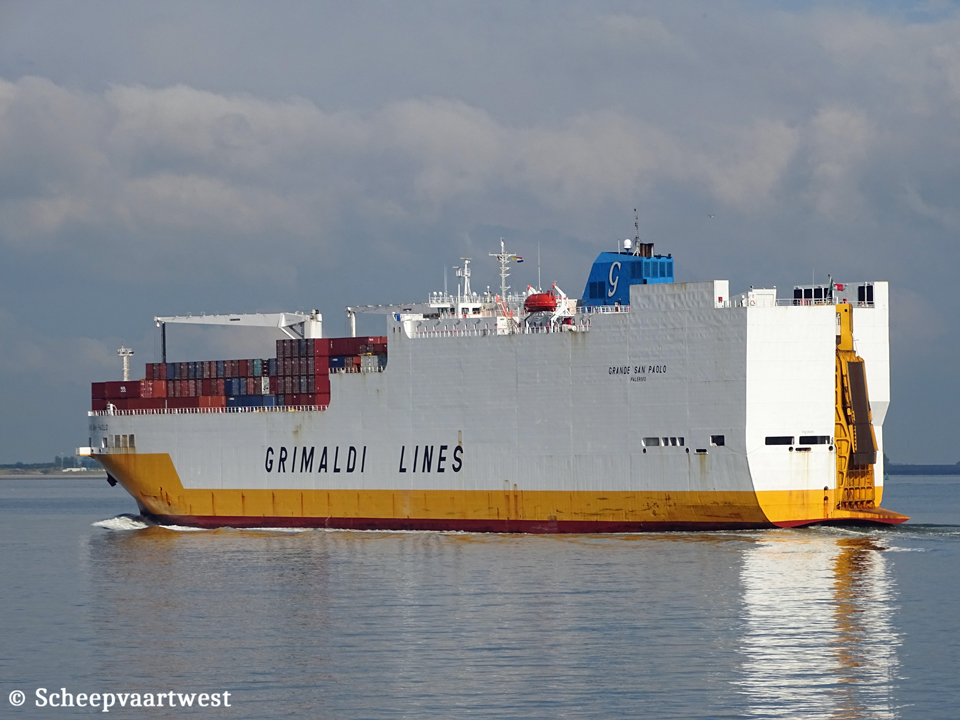

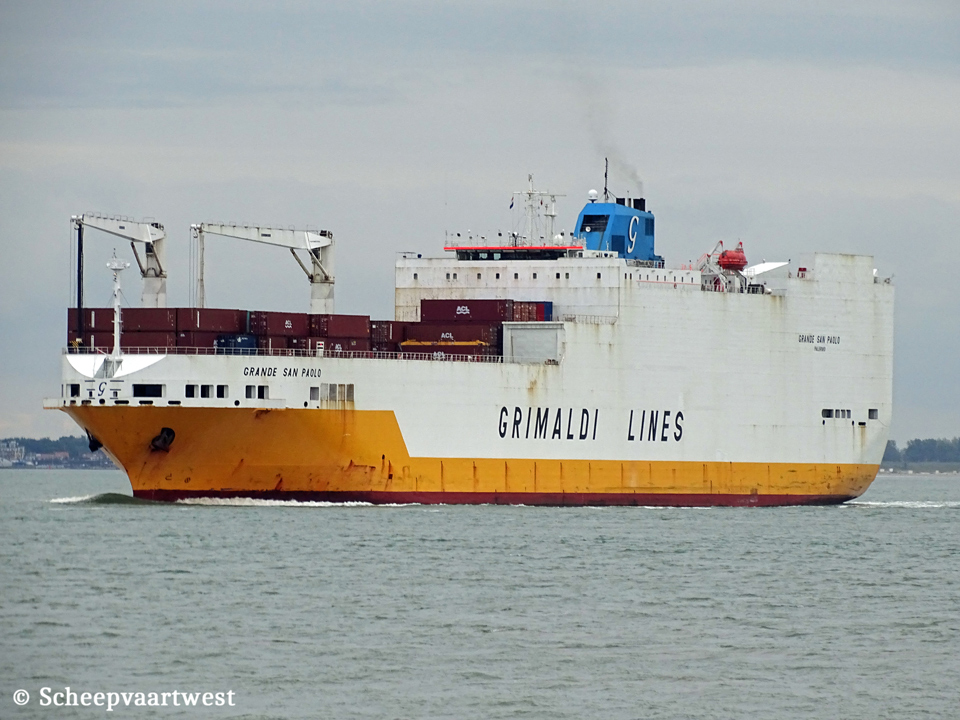

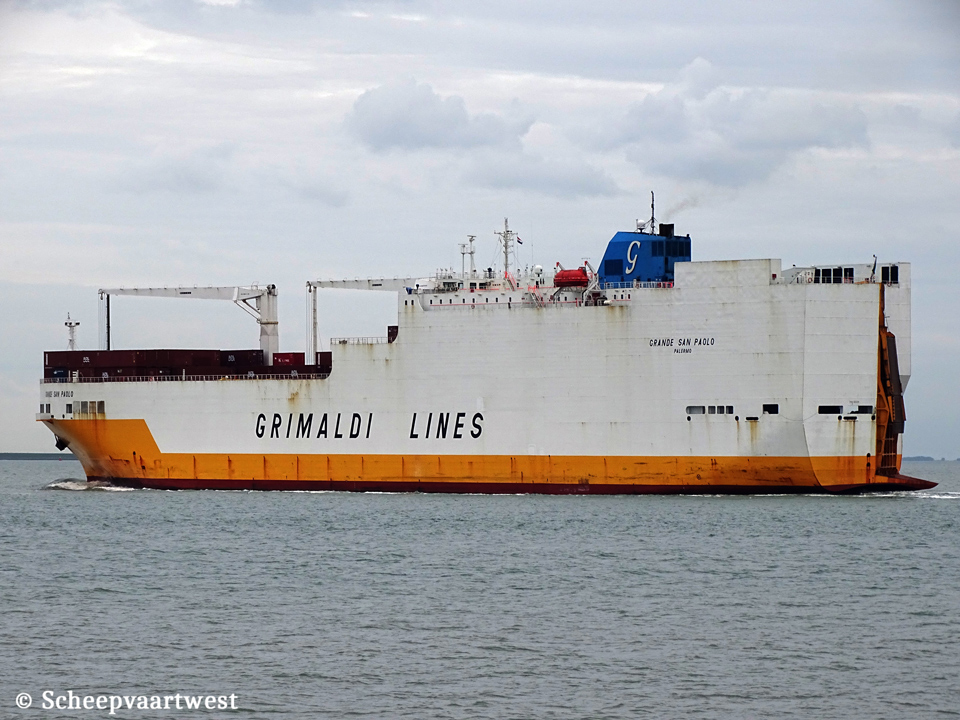

| Westerschelde 30 September 2019 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 30/09/19 | Westerschelde 30/09/19 | Westerschelde 20/06/16 | Westerschelde 06/08/13 | Westerschelde 11/11/14 | Westerschelde | |||||
 |
 |
|||||||||
| Westerschelde 27/05/15 | Westerschelde 12/06/19 | |||||||||
|
Name |
GRANDE SAN PAOLO |
|
Type |
Roll-On / Roll-Off cargo vessel - ConRo |
|
IMO-number |
9253208 |
|
Call sign |
IBNO |
|
Flag |
Italy |
|
Port of registry |
Palermo |
|
GT |
56.738 t |
|
DWT |
Summer: 26.169 t |
|
NT |
19.466 t |
|
Displacement |
Light ship: 19.923 t |
|
Number of 20ft containers |
1.321 |
|
Reefer capacity |
40 |
|
Length |
213,88 m overall 196,60 m between perpendiculars |
|
Breadth |
32,28 m extreme |
|
Draught |
9,80 m |
|
Line metres |
2.500 m |
|
Depth |
12,90 m |
|
Speed |
Max.: 20,5 knots Service: 19,6 knots |
|
Built |
2003 |
|
Keel laid |
26/02/2002 |
|
Launch date |
03/05/2003 |
|
Delivery date |
09/08/2003 |
|
Builder |
Fincantieri-Cantieri Navali Italiani S.p.A Palermo Italy |
|
Yard number |
6094 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Sulzer-Wartsila 8RTA62U - 2 stroke single acting 8 cylinder 620 x 2.150 mm combustion engine 16.450 kW / 22.365 hp at 113,0 rpm Builder: Wärtsilä Italia SpA – Italy |
|
Propellers |
1x Controllable pitch propeller - aft at 113 rpm |
|
Generators |
4x Diesel generators each 1.180 kW 1x Generator 1.440 kW |
|
Bow thruster |
1x 1.600 KW, forward 1x 1.600 kW, aft |
|
Car capacity |
3.639 |
|
Number of complete decks |
5 |
|
Number of partial decks |
2 |
|
Number of trucks |
194 |
|
Number of ramps |
1 |
|
Ramp capacity |
205 t |
|
Cargo gear |
2x Deck cranes SWL 40,0 t each |
|
Passengers |
12 (6x 2 persons cabins) |
|
Caro gear |
2x Deck cranes - SWL 40,0 t each |
|
Crew |
27 |
|
Commercial manager |
Grimaldi Group SpA Via Marchese Campodisola 13 80133 Naples NA Italy |
|
ISM manager |
Grimaldi Deep Sea SpA Naples Italy |
|
Operator |
Grimaldi Lines |
|
Owner |
Grinavi Via Marchese Campodisola 13 80133 Naples NA Italy |
|
Last data update |
14 July 2024 |
