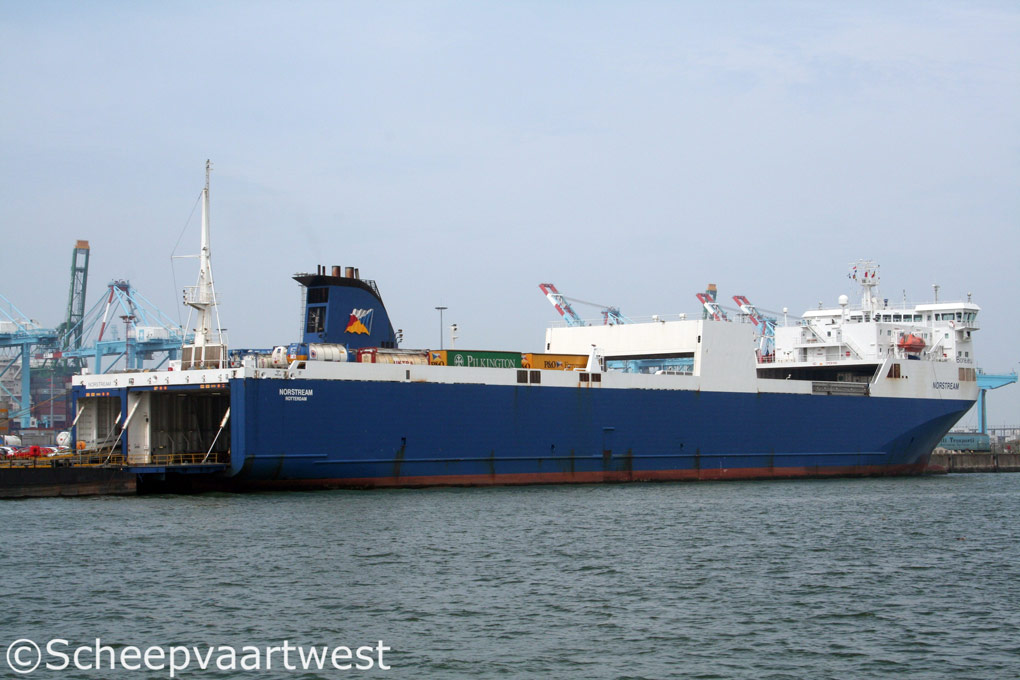

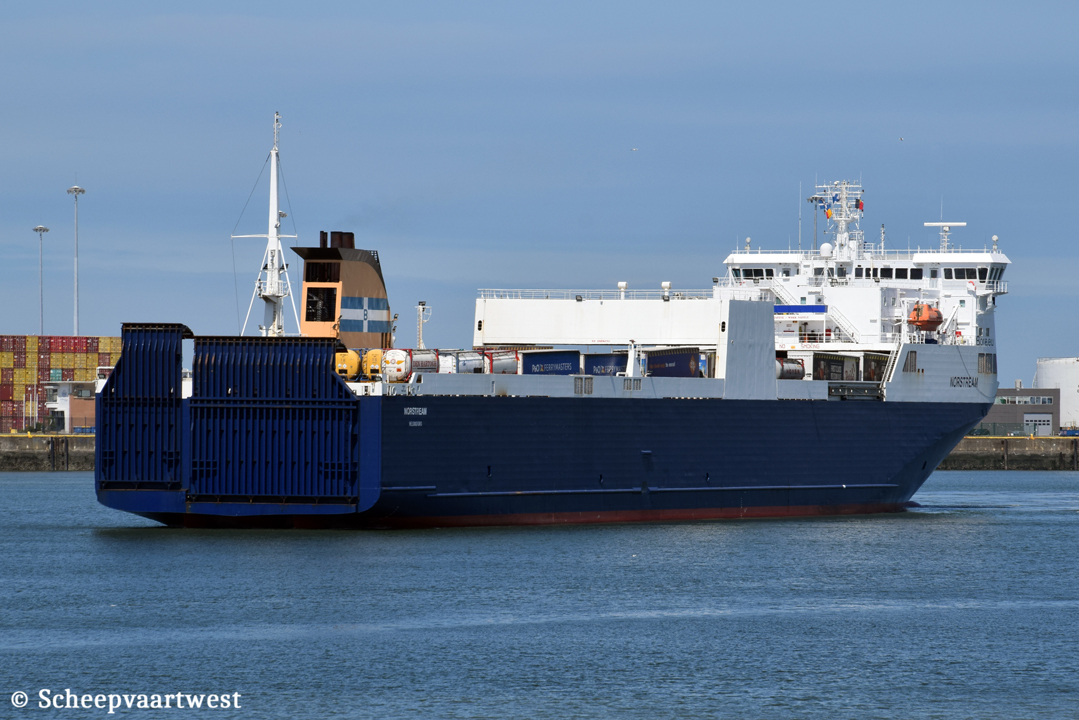

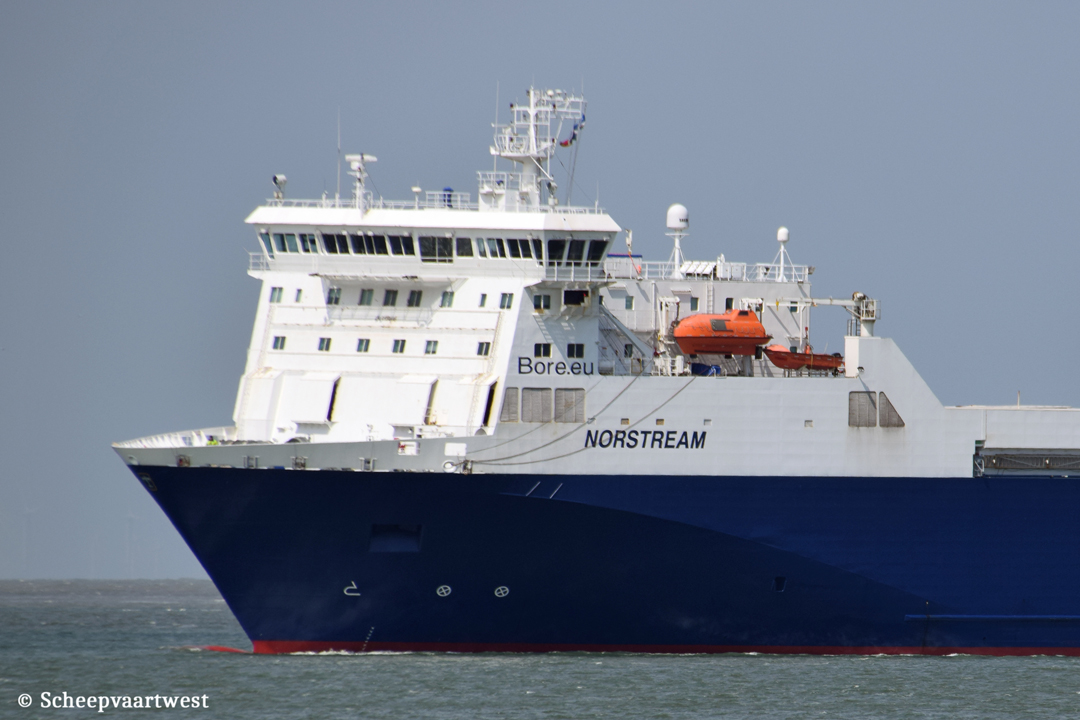

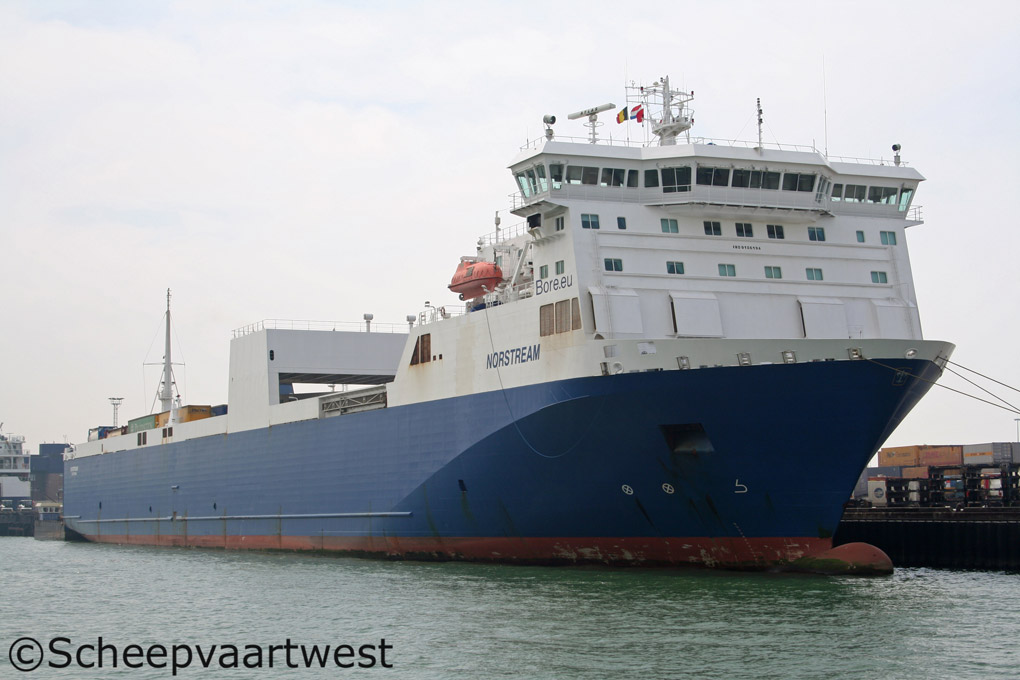

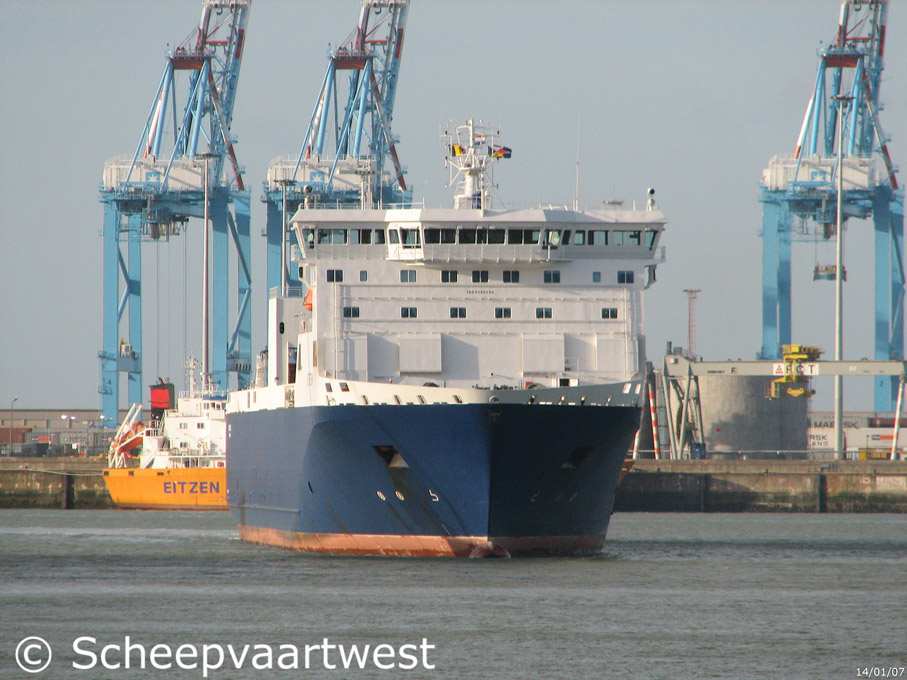

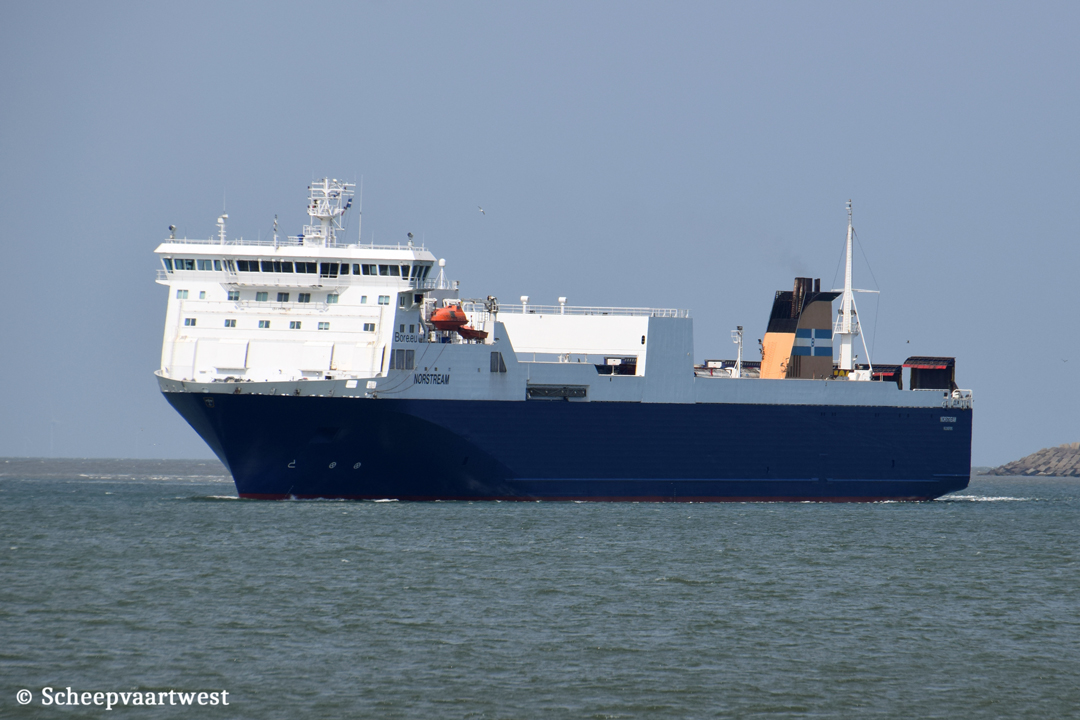

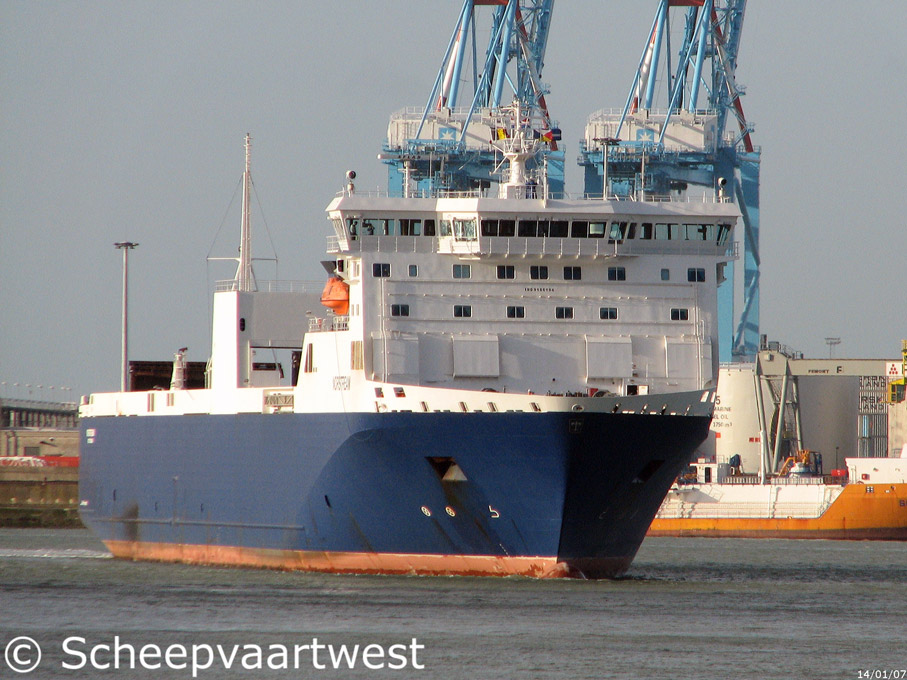

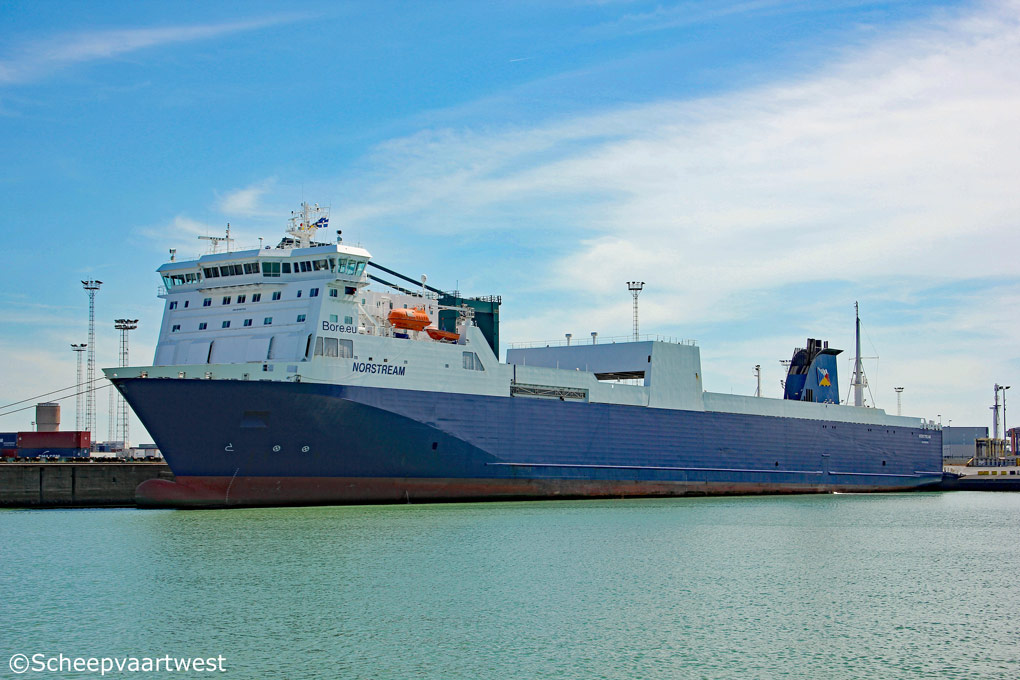

Norstream - IMO 9186194

Name

NORSTREAM

Type

Roll-On/Roll-Off cargo carrier

IMO-number

9186194

Call sign

OJRC

Flag

Finland

Port of registry

Helsingfors

Previous flags

1999 - 2015 The Netherlands, Rotterdam - Call sing: PCCD

GT

20.296 t

DWT

11.585 t

NT

6.088 t

Length

180,00 m overall
166,20 m between perpendiculars

Breadth

25,50 m moulded
25,70 m bridge wings

Draught

Summer: 6,51 m

Freeboard

10.700 mm

Depth

16,70 m

Speed

Service: 20,0 knots

Built

1999

Keel laid

29/01/1999

Date of completion

27/10/1999

Builder

Aker Finnyards OY
Rauma
Finland

Yard number

425

Hull material

Steel

Hull type

Single hull

Number of decks

2

Main engines

2x Wärtsilä 9L46C -4 stroke single acting 9 cylinder 460 x 580 mm combustion engines each 9.450 kW at 500 rpm
Total 18.900 kW / 25.696 hp
Builder: Wärtsilä NSD Finland OY, Turku - Finland

Number of screws

2x KaMeWa 121 XF5/4 Controllable pitch propeller

Shaft generator

1.200 kW

Generators

2x Caterpillar 3306 main diesel generatorsets each 840 kW

Emergency generator

1x Caterpillar 3306 diesel generatorset

Boilers

2x Aalborg CHB-4000 auxiliary boiler, oil/gas fired
2x Aalborg G-189 auxiliary boiler, exhaust gas heated

Bow thruster

2x 1.100 kW

Deck area

Abt 7.770 m²

Free deck height

Tank top: 5,00 m
Main deck: 7,00 m
Upper deck: 5,00 m

Cargo hold volume

Abt 29.150 m³

Number of ramps

2

Tank capacities

Bunker capacity: 2.100 t
Ballast: 6.321,5 m³

Lane length

Width 2,90 m
Upper deck: 1.130 m (incl. 62 m on fixed ramp)
Main deck: 1.040 m
Tank Top: 460 m
Total lane metres: 2.630 m

Ramps

Maindeck to upper deck: fixed ramp
Aft shore to main deck: fixed ramp (with watertight hatch)
Tanktop
Separate shore ramp for access to upper deck

Cargo equipment

Fixed ramp from main deck to upper deck
Aft shore ramp to main deck
Separate shore ramp for access to upper deck
Fixed ramp to tanktop with watertight hatch

Accommodation

Captain class cabins: 2
Officer cabins: 5
Crew cabins: 9
Total crew cabins: 16

Crew

16

ISM & commercial manager

Bore OY AB
Nylandsgatan 16A,
FI-00120 Helsinki
Finland

Previous managers

1999 - 2014 Bore Shipowners B.V., Rotterdam - The Netherlands

Registered owner

Bore OY AB
Nylandsgatan 16A
FI-00120 Helsinki
Finland

Previous names & owners

1999 - 2014 Norstream - Bore Stream B.V., Rotterdam - The Netherlands

Sister ship

Norsky

Latest data adjustment

28 May 2022
