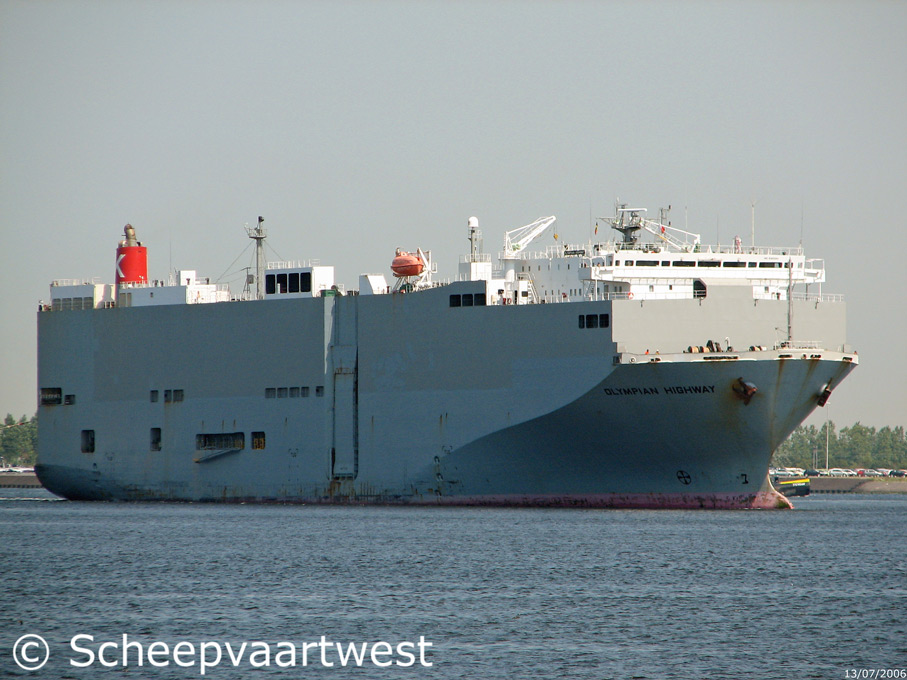

Olympian Highway 05
Zeebrugge 13 July 2006

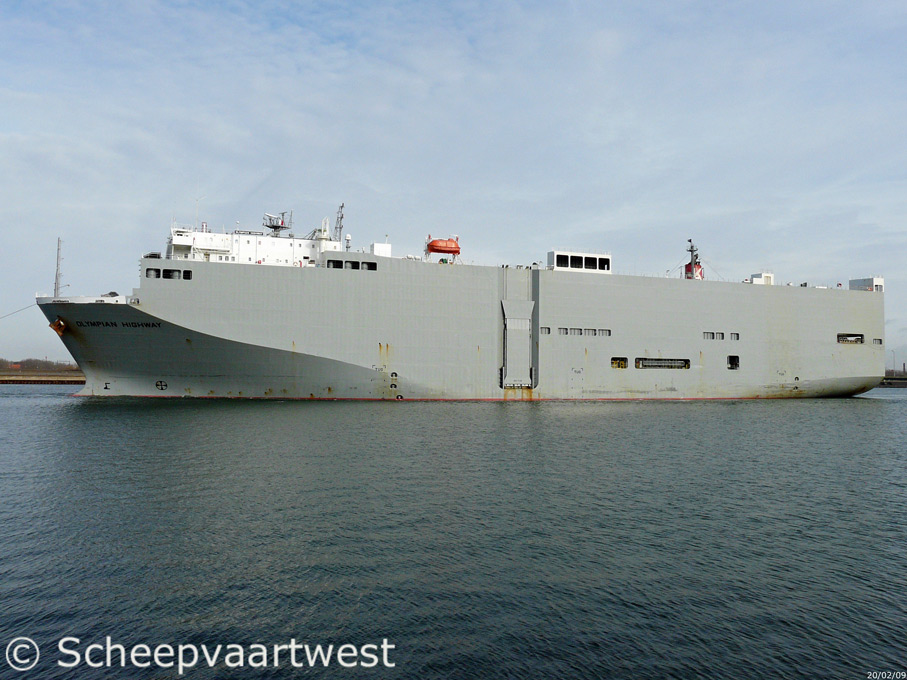

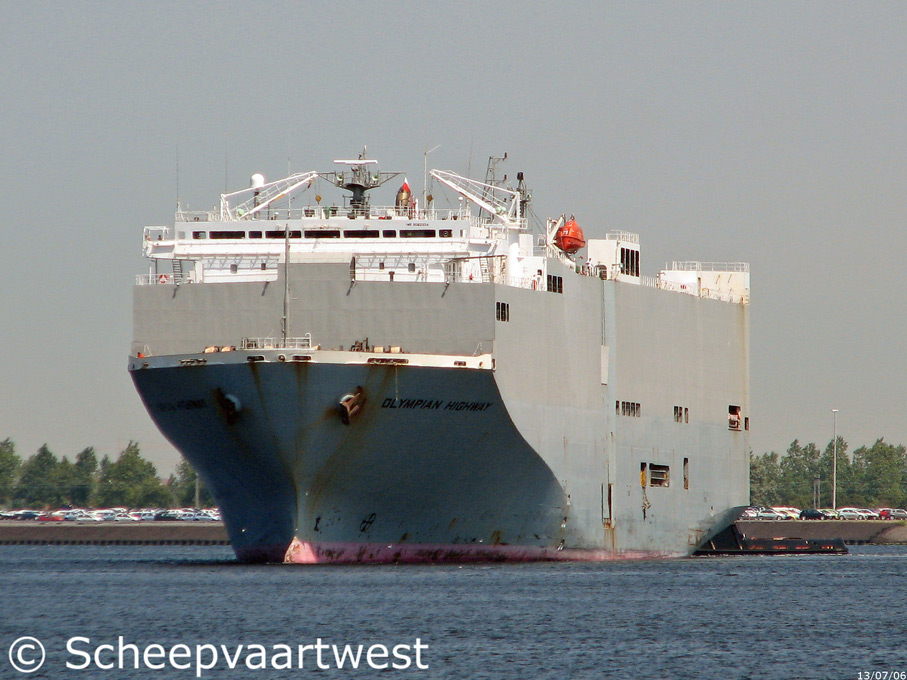

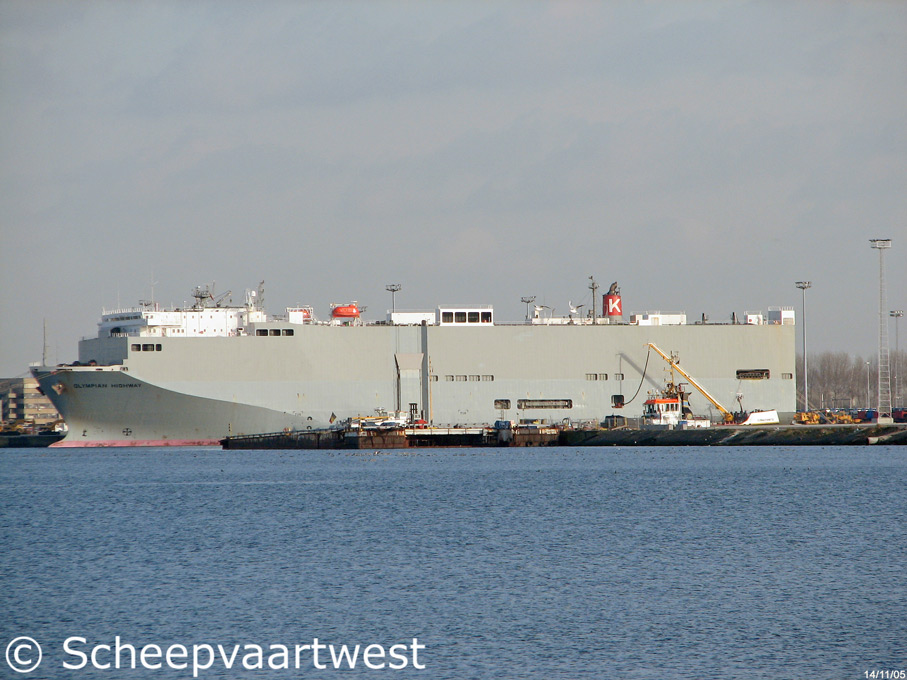

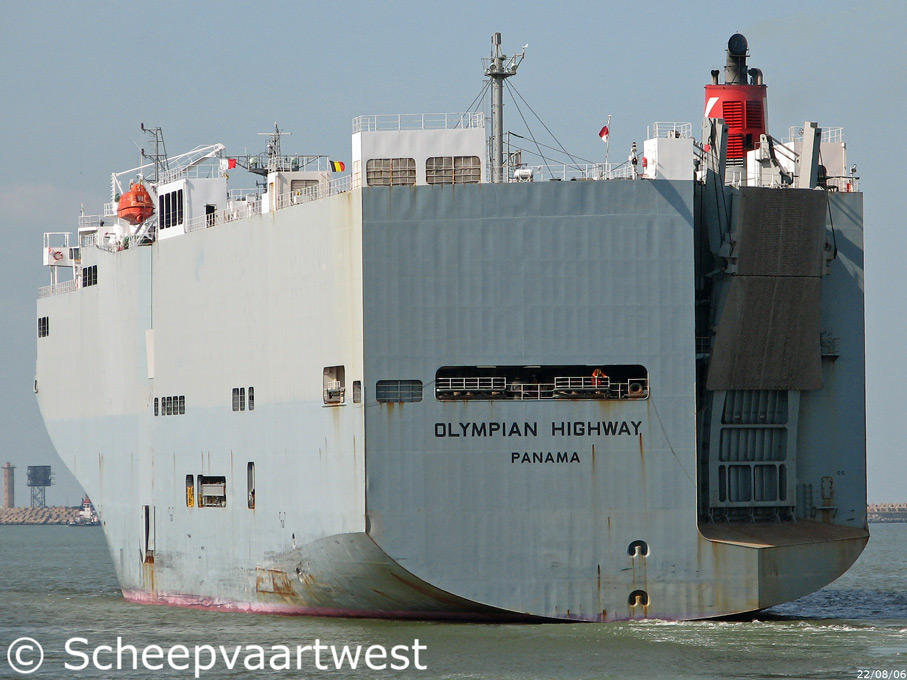

Olympian Highway 03   Olympian Highway 08   Olympian Highway 15   Olympian Highway 02
Zeebrugge 13/07/06 Zeebrugge 22/08/06 Zeebrugge 20/02/09 Zeebrugge 14/11/05



Name

OLYMPIAN HIGHWAY

Type

Vehicles Carrier
PCC - Pure Car carrier

IMO-number

9082324

Call sign

3FSH4

Flag

Republic of Panama

Port of registry

Panama

GT

47.077 t

DWT

14.226 t

NT

14.124 t

Length

179,95 m overall

167,00 m between perpendiculars

168,95 m registered

Breadth

32,20 m overall

Moulded L x B x D

167,00 x 32,20 x 14,98 m

Registered L x Bx D

168,95 x 32,20 x 21,42 m

Draught

Summer: 10,116 m

Freeboard

Summer: 5.894 mm

Depth

14,98 m moulded

Speed

Service: 20,0 knots

Trial: 22,7 knots

Built

1995

Keel laid

18.03.1994

Launch date

11.08.1994

Date of completion

10.01.1995

Builder

Kawasaki Heavy Industries Ltd.
Kobe
Japan

Yard number

1443

Hull type

Single hull

Main engine

1x Burmeister & Wain - 2 stroke single acting 8 cylinder 600 x 2.292 mm diesel engine - 13.239 kW at 101,0 rpm

Manufacturer: Kawasaki Heavy Industries Ltd.

Number of screws

1

Boiler

1x Auxiliary vertical boiler - 7,9 bar

Evaporation: 4,06 t/h

Manufacturer: Osaka Boiler Mfg. Co. Ltd.

Generators

4x Main diesel generatorsets each 3.125 kVA

Car Capacity

5.060

Tank capacities

Fuel oil: 2.736 m³

Fresh water: 514 m³

Water ballast: 6.211 m³

Lifting equipment

2x Cranes - SWL 4,0 t each

Manager

Taiyo Nippon Kisen Co., Ltd.

Operator

K-Line - Kawasaki Kisen Kaisha Line

Owner

Olympian Highway Shipping S.A.

Republic of Panama
