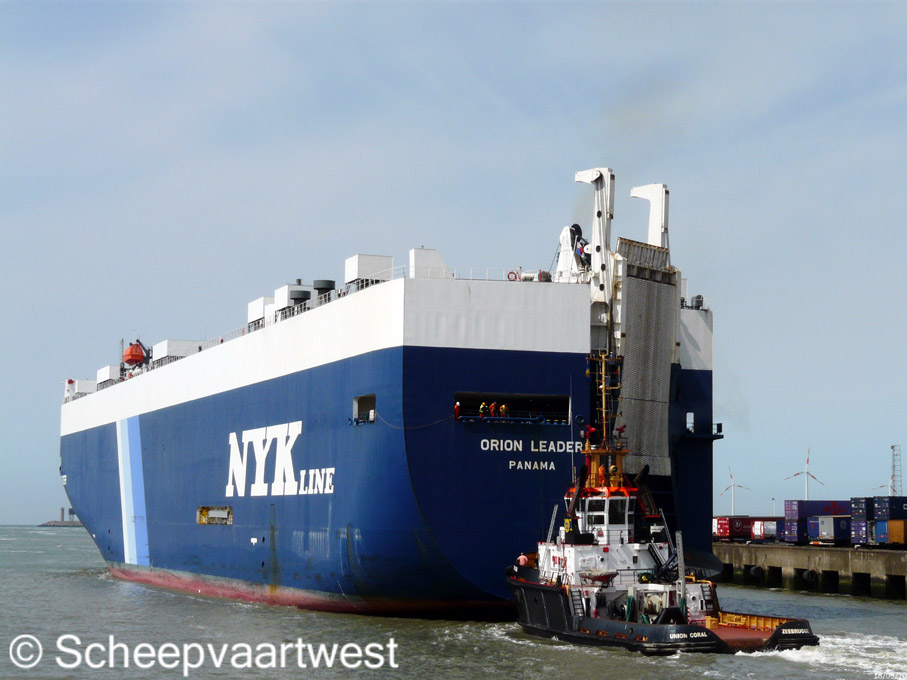

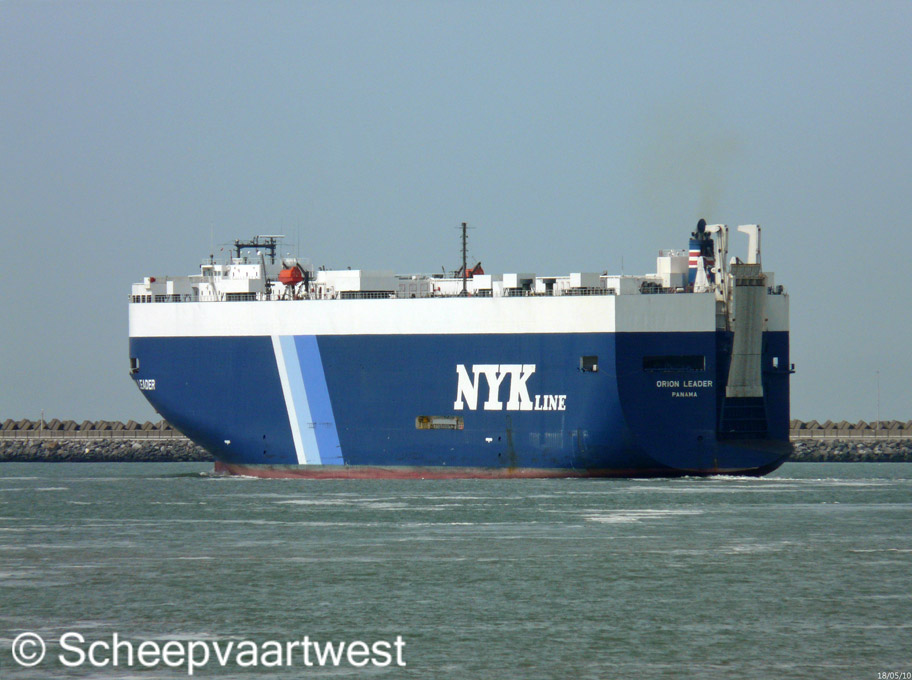

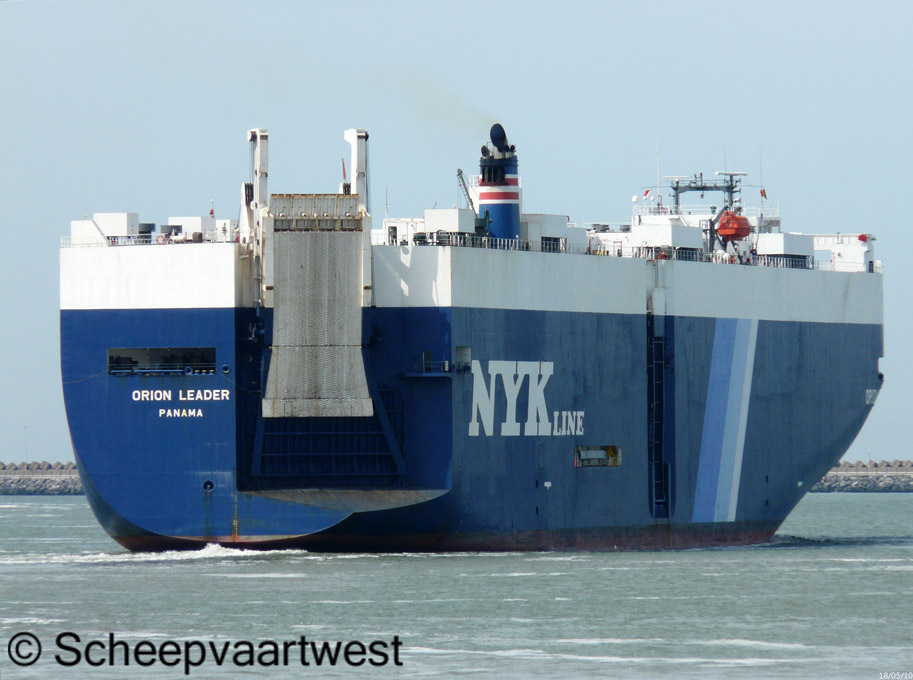

| Zeebrugge 18 May 2010 |
 |
 |
|
| Zeebrugge 18/05/10 | Zeebrugge 18/05/10 |
|
Name |
ORION LEADER |
|
Type |
Vehicles carrier |
|
IMO-number |
9182289 |
|
Call sign |
3FSG9 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
57.513 t |
|
DWT |
21.526 t |
|
NT |
17.254 t |
|
Length |
199,94 m |
|
Breadth |
32,30 m |
|
Moulded L x B x D |
190,00 x 32,20 x 15,32 m |
|
Registered L x B x D |
194,27 x 32,20 x 23,53 m |
|
Draught |
Summer: 10,066 m |
|
Freeboard |
Summer: 5.295 mm |
|
Depth |
15,32 m moulded |
|
Speed |
Service: 18,5 knots Trial: 21,0 knots |
|
Built |
1999 |
|
Keel laid |
30.06.1998 |
|
Launch date |
15.07.1999 |
|
Date of completion |
28.09.1999 |
|
Builder |
Imabari Shipbuilding Co., Ltd. (Marugame Yard) |
|
Yard number |
1316 |
|
Hull type |
Single hull |
|
Main engine |
1x 2 stroke single acting 8 cylinder 600 x 2.200 mm diesel engine - 14.121 kW at 100,0 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works |
|
Boiler |
1x Auxiliary vertical boiler - 7,9 bar Evaporation: 4,99 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Main diesel generatorsets each 4.275 kVA |
|
Car capacity |
5.066 |
|
Tank capacities |
Fuel oil: 3.288 m³ Fresh water: 419 m³ Water ballast: 9.293 m³ |
|
Lifting equipment |
3x Cranes - SWL 0,9 t each 2x Cranes - SWL 4,0 t each |
|
Crew |
20 |
|
Manager |
Wallem Shipmanagement Ltd. |
|
Operator |
NYK Line - Nippon Yusen Kaisha Line |
|
Owner |
Campbell Shipholding S.A. |
|
Registered owner |
Campbell Shipholding S.A. Campbell Shipholding II S.A. |
