Name |

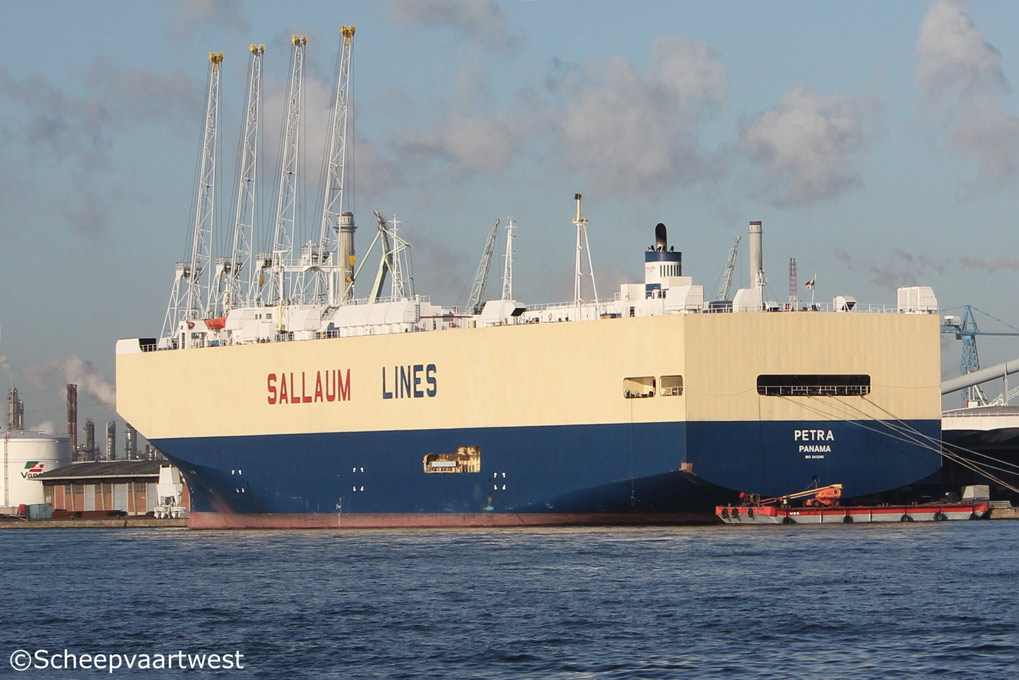

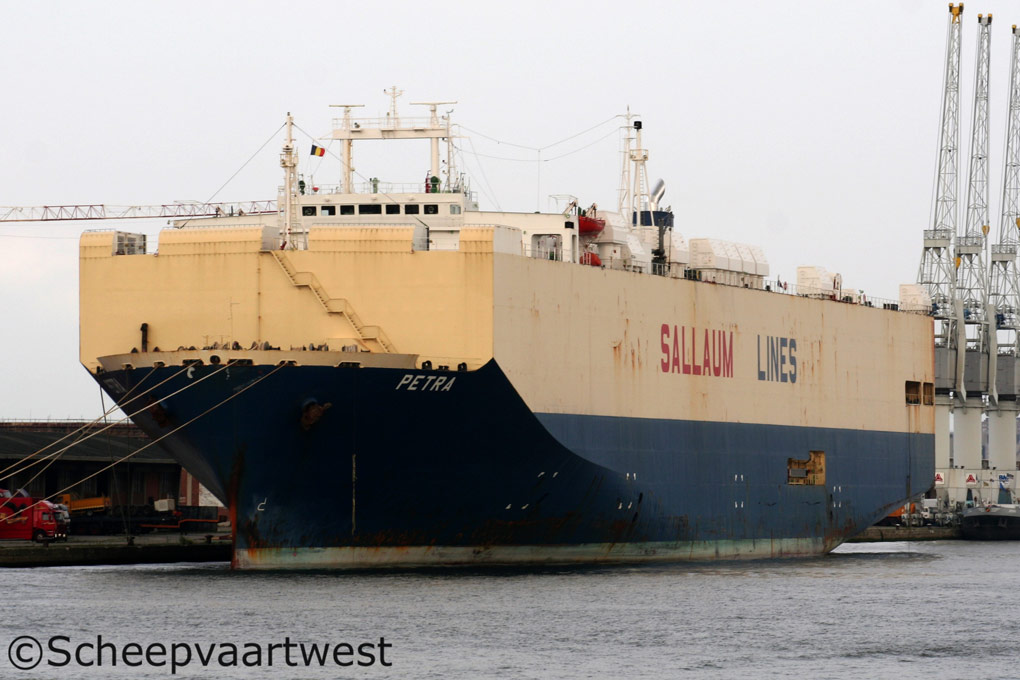

PETRA |
|
Previous names |
1986 - 1993 Emas Bintang 1993 - 17.11.1993 Toyofuji No.10 1993 - 05.06.2005 Cygnus |
|
Type |
Roll-On/Roll-Off carrier PCC - Pure Car Carrier |
|
IMO-number |
8412986 |
|
Call sign |
3FTQ3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
44.356 t |
|
DWT |
17.955 t |
|
NT |
13.306 t |
|
Length |
190,00 m |
|
Breadth |
32,00 m |
|
Draught |
9,025 m |
|
Moulded L x B x D |
190,00 x 32,20 x 12,90 m |
|
Registered L x B x D |
182,75 x 32,20 x 21,03 m |
|
Freeboard |
Summer: 3.906 mm |
|
Depth |
12,90 m moulded |
|
Speed |
Service: 18,5 knots |
|
Built |
1985 |
|
Keel laid |
15.10.1984 |
|
Launch date |
30.03.1985 |
|
Date of completion |
21.06.1985 |
|
Builder |
Mitsubishi Heavy Industries, Ltd. |
|
Yard number |
1972 |
|
Hull material |
Steel |
|
Watertight compartments |
3 |
|
Continuous decks |
12 |
|
Main engine |
1x Mitsubishi 7UEC - 2 stroke single acting 7 cylinder 600 x 1.900 mm diesel engine - 10.811 kW / 14.689 hp at 110,0 rpm Manufacturer: Mitsubishi Heavy Industries, Ltd. Yokohama Shipyard Engine Works Built: 1984 |
|
Number of screws |
1 |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 3,30 t/h Manufacturer: Mitsubishi Heavy Industries, Ltd. Nagasaki Shipyard & Machinery Works |
|
Diesel generators |
3x Main diesel generatorsets each 800 kVA - 640 kW - 960 hp |
|
Car capacity |
5.323 |
|
Ramp capacity |
Max. door width: 6,20 m Max. deck height: 4,00 m Max ramp capacity 150 t |
|
Tank capacities |
Fuel oil: 2.816 m³ Fresh water: 530 m³ Water ballast: 6.365 m³ |
|
Lifting equipment |
1x Crane - SWL 4,0 t 2x Cranes - SWL 5,0 t each |
|
Manager |
Maritime Management Services |
|
Operator |
Sallaum Lines |
|
Office |
Sallaum Lines |
|
Owner |
Sallaum Lines Sal |
|
Scrapped |
03.2016 at Chittagong - Bangladesh |
|
Latest data adjustment |
09 April 2016 |
