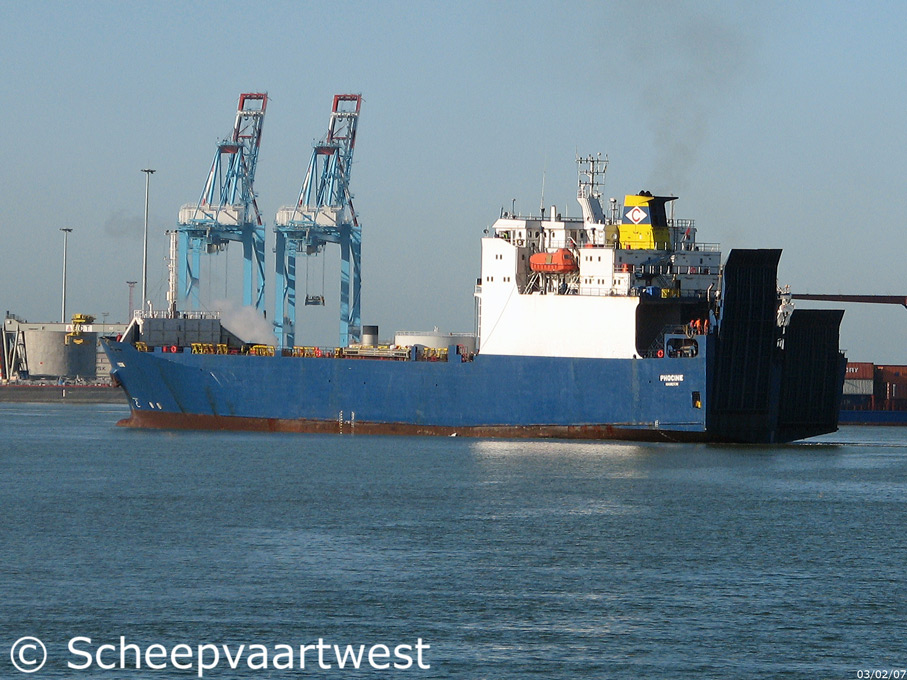

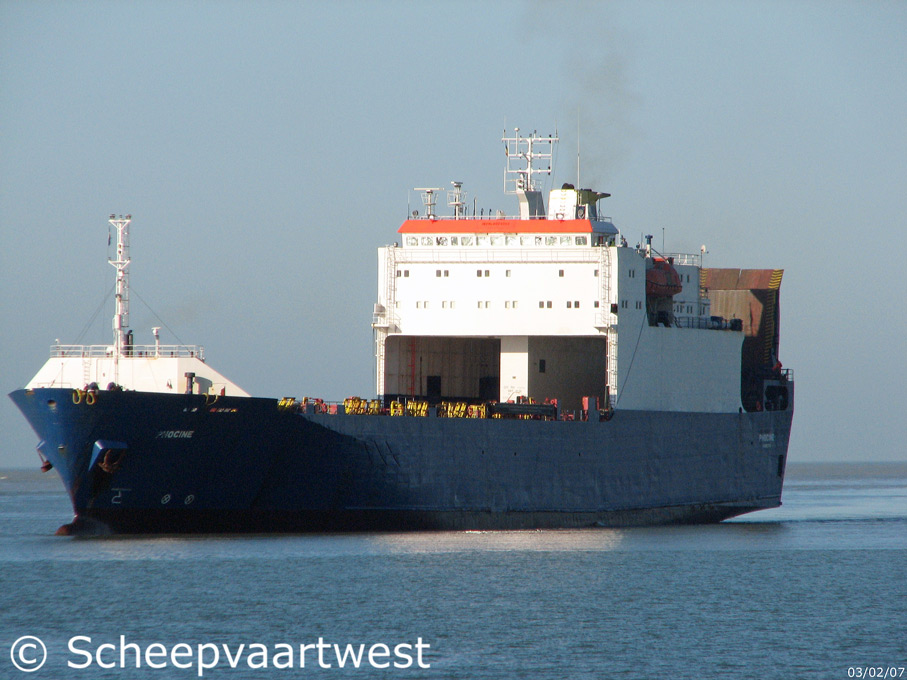

| Zeebrugge 03 February 2007 |
 |
 |
|

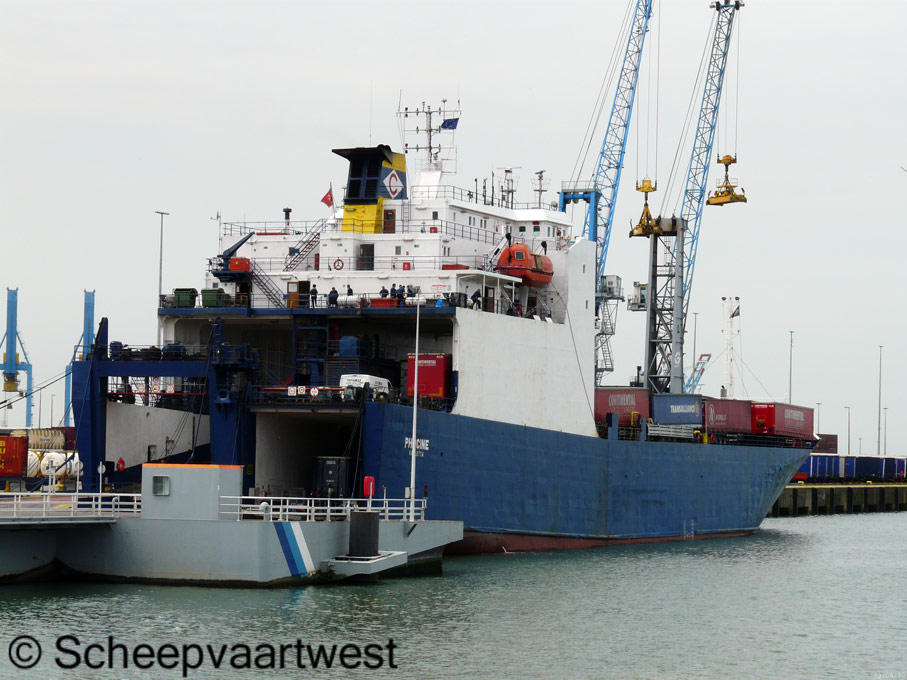

| Zeebrugge 03/02/07 | Zeebrugge 13/06/10 |
|
Name |
PHOCINE |
|
Previous names |
1985 Balder Sten 1985-1991 Bazias 3 - Navrom 1991-1993 Bazias 3 - Sally Line 1993-1996 Sally Euroroute - Sally Line 1996-2000 Merle - Belfast Freight Ferries 2000 Dart 3 - Dart Line 2000-2001 Dart 3 - NorseMerchant Ferries 2001-2006 Dart 3 - Dart Line 2006-2007 Phocine - Cobelfret Ferries 2007 Phocine - Isle of Man Steam Packet Company 2007-2008 Phocine - Cobelfret Ferries 2008 Phocine - Seatruck Ferries |
|
Type |
Roll-On/Roll-Off freight vessel |
|
IMO-number |
8009064 |
|
Call sign |
9HPM9 |
|
Previous call sign |
ZCDH2 |
|
Flag |
Malta |
|
Previous flag |
1985 Norway 1993 Romania 2003 Bahamas |
|
Port of registry |
Valletta |
|
Previous port of registry |
Hamilton |
|
GT |
9.088 t |
|
DWT |
4.734 t |
|
NT |
2.726 t |
|
Length |
121,48 m overall |
|
Breadth |
21,00 m overall |
|
Draught |
Summer: 5,33 m |
|
Lane metres |
1.225 |
|
Freeboard |
7.170 mm |
|
Depth |
12,50 m to upper deck 5,35 m to main deck |
|
Speed |
14,5 knots |
|
Built |
1984 |
|
Date of completion |
12.1984 |
|
Builder casco |
Santierul Naval Galatz S.A. |
|
Builder completed |
Damen Shipyard |
|
Yard number |
769 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
2 |
|
Watertight compartments |
10 |
|
Main engines |
2x Krupp MAK 9M453AK - 4 stroke 9 cylinder 320 x 420 mm diesel engine- each 2.650 kW total 5.300 kW / 7.200 hp at 600 rpm Built: 1982 |
|
Propellers |
2x Ulstein screw propeller controllable pitch at 242 rpm |
|
Electrical installation |
Power voltage: 440 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Shaft generator |
1x 625 kVA - 500 kW |
|
Generators |
2x Caterpillar 3412 diesel generatorsets each 481 kVA - 385 kW - 1.130 hp |
|
Deck generator |
1x 690 kW |
|
Bow thruster |
1x Ulstein 435 kW |
|
Number of cars |
49 |
|
Cargo holds |
1 |
|
Port stern ramp |
15,60 x 7,10 m, 17,5 t bogie, 45 t max load |
|
Stbd stern ramp |
10,67 x 9,10 m, 17,5 t bogie, 56 t max load |
|
Fixed ramp |
Main deck to tank top, 2,51 m wide x 2,51 high, cars only |
|
Tank capacities |
Bunker: 745 t Fuel oil: 916 m³ Ballast: 2.780 m³ Diesel: 183 m³ |
|
Number of passengers |
12 |
|
Number of beds |
12 |
|
Manager |
Mine Shipping & Trading |
|
Operator |
Cobelfret Ferries |
|
Previous owners |
1985 K/S A/S Balder RO/RO No 2 1985-1996 Navrom 1996-? Jacobs Holdings ?-2006 BidCorp Shipping |
|
Owner |
Dart Line DART 3 Limited |
