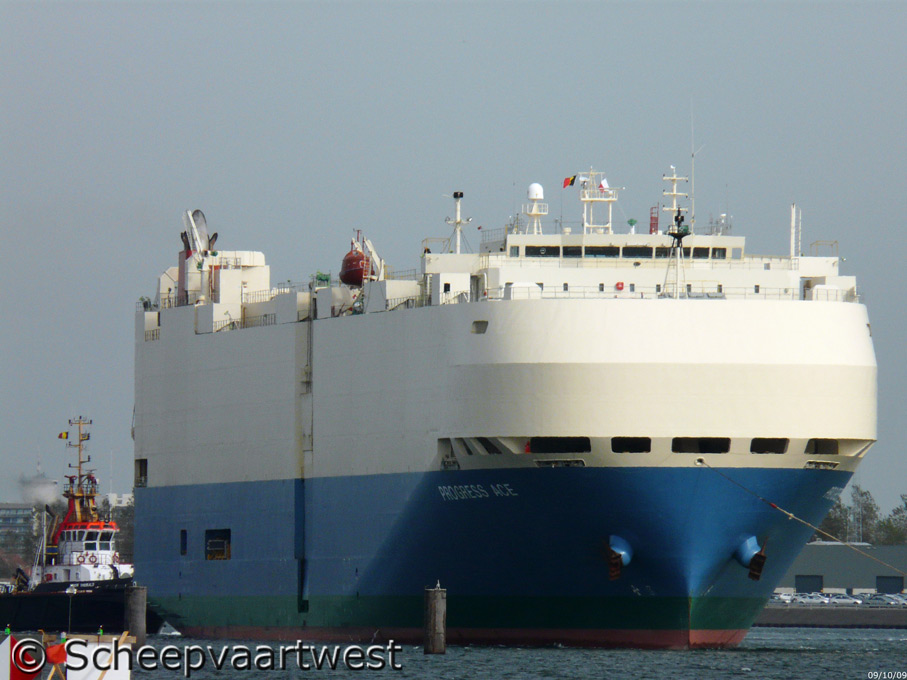

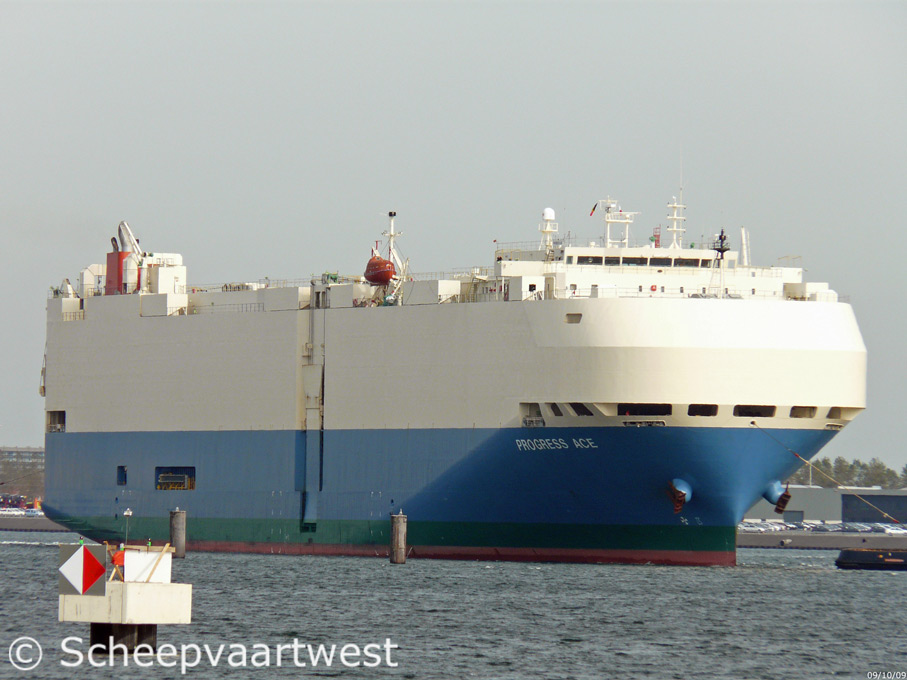

| Zeebrugge 09 October 2009 |
 |
| Zeebrugge 09/10/09 |
|
Name |
PROGRESS ACE |
|
Type |
Vehicles carrier |
|
IMO-number |
9267687 |
|
Call sign |
HPQI |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
57.789 t registered |
|
DWT |
19.512 t |
|
NT |
18.114 t registered |
|
Length |
199,54 m overall 190,00 m between perpendiculars |
|
Breadth |
32,26 m |
|
Moulded L x B x D |
190,00 x 32,26 x 14,60 m |
|
Registered L x B x D |
192,46 x 32,26 x 21,12 m |
|
Draught |
Summer: 9,725 m |
|
Freeboard |
Summer: 4.915 mm |
|
Speed |
Service: 20,0 knots Trial: 21,9 knots |
|
Built |
2003 |
|
Keel laid |
03.06.2002 |
|
Launch date |
28.08.2003 |
|
Date of completion |
28.11.2003 |
|
Builder |
Toyohashi Shipbuilding Co., Ltd. |
|
Yard number |
3562 |
|
Hull type |
Single hull |
|
Main engine |
1x Kobe diesel - 2 stroke single acting 8 cylinder 600 x 2.200 mm diesel engine - 14.160 kW at 100 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works |
|
Propellers |
1 |
|
Boiler |
1x Auxiliary Vertical boiler - 6,9 bar Evaporation: 3,44 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Main diesel generatorsets each 3.900 kVA |
|
Car capacity |
5.342 |
|
Tank capacities |
Fuel oil: 3.101 m³ Fresh water: 405 m³ Water ballast: 8.388 m³ |
|
Lifting equipment |
2x Cranes - SWL 4,0 t each |
|
Crew |
21 |
|
Manager |
MMS Co., Ltd. |
|
Owner |
Bright Century Maritime S.A. |
|
Registered owner |
Bright Ocean Maritime S.A. |
