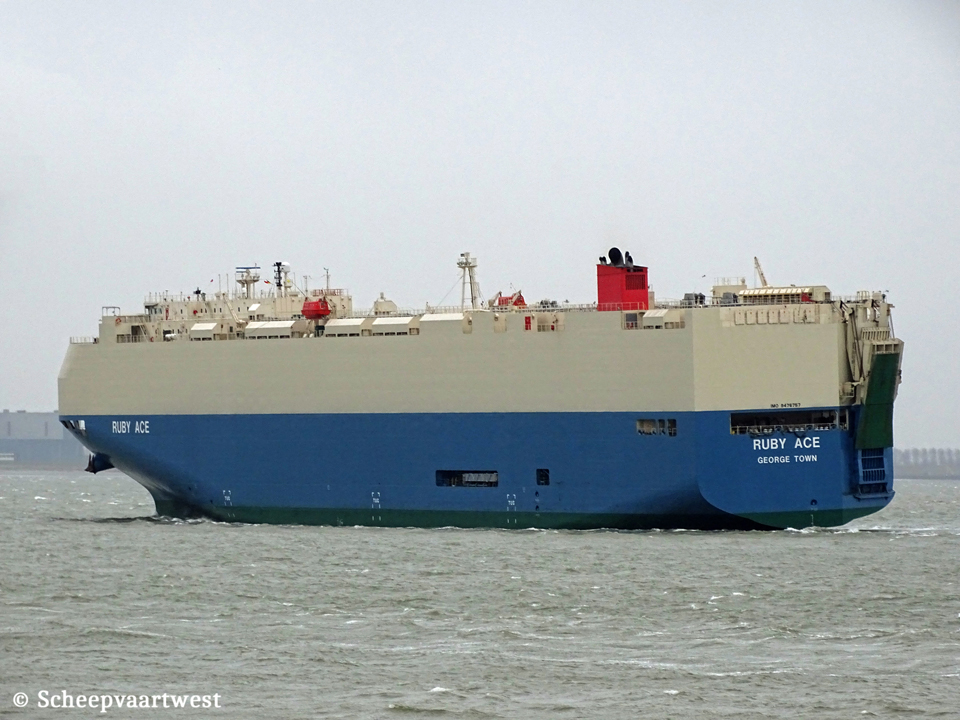

Ruby Ace IMO 9476757 04
Westerschekde 28 February 2020

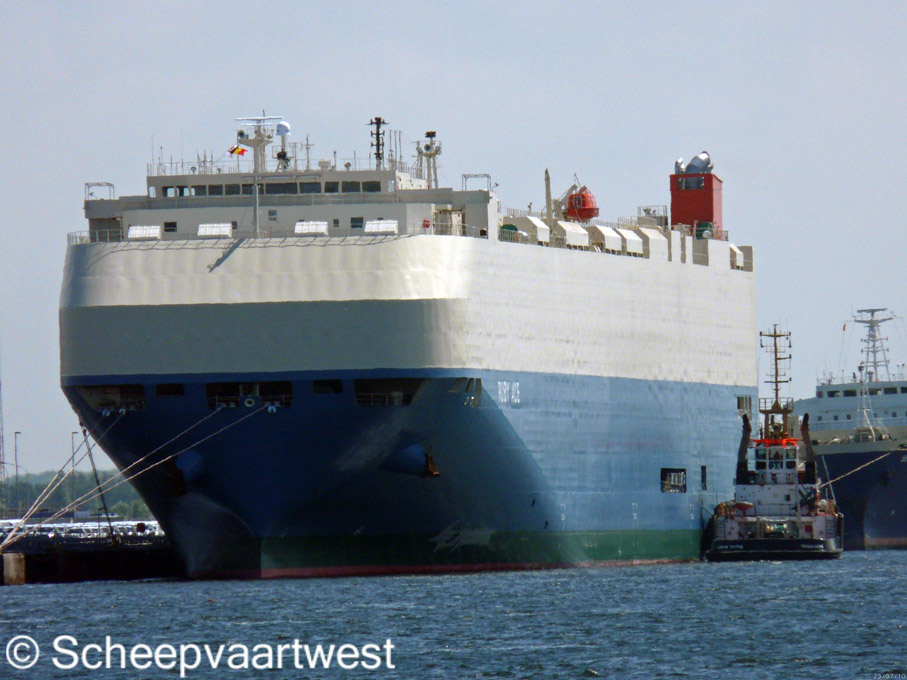

Ruby Ace 01
Zeebrugge 23/07/10









Name

RUBY ACE

Type

Vehicles carrier

PCTC - Pure car and truck carrier

IMO-number

9476757

Call sign

ZGAE6

Flag

Cayman Islands

Port of registry

George Town

GRT

60.148 t registered

DWT

18.724 t

NRT

18.573 t registered

Length

199,99 m overall

Breadth

32,26 m

Moulded L x B x D

192,00 x 32,26 x 14,70 m

Registered L x B x D

194,31 x 32,26 x 21,25 m

Draught

Summer: 9,73 m

Freeboard

Summer: 5.013 mm

Speed

21,9 knots

Built

2010

Keel laid

25/12/2008

Launch date

29/07/2009

Date of completion

08/01/2010

Builder

Mitsubishi Heavy Industries, Ltd. Nagasaki Shipyard & Machinery Works

Japan

Yard number

2256

Hull type

Single hull

Main engine

1x Mitsubishi/Kobe 8UEC60LS - 2 stroke single acting 7 cylinder 600 x 2.300 mm combustion engine 14.315 kW at 105,0 rpm

Manufacturer: Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works

Number of screws

1

Propeller Shaft

1x Oil lubrication shaft with monitoring device

Diameter: 590 mm

Boiler

1x Auxiliary vertical boiler- 6,9 bar

Evaporation: 3,92 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

4xGeneratorsets total 4.250 kVA

Car capacity

6.334 standard passenger cars

Tank capacities

Fuel oil: 2.888 m³

Fresh water: 566 m³

Ballast water: 9.261 m³

Lifting equipment

2x Cranes - SWL 2,0 t each

Crew

27

Registered owner

White Bear Maritime Limited, Tokyo - Japan

c/o Mitsui OSK Lines Ltd (MOL)

1-1, Toranomon 2-chome, Minato-ku, Tokyo, 105-8688

Japan

Latest data adjustment

06 April 2022
