Zeebrugge 18 August 2011 |
Name |

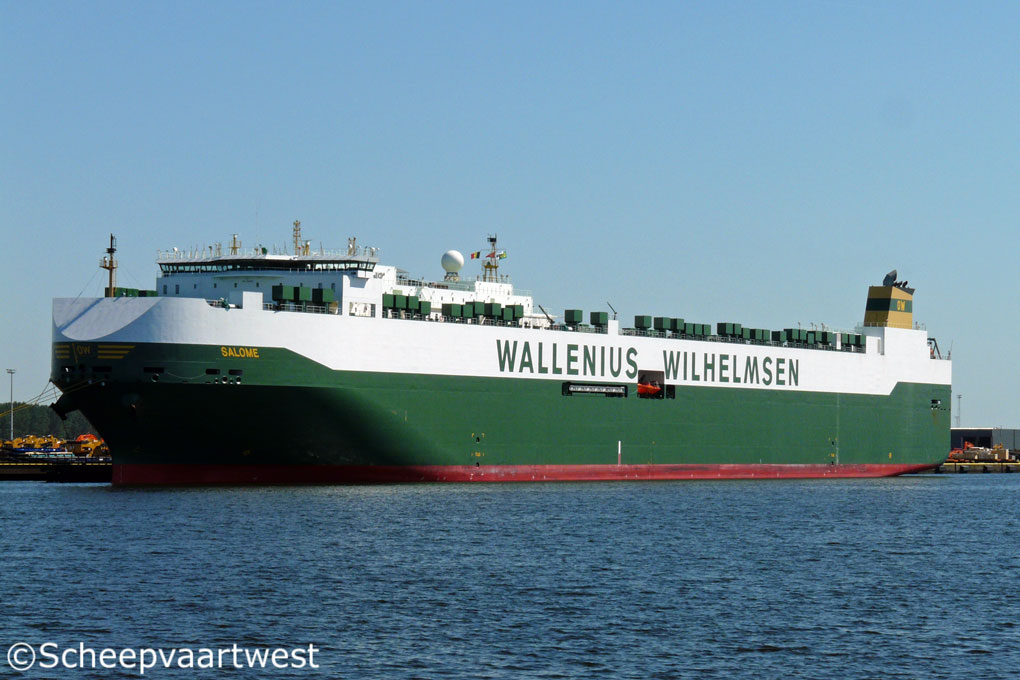

SALOME |
Type |
Roll-on/Roll-off car carrier |
IMO-number |
9515412 |
Call sign |
9V9112 |
Flag |
Republic of Singapore |
Port of registry |
Singapore |
GT |
75.251 t |
DWT |
43.878 t |
NT |
27.215 t |
Length |
265,00 m overall 250,00 m between perpendiculars |
Breadth |
33,273 m extreme 32,26 m moulded |
Draught |
Max: 12,30 m |
Air Draft |
Max: 53,70 m |
Height to upperdeck |
33,22 m |
Built |
2012 |
Keel laid |
18.05.2011 |
Launch date |
04.02.2012 |
Date of completion |
22.06.2012 |
Builder |
Mitsubishi Heavy Industries Ltd., Nagasaki Shipyard & Machinery Works |
Yard number |
2265 |
Hull material |
Steel |
Main engine |
Kawasaki-MAN B&W 7L70MC-C8 - output of 20.100 kW at 95,0 rpm Builder: Man Diesel A/S |
Propellers |
Fixed pitch propeller |
Boilers |
1x Auxiliary boiler, horizontal shell type UNEX BH3000 2x Auxiliary boiler, steam heated steam generator Q5 HP steam separator drum Builder: Aalborg Industries Ltd. |
Electric steam turbine |
800 kW |
Shaft generator |
1x 1.100 kW |
Generators |
3x Daihatsu type 6DC-32 main diesel generatorset each 2.400 kW each Builder: Daihatsu Diesel Mfg. Co. Ltd Moriyama Factory |
Emergency generator |
1x Cummins diesel generator set Builder: Cummins India Limited |
Bow thruster |
1x Transverse thrusters of 2.200 kW - forward and aft |
Number of car decks |
9 (of which 3 are movable) |
Capacity car (RT43) |
5.990 Total deck capacity 50.344 m² High and Heavy (Truck) : 31.204 m² (1 RT43 gross unit ≈ 8.40 m²) |
Stern ramp |
Width: 12,00 m Stern opening height: 7,10 m Stern ramp capacity: 505 |
Anchor equipment |
Length: 687,50 m Diameter:87,00 mm |
Crew |
31 |
Manager |
Wallenius Marine Singapore Pte Ltd. |
Operator |
Wallenius Wilhelmsen Logistics |
Owner |
Mark V Shipping Pte. Ltd. ( Wallenius Lines Operator) |
