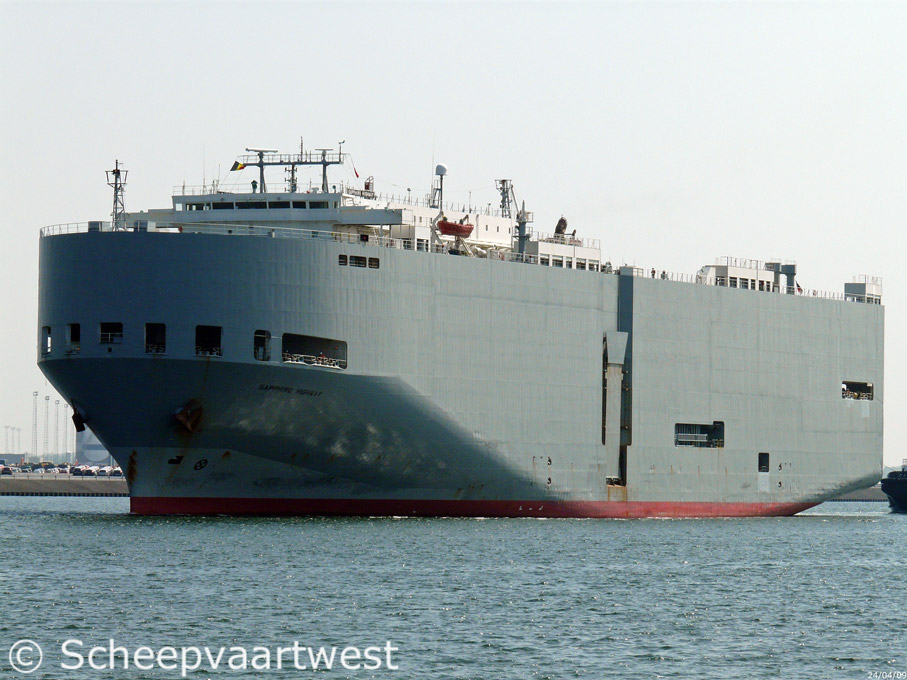

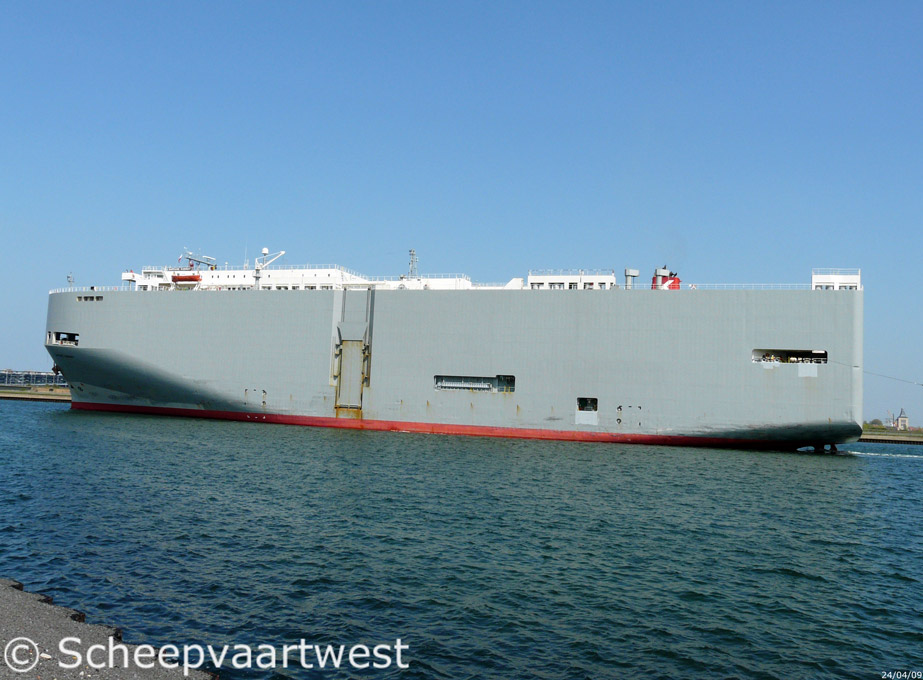

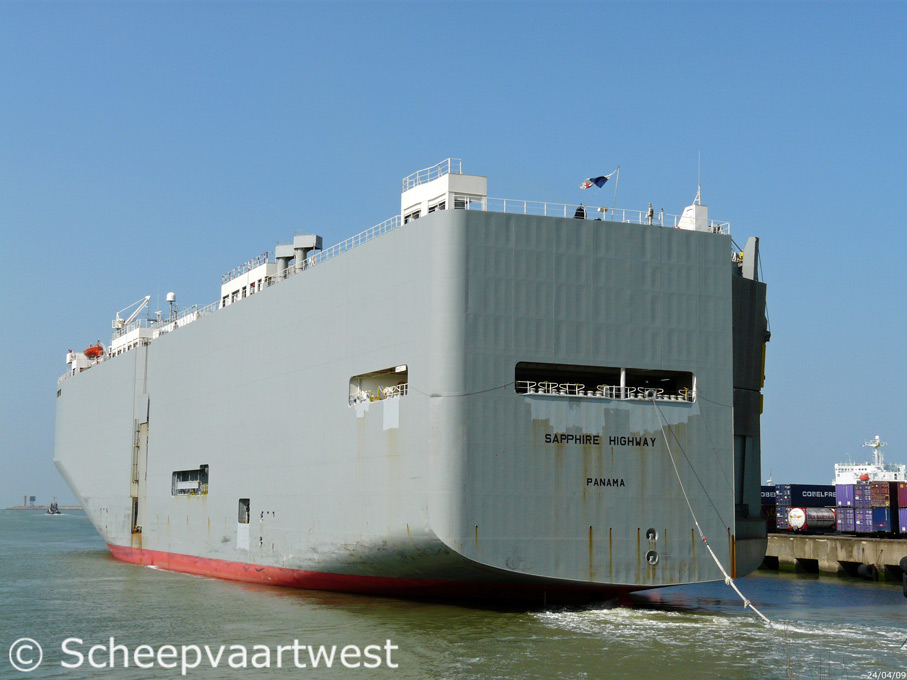

| Zeebrugge 24 April 2009 |
 |
 |
|
| Zeebrugge 24/04/09 | Zeebrugge 24/04/09 |
|
Name |
SAPPHIRE HIGHWAY |
|
Previous names |
1986-26.07.1994 London Highway |
|
Type |
Vehicles carrier |
|
IMO-number |
8610514 |
|
Call sign |
3FJV4 |
|
Flag |
Republic of Panama |
|
Previous flag |
1986-27.07.1994 Japan |
|
Port of registry |
Panama City |
|
GT |
49.098 t registered |
|
DWT |
14.657 t |
|
NT |
14.729 t registered |
|
Length |
179,00 m overall 170,00 m between perpendiculars 173,10 m registered |
|
Breadth |
32,20 m moulded |
|
Moulded L x B x D |
170,00 x 32,20 x 12,17 m |
|
Registered L x B x D |
173,10 x 32,20 x 21,41 m |
|
Draught |
Summer: 9,02 m |
|
Freeboard |
summer: 3.176 mm |
|
Depth |
33,81 m |
|
Speed |
Service: 19,0 knots Trial: 20,6 knots |
|
Built |
1986 |
|
Keel laid |
20.06.1986 |
|
Launch date |
01.10.1986 |
|
Date of completion |
18.12.1986 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. Japan |
|
Yard number |
2502 |
|
Hull type |
Single hull |
|
Main engine |
1x 2 stroke single acting 8 cylinder 600 x 1.944 mm diesel engine - 10.480 kW at 98,0 rpm Manufacturer: Kawasaki Heavy Industries, Ltd. |
|
Number of screws |
1 |
|
Boiler |
1x Auxiliary vertical boiler - 6,9 bar |
|
Generators |
4x Main diesel generatorsets each 2.911 kVA |
|
Car capacity |
5.616 |
|
Tank capacities |
Fuel oil : 2.849 m³ Fresh water: 352 m³ Water ballast: 5.638 m³ |
|
Lifting equipment |
2x Cranes - SWL 4,0 t each |
|
Crew |
21 |
|
Manager |
Taiyo Nippon Kisen Co. Ltd. 2-2-3, Kaigan-Dori, Chuo-Ku |
|
Operator |
K-Line |
|
Owner |
Spica Express S.A. |
|
Registered Owner |
Spica Express S.A. |
