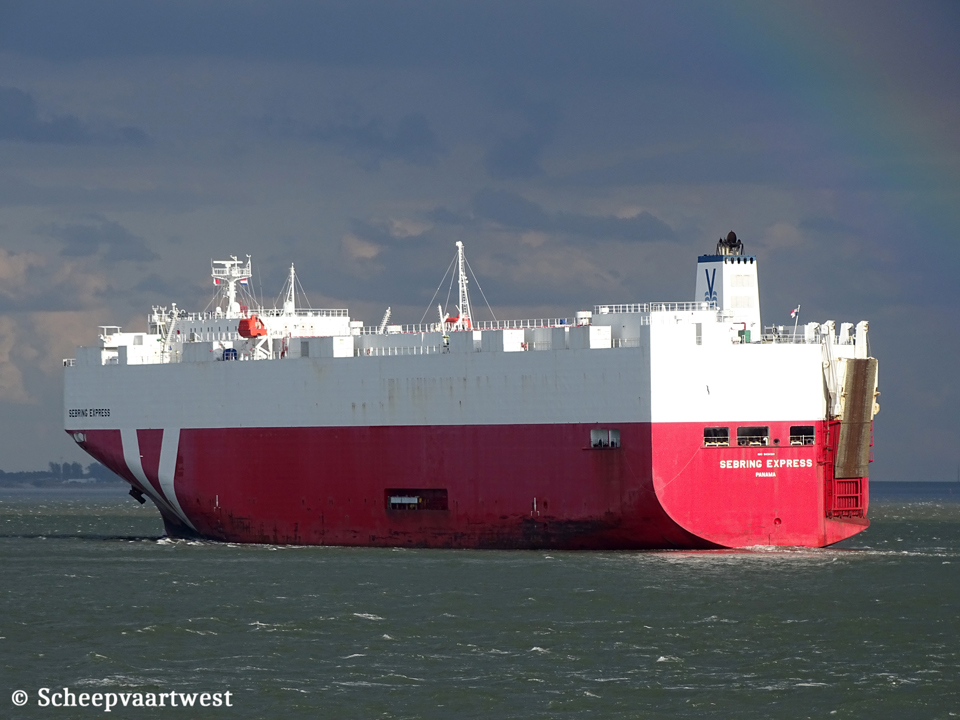

| Westerschelde 05 Februaru 2020 |
 |
 |
 |
 |
 |
 |
|||||

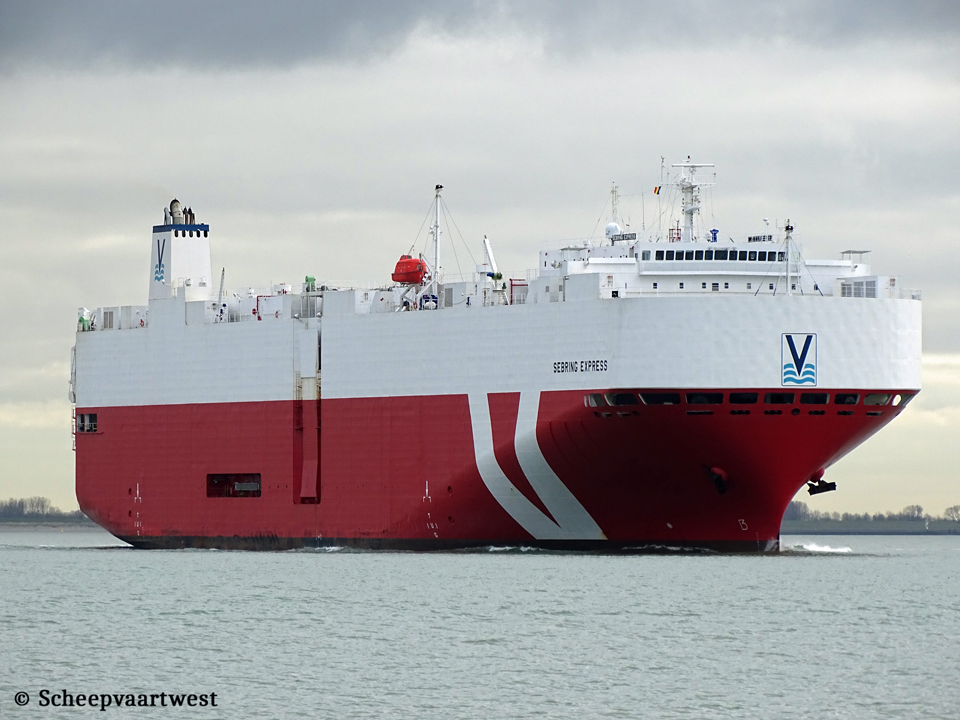

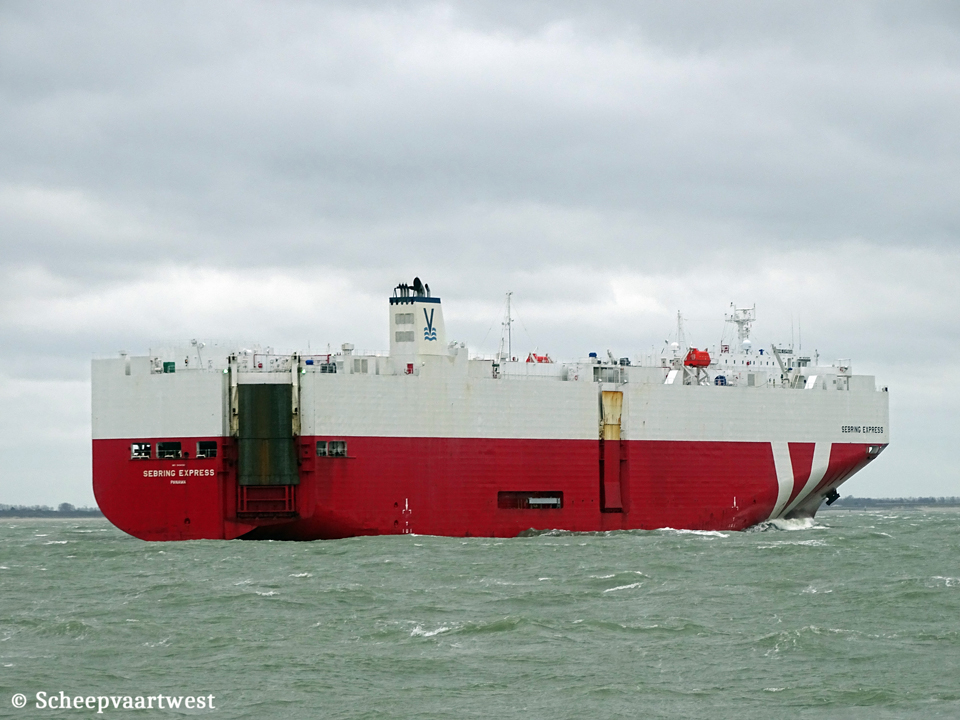

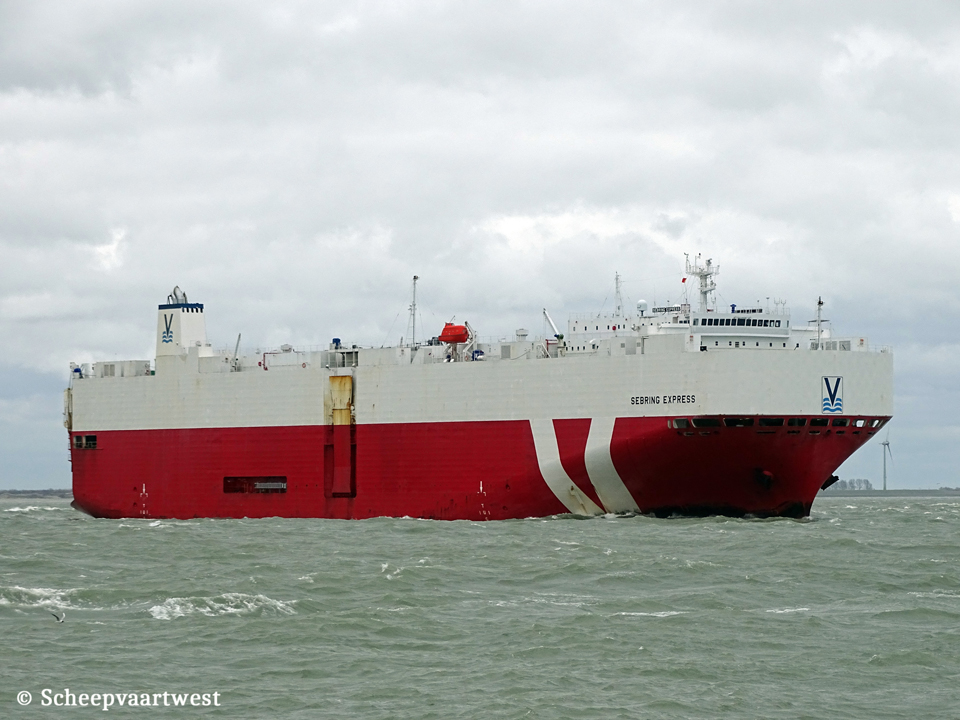

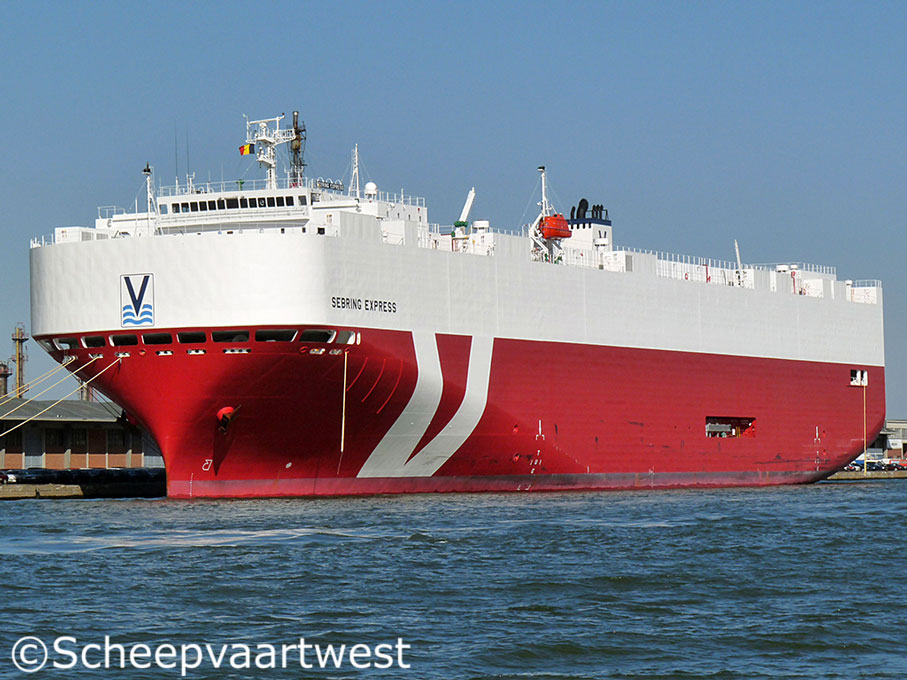

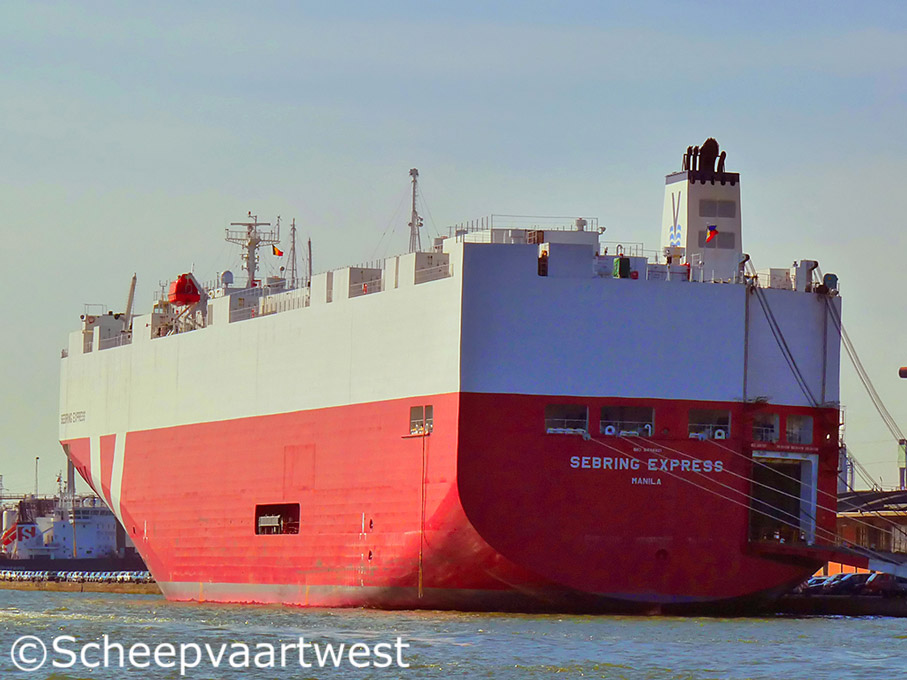

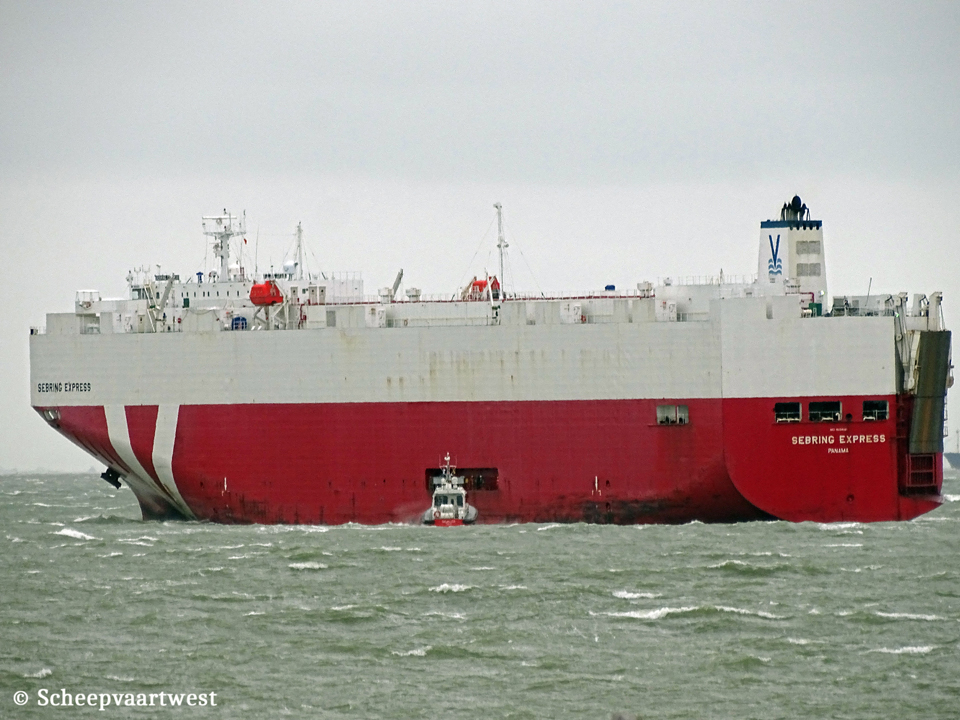

| Antwerpen 06/04/10 | Antwerpen 06/04/10 | Westerschelde 24/04/19 | Westerschelde 16/03/19 | Westerschelde 16/03/19 | Westerschelde 16/03/19 | |||||
|
Name |
SEBRING EXPRESS |
|
Previous names |
Suzuka Express |
|
Type |
Vehicles carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9434321 |
|
Call sign |
9HA5344 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2009 - 2014 Philippines, Manila - Call sign:DUBV 2014 - 2020 Republic of Panama, Panama City - Call sign: HP7667 |
|
GT |
43.810 t registered |
|
DWT |
15.154 t |
|
NT |
13.143 t registered |
|
Length |
180,00 m overall |
|
Breadth |
30,00 m |
|
Draught |
9,22 m |
|
Moulded L x B x D |
171,70 x 30,00 x 13,10 m |
|
Registered L x B x D |
174,34 x 30,00 x 20,13 m |
|
Keel to mast end |
44,94 m |
|
Freeboard |
Summer: 3.913 mm |
|
Depth |
13,10 m moulded |
|
Speed |
Full speed: 19,9 knots Eco speed: 16,5 knots Super slow: 13,0 knots |
|
Built |
2009 |
|
Keel laid |
10/10/2008 |
|
Launch date |
11/04/2009 |
|
Date of completion |
28/08/2009 |
|
Builder |
Mitsubishi Heavy Industries Ltd. Shimonoseki Shipyard & Machinery Works Japan |
|
Yard number |
1113 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi 8UEC50LSII - 2 stroke single acting 8 cylinder 500 x 1.950 mm combustion engine 11.560 kW at 127,0 rpm Manufacturer: Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works Japan |
|
Number of screws |
1x Fixed pitch propeller |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 560 mm |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 2,05 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Main diesel generatorsets each 3.500 kVA |
|
Bow thruster |
1x 1.230 kW |
|
Cargo capacity |
RT 43 Units: 3.930 |
|
Ramps |
2 1x Stern ramp: 30,00 x 7,00 m - 100 t 1x Side ramp: 17,00 x 4,50 m - 15 t |
|
Decks |
2x Lift able decks |
|
Total deck area |
35.430 m² |
|
Tank capacities |
Fuel oil: 2.571 m³ Fresh water: 471 m³ |
|
Lifting equipment |
1x Crane - SWL 2,0 t 2x Cranes - SWL 4,0 t each |
|
Commerical manager |
Vroon BV Lage Mosten 17 4822 NJ Breda The Netherlands |
|
ISM manager |
Fleet management Limited 27th Floor, South Island Place, 8, Wong Chuk Hang Road, Southern Hong Kong China |
|
Registered owner |
West Sea B.V. Care of Vroon BV Lage Mosten 17 4822 NJ Breda The Netherlands |
|
Renamed |
08/2022 Sebring Malta, Valletta - Call sign: 9HA5344 Owner: Sebring Shipping Limited Manager: Fleet Management Limited |
|
Latest data adjustment |
28 September 2022 |
