| Zeebrugge 10 June 2008 |
 |
| Zeebrugge 18/03/09 |
|
Name |

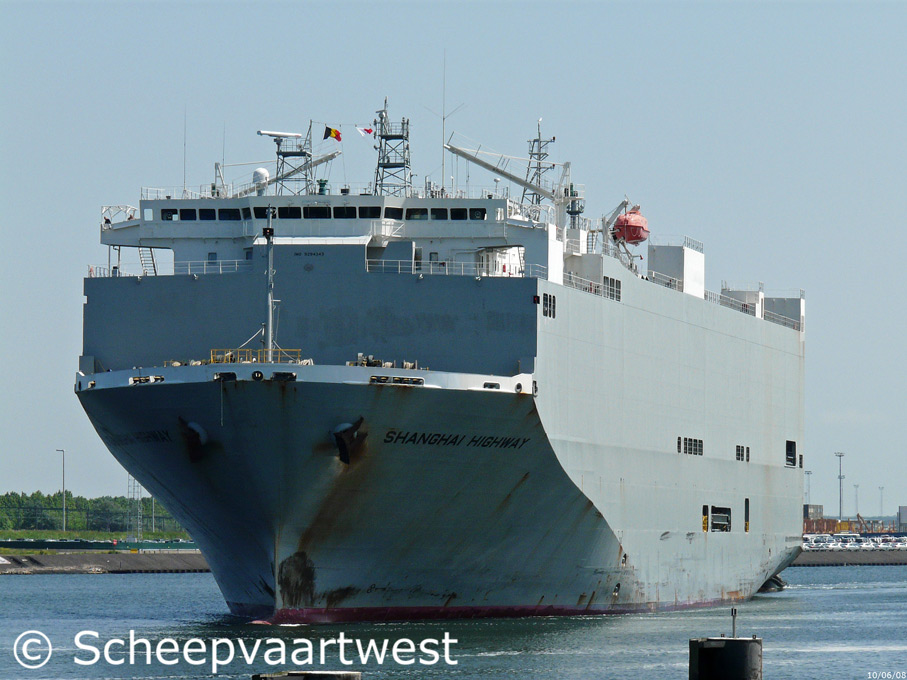

SHANGHAI HIGHWAY |
|
Type |
Vehicles Carrier |
|
IMO-number |
9294343 |
|
Call sign |
3ECE2 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
48.927 t |
|
DWT |
15.413 t |
|
NT |
14.679 t |
|
Length |
179,99 m overall |
|
Breadth |
32,20 m overall |
|
Moulded L x B x D |
167,00 x 32,20 x 14,98 m |
|
Registered L x B x D |
168,95 x 32,20 x 21,42 m |
|
Draught |
Summer: 9,417 m |
|
Freeboard |
Summer: 5.594 mm |
|
Depth |
14,98 m moulded |
|
Speed |
Service: 20,0 knots Trial: 22,4 knots |
|
Built |
2005 |
|
Keel laid |
21.03.2005 |
|
Launch date |
01.06.2005 |
|
Date of completion |
26.08.2005 |
|
Builder |
Nacks Nantong Cosco KHI |
|
Yard number |
1553 |
|
Hull type |
Single hull |
|
Main engine |
1x Kawasaki - 2 stroke single acting 7 cylinder 600 x 2.400 diesel engine - 12.500 kW at 99,0 rpm Manufacturer: Kawasaki Heavy Industries Ltd. |
|
Number of screws |
1 |
|
Boiler |
1x Auxiliary vertical boiler - 9,0 bar Evaporation: 4,74 t/h Manufacturer: Osaka Boiler Mfg. Co. Ltd. |
|
Generators |
4x Main diesel generatorsets each 3.017 kVA |
|
Capacity Cars/Trucks |
5.036 / 247 |
|
Car decks |
12 |
|
Ramp capacity |
100 t |
|
Max. height |
5,00 m |
|
Tank capacities |
Fuel oil: 2.956 m³ Fresh water: 516 m³ Water ballast: 7.585 m³ |
|
Lifting equipment |
2x Cranes - SWL 4,0 t each |
|
Crew |
22 |
|
Manager |
Taiyo Nippon Kisen Co. Ltd. |
|
Shipping company |
Kawasaki Kisen Kaisha (K-Line) |
|
Owner as Completed |
Skipjack Marine S.A. |
|
Registered owner |
Skipjack Marine SA Republic of Panama |
