Name |

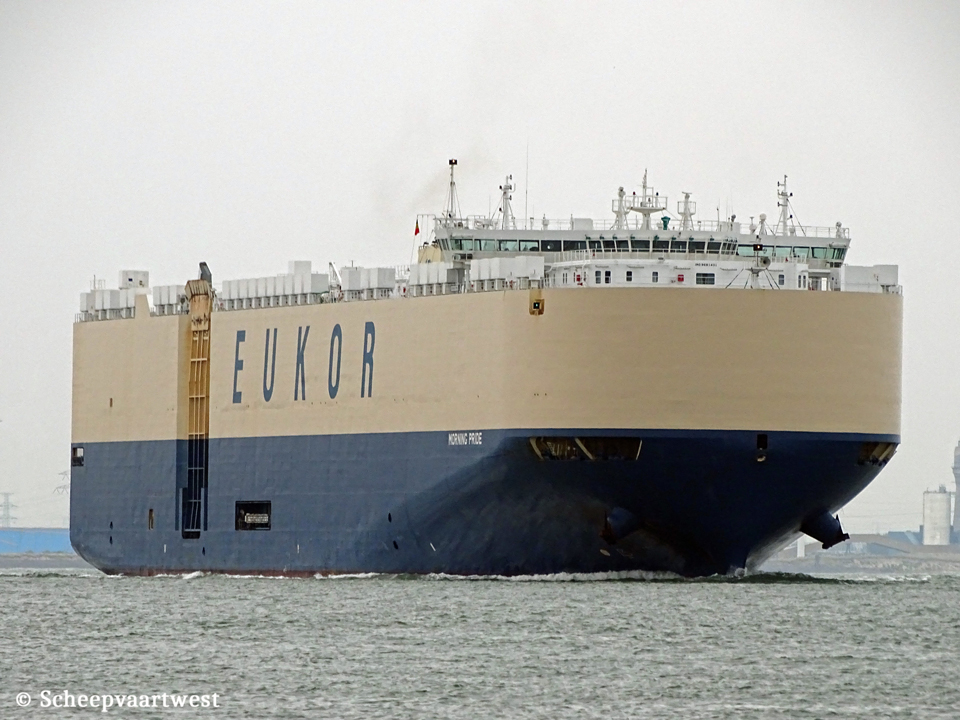

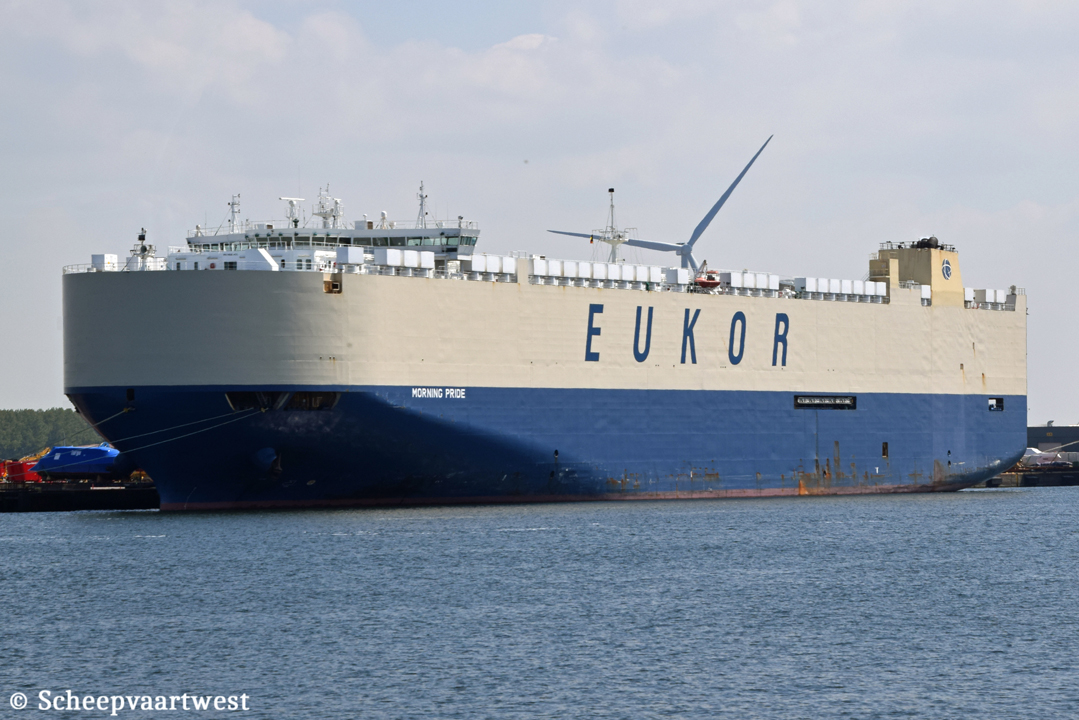

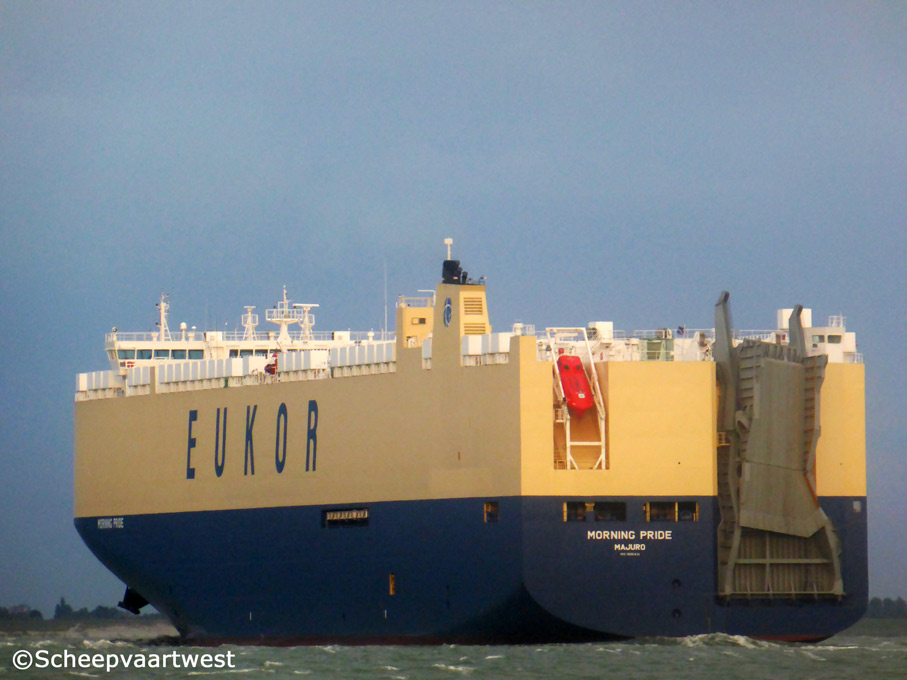

MORNING PRIDE |
|
Type |
Roll-On/Roll-Off vehicles carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9681431 |
|
Call sign |
V7FM4 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
65.276 t |
|
DWT |
22.674 t |
|
NT |
25.639 t |
|
Length |
199,97 m overall 191,00 m between perpendiculars |
|
Breadth |
35,43 m extreme |
|
Draught |
10,52 m |
|
Reg. Dimensions L x B x D |
194,33 x 35,40 x 20,38 m |
|
Rule Dimensions L x B x D |
188,80 x 35,40 x 14,20 m |
|
Freeboard |
2.414 mm |
|
Depth |
20,38 m registered |
|
Speed |
20,0 knots |
|
Built |
2014 |
|
Keel laid |
02/09/2013 |
|
Launch date |
21/02/2014 |
|
Date of completion |
27/06/2014 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. Gunsan South Korea |
|
Yard number |
HGHI2629 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 8S60ME-C8.2 - 2 stroke single acting 8 cylinder 600 x 2.400 mm combustion engine 15.200 kW / 20.666 hp at 105,0 rpm Build: 26/07/2013 Builder: Hyundai Heavy Ind. Engine & Machinery, Ulsan - South Korea |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated (Exhaust Gas Economizer) - 11,7 kg/cm² Heating surface: 332,0 m² 1x Auxiliary boiler, oil/gas fired - 8,8 kg/cm² Heating surface: 30,2 m² Build: 25/07/2013 Builder: Kangrim Heavy Ind.Co.,Ltd., Changwon - South Korea |
|
Shaft generator |
3x Himsen 6H25/33 main diesel generatorsets 1.625 kVA / 450 Volt Builder: Hyundai Engine & Machinery Co. Ltd. |
|
Generators |
1x Sisu 634 DSBIG diesel generatorset Builder: AGCO Sisu Power, GenPowex |
|
Car capacity |
7.627 |
|
Number of ramps |
2 |
|
Tank capacities |
Fuel oil: 3.776,1 m³ Fresh water: 293,9 m³ Water ballast: 9.526,6 m³ |
|
Anchor equipment |
Length: 687,50 m Diameter: 84 mm |
|
Commercial manager |
EUKOR Car Carriers Inc. 28th Floor, Lotte World Tower, 300, Olympic-ro, Songpa-gu Seoul, 05551 South Korea |
|
ISM manager |
Wilhelmsen Ship Management (Korea) Ltd. 10th Floor, Marine Center Building 52, Chungjang-daero 9beon-gil, Jung-gu Busan, 48936 South Korea |
|
Registered owner |
Pride International Associates - Marshall Islands Care of EUKOR Car Carriers Inc. 28th Floor, Lotte World Tower, 300, Olympic-ro, Songpa-gu Seoul 05551 South Korea |
|
Previous owners |
2014 - 2014 Eukor Car Carriers Inc. 2014 - 2014 International S.A |
|
Latest data adjustment |
12 September 2024 |
