Name |

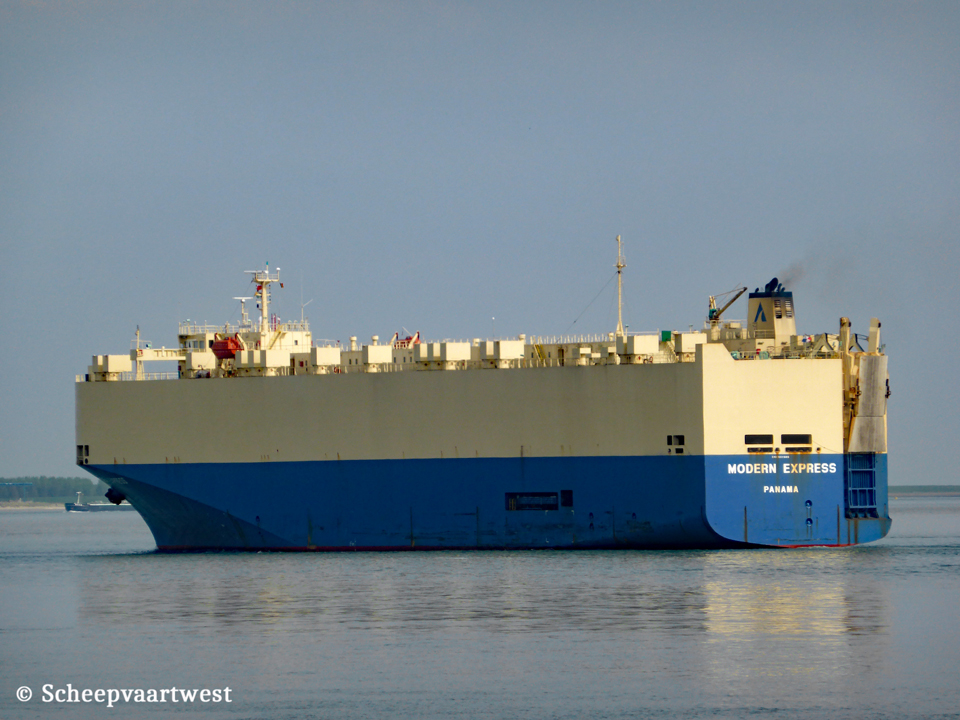

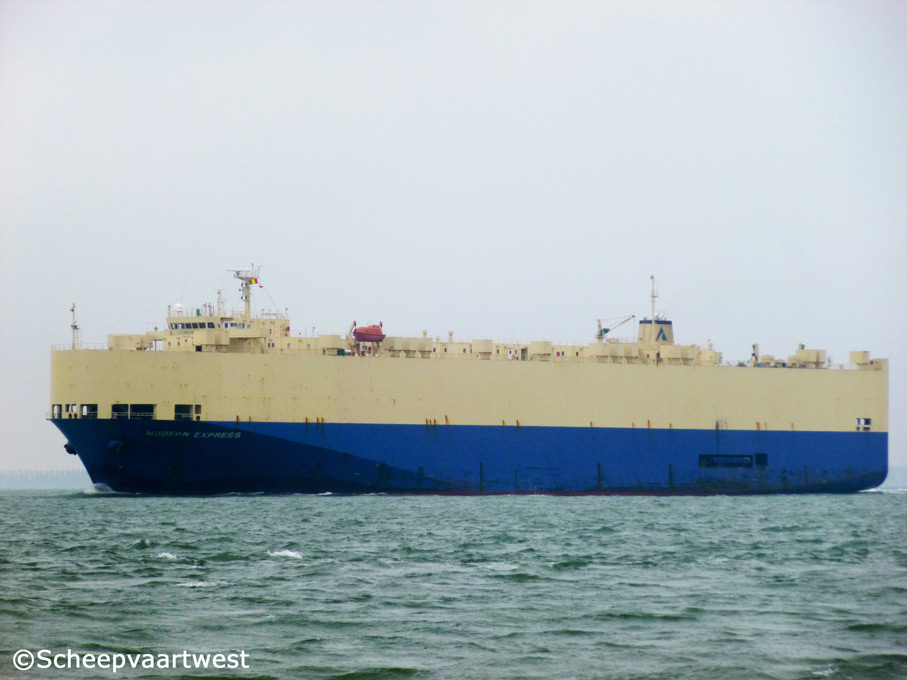

MODERN EXPRESS |
|
Type |
Roll-On/Roll-Off vehicles carrier PCC - Pure Car Carrier |
|
IMO-number |
9231688 |
|
Call sign |
H9DG |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
33.831 t |
|
DWT |
Summer: 10.817 t |
|
Length |
164,00 m overall |
|
Breadth |
28,00 m |
|
Draught |
8,72 m |
|
Reg. Dimensions L x B x D |
158,57 x 28,00 x 18,92 m |
|
Rule dimensions L x B x D |
154,24 x 28,00 x 29,25 m |
|
Freeboard |
3.967 mm |
|
Depth |
18,92 m registered |
|
Speed |
19,0 knots |
|
Built |
2001 |
|
Keel laid |
04/09/2000 |
|
Launch date |
10/03/2001 |
|
Date of completion |
28/05/2001 |
|
Builder |
Shina Shipbuilding Co, Ltd. Yeosu South Korea |
|
Yard number |
SAS-408 |
|
Hull material |
Steel |
|
Watertight bulkheads |
Transverse: 5 |
|
Main engine |
1x MAN-B&W/Hyundai 7S60MC - 2 stroke single acting 7 cylinder 500 x 1.910 mm combustion engine output 9.988 kW / 13.570 hp at 127,0 rpm Built: 02/2001 Builder: Hyundai Heavy Ind. Engine & Machinery, Ulsan - South Korea |
|
Propellers |
1 |
|
Boilers |
Built: 10/2000 Builder: Miura Co., Ltd., Matsuyama - Japan |
|
Generators |
3x Main diesel generatorsets each 950 kVA - 450 Volt |
|
Car capacity |
3.578 |
|
Ramps |
Stern quarter ramp Stbd - SWL 80 t Side ramp Stbd - SWL 20 t Max clear height: 5,00 M |
|
Tank capacities |
Fuel oil: 2.253,1 m³ Fresh water: 287,1 m³ Water ballast: 4.496,1 m³ |
|
Manager |
Cido Shipping (H.K.) Co., Ltd. Hong Kong China |
|
Technical manager |
Cido Shipping(Korea) Co., Ltd. (Pusan Site) Souith Korea |
|
Registered owner |
Dynamic Ambitious Shipping S.A. |
|
Scrapped |
31/10/2016 Beached at Alang - India |
|
Latest data adjustment |
26 October 2014 |
