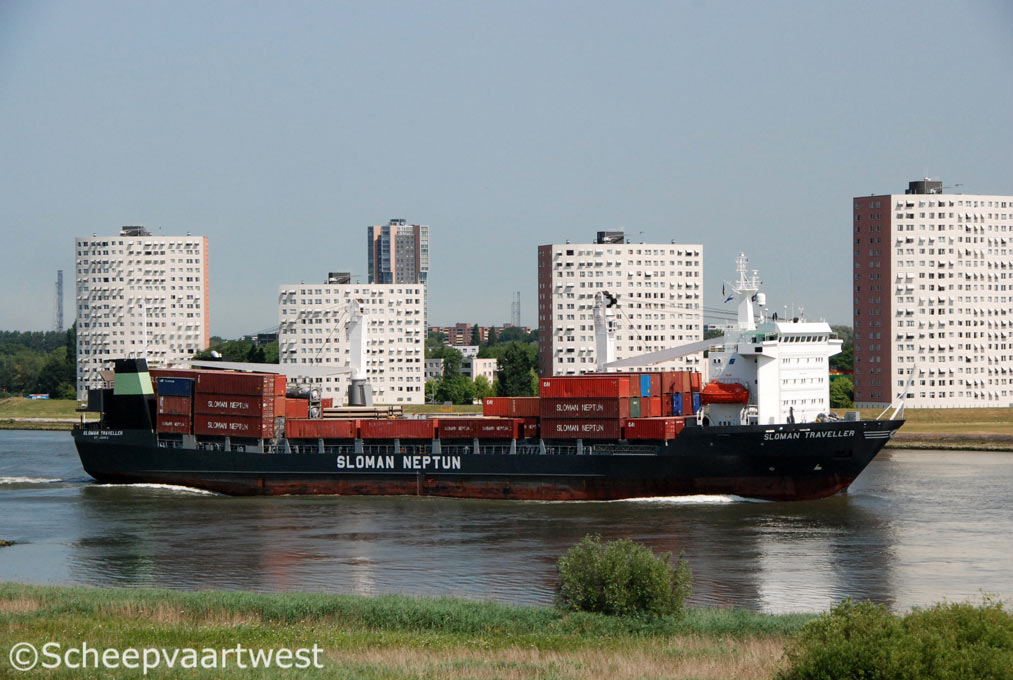

Sloman Traveller 02
Spijkenisse 10 July 2010

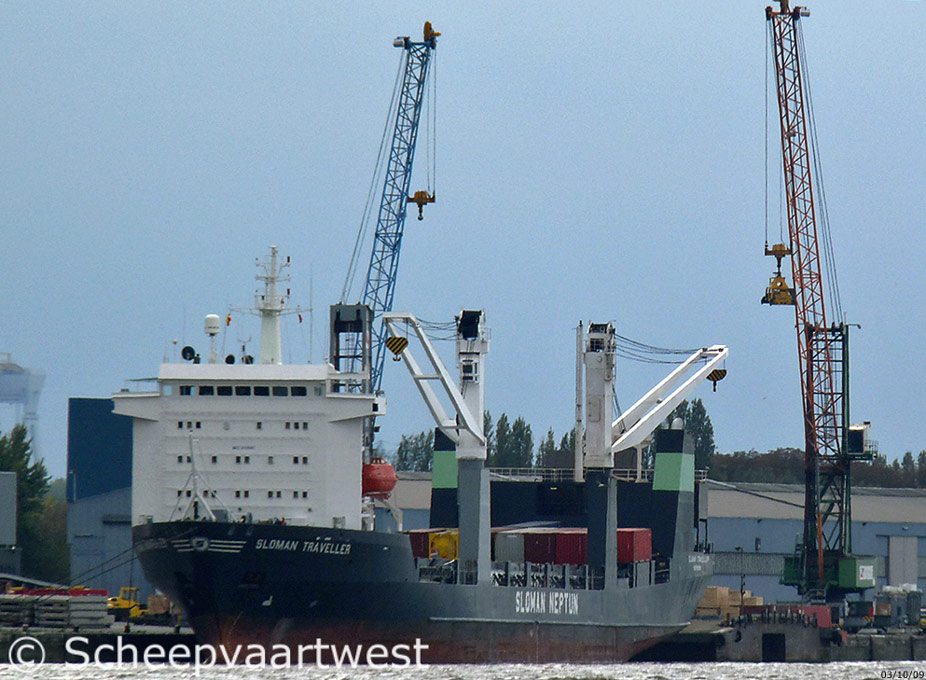

Sloman Traveller 01
Antwerpen 03/10/09



Name

SLOMAN TRAVELLER

Previous names

1984 Sagittarius

1984 Gitta

1985 Sagittarius

1988 Tropic Reef

1988 Tropic Reign

1994 Elsborg

1998 Tropic Reign

2000 Sloman Traveller

Type

Roll-On/Roll-Off vessel

Roll-On/Roll-Off container ship

IMO-number

8214401

Call sign

DEDS

Flag

Germany

Previous flags

West Germany

1988 Cyprus

1988 Panama

1997 Singapore

1998 St. Vincent

Antigua

Port of registry

Bremen

GT

7.947 t

DWT

9.950 t

NT

3.710 t

Number of 20ft contaiers

Container capacity (deck): 318
Reefer capacity (deck): 40
Container capacity (holds): 250
Total container capacity: 568
Also fitted to carry 40' units in holds and on deck

Length

128,84 m overall

115,15 m between perpendiculars

Breadth

20,50 m overall

20,16 m moulded

Draught

8,21 m

Freeboard

3.515 mm

Depth

11,71 m

Speed

15,6 knots

Built

1984

Launch date

11.11.1983

Date of completion

01.01.1984

Builder

Neue Schlichting Werft

Travemunde
Lubeck
Germany

Yard number

1465

Hull material

Steel

Hull type

Single hull

Watertight compartments

5

Continuous decks

2

Main engine

1x MaK 8M552AK - 4 stroke 8 cylinder internal combustion engine - 4.412 kW / 5.994 hp at 514 rpm

Built: 1983

Licence: Krupp MaK Maschinenbau GmbH, kiel - Germany

Electrical propulsion gen.

1x 1.026 kW

Propellers

1x Screw propeller controllable pitch at 123 rpm

Boilers

1x CHM Aalborg 19,00 m² - 9,0 bar
1x CHR Aalborg 34,00 m² - 9,0 bar

Electrical installation

Power voltage: 380 V

Lighting voltage: 220 V

Generators

3x Main diesel generatorsets each 410 kVA - 328 kW

Number of holds

1

Dry cargo capacity

13.247 m³

Total capacity of holds

13.878 m³

Number of hatch covers

3

1x 18,90 m x 15,40 m

1x 37,80 m x 15,40 m

1x 25,50 m x 15,40 m

Stern door/ramp

13,00 m x 8,00 m
Max vehicle height: 5,20 m
Max vehicle width: 8,20 m

Vehicle capacity

38 trailers

Total lane storage

525 m

Cargo handling

2x Cranes - SWL 36,0 t each

Fuel capacity

1.016 m³

Manager

Sloman Neptun
Schiffahrts-Aktiengesellschaft
Langenstr. 44
28195 Bremen

Operator

Sloman Neptun

Owner

First Traveller Shipping Co.Ltd.
